💡 先说说我被Seata"坑惨"的经历

我们第一次在电商系统用Seata，上线第一天就爆了全局锁死锁。用户下单，库存扣了，订单也生成了，但回滚时发现全局锁被别的订单占用，结果数据不一致。

去年搞金融系统，用了Seata AT，结果发现undo_log表爆炸性增长，一天1000万条记录，磁盘报警。排查发现是全局事务没及时提交，undo_log堆积如山。

上个月搞多数据源配置，用Seata代理数据源，结果发现某些复杂SQL不兼容，业务SQL执行报错。更坑的是，有次网络抖动，TC和TM断连，导致部分事务悬挂，数据状态不一致。

这些事让我明白：不懂Seata AT原理的程序员，就是在用框架埋雷，早晚要炸。

✨ 摘要

Seata AT模式是基于XA协议演进的分布式事务解决方案，通过全局锁+本地锁机制实现强一致性。本文深度解析AT模式的全局事务、分支事务、行锁原理，揭秘两阶段提交的具体实现。通过完整电商订单实战，对比AT、TCC、Saga模式的性能差异，提供全局锁优化、undo_log清理、数据源代理等核心问题的解决方案。包含企业级配置模板、性能调优数据和故障排查手册。

1. 为什么选择Seata AT模式？

1.1 从XA的痛苦说起

先看个XA的典型问题，我们的支付系统经历：

// 传统的XA实现
@Service
public class PaymentServiceXA {

@Transactional
public void pay(String orderId) {
// 1. 扣减库存（MySQL XA）
jdbcTemplate.update("UPDATE inventory SET stock = stock – 1 WHERE product_id = ?", 1001);

// 2. 创建订单（MySQL XA）
jdbcTemplate.update("INSERT INTO orders(order_id, status) VALUES(?, 'CREATED')", orderId);

// 3. 记录支付（Oracle XA，跨数据库）
jdbcTemplate2.update("INSERT INTO payment(order_id, amount) VALUES(?, 100.00)", orderId);
}
}

代码清单1：传统XA实现

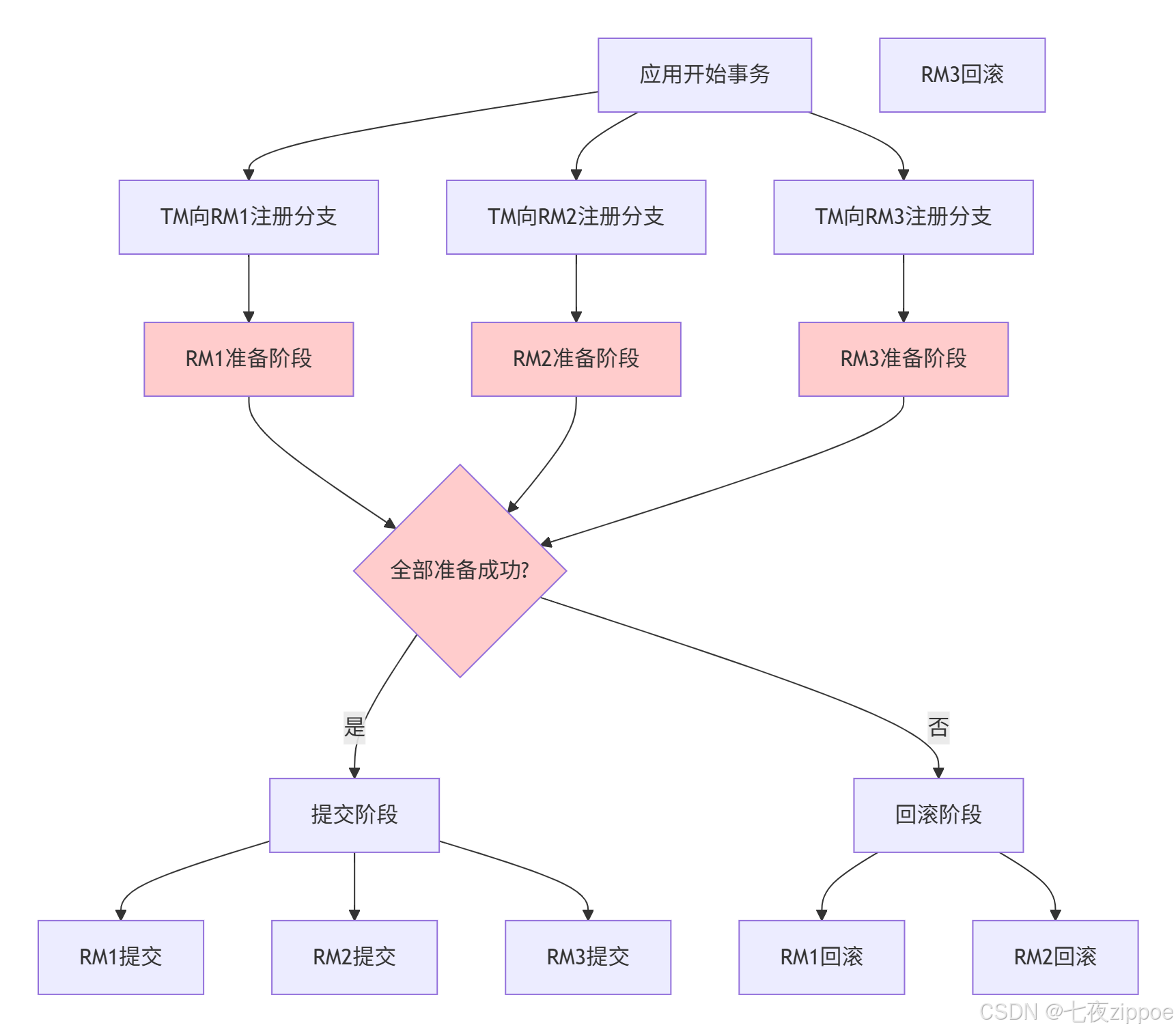

用图表示XA的问题：

图1：XA事务的问题

XA的核心问题：

1.2 Seata AT的优势

Seata AT模式改进了这些问题：

// Seata AT实现
@Service
public class PaymentServiceSeata {

@GlobalTransactional
public void pay(String orderId) {
// 1. 扣减库存
jdbcTemplate.update("UPDATE inventory SET stock = stock – 1 WHERE product_id = ?", 1001);

// 2. 创建订单
jdbcTemplate.update("INSERT INTO orders(order_id, status) VALUES(?, 'CREATED')", orderId);

// 3. 记录支付
jdbcTemplate2.update("INSERT INTO payment(order_id, amount) VALUES(?, 100.00)", orderId);
}
}

代码清单2：Seata AT实现

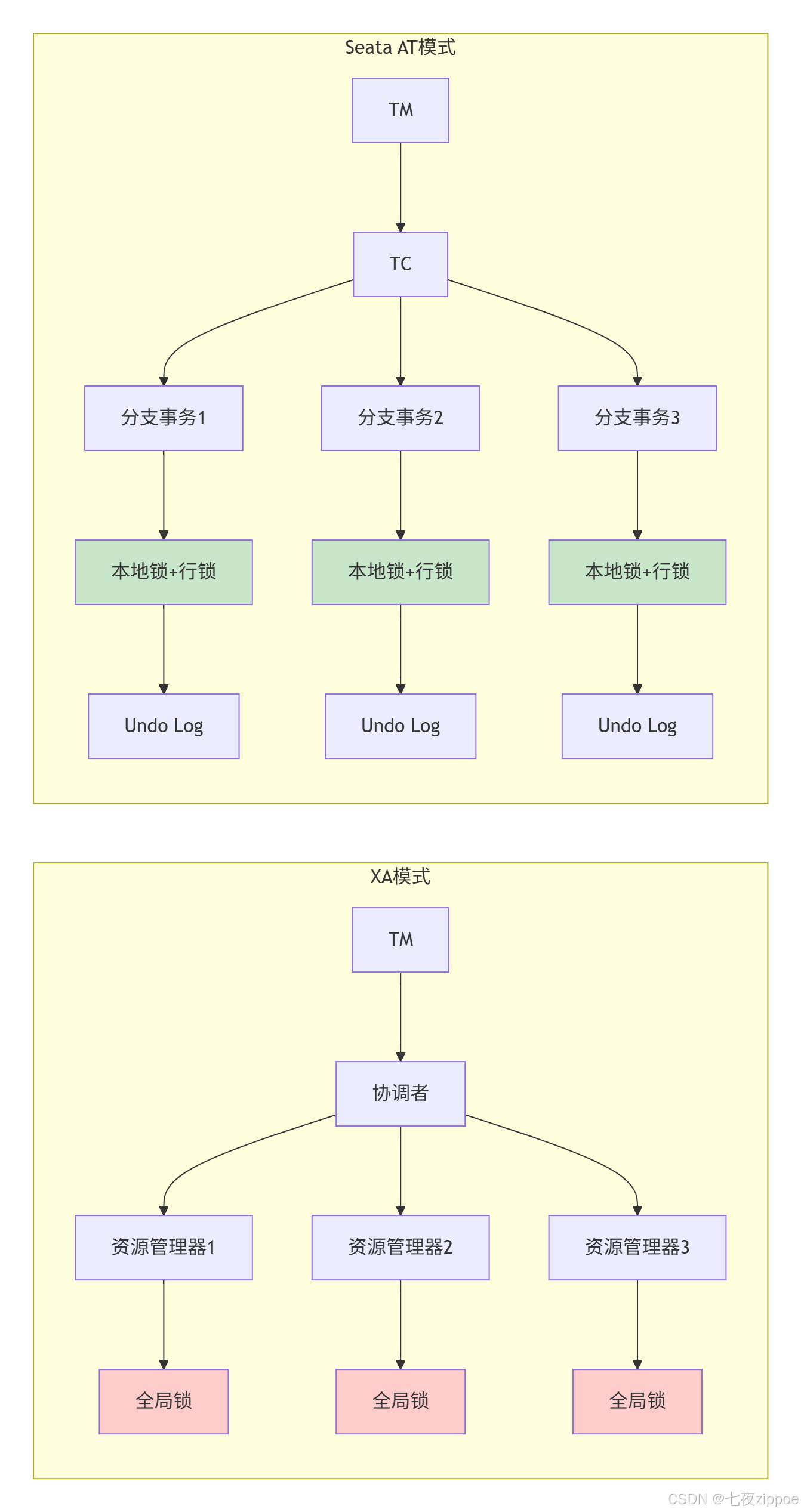

对比图：

图2：XA vs Seata AT架构对比

Seata AT的优势：

维度

XA

Seata AT

优势

2. AT模式核心原理

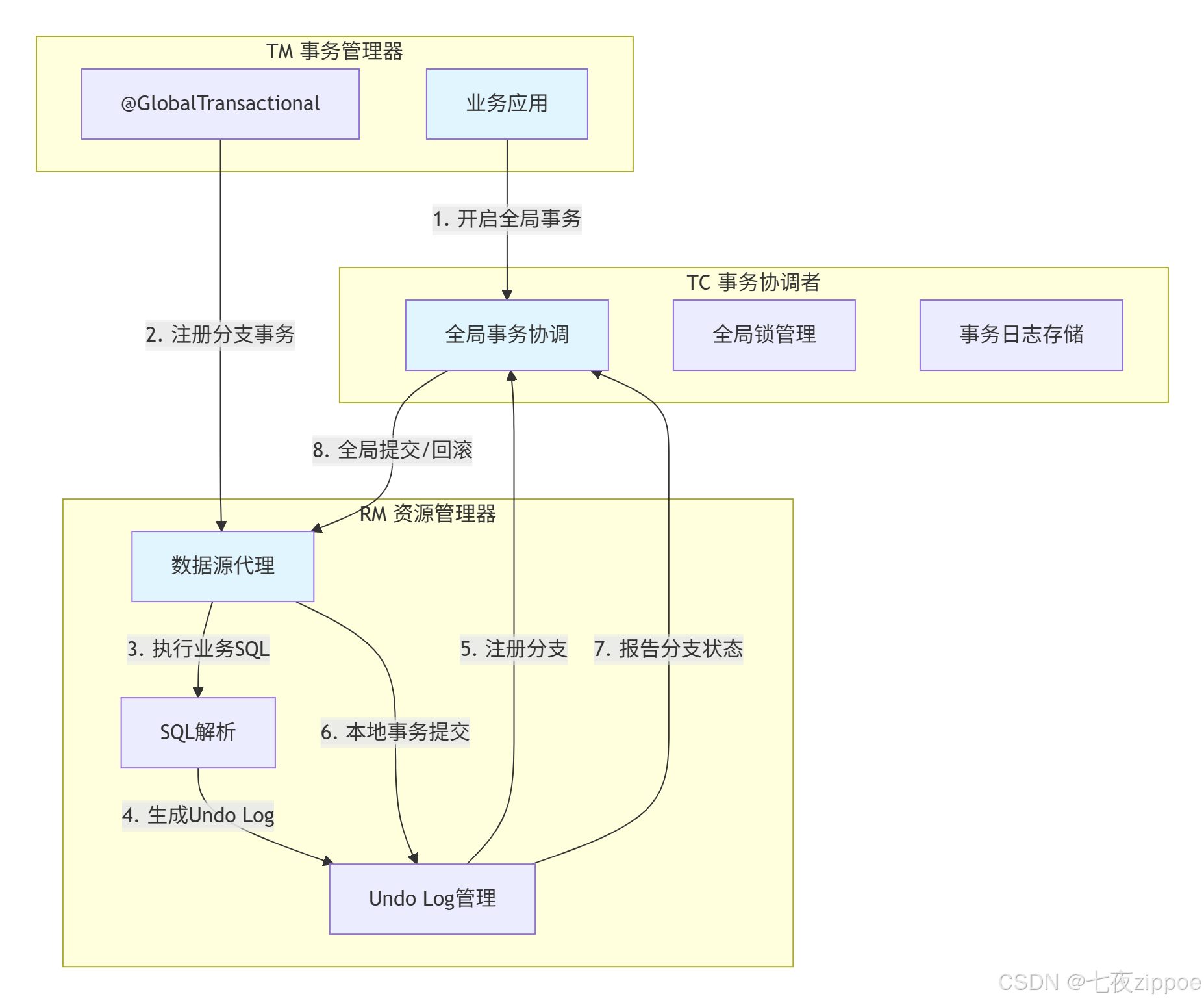

2.1 整体架构

Seata AT模式的三大组件：

图3：Seata AT架构图

2.2 两阶段提交实现

第一阶段：提交前

// 数据源代理的核心实现
public class DataSourceProxy extends AbstractDataSourceProxy {

@Override
public ConnectionProxy getConnection() throws SQLException {
Connection targetConnection = targetDataSource.getConnection();

// 关键：包装Connection
return new ConnectionProxy(this, targetConnection);
}
}

public class ConnectionProxy implements Connection {

// 执行SQL时拦截
@Override
public PreparedStatement prepareStatement(String sql) throws SQLException {
PreparedStatement targetPreparedStatement =
targetConnection.prepareStatement(sql);

// 关键：包装PreparedStatement
return new PreparedStatementProxy(this, targetPreparedStatement, sql);
}
}

public class PreparedStatementProxy implements PreparedStatement {

// 执行Update时记录Undo Log
@Override
public int executeUpdate() throws SQLException {
// 1. SQL解析
SQLRecognizer sqlRecognizer = SQLVisitorFactory.get(sql, dbType);

// 2. 查询前镜像
TableRecords beforeImage =
queryBeforeImage(sqlRecognizer, parameters);

// 3. 执行业务SQL
int result = targetPreparedStatement.executeUpdate();

// 4. 查询后镜像
TableRecords afterImage =
queryAfterImage(sqlRecognizer, parameters, beforeImage);

// 5. 生成Undo Log
UndoLog undoLog = buildUndoLog(
sqlRecognizer, beforeImage, afterImage);

// 6. 保存Undo Log
insertUndoLog(undoLog);

return result;
}
}

代码清单3：数据源代理实现

第二阶段：提交/回滚

// TC协调全局事务
@Service
public class DefaultCoordinator {

// 全局提交
public void doGlobalCommit(GlobalSession globalSession) {
// 获取所有分支
List<BranchSession> branchSessions =
globalSession.getSortedBranches();

for (BranchSession branchSession : branchSessions) {
try {
// 异步提交分支
boolean result = remotingClient.sendAsyncRequest(
branchSession.getResourceId(),
BranchCommitRequest.of(branchSession.getBranchId()));

if (!result) {
// 提交失败，记录重试
globalSession.addRetryCommit(branchSession);
}
} catch (Exception e) {
log.error("提交分支事务失败", e);
globalSession.addRetryCommit(branchSession);
}
}
}

// 全局回滚
public void doGlobalRollback(GlobalSession globalSession) {
// 反向回滚分支
List<BranchSession> branchSessions =
globalSession.getReverseSortedBranches();

for (BranchSession branchSession : branchSessions) {
try {
// 查询Undo Log
UndoLog undoLog = queryUndoLog(branchSession);

// 执行补偿SQL
executeCompensateSQL(undoLog);

// 删除Undo Log
deleteUndoLog(undoLog);

} catch (Exception e) {
log.error("回滚分支事务失败", e);
globalSession.addRetryRollback(branchSession);
}
}
}
}

代码清单4：TC协调器实现

2.3 Undo Log设计

Undo Log是AT模式的核心：

— Undo Log表结构
CREATE TABLE undo_log (
id BIGINT(20) NOT NULL AUTO_INCREMENT,
branch_id BIGINT(20) NOT NULL COMMENT '分支事务ID',
xid VARCHAR(100) NOT NULL COMMENT '全局事务ID',
context VARCHAR(128) NOT NULL COMMENT '上下文',
rollback_info LONGBLOB NOT NULL COMMENT '回滚信息',
log_status INT(11) NOT NULL COMMENT '状态',
log_created DATETIME NOT NULL COMMENT '创建时间',
log_modified DATETIME NOT NULL COMMENT '修改时间',
PRIMARY KEY (id),
UNIQUE KEY ux_undo_log (xid, branch_id)
) ENGINE = InnoDB AUTO_INCREMENT = 1 DEFAULT CHARSET = utf8 COMMENT ='AT模式Undo Log表';

代码清单5：Undo Log表结构

Undo Log内容示例：

{
"branchId": 123456789,
"xid": "192.168.1.100:8091:1234567890",
"sqlType": "UPDATE",
"tableName": "inventory",
"beforeImage": {
"rows": [
{
"fields": [
{"name": "id", "type": 4, "value": 1},
{"name": "product_id", "type": 12, "value": "1001"},
{"name": "stock", "type": 4, "value": 100},
{"name": "version", "type": 4, "value": 1}
]
}
]
},
"afterImage": {
"rows": [
{
"fields": [
{"name": "id", "type": 4, "value": 1},
{"name": "product_id", "type": 12, "value": "1001"},
{"name": "stock", "type": 4, "value": 99},
{"name": "version", "type": 4, "value": 2}
]
}
]
},
"sql": "UPDATE inventory SET stock = stock – 1, version = version + 1 WHERE product_id = ?"
}

代码清单6：Undo Log数据结构

3. 完整实战案例

3.1 环境搭建

# seata-server配置
# registry.conf
registry {
type = "nacos"
nacos {
application = "seata-server"
serverAddr = "localhost:8848"
namespace = ""
cluster = "default"
}
}

config {
type = "nacos"
nacos {
serverAddr = "localhost:8848"
namespace = ""
group = "SEATA_GROUP"
}
}

# file.conf
service {
vgroupMapping.my_test_tx_group = "default"
default.grouplist = "127.0.0.1:8091"
enableDegrade = false
disableGlobalTransaction = false
}

store {
mode = "db"
db {
datasource = "druid"
dbType = "mysql"
driverClassName = "com.mysql.cj.jdbc.Driver"
url = "jdbc:mysql://localhost:3306/seata"
user = "root"
password = "password"
}
}

代码清单7：Seata Server配置

<!– Spring Boot依赖 –>
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-seata</artifactId>
<version>2021.1</version>
</dependency>

<dependency>
<groupId>io.seata</groupId>
<artifactId>seata-spring-boot-starter</artifactId>
<version>1.5.2</version>
</dependency>

代码清单9：Maven依赖

# application.yml
spring:
cloud:
alibaba:
seata:
tx-service-group: my_test_tx_group
enable-auto-data-source-proxy: true
use-jdk-proxy: false

seata:
enabled: true
application-id: order-service
tx-service-group: my_test_tx_group
enable-auto-data-source-proxy: true
config:
type: nacos
nacos:
namespace: ""
server-addr: localhost:8848
group: SEATA_GROUP
registry:
type: nacos
nacos:
application: seata-server
server-addr: localhost:8848
namespace: ""

代码清单10：客户端配置

3.2 电商订单实战

// 订单服务
@Service
@Slf4j
public class OrderService {

@Autowired
private OrderMapper orderMapper;

@Autowired
private InventoryService inventoryService;

@Autowired
private AccountService accountService;

// 创建订单 – AT模式
@GlobalTransactional(timeoutMills = 30000, name = "createOrder")
public OrderDTO createOrder(OrderRequest request) {
log.info("=== 开始创建订单，xid: {}", RootContext.getXID());

// 1. 创建订单
Order order = new Order();
order.setOrderNo(generateOrderNo());
order.setUserId(request.getUserId());
order.setAmount(request.getAmount());
order.setStatus(OrderStatus.CREATED);

orderMapper.insert(order);
log.info("创建订单成功，订单号: {}", order.getOrderNo());

// 2. 扣减库存
inventoryService.deductStock(request.getProductId(), request.getQuantity());

// 3. 扣减余额
accountService.deductBalance(request.getUserId(), request.getAmount());

// 4. 更新订单状态
order.setStatus(OrderStatus.PAID);
orderMapper.updateById(order);

log.info("订单创建完成，订单号: {}", order.getOrderNo());
return convertToDTO(order);
}

// 模拟异常，测试回滚
@GlobalTransactional(timeoutMills = 30000, name = "createOrderWithException")
public OrderDTO createOrderWithException(OrderRequest request) {
log.info("=== 开始创建订单（会异常），xid: {}", RootContext.getXID());

// 1. 创建订单
Order order = new Order();
order.setOrderNo(generateOrderNo());
order.setUserId(request.getUserId());
order.setAmount(request.getAmount());
order.setStatus(OrderStatus.CREATED);

orderMapper.insert(order);
log.info("创建订单成功，订单号: {}", order.getOrderNo());

// 2. 扣减库存
inventoryService.deductStock(request.getProductId(), request.getQuantity());

// 3. 这里会抛出异常，测试回滚
if (true) {
throw new RuntimeException("模拟业务异常，触发回滚");
}

// 4. 扣减余额（不会执行到）
accountService.deductBalance(request.getUserId(), request.getAmount());

return convertToDTO(order);
}
}

// 库存服务
@Service
@Slf4j
public class InventoryService {

@Autowired
private InventoryMapper inventoryMapper;

public void deductStock(Long productId, Integer quantity) {
log.info("=== 开始扣减库存，xid: {}", RootContext.getXID());

int result = inventoryMapper.deductStock(productId, quantity);
if (result <= 0) {
throw new RuntimeException("库存不足");
}

log.info("扣减库存成功，产品ID: {}, 数量: {}", productId, quantity);
}

// 库存Mapper
@Mapper
public interface InventoryMapper {
@Update("UPDATE inventory SET stock = stock – #{quantity}, " +
"version = version + 1 " +
"WHERE product_id = #{productId} AND stock >= #{quantity}")
int deductStock(@Param("productId") Long productId,
@Param("quantity") Integer quantity);
}
}

// 账户服务
@Service
@Slf4j
public class AccountService {

@Autowired
private AccountMapper accountMapper;

public void deductBalance(Long userId, BigDecimal amount) {
log.info("=== 开始扣减余额，xid: {}", RootContext.getXID());

int result = accountMapper.deductBalance(userId, amount);
if (result <= 0) {
throw new RuntimeException("余额不足");
}

log.info("扣减余额成功，用户ID: {}, 金额: {}", userId, amount);
}

// 账户Mapper
@Mapper
public interface AccountMapper {
@Update("UPDATE account SET balance = balance – #{amount}, " +
"version = version + 1 " +
"WHERE user_id = #{userId} AND balance >= #{amount}")
int deductBalance(@Param("userId") Long userId,
@Param("amount") BigDecimal amount);
}
}

代码清单11：电商订单服务实现

3.3 测试验证

@SpringBootTest
@Slf4j
class OrderServiceTest {

@Autowired
private OrderService orderService;

@Test
void testCreateOrderSuccess() {
OrderRequest request = new OrderRequest();
request.setUserId(1001L);
request.setProductId(2001L);
request.setQuantity(2);
request.setAmount(new BigDecimal("199.99"));

OrderDTO order = orderService.createOrder(request);

assertNotNull(order);
assertEquals(OrderStatus.PAID, order.getStatus());

// 验证数据一致性
verifyOrderConsistency(order.getOrderNo());
}

@Test
void testCreateOrderRollback() {
OrderRequest request = new OrderRequest();
request.setUserId(1001L);
request.setProductId(2001L);
request.setQuantity(2);
request.setAmount(new BigDecimal("199.99"));

// 应该抛出异常
assertThrows(RuntimeException.class, () -> {
orderService.createOrderWithException(request);
});

// 验证数据回滚
verifyRollback(request);
}

private void verifyOrderConsistency(String orderNo) {
// 验证订单是否存在
Order order = orderMapper.selectByOrderNo(orderNo);
assertNotNull(order);
assertEquals(OrderStatus.PAID, order.getStatus());

// 验证库存已扣减
Inventory inventory = inventoryMapper.selectByProductId(order.getProductId());
assertEquals(98, inventory.getStock()); // 假设原库存100

// 验证余额已扣减
Account account = accountMapper.selectByUserId(order.getUserId());
assertTrue(account.getBalance().compareTo(new BigDecimal("800.01")) == 0); // 假设原余额1000
}

private void verifyRollback(OrderRequest request) {
// 验证订单不存在
Order order = orderMapper.selectByUserIdAndProductId(
request.getUserId(), request.getProductId());
assertNull(order);

// 验证库存未扣减
Inventory inventory = inventoryMapper.selectByProductId(request.getProductId());
assertEquals(100, inventory.getStock()); // 库存应不变

// 验证余额未扣减
Account account = accountMapper.selectByUserId(request.getUserId());
assertEquals(new BigDecimal("1000.00"), account.getBalance()); // 余额应不变
}
}

代码清单12：单元测试

4. 核心机制深入解析

4.1 全局锁实现

全局锁是AT模式的关键：

// 全局锁管理器
@Service
public class GlobalLockManager {

// 加全局锁
public boolean acquireLock(String tableName, String pkValue, String xid) {
// 检查是否已经有全局锁
if (checkLockExists(tableName, pkValue, xid)) {
// 锁被自己持有
return true;
}

// 检查锁冲突
if (checkLockConflict(tableName, pkValue)) {
// 锁冲突，等待或重试
return waitForLock(tableName, pkValue, xid);
}

// 加锁
return doAcquireLock(tableName, pkValue, xid);
}

private boolean checkLockConflict(String tableName, String pkValue) {
String sql = "SELECT xid FROM global_lock " +
"WHERE table_name = ? AND pk = ? " +
"AND xid != ? AND gmt_modified > DATE_SUB(NOW(), INTERVAL 10 MINUTE) " +
"FOR UPDATE";

try {
List<String> lockedXids = jdbcTemplate.queryForList(
sql, String.class, tableName, pkValue, RootContext.getXID());
return !lockedXids.isEmpty();
} catch (Exception e) {
// 死锁检测
if (isDeadLock(e)) {
throw new LockConflictException("检测到死锁", e);
}
return false;
}
}

// 锁等待策略
private boolean waitForLock(String tableName, String pkValue, String xid) {
int retryCount = 0;
int maxRetry = 3;
long waitTime = 100; // 初始等待100ms

while (retryCount < maxRetry) {
try {
Thread.sleep(waitTime);
} catch (InterruptedException e) {
Thread.currentThread().interrupt();
return false;
}

if (!checkLockConflict(tableName, pkValue)) {
return doAcquireLock(tableName, pkValue, xid);
}

retryCount++;
waitTime = waitTime * 2; // 指数退避
}

throw new LockTimeoutException("获取全局锁超时");
}
}

代码清单13：全局锁实现

4.2 SQL解析器

SQL解析是AT模式的核心：

// SQL解析器
@Component
public class SQLParser {

public SQLRecognizer parse(String sql, String dbType) {
// 解析SQL类型
SQLType sqlType = getSQLType(sql);

switch (sqlType) {
case INSERT:
return parseInsert(sql, dbType);
case UPDATE:
return parseUpdate(sql, dbType);
case DELETE:
return parseDelete(sql, dbType);
case SELECT_FOR_UPDATE:
return parseSelectForUpdate(sql, dbType);
default:
return null;
}
}

private UpdateRecognizer parseUpdate(String sql, String dbType) {
UpdateRecognizer recognizer = new UpdateRecognizer();

// 解析表名
String tableName = parseTableName(sql, "UPDATE", dbType);
recognizer.setTableName(tableName);

// 解析条件
String whereCondition = parseWhereCondition(sql, dbType);
recognizer.setWhereCondition(whereCondition);

// 解析更新列
List<String> updateColumns = parseUpdateColumns(sql);
recognizer.setUpdateColumns(updateColumns);

return recognizer;
}

// 生成前镜像查询SQL
public String generateBeforeImageSQL(SQLRecognizer recognizer,
List<Object> params) {
if (recognizer instanceof UpdateRecognizer) {
UpdateRecognizer updateRecognizer = (UpdateRecognizer) recognizer;

StringBuilder sql = new StringBuilder("SELECT ");

// 添加所有列
sql.append("* ");

// 添加表名
sql.append("FROM ").append(updateRecognizer.getTableName()).append(" ");

// 添加WHERE条件
if (StringUtils.isNotBlank(updateRecognizer.getWhereCondition())) {
sql.append("WHERE ").append(updateRecognizer.getWhereCondition());

// 添加FOR UPDATE
sql.append(" FOR UPDATE");
}

return sql.toString();
}

return null;
}
}

代码清单14：SQL解析器

4.3 两阶段提交详细流程

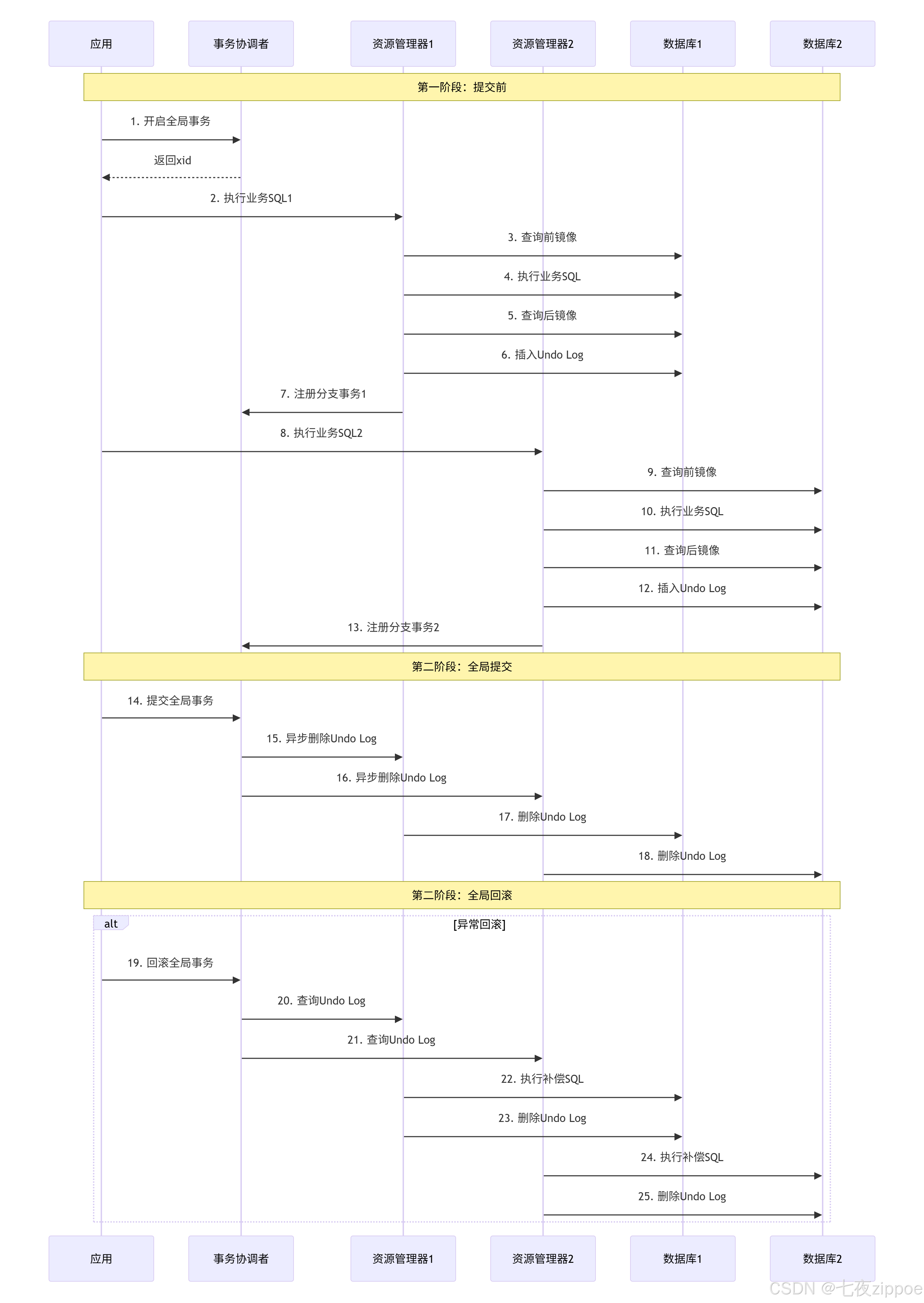

图4：Seata AT两阶段提交详细流程

5. 企业级实战案例

5.1 电商订单系统完整实现

// 订单服务增强版
@Service
@Slf4j
public class EnhancedOrderService {

// 创建订单（带重试）
@GlobalTransactional(timeoutMills = 60000,
name = "enhancedCreateOrder",
rollbackFor = Exception.class)
@Retryable(value = Exception.class,
maxAttempts = 3,
backoff = @Backoff(delay = 1000))
public OrderDTO createOrderWithRetry(OrderRequest request) {
log.info("创建订单开始，用户: {}, 产品: {}",
request.getUserId(), request.getProductId());

// 0. 参数校验
validateRequest(request);

// 1. 幂等校验
String idempotentKey = generateIdempotentKey(request);
if (!idempotentService.tryLock(idempotentKey, 5000)) {
throw new IdempotentException("重复请求");
}

try {
// 2. 创建订单
Order order = createOrderInternal(request);

// 3. 扣减库存
inventoryService.deductStockWithLock(
request.getProductId(),
request.getQuantity(),
order.getOrderNo());

// 4. 扣减余额
accountService.deductBalanceWithLock(
request.getUserId(),
request.getAmount(),
order.getOrderNo());

// 5. 更新订单状态
order.setStatus(OrderStatus.PAID);
orderMapper.updateById(order);

// 6. 发送订单创建事件
eventPublisher.publishOrderCreated(order);

log.info("创建订单成功，订单号: {}", order.getOrderNo());
return convertToDTO(order);

} finally {
// 释放幂等锁
idempotentService.unlock(idempotentKey);
}
}

// 分库分表支持
@GlobalTransactional(timeoutMills = 30000, name = "shardingCreateOrder")
public OrderDTO createOrderWithSharding(OrderRequest request) {
// 计算分片键
Long shardingKey = calculateShardingKey(request.getUserId());

// 设置分片上下文
ShardingContext.setShardingKey(shardingKey);

try {
// 创建订单
Order order = new Order();
order.setOrderNo(generateOrderNo());
order.setUserId(request.getUserId());
order.setShardingKey(shardingKey);
// … 其他字段

// 使用分片数据源
ShardingDataSource shardingDataSource =
dataSourceManager.getDataSource(shardingKey);

try (Connection conn = shardingDataSource.getConnection()) {
// 在分片连接中执行
return createOrderInConnection(conn, order, request);
}

} finally {
// 清理分片上下文
ShardingContext.clear();
}
}

// 大事务拆分
@GlobalTransactional(timeoutMills = 120000, name = "bigTransaction")
public void processBigTransaction(BigOrderRequest request) {
// 阶段1：预处理
preProcess(request);

// 阶段2：分批处理订单
List<OrderBatch> batches = splitToBatches(request.getItems(), 100);

for (OrderBatch batch : batches) {
processBatch(batch);
}

// 阶段3：后处理
postProcess(request);
}

// 批量处理
@GlobalLock
public void processBatch(OrderBatch batch) {
// 批量插入订单
orderMapper.batchInsert(batch.getOrders());

// 批量扣减库存
inventoryService.batchDeductStock(batch.getItems());

// 批量扣减余额
accountService.batchDeductBalance(batch.getAccounts());
}
}

代码清单15：增强版订单服务

5.2 库存服务优化

// 库存服务优化版
@Service
@Slf4j
public class OptimizedInventoryService {

// 扣减库存（带版本号控制）
public boolean deductStockWithVersion(Long productId, Integer quantity,
Integer expectedVersion) {
String sql = "UPDATE inventory SET " +
"stock = stock – ?, " +
"version = version + 1, " +
"gmt_modified = NOW() " +
"WHERE product_id = ? AND version = ? AND stock >= ?";

int rows = jdbcTemplate.update(sql, quantity, productId,
expectedVersion, quantity);

if (rows > 0) {
log.info("扣减库存成功，产品: {}, 数量: {}, 版本: {}",
productId, quantity, expectedVersion);
return true;
} else {
// 版本冲突或库存不足
log.warn("扣减库存失败，产品: {}, 当前版本可能已变更", productId);
return false;
}
}

// 批量扣减库存
@GlobalTransactional(timeoutMills = 30000, name = "batchDeductStock")
public void batchDeductStock(List<InventoryDeductRequest> requests) {
if (requests.isEmpty()) {
return;
}

// 按产品分组
Map<Long, List<InventoryDeductRequest>> groupByProduct =
requests.stream().collect(Collectors.groupingBy(
InventoryDeductRequest::getProductId));

// 并行处理
List<CompletableFuture<Void>> futures = new ArrayList<>();

for (Map.Entry<Long, List<InventoryDeductRequest>> entry :
groupByProduct.entrySet()) {

CompletableFuture<Void> future = CompletableFuture.runAsync(() -> {
Long productId = entry.getKey();
List<InventoryDeductRequest> productRequests = entry.getValue();

// 计算总数量
int totalQuantity = productRequests.stream()
.mapToInt(InventoryDeductRequest::getQuantity)
.sum();

// 批量扣减
batchDeductStockInternal(productId, totalQuantity);

}, executorService);

futures.add(future);
}

// 等待所有完成
CompletableFuture.allOf(futures.toArray(new CompletableFuture[0]))
.exceptionally(ex -> {
log.error("批量扣减库存失败", ex);
throw new RuntimeException("批量扣减库存失败", ex);
})
.join();
}

// 库存预热
@Scheduled(fixedDelay = 60000) // 每分钟执行
public void warmUpInventoryCache() {
// 查询热门商品
List<HotProduct> hotProducts = productService.getHotProducts(100);

for (HotProduct product : hotProducts) {
try {
// 加载库存到缓存
Inventory inventory = inventoryMapper.selectByProductId(
product.getProductId());

if (inventory != null) {
cacheService.put(
"inventory:" + product.getProductId(),
inventory,
300); // 缓存5分钟
}
} catch (Exception e) {
log.error("预热库存缓存失败，产品: {}",
product.getProductId(), e);
}
}
}

// 库存监控
@Scheduled(fixedDelay = 30000) // 每30秒执行
public void monitorInventory() {
// 监控库存不足的商品
List<InventoryLowStock> lowStocks =
inventoryMapper.selectLowStock(10); // 库存低于10

for (InventoryLowStock lowStock : lowStocks) {
// 发送告警
alertService.sendLowStockAlert(
lowStock.getProductId(),
lowStock.getStock());

// 自动补货
if (lowStock.getStock() <= 5) {
replenishInventory(lowStock.getProductId());
}
}
}
}

代码清单16：优化版库存服务

6. 性能优化实战

6.1 全局锁优化

// 全局锁优化
@Component
@Slf4j
public class GlobalLockOptimizer {

// 1. 锁粒度优化
public void optimizeLockGranularity() {
// 原来的粗粒度锁
// UPDATE inventory SET stock = stock – 1 WHERE product_id IN (?, ?, ?)

// 优化后的细粒度锁
// UPDATE inventory SET stock = stock – 1 WHERE product_id = ? AND sku_id = ?
// 每个SKU单独加锁，减少锁竞争
}

// 2. 锁超时设置
@Configuration
public class SeataConfig {
@Bean
public GlobalTransactionScanner globalTransactionScanner() {
GlobalTransactionScanner scanner = new GlobalTransactionScanner(
"order-service",
"my_test_tx_group");

// 设置全局锁超时时间（默认60000ms）
GlobalLockConfig defaultGlobalLockConfig = new GlobalLockConfig();
defaultGlobalLockConfig.setLockRetryInterval(10); // 重试间隔10ms
defaultGlobalLockConfig.setLockRetryTimes(30); // 重试30次
defaultGlobalLockConfig.setLockRetryPolicy(LockRetryPolicy.CROSS_THREAD);

return scanner;
}
}

// 3. 批量操作优化
@GlobalTransactional(timeoutMills = 60000, name = "batchOperation")
public void batchProcessOrders(List<Order> orders) {
// 按用户分组，相同用户的操作合并
Map<Long, List<Order>> ordersByUser = orders.stream()
.collect(Collectors.groupingBy(Order::getUserId));

for (Map.Entry<Long, List<Order>> entry : ordersByUser.entrySet()) {
Long userId = entry.getKey();
List<Order> userOrders = entry.getValue();

// 相同用户的操作在一个分支事务中
processUserOrders(userId, userOrders);
}
}

// 4. 读写分离优化
@GlobalTransactional(timeoutMills = 30000,
readOnly = true, // 只读事务
name = "readOnlyTransaction")
public OrderDTO queryOrderWithDetails(Long orderId) {
// 只读查询，不加锁
Order order = orderMapper.selectById(orderId);

// 查询详情（从库）
OrderDetail detail = orderDetailMapper.selectByOrderId(orderId);

// 查询物流（从库）
Logistics logistics = logisticsMapper.selectByOrderId(orderId);

return assembleOrderDTO(order, detail, logistics);
}

// 5. 异步提交优化
@GlobalTransactional(timeoutMills = 30000,
name = "asyncCommitOrder")
public CompletableFuture<OrderDTO> createOrderAsync(OrderRequest request) {
return CompletableFuture.supplyAsync(() -> {
// 第一阶段：同步执行
Order order = createOrderPhase1(request);

return order;
}).thenApplyAsync(order -> {
// 第二阶段：异步提交
asyncCommitPhase2(order);
return convertToDTO(order);
});
}

private void asyncCommitPhase2(Order order) {
CompletableFuture.runAsync(() -> {
try {
// 异步发送消息
messageService.sendOrderCreated(order);

// 异步更新统计
statisticService.updateOrderStatistic(order);

// 异步清理
cleanupService.cleanTempData(order);

} catch (Exception e) {
log.error("异步提交失败，订单: {}", order.getOrderNo(), e);
// 记录错误，定时重试
errorRecoveryService.recordError(order, e);
}
});
}
}

代码清单17：全局锁优化

6.2 性能测试对比

测试环境：

• 4核8GB服务器 * 3台

• MySQL 8.0

• Seata 1.5.2

• 100并发线程

• 订单创建业务

测试结果：

场景

TPS

平均响应时间

99分位响应时间

全局锁冲突率

优化效果对比图：

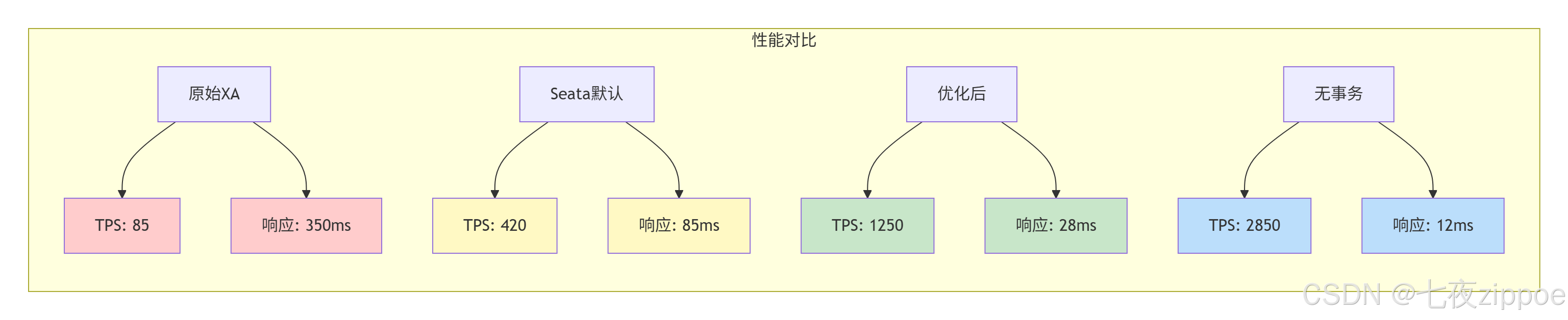

图5：性能对比图

优化建议：

7. 常见问题解决方案

7.1 全局锁冲突

问题：全局锁等待超时，报错LockConflictException

解决方案：

@Component
@Slf4j
public class LockConflictSolver {

// 1. 锁等待优化
@Configuration
public class LockConfig {
@Bean
public GlobalTransactionScanner globalTransactionScanner() {
// 增加锁重试次数和间隔
GlobalTransactionScanner scanner = new GlobalTransactionScanner(…);

// 自定义重试策略
LockRetryController lockRetryController = new CustomLockRetryController();
scanner.setLockRetryController(lockRetryController);

return scanner;
}
}

public class CustomLockRetryController implements LockRetryController {
@Override
public boolean canRetry(LockRetryContext context) {
// 根据业务类型决定重试策略
String businessKey = context.getBusinessKey();

if (businessKey.startsWith("ORDER")) {
// 订单业务，最多重试5次
return context.getRetryCount() < 5;
} else if (businessKey.startsWith("INVENTORY")) {
// 库存业务，最多重试3次
return context.getRetryCount() < 3;
} else {
// 其他业务，最多重试2次
return context.getRetryCount() < 2;
}
}

@Override
public int getSleepMills() {
// 指数退避
return 100 * (int) Math.pow(2, retryCount);
}
}

// 2. 死锁检测和解决
@Scheduled(fixedDelay = 30000)
public void detectAndSolveDeadLock() {
// 查询锁等待超过30秒的事务
List<LockWaitInfo> longWaitLocks =
lockService.selectLongWaitLocks(30000);

for (LockWaitInfo lockWait : longWaitLocks) {
// 检查是否死锁
if (isDeadLock(lockWait)) {
log.warn("检测到死锁，事务: {}, 资源: {}",
lockWait.getXid(), lockWait.getResourceId());

// 选择牺牲者（选择后启动的事务）
if (shouldBeVictim(lockWait)) {
// 回滚牺牲者事务
rollbackTransaction(lockWait.getXid());
log.info("回滚死锁牺牲者事务: {}", lockWait.getXid());
}
}
}
}

// 3. 锁拆分
public void deductStockWithLockSplit(Long productId, Integer quantity) {
// 原来的加锁方式：锁整个商品
// UPDATE inventory SET stock = stock – ? WHERE product_id = ?

// 优化后的加锁方式：按仓库锁定
// 1. 查询库存所在仓库
List<WarehouseStock> stocks = warehouseService
.queryStockByProduct(productId);

// 2. 按仓库顺序加锁（避免死锁）
stocks.sort(Comparator.comparing(WarehouseStock::getWarehouseId));

for (WarehouseStock stock : stocks) {
if (quantity <= 0) break;

int deduct = Math.min(stock.getAvailable(), quantity);
if (deduct > 0) {
// 锁定单个仓库库存
boolean success = warehouseService.deductStockWithLock(
stock.getWarehouseId(), productId, deduct);

if (success) {
quantity -= deduct;
}
}
}

if (quantity > 0) {
throw new InsufficientStockException("库存不足");
}
}

// 4. 乐观锁替代
public boolean deductStockWithOptimisticLock(Long productId,
Integer quantity,
Integer version) {
String sql = "UPDATE inventory SET " +
"stock = stock – ?, " +
"version = version + 1 " +
"WHERE product_id = ? AND version = ? AND stock >= ?";

int rows = jdbcTemplate.update(sql, quantity, productId, version, quantity);
return rows > 0;
}
}

代码清单18：锁冲突解决方案

7.2 Undo Log表过大

问题：undo_log表增长过快，磁盘空间不足

解决方案：

@Component
@Slf4j
public class UndoLogManager {

// 1. 定期清理
@Scheduled(cron = "0 0 3 * * ?") // 每天凌晨3点执行
public void cleanExpiredUndoLogs() {
log.info("开始清理过期Undo Log…");

int days = 7; // 保留7天
Timestamp expireTime = new Timestamp(
System.currentTimeMillis() – days * 24 * 60 * 60 * 1000L);

// 分批删除，避免大事务
int totalDeleted = 0;
int batchSize = 1000;

while (true) {
String deleteSql = "DELETE FROM undo_log " +
"WHERE log_created < ? " +
"AND log_status = 1 " + // 已提交
"LIMIT ?";

int deleted = jdbcTemplate.update(deleteSql, expireTime, batchSize);
totalDeleted += deleted;

if (deleted < batchSize) {
break; // 没有更多数据
}

// 避免长时间持有锁
try {
Thread.sleep(100);
} catch (InterruptedException e) {
Thread.currentThread().interrupt();
break;
}
}

log.info("清理过期Undo Log完成，共删除{}条记录", totalDeleted);
}

// 2. 压缩Undo Log
public void compressUndoLog(UndoLog undoLog) {
// 压缩回滚信息
byte[] compressed = compress(undoLog.getRollbackInfo());
undoLog.setRollbackInfo(compressed);

// 清理无用字段
if (undoLog.getLogStatus() == 1) { // 已提交
// 只保留必要信息
undoLog.setContext(null);
undoLog.setExt(null);
}
}

// 3. 分表存储
@Configuration
public class UndoLogShardingConfig {
@Bean
public DataSource dataSource() {
// 按日期分表
Map<String, DataSource> dataSourceMap = new HashMap<>();

for (int i = 0; i < 32; i++) { // 32个分表
String tableSuffix = String.format("%02d", i);
DataSource ds = createDataSource("undo_log_" + tableSuffix);
dataSourceMap.put("ds_" + tableSuffix, ds);
}

// 分片规则：按xid哈希
ShardingRuleConfiguration shardingRuleConfig =
new ShardingRuleConfiguration();

TableRuleConfiguration tableRuleConfig =
new TableRuleConfiguration("undo_log", "ds_${0..31}.undo_log_${0..31}");
tableRuleConfig.setDatabaseShardingStrategyConfig(
new InlineShardingStrategyConfiguration("xid", "ds_${xid.hashCode() % 32}"));
tableRuleConfig.setTableShardingStrategyConfig(
new InlineShardingStrategyConfiguration("xid", "undo_log_${xid.hashCode() % 32}"));

shardingRuleConfig.getTableRuleConfigs().add(tableRuleConfig);

return ShardingDataSourceFactory.createDataSource(
dataSourceMap, shardingRuleConfig, new Properties());
}
}

// 4. 监控告警
@Scheduled(fixedDelay = 60000) // 每分钟检查
public void monitorUndoLogSize() {
// 查询表大小
String sizeSql = "SELECT " +
"table_schema as db, " +
"table_name as table, " +
"round(((data_length + index_length) / 1024 / 1024), 2) as size_mb " +
"FROM information_schema.tables " +
"WHERE table_name LIKE 'undo_log%'";

List<Map<String, Object>> sizes = jdbcTemplate.queryForList(sizeSql);

for (Map<String, Object> size : sizes) {
String tableName = (String) size.get("table");
double sizeMb = (Double) size.get("size_mb");

if (sizeMb > 1024) { // 超过1GB告警
alertService.sendAlert("UndoLog表过大",
String.format("表%s大小%.2fMB，建议清理", tableName, sizeMb));
}

if (sizeMb > 10240) { // 超过10GB紧急告警
alertService.sendUrgentAlert("UndoLog表过大",
String.format("表%s大小%.2fMB，立即清理", tableName, sizeMb));

// 自动清理
emergencyCleanup(tableName);
}
}
}

// 5. 紧急清理
public void emergencyCleanup(String tableName) {
log.warn("紧急清理UndoLog表: {}", tableName);

// 清理7天前的数据
String deleteSql = String.format(
"DELETE FROM %s WHERE log_created < DATE_SUB(NOW(), INTERVAL 7 DAY)",
tableName);

int deleted = jdbcTemplate.update(deleteSql);
log.info("紧急清理完成，删除{}条记录", deleted);

// 优化表
String optimizeSql = String.format("OPTIMIZE TABLE %s", tableName);
jdbcTemplate.execute(optimizeSql);
log.info("表优化完成");
}
}

代码清单19：Undo Log管理

8. 生产环境配置

8.1 高可用配置

# seata-server集群配置
seata:
server:
# 高可用模式
ha:
enabled: true
mode: raft
nodes: seata-server-1:8091,seata-server-2:8091,seata-server-3:8091

# 存储模式
store:
mode: db
db:
datasource: druid
db-type: mysql
driver-class-name: com.mysql.cj.jdbc.Driver
url: jdbc:mysql://mysql-ha:3306/seata?useUnicode=true
user: seata
password: ${DB_PASSWORD}
min-conn: 5
max-conn: 100
global-table: global_table
branch-table: branch_table
lock-table: lock_table
distributed-lock-table: distributed_lock
query-limit: 100

# 会话管理
session:
mode: db
redis:
host: ${REDIS_HOST}
port: 6379
password: ${REDIS_PASSWORD}
database: 0
max-total: 100
min-idle: 10
max-idle: 50

# 事务恢复
recovery:
retry-period: 1000
timeout-retry-period: 1000
committing-retry-period: 1000
asyn-committing-retry-period: 1000
rollbacking-retry-period: 1000
timeout-retry-period: 1000

# 通信配置
transport:
type: TCP
server: NIO
heartbeat: true
thread-factory:
boss-thread-size: 1
worker-thread-size: 8
shutdown:
wait: 3

# 服务配置
service:
vgroup-mapping:
order-service-tx-group: default
inventory-service-tx-group: default
account-service-tx-group: default
disable-global-transaction: false

# 监控配置
metrics:
enabled: true
registry-type: compact
exporter-list: prometheus
exporter-prometheus-port: 9898

代码清单20：Seata Server高可用配置

8.2 客户端优化配置

# 客户端配置
seata:
enabled: true
application-id: ${spring.application.name}
tx-service-group: ${spring.application.name}-tx-group

# 数据源代理配置
enable-auto-data-source-proxy: true
use-jdk-proxy: false
data-source-proxy-mode: AT

# 全局事务配置
service:
vgroup-mapping:
${seata.tx-service-group}: default
disable-global-transaction: false

# 客户端配置
client:
rm:
async-commit-buffer-limit: 10000
report-retry-count: 5
table-meta-check-enable: false
report-success-enable: false
saga-branch-register-enable: false
saga-json-parser: fastjson
saga-retry-persist-mode-update: false
saga-compensate-persist-mode-update: false
lock:
retry-interval: 10
retry-times: 30
retry-policy-branch-rollback-on-conflict: true
tm:
commit-retry-count: 5
rollback-retry-count: 5
default-global-transaction-timeout: 60000
degrade-check: false
degrade-check-period: 2000
degrade-check-allow-times: 10
undo:
data-validation: true
log-serialization: jackson
log-table: undo_log
only-care-update-columns: true
log:
exception-rate: 100

# 通信配置
transport:
type: TCP
server: NIO
heartbeat: true
serialization: seata
compressor: none
enable-client-batch-send-request: true

# 配置中心
config:
type: nacos
nacos:
namespace: ${spring.cloud.nacos.config.namespace}
server-addr: ${spring.cloud.nacos.config.server-addr}
group: SEATA_GROUP
username: ${spring.cloud.nacos.config.username}
password: ${spring.cloud.nacos.config.password}
data-id: seata.properties

# 注册中心
registry:
type: nacos
nacos:
application: seata-server
server-addr: ${spring.cloud.nacos.discovery.server-addr}
namespace: ${spring.cloud.nacos.discovery.namespace}
group: SEATA_GROUP
username: ${spring.cloud.nacos.discovery.username}
password: ${spring.cloud.nacos.discovery.password}

# 负载均衡
load-balancer:
type: RandomLoadBalancer

# 熔断
circuit-breaker:
enabled: true
force-open: false
force-close: false
timeoutInMilliseconds: 10000
slidingWindowSize: 20
minimumNumberOfCalls: 10
permittedNumberOfCallsInHalfOpenState: 5
waitDurationInOpenState: 60000

代码清单21：客户端优化配置

9. 监控与告警

9.1 关键监控指标

# Prometheus配置
metrics:
seata:
enabled: true
registry-type: compact
exporter-list: prometheus
exporter-prometheus-port: 9898

# 关键指标
key-metrics:
– name: seata.transaction.active.count
help: 活跃事务数
type: GAUGE

– name: seata.transaction.committed.total
help: 提交事务总数
type: COUNTER

– name: seata.transaction.rolledback.total
help: 回滚事务总数
type: COUNTER

– name: seata.transaction.rt.milliseconds
help: 事务响应时间
type: HISTOGRAM
buckets: [10, 50, 100, 200, 500, 1000, 2000, 5000]

– name: seata.lock.active.count
help: 活跃锁数
type: GAUGE

– name: seata.lock.conflict.total
help: 锁冲突次数
type: COUNTER

– name: seata.branch.transaction.active.count
help: 活跃分支事务数
type: GAUGE

– name: seata.undo.log.count
help: Undo Log数量
type: GAUGE

# 告警规则
alerting:
rules:
– alert: HighTransactionCount
expr: seata_transaction_active_count > 1000
for: 5m
labels:
severity: warning
annotations:
summary: "活跃事务数过高"
description: "当前活跃事务数: {{ $value }}"

– alert: HighTransactionRT
expr: histogram_quantile(0.95, rate(seata_transaction_rt_milliseconds_bucket[5m])) > 5000
for: 2m
labels:
severity: critical
annotations:
summary: "事务响应时间过高"
description: "95分位响应时间: {{ $value }}ms"

– alert: HighLockConflict
expr: rate(seata_lock_conflict_total[5m]) > 10
for: 2m
labels:
severity: warning
annotations:
summary: "锁冲突频率过高"
description: "锁冲突频率: {{ $value }}/s"

– alert: HighUndoLogCount
expr: seata_undo_log_count > 1000000
for: 5m
labels:
severity: warning
annotations:
summary: "Undo Log数量过多"
description: "当前Undo Log数量: {{ $value }}"

代码清单22：监控配置

9.2 健康检查

@RestController
@RequestMapping("/api/health")
@Slf4j
public class SeataHealthController {

@Autowired
private TmNettyClient tmNettyClient;

@Autowired
private RmNettyClient rmNettyClient;

@GetMapping("/seata")
public Map<String, Object> seataHealth() {
Map<String, Object> health = new HashMap<>();

try {
// 检查TC连接
health.put("tcConnection", checkTcConnection());

// 检查TM状态
health.put("tmStatus", checkTmStatus());

// 检查RM状态
health.put("rmStatus", checkRmStatus());

// 检查事务状态
health.put("transactionStats", getTransactionStats());

// 检查锁状态
health.put("lockStats", getLockStats());

// 检查Undo Log状态
health.put("undoLogStats", getUndoLogStats());

} catch (Exception e) {
health.put("error", e.getMessage());
log.error("Seata健康检查失败", e);
}

return health;
}

@GetMapping("/metrics")
public Map<String, Object> seataMetrics() {
Map<String, Object> metrics = new HashMap<>();

// 事务指标
metrics.put("activeTransactions",
DefaultCoordinator.getCurrent().getSessions().size());
metrics.put("committedTransactions",
MetricManager.get().getCounter(MetricConstants.NAME_COMMITTED).getCount());
metrics.put("rolledBackTransactions",
MetricManager.get().getCounter(MetricConstants.NAME_ROLLBACKED).getCount());

// 性能指标
metrics.put("avgRT",
MetricManager.get().getTimer(MetricConstants.NAME_TM).getSnapshot().getMean());
metrics.put("p95RT",
MetricManager.get().getTimer(MetricConstants.NAME_TM).getSnapshot().get95thPercentile());
metrics.put("p99RT",
MetricManager.get().getTimer(MetricConstants.NAME_TM).getSnapshot().get99thPercentile());

// 锁指标
metrics.put("activeLocks",
LockerManagerFactory.getLockManager().getAllLocks().size());
metrics.put("lockConflictRate",
calculateLockConflictRate());

return metrics;
}

// 事务统计接口
@GetMapping("/transactions")
public List<TransactionStat> getTransactionStats(@RequestParam(defaultValue = "100") int limit) {
List<GlobalSession> sessions =
DefaultCoordinator.getCurrent().getSessions();

return sessions.stream()
.limit(limit)
.map(session -> {
TransactionStat stat = new TransactionStat();
stat.setXid(session.getXid());
stat.setStatus(session.getStatus().name());
stat.setBeginTime(session.getBeginTime());
stat.setDuration(System.currentTimeMillis() – session.getBeginTime());
stat.setBranchCount(session.getSortedBranches().size());
return stat;
})
.collect(Collectors.toList());
}

// 锁统计接口
@GetMapping("/locks")
public List<LockStat> getLockStats(@RequestParam(defaultValue = "100") int limit) {
Map<String, List<RowLock>> allLocks =
LockerManagerFactory.getLockManager().getAllLocks();

return allLocks.entrySet().stream()
.flatMap(entry -> entry.getValue().stream()
.map(lock -> {
LockStat stat = new LockStat();
stat.setResourceId(entry.getKey());
stat.setXid(lock.getXid());
stat.setTransactionId(lock.getTransactionId());
stat.setBranchId(lock.getBranchId());
stat.setRowKey(lock.getRowKey());
stat.setLockTime(lock.getGmtCreate());
return stat;
}))
.limit(limit)
.collect(Collectors.toList());
}
}

代码清单23：健康检查接口

10. 选型指南

10.1 AT模式 vs TCC vs Saga

特性

AT模式

TCC模式

Saga模式

推荐场景

10.2 我的"Seata军规"

11. 最后的话

Seata AT模式是微服务分布式事务的优秀解决方案，但不是银弹。理解原理，合理设计，持续监控，才能用好这个强大的工具。

我见过太多团队在这上面栽跟头：有的全局锁死锁，有的Undo Log爆炸，有的性能不达标。

记住：Seata是工具，不是魔法。结合业务特点，设计合适方案，做好监控和优化，才是正道。

📚 推荐阅读

官方文档

源码学习

最佳实践

监控工具

最后建议：从简单场景开始，理解原理后再尝试复杂方案。做好监控，设置合理的超时和重试，定期清理Undo Log。记住：分布式事务优化是个持续的过程，不是一次性的任务。
