大数据MapReduce架构:分布式计算的经典范式

🌟 你好,我是 励志成为糕手 ! 🌌 在代码的宇宙中,我是那个追逐优雅与性能的星际旅人。 ✨ 每一行代码都是我种下的星光,在逻辑的土壤里生长成璀璨的银河; 🛠️ 每一个算法都是我绘制的星图,指引着数据流动的最短路径; 🔍 每一次调试都是星际对话,用耐心和智慧解开宇宙的谜题。 🚀 准备好开始我们的星际编码之旅了吗?

目录

  • 大数据MapReduce架构:分布式计算的经典范式
    • 探索MapReduce的星际旅程
    • MapReduce的核心思想
      • Map与Reduce:宇宙的两大基本力
      • 一个简单的WordCount示例
    • MapReduce架构详解
      • MapReduce工作流程详解
      • Shuffle过程详解
    • MapReduce应用场景分析
      • 典型应用场景
      • 行业应用分布
    • MapReduce与现代大数据框架对比
      • 性能对比分析
    • MapReduce的优势与局限
      • 优势
      • 局限
    • MapReduce最佳实践
      • 性能优化技巧
    • MapReduce的演进与未来
    • 星际编码之旅的终点:我的MapReduce实践心得
    • 参考链接
    • 关键词标签

探索MapReduce的星际旅程

作为一名数据工程师,我一直在寻找处理海量数据的最佳方法。还记得我第一次接触MapReduce时的震撼,那种简单而强大的编程模型彻底改变了我对大数据处理的认知。在过去几年中,我深入研究了MapReduce架构,从最初的概念理解到实际项目应用,再到与新兴框架的对比分析。

MapReduce就像宇宙中的引力法则,看似简单却能驾驭复杂的数据星系。它将复杂的大数据处理任务分解为Map和Reduce两个基本操作,使得即使是普通开发者也能轻松驾驭分布式计算的力量。在我看来,理解MapReduce不仅是掌握一项技术,更是领悟分布式计算的哲学思想。

在这篇文章中,我将带你深入探索MapReduce的核心原理、架构设计、工作流程以及实际应用场景。我们会通过生动的图表、代码示例和实际案例,揭示这一经典框架的魅力所在。同时,我也会分享我在实际项目中积累的经验和最佳实践,帮助你避开常见陷阱,充分发挥MapReduce的潜力。

无论你是大数据领域的新手,还是寻求深入理解的资深工程师,这篇文章都将为你提供全面而深入的MapReduce知识,让我们一起踏上这段星际编码之旅吧!

MapReduce的核心思想

MapReduce是由Google在2004年提出的一种编程模型,旨在解决大规模数据集的并行计算问题。其核心思想可以概括为"分而治之":将复杂的大数据处理任务分解为两个主要阶段。

Map与Reduce:宇宙的两大基本力

  • Map阶段:将输入数据集分割成独立的数据块,交由Map函数处理,产生中间结果(键值对)
  • Reduce阶段:对Map阶段产生的所有中间结果进行合并和处理,生成最终输出
  • 这种简单而强大的模型使开发者能够专注于业务逻辑,而将分布式计算的复杂性交给框架处理。

    一个简单的WordCount示例

    让我们通过经典的单词计数示例来理解MapReduce的工作原理:

    // Map函数:将文本分割为单词,每个单词输出<单词, 1>的键值对
    public static class TokenizerMapper extends Mapper<Object, Text, Text, IntWritable> {
    private final static IntWritable one = new IntWritable(1);
    private Text word = new Text();

    public void map(Object key, Text value, Context context) throws IOException, InterruptedException {
    // 将输入文本分割为单词
    StringTokenizer itr = new StringTokenizer(value.toString());
    while (itr.hasMoreTokens()) {
    word.set(itr.nextToken());
    // 输出<单词, 1>的键值对
    context.write(word, one); // 核心输出操作
    }
    }
    }

    // Reduce函数:汇总每个单词的计数
    public static class IntSumReducer extends Reducer<Text, IntWritable, Text, IntWritable> {
    private IntWritable result = new IntWritable();

    public void reduce(Text key, Iterable<IntWritable> values, Context context)
    throws IOException, InterruptedException {
    int sum = 0;
    // 累加同一个单词的所有计数
    for (IntWritable val : values) {
    sum += val.get(); // 累加计数
    }
    result.set(sum);
    // 输出<单词, 总计数>的键值对
    context.write(key, result); // 最终结果输出
    }
    }

    在这个例子中,Map函数将文本分割为单词并输出<单词, 1>的键值对,而Reduce函数则汇总每个单词的计数,输出<单词, 总计数>的结果。这个简单的例子展示了MapReduce编程模型的核心思想。

    MapReduce架构详解

    #mermaid-svg-Zy1x1omZF1z3PFVb {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#ccc;}#mermaid-svg-Zy1x1omZF1z3PFVb .error-icon{fill:#a44141;}#mermaid-svg-Zy1x1omZF1z3PFVb .error-text{fill:#ddd;stroke:#ddd;}#mermaid-svg-Zy1x1omZF1z3PFVb .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-Zy1x1omZF1z3PFVb .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-Zy1x1omZF1z3PFVb .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-Zy1x1omZF1z3PFVb .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-Zy1x1omZF1z3PFVb .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-Zy1x1omZF1z3PFVb .marker{fill:#f5a742;stroke:#f5a742;}#mermaid-svg-Zy1x1omZF1z3PFVb .marker.cross{stroke:#f5a742;}#mermaid-svg-Zy1x1omZF1z3PFVb svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-Zy1x1omZF1z3PFVb .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#ccc;}#mermaid-svg-Zy1x1omZF1z3PFVb .cluster-label text{fill:#F9FFFE;}#mermaid-svg-Zy1x1omZF1z3PFVb .cluster-label span{color:#F9FFFE;}#mermaid-svg-Zy1x1omZF1z3PFVb .label text,#mermaid-svg-Zy1x1omZF1z3PFVb span{fill:#ccc;color:#ccc;}#mermaid-svg-Zy1x1omZF1z3PFVb .node rect,#mermaid-svg-Zy1x1omZF1z3PFVb .node circle,#mermaid-svg-Zy1x1omZF1z3PFVb .node ellipse,#mermaid-svg-Zy1x1omZF1z3PFVb .node polygon,#mermaid-svg-Zy1x1omZF1z3PFVb .node path{fill:#1f2020;stroke:#81B1DB;stroke-width:1px;}#mermaid-svg-Zy1x1omZF1z3PFVb .node .label{text-align:center;}#mermaid-svg-Zy1x1omZF1z3PFVb .node.clickable{cursor:pointer;}#mermaid-svg-Zy1x1omZF1z3PFVb .arrowheadPath{fill:lightgrey;}#mermaid-svg-Zy1x1omZF1z3PFVb .edgePath .path{stroke:#f5a742;stroke-width:2.0px;}#mermaid-svg-Zy1x1omZF1z3PFVb .flowchart-link{stroke:#f5a742;fill:none;}#mermaid-svg-Zy1x1omZF1z3PFVb .edgeLabel{background-color:hsl(0, 0%, 34.4117647059%);text-align:center;}#mermaid-svg-Zy1x1omZF1z3PFVb .edgeLabel rect{opacity:0.5;background-color:hsl(0, 0%, 34.4117647059%);fill:hsl(0, 0%, 34.4117647059%);}#mermaid-svg-Zy1x1omZF1z3PFVb .cluster rect{fill:hsl(180, 1.5873015873%, 28.3529411765%);stroke:rgba(255, 255, 255, 0.25);stroke-width:1px;}#mermaid-svg-Zy1x1omZF1z3PFVb .cluster text{fill:#F9FFFE;}#mermaid-svg-Zy1x1omZF1z3PFVb .cluster span{color:#F9FFFE;}#mermaid-svg-Zy1x1omZF1z3PFVb div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:#2b2b2b;border:1px solid rgba(255, 255, 255, 0.25);border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-Zy1x1omZF1z3PFVb :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}#mermaid-svg-Zy1x1omZF1z3PFVb .client>*{fill:#e6c35a!important;stroke:#e6c35a!important;color:#000!important;}#mermaid-svg-Zy1x1omZF1z3PFVb .client span{fill:#e6c35a!important;stroke:#e6c35a!important;color:#000!important;}#mermaid-svg-Zy1x1omZF1z3PFVb .master>*{fill:#5a5ce6!important;stroke:#5a5ce6!important;color:#fff!important;}#mermaid-svg-Zy1x1omZF1z3PFVb .master span{fill:#5a5ce6!important;stroke:#5a5ce6!important;color:#fff!important;}#mermaid-svg-Zy1x1omZF1z3PFVb .workers>*{fill:#e65a7c!important;stroke:#e65a7c!important;color:#fff!important;}#mermaid-svg-Zy1x1omZF1z3PFVb .workers span{fill:#e65a7c!important;stroke:#e65a7c!important;color:#fff!important;}#mermaid-svg-Zy1x1omZF1z3PFVb .storage>*{fill:#5ae6a3!important;stroke:#5ae6a3!important;color:#000!important;}#mermaid-svg-Zy1x1omZF1z3PFVb .storage span{fill:#5ae6a3!important;stroke:#5ae6a3!important;color:#000!important;}

    存储层

    工作节点

    主节点

    客户端

    提交MapReduce作业

    初始化作业

    分配资源

    分配Map任务

    分配Reduce任务

    执行

    执行

    读取输入数据

    写入中间结果

    Shuffle

    写入最终结果

    监控任务状态

    HDFS/分布式存储

    TaskTracker/NodeManager

    Map任务

    Reduce任务

    JobTracker/ResourceManager

    作业调度

    资源分配

    任务监控

    提交作业

    图1:MapReduce架构流程图 – 展示了MapReduce框架的核心组件及其交互流程

    MapReduce框架(以Hadoop MapReduce为例)由以下核心组件构成:

  • Client:提交MapReduce作业
  • JobTracker/ResourceManager:作业调度和监控
  • TaskTracker/NodeManager:执行具体的Map和Reduce任务
  • HDFS/分布式存储:提供数据存储
  • MapReduce工作流程详解

    #mermaid-svg-5IKdW0Tivh3xDiZW {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#ccc;}#mermaid-svg-5IKdW0Tivh3xDiZW .error-icon{fill:#a44141;}#mermaid-svg-5IKdW0Tivh3xDiZW .error-text{fill:#ddd;stroke:#ddd;}#mermaid-svg-5IKdW0Tivh3xDiZW .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-5IKdW0Tivh3xDiZW .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-5IKdW0Tivh3xDiZW .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-5IKdW0Tivh3xDiZW .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-5IKdW0Tivh3xDiZW .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-5IKdW0Tivh3xDiZW .marker{fill:#f5a742;stroke:#f5a742;}#mermaid-svg-5IKdW0Tivh3xDiZW .marker.cross{stroke:#f5a742;}#mermaid-svg-5IKdW0Tivh3xDiZW svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-5IKdW0Tivh3xDiZW .actor{stroke:#81B1DB;fill:#1f2020;}#mermaid-svg-5IKdW0Tivh3xDiZW text.actor>tspan{fill:lightgrey;stroke:none;}#mermaid-svg-5IKdW0Tivh3xDiZW .actor-line{stroke:lightgrey;}#mermaid-svg-5IKdW0Tivh3xDiZW .messageLine0{stroke-width:1.5;stroke-dasharray:none;stroke:lightgrey;}#mermaid-svg-5IKdW0Tivh3xDiZW .messageLine1{stroke-width:1.5;stroke-dasharray:2,2;stroke:lightgrey;}#mermaid-svg-5IKdW0Tivh3xDiZW #arrowhead path{fill:lightgrey;stroke:lightgrey;}#mermaid-svg-5IKdW0Tivh3xDiZW .sequenceNumber{fill:black;}#mermaid-svg-5IKdW0Tivh3xDiZW #sequencenumber{fill:lightgrey;}#mermaid-svg-5IKdW0Tivh3xDiZW #crosshead path{fill:lightgrey;stroke:lightgrey;}#mermaid-svg-5IKdW0Tivh3xDiZW .messageText{fill:lightgrey;stroke:lightgrey;}#mermaid-svg-5IKdW0Tivh3xDiZW .labelBox{stroke:#81B1DB;fill:#1f2020;}#mermaid-svg-5IKdW0Tivh3xDiZW .labelText,#mermaid-svg-5IKdW0Tivh3xDiZW .labelText>tspan{fill:lightgrey;stroke:none;}#mermaid-svg-5IKdW0Tivh3xDiZW .loopText,#mermaid-svg-5IKdW0Tivh3xDiZW .loopText>tspan{fill:lightgrey;stroke:none;}#mermaid-svg-5IKdW0Tivh3xDiZW .loopLine{stroke-width:2px;stroke-dasharray:2,2;stroke:#81B1DB;fill:#81B1DB;}#mermaid-svg-5IKdW0Tivh3xDiZW .note{stroke:hsl(180, 0%, 18.3529411765%);fill:hsl(180, 1.5873015873%, 28.3529411765%);}#mermaid-svg-5IKdW0Tivh3xDiZW .noteText,#mermaid-svg-5IKdW0Tivh3xDiZW .noteText>tspan{fill:rgb(183.8476190475, 181.5523809523, 181.5523809523);stroke:none;}#mermaid-svg-5IKdW0Tivh3xDiZW .activation0{fill:hsl(180, 1.5873015873%, 28.3529411765%);stroke:#81B1DB;}#mermaid-svg-5IKdW0Tivh3xDiZW .activation1{fill:hsl(180, 1.5873015873%, 28.3529411765%);stroke:#81B1DB;}#mermaid-svg-5IKdW0Tivh3xDiZW .activation2{fill:hsl(180, 1.5873015873%, 28.3529411765%);stroke:#81B1DB;}#mermaid-svg-5IKdW0Tivh3xDiZW .actorPopupMenu{position:absolute;}#mermaid-svg-5IKdW0Tivh3xDiZW .actorPopupMenuPanel{position:absolute;fill:#1f2020;box-shadow:0px 8px 16px 0px rgba(0,0,0,0.2);filter:drop-shadow(3px 5px 2px rgb(0 0 0 / 0.4));}#mermaid-svg-5IKdW0Tivh3xDiZW .actor-man line{stroke:#81B1DB;fill:#1f2020;}#mermaid-svg-5IKdW0Tivh3xDiZW .actor-man circle,#mermaid-svg-5IKdW0Tivh3xDiZW line{stroke:#81B1DB;fill:#1f2020;stroke-width:2px;}#mermaid-svg-5IKdW0Tivh3xDiZW :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

    客户端

    JobTracker/RM

    TaskTracker/NM

    HDFS

    1. 提交MapReduce作业

    2. 初始化作业

    3. 分配Map任务

    4. 读取输入数据块

    5. 执行Map任务

    6. 写入中间结果

    7. 分配Reduce任务

    8. 读取中间结果(Shuffle)

    9. 执行Reduce任务

    10. 写入最终结果

    11. 报告任务完成

    12. 通知作业完成

    Map阶段

    Shuffle阶段

    Reduce阶段

    客户端

    JobTracker/RM

    TaskTracker/NM

    HDFS

    图2:MapReduce执行时序图 – 展示了MapReduce作业从提交到完成的完整流程

  • 作业提交:客户端提交作业到JobTracker
  • 作业初始化:JobTracker初始化作业,创建作业执行计划
  • 任务分配:JobTracker将Map和Reduce任务分配给TaskTracker
  • Map执行:TaskTracker执行Map任务,处理数据分片,生成中间结果
  • Shuffle和Sort:将Map输出按Key分组,排序,并传输到执行Reduce任务的节点
  • Reduce执行:执行Reduce任务,处理中间结果,生成最终输出
  • 结果存储:将结果写入HDFS或其他存储系统
  • Shuffle过程详解

    Shuffle是MapReduce中最复杂也是最关键的环节,它连接Map和Reduce阶段,负责将Map输出的中间结果传输给Reduce任务。

    // Map端Shuffle过程
    public class MapOutputBuffer<K, V> {
    // Map输出被分区
    private int partitionFunction(K key) {
    return (key.hashCode() & Integer.MAX_VALUE) % numReduceTasks;
    }

    // Map输出被排序
    private void sortAndSpill() {
    // 根据键排序
    IndexedSorter sorter = new QuickSort();
    sorter.sort(comparator, 0, count);

    // 写入磁盘
    FSDataOutputStream out = rfs.create(filename);
    // …写入排序后的数据
    }
    }

    // Reduce端Shuffle过程
    public class Fetcher<K, V> {
    // 从Map任务获取中间结果
    public void fetchOutputs() {
    // 从多个Map任务获取属于此Reduce任务的数据
    // …
    }

    // 合并多个Map输出
    private void mergeSort() {
    // 合并多个排序好的Map输出
    // …
    }
    }

    Shuffle过程包含分区、排序、合并等多个步骤,是MapReduce性能优化的关键点。

    MapReduce应用场景分析

    在这里插入图片描述

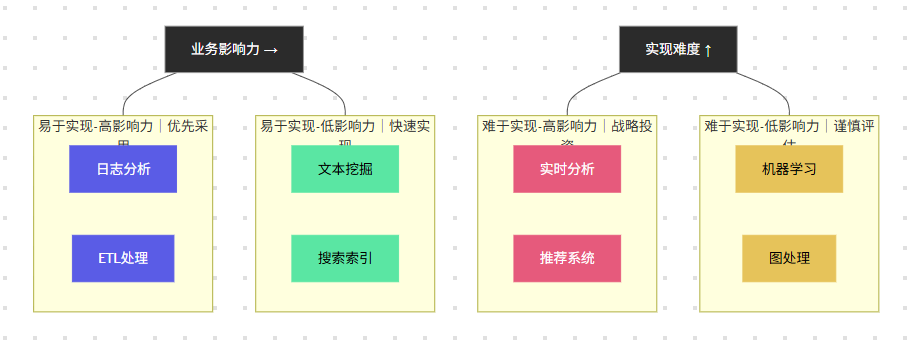

    图3:MapReduce应用场景象限图 – 展示不同应用场景在实现难度和业务影响力维度的分布

    从上图可以看出,MapReduce在ETL处理和日志分析等场景中具有高影响力且相对容易实现,而在实时分析等场景中虽有高影响力但实现难度较大。

    从上图可以看出,MapReduce在ETL处理和日志分析等场景中具有高影响力且相对容易实现,而在实时分析等场景中虽有高影响力但实现难度较大。

    典型应用场景

  • 日志分析:处理大量服务器日志,提取有价值的信息
  • ETL处理:数据抽取、转换和加载,为数据仓库准备数据
  • 文本挖掘:处理大规模文本数据,进行情感分析、关键词提取等
  • 搜索索引:构建搜索引擎的倒排索引
  • 推荐系统:处理用户行为数据,生成推荐模型
  • 行业应用分布

    #mermaid-svg-ubrM1fbIto4FmpQ9 {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#ccc;}#mermaid-svg-ubrM1fbIto4FmpQ9 .error-icon{fill:#a44141;}#mermaid-svg-ubrM1fbIto4FmpQ9 .error-text{fill:#ddd;stroke:#ddd;}#mermaid-svg-ubrM1fbIto4FmpQ9 .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-ubrM1fbIto4FmpQ9 .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-ubrM1fbIto4FmpQ9 .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-ubrM1fbIto4FmpQ9 .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-ubrM1fbIto4FmpQ9 .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-ubrM1fbIto4FmpQ9 .marker{fill:#f5a742;stroke:#f5a742;}#mermaid-svg-ubrM1fbIto4FmpQ9 .marker.cross{stroke:#f5a742;}#mermaid-svg-ubrM1fbIto4FmpQ9 svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-ubrM1fbIto4FmpQ9 .pieCircle{stroke:black;stroke-width:2px;opacity:0.7;}#mermaid-svg-ubrM1fbIto4FmpQ9 .pieTitleText{text-anchor:middle;font-size:25px;fill:hsl(28.5714285714, 17.3553719008%, 86.2745098039%);font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}#mermaid-svg-ubrM1fbIto4FmpQ9 .slice{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;fill:#ccc;font-size:17px;}#mermaid-svg-ubrM1fbIto4FmpQ9 .legend text{fill:hsl(28.5714285714, 17.3553719008%, 86.2745098039%);font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:17px;}#mermaid-svg-ubrM1fbIto4FmpQ9 :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

    35%

    25%

    15%

    12%

    8%

    5%

    MapReduce在各行业的应用分布

    互联网

    金融

    电信

    零售

    医疗

    其他

    图4:MapReduce行业应用分布饼图 – 展示MapReduce技术在不同行业的应用占比

    MapReduce与现代大数据框架对比

    随着大数据技术的发展,出现了许多新的处理框架,如Spark、Flink等。下面我们对比一下MapReduce与这些现代框架的异同。

    特性MapReduceSparkFlinkStormPresto
    处理模型 批处理 批处理+微批处理 批处理+流处理 流处理 交互式查询
    性能 中等 高(内存计算) 高(流式) 高(实时) 高(内存)
    延迟 中等 极低
    容错机制 重新执行任务 Lineage+检查点 检查点+保存点 消息确认 查询重启
    编程难度 中等 中等 中等 低(SQL)
    内存使用 中等 中等
    适用场景 批量ETL 通用分析 流处理+批处理 实时分析 交互式查询

    性能对比分析

    在这里插入图片描述

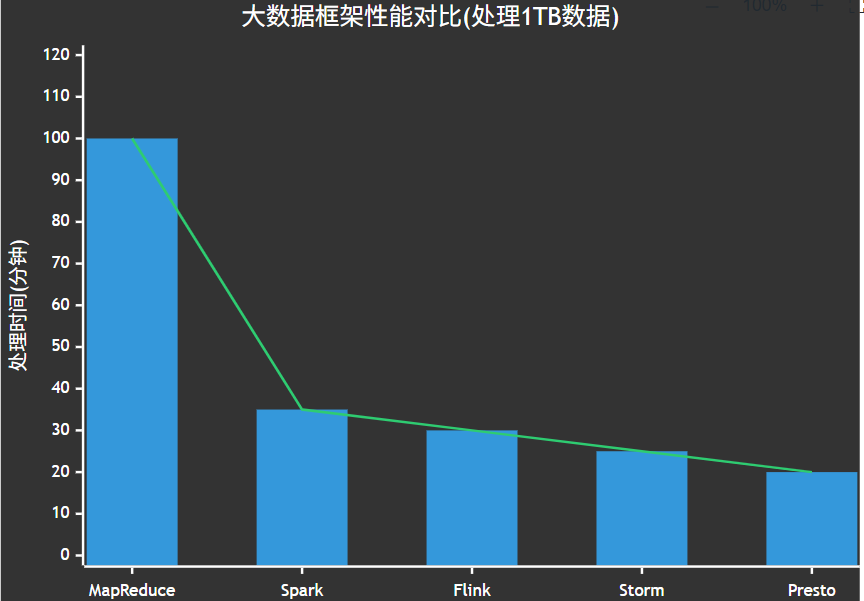

    图5:大数据框架性能对比XY图 – 展示不同框架处理相同数据量的时间对比

    从图表可以看出,MapReduce在处理相同数据量时需要的时间明显多于其他现代框架,这主要是因为其基于磁盘的处理模式,而Spark、Flink等框架采用了内存计算模型,大大提高了处理效率。

    MapReduce的优势与局限

    优势

  • 高可扩展性:可以轻松扩展到数千节点
  • 高容错性:任务失败自动重试,数据多副本存储
  • 编程模型简单:只需实现Map和Reduce函数
  • 适合批处理:对大规模数据批处理效果好
  • 局限

  • 高延迟:不适合实时或交互式分析
  • 迭代计算效率低:每次迭代都需要读写磁盘
  • 仅支持批处理:不支持流处理
  • 编程模型受限:复杂算法实现困难
  • MapReduce最佳实践

    “MapReduce的真正力量不在于它的性能,而在于它使普通程序员能够利用分布式系统的强大功能,而无需成为分布式系统专家。” — Jeffrey Dean,Google高级研究员,MapReduce论文作者

    性能优化技巧

  • 合理设计键值对:键的设计直接影响数据分布和处理效率
  • // 不良实践:使用时间戳作为键,可能导致数据倾斜
    public void map(Object key, Text value, Context context) {
    // 使用时间戳作为键
    context.write(new Text(System.currentTimeMillis()), value);
    }

    // 良好实践:使用复合键或哈希键,确保均匀分布
    public void map(Object key, Text value, Context context) {
    // 使用哈希值作为键的一部分,确保分布均匀
    int partition = Math.abs(value.hashCode() % numPartitions);
    context.write(new Text(partition + "_" + originalKey), value);
    }

  • 使用Combiner减少数据传输:在Map端进行局部聚合,减少网络传输
  • // 配置Combiner,与Reducer使用相同的类
    job.setCombinerClass(IntSumReducer.class);

    // Combiner示例(与Reducer相同)
    public static class IntSumReducer extends Reducer<Text, IntWritable, Text, IntWritable> {
    private IntWritable result = new IntWritable();

    public void reduce(Text key, Iterable<IntWritable> values, Context context)
    throws IOException, InterruptedException {
    int sum = 0;
    for (IntWritable val : values) {
    sum += val.get();
    }
    result.set(sum);
    context.write(key, result);
    }
    }

  • 避免数据倾斜:确保键的分布均匀,避免热点
  • // 处理数据倾斜的策略:键加盐
    public void map(Object key, Text value, Context context) {
    // 对热点键添加随机前缀
    if (isHotKey(key)) {
    int salt = new Random().nextInt(10); // 0-9的随机数
    context.write(new Text(salt + "_" + key), value);
    } else {
    context.write(new Text(key), value);
    }
    }

    // 在Reduce阶段去除盐值
    public void reduce(Text key, Iterable<IntWritable> values, Context context) {
    // 提取原始键(去除盐值)
    String originalKey = key.toString().substring(key.toString().indexOf("_") + 1);
    // 处理逻辑…
    }

  • 合理设置任务数:根据集群规模和数据量调整Map和Reduce任务数
  • // 设置Map任务数(通过控制输入分片大小)
    job.getConfiguration().setLong("mapreduce.input.fileinputformat.split.minsize", 128 * 1024 * 1024); // 128MB

    // 设置Reduce任务数
    job.setNumReduceTasks(10); // 根据集群规模和数据量设置合适的值

    MapReduce的演进与未来

    在这里插入图片描述

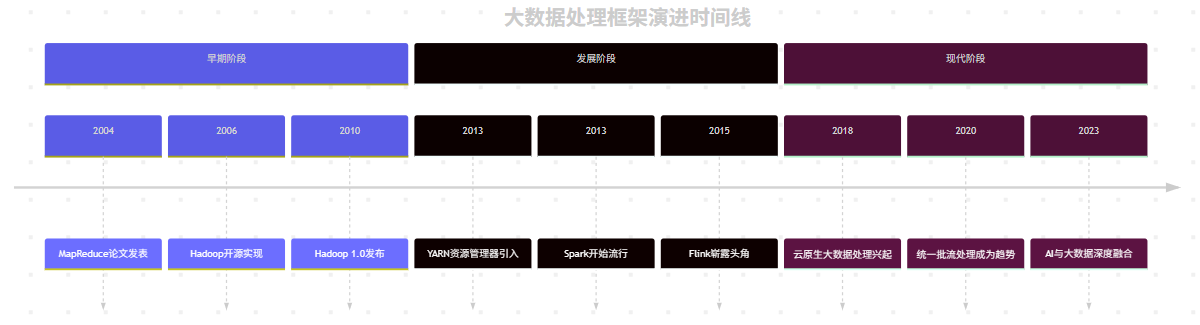

    图6:大数据处理框架演进时间线 – 展示大数据技术从MapReduce到现代框架的发展历程

    这条时间线展示了大数据处理技术从MapReduce开始的演进历程,反映了从批处理到流处理、从单一框架到生态系统的发展趋势,以及与AI技术的深度融合。

    虽然MapReduce已不再是大数据处理的唯一选择,但它的思想和原则仍然影响着现代大数据框架的设计。随着Spark、Flink等新一代框架的兴起,MapReduce的应用场景逐渐聚焦于特定的批处理任务。

    星际编码之旅的终点:我的MapReduce实践心得

    作为一名数据工程师,我在多个项目中应用了MapReduce技术,从最初的摸索到如今的熟练应用,这段旅程让我收获颇丰。MapReduce就像是大数据处理的"Hello World",它不仅是一种技术,更是一种思维方式。

    在我看来,MapReduce最大的魅力在于它的简单与强大的平衡。通过简单的Map和Reduce两个操作,我们就能构建出复杂的数据处理流程。这种"分而治之"的思想不仅适用于MapReduce,也是解决各种复杂问题的通用方法。

    在实际项目中,我发现MapReduce虽然在性能上不如新兴框架,但在稳定性和可靠性方面仍有其独特优势。特别是在处理超大规模数据时,MapReduce的容错机制能够确保作业的可靠完成。我曾经处理过一个包含数十亿条记录的日志分析任务,尽管过程耗时较长,但MapReduce框架的稳定性让我能够安心等待结果,而不必担心中途失败。

    当然,随着技术的发展,我们也需要与时俱进。在新项目中,我已经开始更多地使用Spark和Flink等现代框架,它们在性能和灵活性方面确实提供了更好的体验。但是,理解MapReduce的原理和思想,对于掌握这些新框架仍然至关重要。

    如果你正在学习大数据技术,我强烈建议你从MapReduce开始,理解其核心思想和工作原理,这将为你后续学习更复杂的框架奠定坚实基础。就像我们需要先学会走路,才能跑步一样,MapReduce是你大数据之旅的第一步,也是最重要的一步。

    让我们在代码的宇宙中继续探索,用技术的力量解决更多实际问题,创造更大的价值!

    🌟 我是 励志成为糕手 ,感谢你与我共度这段技术时光! ✨ 如果这篇文章为你带来了启发: ✅ 【收藏】关键知识点,打造你的技术武器库 💡【评论】留下思考轨迹,与同行者碰撞智慧火花 🚀 【关注】持续获取前沿技术解析与实战干货 🌌 技术探索永无止境,让我们继续在代码的宇宙中: • 用优雅的算法绘制星图 • 以严谨的逻辑搭建桥梁 • 让创新的思维照亮前路 📡 保持连接,我们下次太空见!

    参考链接

  • MapReduce: Simplified Data Processing on Large Clusters
  • Apache Hadoop Official Documentation
  • Understanding the MapReduce Paradigm
  • Hadoop MapReduce vs. Apache Spark
  • Evolution of Big Data Processing Frameworks
  • 关键词标签

    #MapReduce #Hadoop #分布式计算 #大数据处理 #批处理
