springboot项目中如何集成Webssh连接服务器？

什么是Webssh？

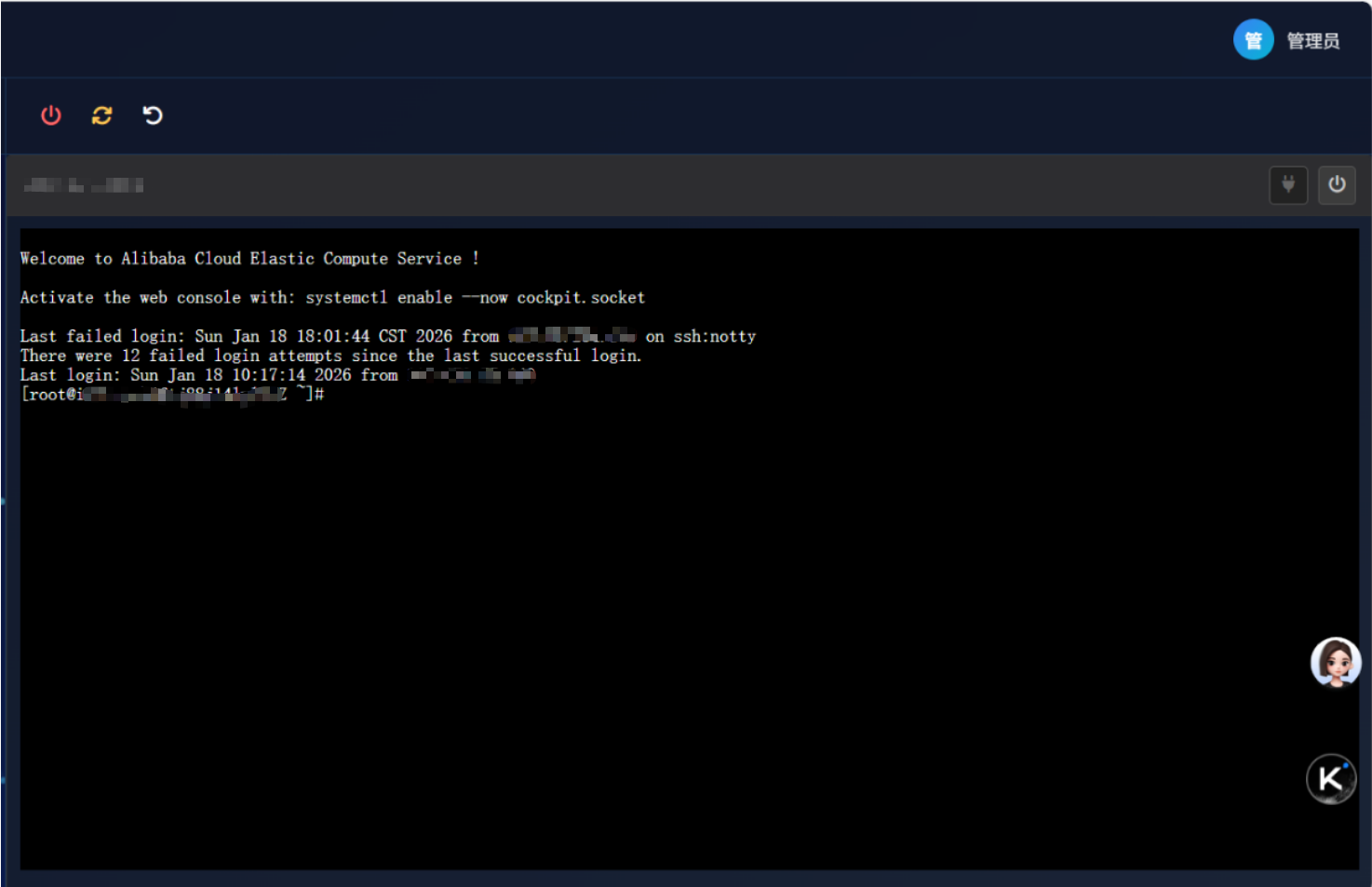

WebSSH 是基于浏览器的 SSH 客户端，依托 WebSocket+HTTPS 加密传输，无需本地安装工具即可远程管理服务器。其优势在于跨平台兼容各类终端设备，支持集中权限管控与操作审计，能绕过部分防火墙限制，部署灵活且可与运维平台快速集成，大幅降低管理成本与使用门槛。

下面，我们就来手把手实现Webssh：

本教程将详细介绍如何在Vue项目中将现有的VNC连接替换为WebSSH连接，以提供更好的终端体验。

1 🌟工作原理🌟

2 🌟vue前端集成Webssh组件🌟

2.1 🌟安装xterm依赖🌟

首先，我们需要安装用于WebSSH功能的必要依赖包：

npm install xterm xterm-addon-fit xterm-addon-attach

这些包提供了：

• xterm: 终端模拟器核心库

• xterm-addon-fit: 自动适配容器尺寸的插件

• xterm-addon-attach: 将终端连接到WebSocket的插件

2.2 🌟创建WebSSH组件🌟

创建一个名为WebSSH.vue的新组件，用于处理SSH连接和终端显示：

<template>
<div class="webssh-container">
<div class="terminal-header">
<div class="connection-info">
<span class="host">{{ host }}</span>:<span class="port">{{ port }}</span>
</div>
<div class="controls">
<!– 连接/断开按钮 –>
<button class="control-btn" @click="connect" :disabled="connected">
<i class="fas fa-plug"></i>
</button>
<button class="control-btn" @click="disconnect" :disabled="!connected">
<i class="fas fa-power-off"></i>
</button>
</div>
</div>
<div class="terminal-wrapper">
<div ref="terminal" class="terminal"></div>
</div>
</div>
</template>

<script>
import { onMounted, onUnmounted, ref, nextTick } from 'vue';
import { Terminal } from 'xterm';
import { FitAddon } from 'xterm-addon-fit';
import 'xterm/css/xterm.css';

export default {
name: 'WebSSH',
props: {
host: {
type: String,
required: true
},
port: {
type: Number,
default: 22
},
username: {
type: String,
required: true
},
password: {
type: String,
required: true
}
},
emits: ['connect', 'disconnect', 'error'],
setup(props, { emit }) {
const terminal = ref(null);
const xterm = ref(null);
const fitAddon = ref(null);
const wsConnection = ref(null);
const connected = ref(false);

const connect = () => {
if (connected.value) {
console.log('Already connected');
return;
}

// WebSocket连接到后端SSH代理服务
// 修改为使用后端WebSocket端点
const wsUrl = `ws://localhost:8080/ws/ssh`; // 使用你的后端WebSocket端点

try {
wsConnection.value = new WebSocket(wsUrl);

wsConnection.value.onopen = () => {
console.log('WebSocket连接已建立');

// 发送连接信息到后端
const connectMsg = {
type: 'connect',
host: props.host,
port: props.port,
username: userName,
password: password
};

wsConnection.value.send(JSON.stringify(connectMsg));
};

wsConnection.value.onmessage = (event) => {
try {
const data = JSON.parse(event.data);

if (data.type === 'connected') {
// 连接成功
connected.value = true;
emit('connect');

// 初始化终端
if (!xterm.value) {
xterm.value = new Terminal({
fontSize: 14,
fontFamily: 'Monaco, Menlo, Ubuntu Mono, monospace',
rows: 30,
cols: 80,
cursorBlink: true,
convertEol: true
});

fitAddon.value = new FitAddon();
xterm.value.loadAddon(fitAddon.value);

xterm.value.open(terminal.value);
fitAddon.value.fit();

// 将终端输入转发到WebSocket
xterm.value.onData(data => {
if (wsConnection.value && wsConnection.value.readyState === WebSocket.OPEN) {
const stdinMsg = {
type: 'stdin',
data: data
};
wsConnection.value.send(JSON.stringify(stdinMsg));
}
});

// 当终端大小改变时，通知WebSocket
xterm.value.onResize((size) => {
if (wsConnection.value && wsConnection.value.readyState === WebSocket.OPEN) {
const resizeMsg = {
type: 'resize',
cols: size.cols,
rows: size.rows
};
wsConnection.value.send(JSON.stringify(resizeMsg));
}
});
}
} else if (data.type === 'stdout') {
// 输出数据到终端
xterm.value && xterm.value.write(data.data);
} else if (data.type === 'error') {
// 处理错误
console.error('SSH错误:', data.data);
emit('error', data.data);
} else if (data.type === 'disconnected') {
// 处理断开连接
connected.value = false;
emit('disconnect');
}
} catch (e) {
// 如果不是JSON格式，直接输出（可能是纯文本响应）
xterm.value && xterm.value.write(event.data);
}
};

wsConnection.value.onclose = () => {
console.log('WebSocket连接已关闭');
connected.value = false;
emit('disconnect');
};

wsConnection.value.onerror = (error) => {
console.error('WebSocket连接错误:', error);
connected.value = false;
emit('error', error);
};

// 监听窗口大小变化
window.addEventListener('resize', () => {
setTimeout(() => {
if (fitAddon.value) {
fitAddon.value.fit();
}
});
});
} catch (error) {
console.error('连接失败:', error);
emit('error', error);
}
};

const disconnect = () => {
if (wsConnection.value) {
// 发送断开连接消息
const disconnectMsg = {
type: 'disconnect'
};
wsConnection.value.send(JSON.stringify(disconnectMsg));
wsConnection.value.close();
wsConnection.value = null;
}

if (xterm.value) {
xterm.value.dispose();
xterm.value = null;
}

connected.value = false;
emit('disconnect');
};

onMounted(() => {
// 初始化终端尺寸
nextTick(() => {
if (fitAddon.value) {
fitAddon.value.fit();
}
});
});

onUnmounted(() => {
disconnect();
});

return {
terminal,
connect,
disconnect,
connected
};
}
};
</script>

<style scoped>
.webssh-container {
display: flex;
flex-direction: column;
height: 100%;
background-color: #1e1e1e;
border: 1px solid #333;
border-radius: 4px;
overflow: hidden;
}

.terminal-header {
display: flex;
justify-content: space-between;
align-items: center;
padding: 8px 12px;
background-color: #2d2d30;
color: #ccc;
border-bottom: 1px solid #333;
}

.connection-info {
font-family: monospace;
font-size: 12px;
}

.controls {
display: flex;
gap: 8px;
}

.control-btn {
background: #3c3c3c;
border: 1px solid #555;
color: #ccc;
border-radius: 4px;
padding: 4px 8px;
cursor: pointer;
display: flex;
align-items: center;
justify-content: center;
width: 30px;
height: 30px;
}

.control-btn:hover {
background: #4c4c4c;
}

.control-btn:disabled {
background: #222;
color: #666;
cursor: not-allowed;
}

.terminal-wrapper {
flex: 1;
padding: 10px;
overflow: hidden;
}

.terminal {
height: 100%;
width: 100%;
}

.xterm {
height: 100%;
}

.xterm .xterm-viewport {
height: 100% !important;
}
</style>

2.3 🌟导入WebSSH组件到主页面🌟

在需要使用WebSSH功能的页面（例如workspace/index.vue）中导入WebSSH组件：

<WebSSH
v-if="showWebSSH"
:key="sshComponentKey"
:host="sshHost"
:port="sshPort"
:username="userInfo.username"
:password="sshPassword"
@connect="onSSHConnect"
@disconnect="onSSHDisconnect"
@error="onSSHError"
class="right-content"
id="containerFrame">
</WebSSH>

<script>
import WebSSH from '@/components/WebSSH.vue';
</script>

2.4 🌟添加SSH事件处理函数🌟

在页面中添加SSH连接相关的事件处理函数：

// SSH事件处理函数
const onSSHConnect = () => {
console.log('SSH连接成功');
ElMessage.success('SSH连接成功');
};

const onSSHDisconnect = () => {
console.log('SSH连接断开');
ElMessage.info('SSH连接已断开');
showWebSSH.value = false;
};

const onSSHError = (error) => {
console.error('SSH连接错误:', error);
ElMessage.error('SSH连接失败: ' + error.message);
showWebSSH.value = false;
};

3 🌟后端采用Websocket+jsch远程连接终端🌟

本文将详细介绍如何在Spring Boot项目中实现WebSSH功能，使用户可以通过浏览器访问远程SSH服务器。

3.1 🌟添加必要依赖🌟

<!– SSH Client for WebSSH –>
<dependency>
<groupId>com.jcraft</groupId>
<artifactId>jsch</artifactId>
<version>0.1.55</version>
</dependency>

<!– Spring WebSocket –>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-websocket</artifactId>
</dependency>

3.2 🌟创建 SSH 消息类🌟

创建 SshMessage.java 类来处理前后端通信的数据格式：

import com.fasterxml.jackson.databind.ObjectMapper;

@Data
@NoArgsConstructor
@AllArgsConstructor
public class SshMessage {
private String type;
private String data;
private String host;
private String username;
private String password;
private Integer port;
private Integer cols;
private Integer rows;

public String toJson() {
try {
ObjectMapper mapper = new ObjectMapper();
return mapper.writeValueAsString(this);
} catch (Exception e) {
e.printStackTrace();
return "{}";
}
}
}

3.3 🌟创建WebSocket SSH处理器🌟

创建 WebSocketSshHandler.java 类来处理WebSocket连接和SSH交互：

package cn.edu.gzpt.blockchain.handler;
import cn.edu.gzpt.blockchain.handler.SshMessage;
import com.jcraft.jsch.ChannelShell;
import com.jcraft.jsch.JSch;
import com.jcraft.jsch.JSchException;
import com.jcraft.jsch.Session;
import org.springframework.stereotype.Component;
import org.springframework.web.socket.*;

import java.io.IOException;
import java.util.concurrent.ConcurrentHashMap;

/**
* WebSocket SSH处理器，用于处理WebSSH连接请求和数据转发
* 实现WebSocketHandler接口，处理前端WebSocket连接与后端SSH连接之间的数据传输
*/
@Component
public class WebSocketSshHandler implements WebSocketHandler {

/**
* 存储WebSocket会话ID与SSH会话的映射关系
*/
private final ConcurrentHashMap<String, Session> sshSessions = new ConcurrentHashMap<>();

/**
* 存储WebSocket会话ID与SSH Shell通道的映射关系
*/
private final ConcurrentHashMap<String, ChannelShell> shellChannels = new ConcurrentHashMap<>();

/**
* 存储WebSocket会话ID与SSH输出读取线程的映射关系
*/
private final ConcurrentHashMap<String, Thread> readerThreads = new ConcurrentHashMap<>();

/**
* WebSocket连接建立后的回调方法
* 记录连接建立日志
*
* @param session WebSocket会话对象
* @throws Exception 异常
*/
@Override
public void afterConnectionEstablished(WebSocketSession session) throws Exception {
System.out.println("WebSocket连接已建立: " + session.getId());
}

/**
* 处理WebSocket消息的核心方法
* 根据消息类型分发到相应的处理方法
*
* @param webSocketSession WebSocket会话对象
* @param message WebSocket消息对象
* @throws Exception 异常
*/
@Override
public void handleMessage(WebSocketSession webSocketSession, WebSocketMessage<?> message) throws Exception {
String payload = (String) message.getPayload();

try {
// 解析来自前端的消息
SshMessage sshMessage = parseMessage(payload);

switch (sshMessage.getType()) {
case "connect":
handleConnect(webSocketSession, sshMessage);
break;
case "stdin":
handleStdin(webSocketSession, sshMessage);
break;
case "resize":
handleResize(webSocketSession, sshMessage);
break;
case "disconnect":
handleDisconnect(webSocketSession);
break;
default:
sendError(webSocketSession, "未知的消息类型: " + sshMessage.getType());
}
} catch (Exception e) {
sendError(webSocketSession, "处理消息时发生错误: " + e.getMessage());
e.printStackTrace();
}
}

/**
* WebSocket传输错误处理方法
* 记录错误日志并断开连接
*
* @param session WebSocket会话对象
* @param exception 传输异常对象
* @throws Exception 异常
*/
@Override
public void handleTransportError(WebSocketSession session, Throwable exception) throws Exception {
System.out.println("WebSocket传输错误: " + exception.getMessage());
handleDisconnect(session);
}

/**
* WebSocket连接关闭后的回调方法
* 记录关闭日志并清理资源
*
* @param session WebSocket会话对象
* @param status 连接关闭状态
* @throws Exception 异常
*/
@Override
public void afterConnectionClosed(WebSocketSession session, CloseStatus status) throws Exception {
System.out.println("WebSocket连接已关闭: " + session.getId() + ", 状态: " + status);
handleDisconnect(session);
}

/**
* 判断是否支持部分消息
*
* @return 是否支持部分消息，此处返回false表示不支持
*/
@Override
public boolean supportsPartialMessages() {
return false;
}

/**
* 处理SSH连接请求
* 根据前端传递的SSH连接参数建立SSH连接
*
* @param session WebSocket会话对象
* @param message 包含SSH连接参数的消息对象
* @throws JSchException SSH连接异常
*/
private void handleConnect(WebSocketSession session, SshMessage message) throws JSchException {
String sessionId = session.getId();

String host = message.getHost();
int port = message.getPort();
String username = message.getUsername();
String password = message.getPassword();

if (host == null || username == null || password == null) {
sendError(session, "缺少必要的SSH连接参数");
return;
}

// 创建JSch实例
JSch jsch = new JSch();
Session sshSession = jsch.getSession(username, host, port);
sshSession.setPassword(password);

// 设置不验证主机密钥
sshSession.setConfig("StrictHostKeyChecking", "no");
sshSession.connect(30000); // 30秒超时

// 打开shell通道
ChannelShell channel = (ChannelShell) sshSession.openChannel("shell");
channel.setPty(true);
channel.connect();

// 存储会话
sshSessions.put(sessionId, sshSession);
shellChannels.put(sessionId, channel);

// 启动读取线程
Thread readerThread = new Thread(() -> {
try {
byte[] buffer = new byte[1024];
int i;
while ((i = channel.getInputStream().read(buffer)) != –1) {
String output = new String(buffer, 0, i);
sendToWebSocket(session, "stdout", output);
}
} catch (IOException e) {
System.err.println("读取SSH输出时发生错误: " + e.getMessage());
try {
session.close();
} catch (IOException ioException) {
ioException.printStackTrace();
}
}
});

readerThread.setDaemon(true);
readerThread.start();
readerThreads.put(sessionId, readerThread);

// 发送连接成功消息
sendToWebSocket(session, "connected", "SSH连接已建立");
}

/**
* 处理来自前端的键盘输入数据
* 将前端发送的键盘输入数据转发到SSH服务器
*
* @param session WebSocket会话对象
* @param message 包含输入数据的消息对象
* @throws IOException IO异常
*/
private void handleStdin(WebSocketSession session, SshMessage message) throws IOException {
String data = message.getData();
String sessionId = session.getId();

ChannelShell channel = shellChannels.get(sessionId);
if (channel != null && channel.isConnected()) {
channel.getOutputStream().write(data.getBytes("UTF-8"));
channel.getOutputStream().flush();
} else {
sendError(session, "SSH连接未建立或已断开");
}
}

/**
* 处理终端窗口大小调整请求
* 根据前端发送的窗口大小调整SSH终端尺寸
*
* @param session WebSocket会话对象
* @param message 包含窗口尺寸信息的消息对象
*/
private void handleResize(WebSocketSession session, SshMessage message) {
String sessionId = session.getId();
ChannelShell channel = shellChannels.get(sessionId);

if (channel != null && channel.isConnected()) {
int cols = message.getCols();
int rows = message.getRows();

if (cols > 0 && rows > 0) {
channel.setPtySize(cols, rows, 640, 480);
}
}
}

/**
* 处理断开连接请求
* 清理所有与当前WebSocket会话关联的资源
*
* @param session WebSocket会话对象
*/
private void handleDisconnect(WebSocketSession session) {
String sessionId = session.getId();

// 关闭读取线程
Thread readerThread = readerThreads.remove(sessionId);
if (readerThread != null) {
readerThread.interrupt();
}

// 关闭shell通道
ChannelShell channel = shellChannels.remove(sessionId);
if (channel != null && channel.isConnected()) {
channel.disconnect();
}

// 关闭SSH会话
Session sshSession = sshSessions.remove(sessionId);
if (sshSession != null && sshSession.isConnected()) {
sshSession.disconnect();
}
}

/**
* 向WebSocket客户端发送消息
*
* @param session WebSocket会话对象
* @param type 消息类型
* @param data 消息数据
*/
private void sendToWebSocket(WebSocketSession session, String type, String data) {
try {
if (session.isOpen()) {
SshMessage response = new SshMessage(type, data);
session.sendMessage(new TextMessage(response.toJson()));
}
} catch (IOException e) {
System.err.println("发送WebSocket消息失败: " + e.getMessage());
}
}

/**
* 向WebSocket客户端发送错误消息
*
* @param session WebSocket会话对象
* @param errorMessage 错误消息内容
*/
private void sendError(WebSocketSession session, String errorMessage) {
try {
if (session.isOpen()) {
SshMessage errorMsg = new SshMessage("error", errorMessage);
session.sendMessage(new TextMessage(errorMsg.toJson()));
}
} catch (IOException e) {
System.err.println("发送错误消息失败: " + e.getMessage());
}
}

/**
* 解析前端发送的JSON格式消息
* 提取消息类型、数据及SSH连接参数
*
* @param json 待解析的JSON字符串
* @return 解析后的SshMessage对象
*/
private SshMessage parseMessage(String json) {
// 简单解析JSON字符串
// 在实际项目中建议使用Jackson等库进行解析
try {
String type = extractJsonValue(json, "type");
String data = extractJsonValue(json, "data");
String host = extractJsonValue(json, "host");
String username = extractJsonValue(json, "username");
String password = extractJsonValue(json, "password");

Integer port = null;
String portStr = extractJsonValue(json, "port");
if (portStr != null && !portStr.isEmpty()) {
try {
port = Integer.parseInt(portStr);
} catch (NumberFormatException e) {
// 忽略错误，保持null
}
}

Integer cols = null;
String colsStr = extractJsonValue(json, "cols");
if (colsStr != null && !colsStr.isEmpty()) {
try {
cols = Integer.parseInt(colsStr);
} catch (NumberFormatException e) {
// 忽略错误，保持null
}
}

Integer rows = null;
String rowsStr = extractJsonValue(json, "rows");
if (rowsStr != null && !rowsStr.isEmpty()) {
try {
rows = Integer.parseInt(rowsStr);
} catch (NumberFormatException e) {
// 忽略错误，保持null
}
}

return new SshMessage(type, data, host, username, password, port, cols, rows);
} catch (Exception e) {
throw new RuntimeException("解析消息失败: " + e.getMessage());
}
}

/**
* 从JSON字符串中提取指定键的值
* 使用正则表达式解析JSON字符串
*
* @param json JSON字符串
* @param key 要提取的键名
* @return 对应键的值，如果不存在则返回null
*/
private String extractJsonValue(String json, String key) {
String pattern = "\\"" + key + "\\":\\"([^\\"]*)\\"";
java.util.regex.Pattern p = java.util.regex.Pattern.compile(pattern);
java.util.regex.Matcher m = p.matcher(json);
if (m.find()) {
return m.group(1);
}

// 尝试匹配数字值
pattern = "\\"" + key + "\\":([0-9]+)";
p = java.util.regex.Pattern.compile(pattern);
m = p.matcher(json);
if (m.find()) {
return m.group(1);
}

return null;
}
}

上述代码主要是WebSocket SSH处理器，实现远程SSH终端功能。通过WebSocket接收前端消息，支持SSH连接、命令执行、终端重定向和断开连接操作。使用JSch库建立SSH连接，维护会话状态，并将SSH输出实时推送回前端显示。

3.4 🌟配置Websocket端点🌟

创建 WebSocketConfig.java 配置类来注册WebSocket处理器：

import cn.edu.gzpt.blockchain.handler.WebSocketSshHandler;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.socket.config.annotation.EnableWebSocket;
import org.springframework.web.socket.config.annotation.WebSocketConfigurer;
import org.springframework.web.socket.config.annotation.WebSocketHandlerRegistry;

@Configuration
@EnableWebSocket
public class WebSocketConfig implements WebSocketConfigurer {

@Autowired
private WebSocketSshHandler webSocketSshHandler;

@Override
public void registerWebSocketHandlers(WebSocketHandlerRegistry registry) {
registry.addHandler(webSocketSshHandler, "/ws/ssh")
.setAllowedOrigins("*"); // 生产环境中应设置具体域名
}
}

4 🌟效果图🌟

☀️☀️这里是skywalker的博客小记，如果你喜欢我的文章，可以点赞支持一下博主，感谢您对自由的支持~，如果有其他想要探索的内容，还请留言在评论区~
