Docker push 命令：镜像发布与管理的艺术

Docker push 命令：镜像发布与管理的艺术

• • 1. 命令概述
  • 2. 命令语法
  • 3. 核心参数解析
  • 4. 推送架构图解
  • 5. 完整工作流程
  • 6. 实战场景示例
  • • 6.1 基础推送操作
    • 6.2 企业级推送流程
    • 6.3 多架构镜像推送
  • 7. 镜像命名规范详解
  • 8. 安全最佳实践
  • • 8.1 内容信任机制
    • 8.2 最小权限原则
  • 9. 性能优化指南
  • • 9.1 分层上传策略
    • 9.2 并行上传配置
  • 10. 企业级应用场景
  • • 10.1 全球镜像同步
    • 10.2 合规审计流程
  • 11. 常见问题排查
  • • 11.1 推送失败分析
    • 11.2 典型错误解决
  • 12. 进阶技巧
  • • 12.1 自动标记与推送
    • 12.2 使用缓存仓库
  • 13. 总结与最佳实践
  • • 13.1 核心要点
    • 13.2 推荐工作流

1. 命令概述

docker push 是 Docker 镜像生命周期中的关键命令，用于将本地构建的镜像上传到远程仓库（如 Docker Hub 或私有仓库），实现镜像的共享和分发。掌握其工作原理对于 CI/CD 流程和容器化部署至关重要。

2. 命令语法

docker push [OPTIONS] NAME[:TAG]

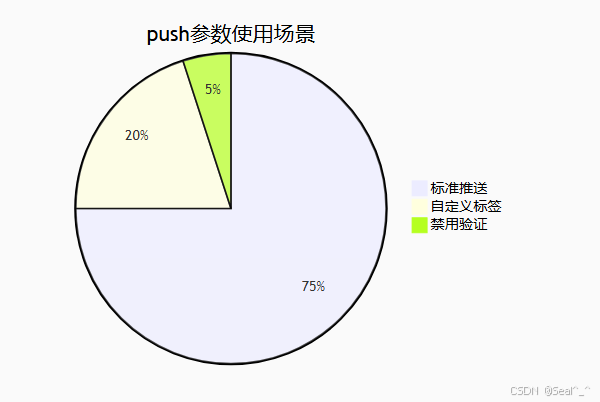

3. 核心参数解析

4. 推送架构图解

#mermaid-svg-IkXeAwc2GuarRBC3 {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-IkXeAwc2GuarRBC3 .error-icon{fill:#552222;}#mermaid-svg-IkXeAwc2GuarRBC3 .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-IkXeAwc2GuarRBC3 .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-IkXeAwc2GuarRBC3 .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-IkXeAwc2GuarRBC3 .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-IkXeAwc2GuarRBC3 .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-IkXeAwc2GuarRBC3 .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-IkXeAwc2GuarRBC3 .marker{fill:#333333;stroke:#333333;}#mermaid-svg-IkXeAwc2GuarRBC3 .marker.cross{stroke:#333333;}#mermaid-svg-IkXeAwc2GuarRBC3 svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-IkXeAwc2GuarRBC3 .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-IkXeAwc2GuarRBC3 .cluster-label text{fill:#333;}#mermaid-svg-IkXeAwc2GuarRBC3 .cluster-label span{color:#333;}#mermaid-svg-IkXeAwc2GuarRBC3 .label text,#mermaid-svg-IkXeAwc2GuarRBC3 span{fill:#333;color:#333;}#mermaid-svg-IkXeAwc2GuarRBC3 .node rect,#mermaid-svg-IkXeAwc2GuarRBC3 .node circle,#mermaid-svg-IkXeAwc2GuarRBC3 .node ellipse,#mermaid-svg-IkXeAwc2GuarRBC3 .node polygon,#mermaid-svg-IkXeAwc2GuarRBC3 .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-IkXeAwc2GuarRBC3 .node .label{text-align:center;}#mermaid-svg-IkXeAwc2GuarRBC3 .node.clickable{cursor:pointer;}#mermaid-svg-IkXeAwc2GuarRBC3 .arrowheadPath{fill:#333333;}#mermaid-svg-IkXeAwc2GuarRBC3 .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-IkXeAwc2GuarRBC3 .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-IkXeAwc2GuarRBC3 .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-IkXeAwc2GuarRBC3 .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-IkXeAwc2GuarRBC3 .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-IkXeAwc2GuarRBC3 .cluster text{fill:#333;}#mermaid-svg-IkXeAwc2GuarRBC3 .cluster span{color:#333;}#mermaid-svg-IkXeAwc2GuarRBC3 div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-IkXeAwc2GuarRBC3 :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

安全层

1. 准备

2. 认证

3. 分层上传

4. 存储

生产环境

验证

内容签名

Docker客户端

本地镜像

认证服务

镜像仓库

存储后端

5. 完整工作流程

#mermaid-svg-O1LXX4zpsLnFOSKm {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-O1LXX4zpsLnFOSKm .error-icon{fill:#552222;}#mermaid-svg-O1LXX4zpsLnFOSKm .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-O1LXX4zpsLnFOSKm .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-O1LXX4zpsLnFOSKm .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-O1LXX4zpsLnFOSKm .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-O1LXX4zpsLnFOSKm .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-O1LXX4zpsLnFOSKm .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-O1LXX4zpsLnFOSKm .marker{fill:#333333;stroke:#333333;}#mermaid-svg-O1LXX4zpsLnFOSKm .marker.cross{stroke:#333333;}#mermaid-svg-O1LXX4zpsLnFOSKm svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-O1LXX4zpsLnFOSKm .actor{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-O1LXX4zpsLnFOSKm text.actor>tspan{fill:black;stroke:none;}#mermaid-svg-O1LXX4zpsLnFOSKm .actor-line{stroke:grey;}#mermaid-svg-O1LXX4zpsLnFOSKm .messageLine0{stroke-width:1.5;stroke-dasharray:none;stroke:#333;}#mermaid-svg-O1LXX4zpsLnFOSKm .messageLine1{stroke-width:1.5;stroke-dasharray:2,2;stroke:#333;}#mermaid-svg-O1LXX4zpsLnFOSKm #arrowhead path{fill:#333;stroke:#333;}#mermaid-svg-O1LXX4zpsLnFOSKm .sequenceNumber{fill:white;}#mermaid-svg-O1LXX4zpsLnFOSKm #sequencenumber{fill:#333;}#mermaid-svg-O1LXX4zpsLnFOSKm #crosshead path{fill:#333;stroke:#333;}#mermaid-svg-O1LXX4zpsLnFOSKm .messageText{fill:#333;stroke:#333;}#mermaid-svg-O1LXX4zpsLnFOSKm .labelBox{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-O1LXX4zpsLnFOSKm .labelText,#mermaid-svg-O1LXX4zpsLnFOSKm .labelText>tspan{fill:black;stroke:none;}#mermaid-svg-O1LXX4zpsLnFOSKm .loopText,#mermaid-svg-O1LXX4zpsLnFOSKm .loopText>tspan{fill:black;stroke:none;}#mermaid-svg-O1LXX4zpsLnFOSKm .loopLine{stroke-width:2px;stroke-dasharray:2,2;stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);}#mermaid-svg-O1LXX4zpsLnFOSKm .note{stroke:#aaaa33;fill:#fff5ad;}#mermaid-svg-O1LXX4zpsLnFOSKm .noteText,#mermaid-svg-O1LXX4zpsLnFOSKm .noteText>tspan{fill:black;stroke:none;}#mermaid-svg-O1LXX4zpsLnFOSKm .activation0{fill:#f4f4f4;stroke:#666;}#mermaid-svg-O1LXX4zpsLnFOSKm .activation1{fill:#f4f4f4;stroke:#666;}#mermaid-svg-O1LXX4zpsLnFOSKm .activation2{fill:#f4f4f4;stroke:#666;}#mermaid-svg-O1LXX4zpsLnFOSKm .actorPopupMenu{position:absolute;}#mermaid-svg-O1LXX4zpsLnFOSKm .actorPopupMenuPanel{position:absolute;fill:#ECECFF;box-shadow:0px 8px 16px 0px rgba(0,0,0,0.2);filter:drop-shadow(3px 5px 2px rgb(0 0 0 / 0.4));}#mermaid-svg-O1LXX4zpsLnFOSKm .actor-man line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-O1LXX4zpsLnFOSKm .actor-man circle,#mermaid-svg-O1LXX4zpsLnFOSKm line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;stroke-width:2px;}#mermaid-svg-O1LXX4zpsLnFOSKm :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

User

Docker_Client

Auth_Service

Registry

docker push myrepo/app:1.0

获取推送权限

返回令牌

上传层1

上传层2

loop

[分层上传]

提交manifest

返回digest

推送成功

User

Docker_Client

Auth_Service

Registry

6. 实战场景示例

6.1 基础推送操作

# 登录Docker Hub
docker login

# 标记本地镜像
docker tag myapp:latest username/myapp:1.0

# 推送镜像
docker push username/myapp:1.0

6.2 企业级推送流程

#!/bin/bash
# 安全推送脚本
REGISTRY="registry.company.com"
PROJECT="payment-service"
VERSION="v1.2.3"

# 1. 构建镜像
docker build -t $REGISTRY/$PROJECT:$VERSION .

# 2. 内容签名
cosign sign –key cosign.key $REGISTRY/$PROJECT:$VERSION

# 3. 推送镜像
docker push $REGISTRY/$PROJECT:$VERSION

# 4. 清理本地
docker rmi $REGISTRY/$PROJECT:$VERSION

6.3 多架构镜像推送

# 创建manifest列表
docker manifest create myrepo/multiarch \\
–amend myrepo/image:x86 \\
–amend myrepo/image:arm64

# 推送manifest
docker manifest push myrepo/multiarch

7. 镜像命名规范详解

#mermaid-svg-GSMD5RwsHdb8cSFi {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-GSMD5RwsHdb8cSFi .error-icon{fill:#552222;}#mermaid-svg-GSMD5RwsHdb8cSFi .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-GSMD5RwsHdb8cSFi .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-GSMD5RwsHdb8cSFi .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-GSMD5RwsHdb8cSFi .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-GSMD5RwsHdb8cSFi .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-GSMD5RwsHdb8cSFi .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-GSMD5RwsHdb8cSFi .marker{fill:#333333;stroke:#333333;}#mermaid-svg-GSMD5RwsHdb8cSFi .marker.cross{stroke:#333333;}#mermaid-svg-GSMD5RwsHdb8cSFi svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-GSMD5RwsHdb8cSFi .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-GSMD5RwsHdb8cSFi .cluster-label text{fill:#333;}#mermaid-svg-GSMD5RwsHdb8cSFi .cluster-label span{color:#333;}#mermaid-svg-GSMD5RwsHdb8cSFi .label text,#mermaid-svg-GSMD5RwsHdb8cSFi span{fill:#333;color:#333;}#mermaid-svg-GSMD5RwsHdb8cSFi .node rect,#mermaid-svg-GSMD5RwsHdb8cSFi .node circle,#mermaid-svg-GSMD5RwsHdb8cSFi .node ellipse,#mermaid-svg-GSMD5RwsHdb8cSFi .node polygon,#mermaid-svg-GSMD5RwsHdb8cSFi .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-GSMD5RwsHdb8cSFi .node .label{text-align:center;}#mermaid-svg-GSMD5RwsHdb8cSFi .node.clickable{cursor:pointer;}#mermaid-svg-GSMD5RwsHdb8cSFi .arrowheadPath{fill:#333333;}#mermaid-svg-GSMD5RwsHdb8cSFi .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-GSMD5RwsHdb8cSFi .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-GSMD5RwsHdb8cSFi .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-GSMD5RwsHdb8cSFi .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-GSMD5RwsHdb8cSFi .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-GSMD5RwsHdb8cSFi .cluster text{fill:#333;}#mermaid-svg-GSMD5RwsHdb8cSFi .cluster span{color:#333;}#mermaid-svg-GSMD5RwsHdb8cSFi div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-GSMD5RwsHdb8cSFi :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

完整镜像名

仓库地址

命名空间

仓库名

标签

docker.io/library/nginx:1.21

解析

docker.io

library

nginx

1.21

registry.com/finance/web:v1.2

解析2

registry.com

finance

web

v1.2

8. 安全最佳实践

8.1 内容信任机制

#mermaid-svg-AnjF1HuKM8Y7lPDR {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-AnjF1HuKM8Y7lPDR .error-icon{fill:#552222;}#mermaid-svg-AnjF1HuKM8Y7lPDR .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-AnjF1HuKM8Y7lPDR .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-AnjF1HuKM8Y7lPDR .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-AnjF1HuKM8Y7lPDR .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-AnjF1HuKM8Y7lPDR .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-AnjF1HuKM8Y7lPDR .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-AnjF1HuKM8Y7lPDR .marker{fill:#333333;stroke:#333333;}#mermaid-svg-AnjF1HuKM8Y7lPDR .marker.cross{stroke:#333333;}#mermaid-svg-AnjF1HuKM8Y7lPDR svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-AnjF1HuKM8Y7lPDR .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-AnjF1HuKM8Y7lPDR .cluster-label text{fill:#333;}#mermaid-svg-AnjF1HuKM8Y7lPDR .cluster-label span{color:#333;}#mermaid-svg-AnjF1HuKM8Y7lPDR .label text,#mermaid-svg-AnjF1HuKM8Y7lPDR span{fill:#333;color:#333;}#mermaid-svg-AnjF1HuKM8Y7lPDR .node rect,#mermaid-svg-AnjF1HuKM8Y7lPDR .node circle,#mermaid-svg-AnjF1HuKM8Y7lPDR .node ellipse,#mermaid-svg-AnjF1HuKM8Y7lPDR .node polygon,#mermaid-svg-AnjF1HuKM8Y7lPDR .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-AnjF1HuKM8Y7lPDR .node .label{text-align:center;}#mermaid-svg-AnjF1HuKM8Y7lPDR .node.clickable{cursor:pointer;}#mermaid-svg-AnjF1HuKM8Y7lPDR .arrowheadPath{fill:#333333;}#mermaid-svg-AnjF1HuKM8Y7lPDR .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-AnjF1HuKM8Y7lPDR .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-AnjF1HuKM8Y7lPDR .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-AnjF1HuKM8Y7lPDR .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-AnjF1HuKM8Y7lPDR .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-AnjF1HuKM8Y7lPDR .cluster text{fill:#333;}#mermaid-svg-AnjF1HuKM8Y7lPDR .cluster span{color:#333;}#mermaid-svg-AnjF1HuKM8Y7lPDR div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-AnjF1HuKM8Y7lPDR :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

构建镜像

数字签名

推送镜像

拉取镜像

验证签名

运行容器

启用内容信任：

export DOCKER_CONTENT_TRUST=1
docker push myrepo/secure-app:1.0

8.2 最小权限原则

9. 性能优化指南

9.1 分层上传策略

#mermaid-svg-3OkoBcpgiUpOvsX0 {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-3OkoBcpgiUpOvsX0 .error-icon{fill:#552222;}#mermaid-svg-3OkoBcpgiUpOvsX0 .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-3OkoBcpgiUpOvsX0 .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-3OkoBcpgiUpOvsX0 .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-3OkoBcpgiUpOvsX0 .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-3OkoBcpgiUpOvsX0 .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-3OkoBcpgiUpOvsX0 .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-3OkoBcpgiUpOvsX0 .marker{fill:#333333;stroke:#333333;}#mermaid-svg-3OkoBcpgiUpOvsX0 .marker.cross{stroke:#333333;}#mermaid-svg-3OkoBcpgiUpOvsX0 svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-3OkoBcpgiUpOvsX0 .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-3OkoBcpgiUpOvsX0 .cluster-label text{fill:#333;}#mermaid-svg-3OkoBcpgiUpOvsX0 .cluster-label span{color:#333;}#mermaid-svg-3OkoBcpgiUpOvsX0 .label text,#mermaid-svg-3OkoBcpgiUpOvsX0 span{fill:#333;color:#333;}#mermaid-svg-3OkoBcpgiUpOvsX0 .node rect,#mermaid-svg-3OkoBcpgiUpOvsX0 .node circle,#mermaid-svg-3OkoBcpgiUpOvsX0 .node ellipse,#mermaid-svg-3OkoBcpgiUpOvsX0 .node polygon,#mermaid-svg-3OkoBcpgiUpOvsX0 .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-3OkoBcpgiUpOvsX0 .node .label{text-align:center;}#mermaid-svg-3OkoBcpgiUpOvsX0 .node.clickable{cursor:pointer;}#mermaid-svg-3OkoBcpgiUpOvsX0 .arrowheadPath{fill:#333333;}#mermaid-svg-3OkoBcpgiUpOvsX0 .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-3OkoBcpgiUpOvsX0 .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-3OkoBcpgiUpOvsX0 .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-3OkoBcpgiUpOvsX0 .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-3OkoBcpgiUpOvsX0 .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-3OkoBcpgiUpOvsX0 .cluster text{fill:#333;}#mermaid-svg-3OkoBcpgiUpOvsX0 .cluster span{color:#333;}#mermaid-svg-3OkoBcpgiUpOvsX0 div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-3OkoBcpgiUpOvsX0 :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

镜像

基础层

依赖层

应用层

优化技巧：

• 将稳定依赖放在底层
• 高频变更层尽量小
• 使用多阶段构建减少层数

9.2 并行上传配置

# 修改daemon.json
{
"max-concurrent-uploads": 3,
"registry-mirrors": ["https://mirror.company.com"]
}

10. 企业级应用场景

10.1 全球镜像同步

#mermaid-svg-4trDMbWxpyQztwQ5 {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-4trDMbWxpyQztwQ5 .error-icon{fill:#552222;}#mermaid-svg-4trDMbWxpyQztwQ5 .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-4trDMbWxpyQztwQ5 .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-4trDMbWxpyQztwQ5 .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-4trDMbWxpyQztwQ5 .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-4trDMbWxpyQztwQ5 .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-4trDMbWxpyQztwQ5 .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-4trDMbWxpyQztwQ5 .marker{fill:#333333;stroke:#333333;}#mermaid-svg-4trDMbWxpyQztwQ5 .marker.cross{stroke:#333333;}#mermaid-svg-4trDMbWxpyQztwQ5 svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-4trDMbWxpyQztwQ5 .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-4trDMbWxpyQztwQ5 .cluster-label text{fill:#333;}#mermaid-svg-4trDMbWxpyQztwQ5 .cluster-label span{color:#333;}#mermaid-svg-4trDMbWxpyQztwQ5 .label text,#mermaid-svg-4trDMbWxpyQztwQ5 span{fill:#333;color:#333;}#mermaid-svg-4trDMbWxpyQztwQ5 .node rect,#mermaid-svg-4trDMbWxpyQztwQ5 .node circle,#mermaid-svg-4trDMbWxpyQztwQ5 .node ellipse,#mermaid-svg-4trDMbWxpyQztwQ5 .node polygon,#mermaid-svg-4trDMbWxpyQztwQ5 .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-4trDMbWxpyQztwQ5 .node .label{text-align:center;}#mermaid-svg-4trDMbWxpyQztwQ5 .node.clickable{cursor:pointer;}#mermaid-svg-4trDMbWxpyQztwQ5 .arrowheadPath{fill:#333333;}#mermaid-svg-4trDMbWxpyQztwQ5 .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-4trDMbWxpyQztwQ5 .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-4trDMbWxpyQztwQ5 .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-4trDMbWxpyQztwQ5 .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-4trDMbWxpyQztwQ5 .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-4trDMbWxpyQztwQ5 .cluster text{fill:#333;}#mermaid-svg-4trDMbWxpyQztwQ5 .cluster span{color:#333;}#mermaid-svg-4trDMbWxpyQztwQ5 div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-4trDMbWxpyQztwQ5 :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

主仓库

区域镜像1

区域镜像2

区域镜像3

10.2 合规审计流程

# 推送前检查
docker scan myapp:1.0
docker trust sign myapp:1.0

# 生成SBOM
docker sbom myapp:1.0 -o sbom.json

11. 常见问题排查

11.1 推送失败分析

#mermaid-svg-V2WVYhKzBTDv3m03 {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-V2WVYhKzBTDv3m03 .error-icon{fill:#552222;}#mermaid-svg-V2WVYhKzBTDv3m03 .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-V2WVYhKzBTDv3m03 .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-V2WVYhKzBTDv3m03 .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-V2WVYhKzBTDv3m03 .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-V2WVYhKzBTDv3m03 .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-V2WVYhKzBTDv3m03 .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-V2WVYhKzBTDv3m03 .marker{fill:#333333;stroke:#333333;}#mermaid-svg-V2WVYhKzBTDv3m03 .marker.cross{stroke:#333333;}#mermaid-svg-V2WVYhKzBTDv3m03 svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-V2WVYhKzBTDv3m03 .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-V2WVYhKzBTDv3m03 .cluster-label text{fill:#333;}#mermaid-svg-V2WVYhKzBTDv3m03 .cluster-label span{color:#333;}#mermaid-svg-V2WVYhKzBTDv3m03 .label text,#mermaid-svg-V2WVYhKzBTDv3m03 span{fill:#333;color:#333;}#mermaid-svg-V2WVYhKzBTDv3m03 .node rect,#mermaid-svg-V2WVYhKzBTDv3m03 .node circle,#mermaid-svg-V2WVYhKzBTDv3m03 .node ellipse,#mermaid-svg-V2WVYhKzBTDv3m03 .node polygon,#mermaid-svg-V2WVYhKzBTDv3m03 .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-V2WVYhKzBTDv3m03 .node .label{text-align:center;}#mermaid-svg-V2WVYhKzBTDv3m03 .node.clickable{cursor:pointer;}#mermaid-svg-V2WVYhKzBTDv3m03 .arrowheadPath{fill:#333333;}#mermaid-svg-V2WVYhKzBTDv3m03 .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-V2WVYhKzBTDv3m03 .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-V2WVYhKzBTDv3m03 .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-V2WVYhKzBTDv3m03 .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-V2WVYhKzBTDv3m03 .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-V2WVYhKzBTDv3m03 .cluster text{fill:#333;}#mermaid-svg-V2WVYhKzBTDv3m03 .cluster span{color:#333;}#mermaid-svg-V2WVYhKzBTDv3m03 div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-V2WVYhKzBTDv3m03 :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

检查

检查

检查

推送失败

认证问题

网络问题

仓库权限

docker-login

ping-registry

curl

11.2 典型错误解决

12. 进阶技巧

12.1 自动标记与推送

#!/bin/bash
# 自动版本标记
COMMIT_SHA=$(git rev-parse –short HEAD)
docker build -t app:$COMMIT_SHA .
docker tag app:$COMMIT_SHA registry.com/project/app:$COMMIT_SHA
docker push registry.com/project/app:$COMMIT_SHA

12.2 使用缓存仓库

#mermaid-svg-iNfclPWCMSM6QkZ9 {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-iNfclPWCMSM6QkZ9 .error-icon{fill:#552222;}#mermaid-svg-iNfclPWCMSM6QkZ9 .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-iNfclPWCMSM6QkZ9 .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-iNfclPWCMSM6QkZ9 .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-iNfclPWCMSM6QkZ9 .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-iNfclPWCMSM6QkZ9 .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-iNfclPWCMSM6QkZ9 .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-iNfclPWCMSM6QkZ9 .marker{fill:#333333;stroke:#333333;}#mermaid-svg-iNfclPWCMSM6QkZ9 .marker.cross{stroke:#333333;}#mermaid-svg-iNfclPWCMSM6QkZ9 svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-iNfclPWCMSM6QkZ9 .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-iNfclPWCMSM6QkZ9 .cluster-label text{fill:#333;}#mermaid-svg-iNfclPWCMSM6QkZ9 .cluster-label span{color:#333;}#mermaid-svg-iNfclPWCMSM6QkZ9 .label text,#mermaid-svg-iNfclPWCMSM6QkZ9 span{fill:#333;color:#333;}#mermaid-svg-iNfclPWCMSM6QkZ9 .node rect,#mermaid-svg-iNfclPWCMSM6QkZ9 .node circle,#mermaid-svg-iNfclPWCMSM6QkZ9 .node ellipse,#mermaid-svg-iNfclPWCMSM6QkZ9 .node polygon,#mermaid-svg-iNfclPWCMSM6QkZ9 .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-iNfclPWCMSM6QkZ9 .node .label{text-align:center;}#mermaid-svg-iNfclPWCMSM6QkZ9 .node.clickable{cursor:pointer;}#mermaid-svg-iNfclPWCMSM6QkZ9 .arrowheadPath{fill:#333333;}#mermaid-svg-iNfclPWCMSM6QkZ9 .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-iNfclPWCMSM6QkZ9 .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-iNfclPWCMSM6QkZ9 .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-iNfclPWCMSM6QkZ9 .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-iNfclPWCMSM6QkZ9 .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-iNfclPWCMSM6QkZ9 .cluster text{fill:#333;}#mermaid-svg-iNfclPWCMSM6QkZ9 .cluster span{color:#333;}#mermaid-svg-iNfclPWCMSM6QkZ9 div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-iNfclPWCMSM6QkZ9 :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

CI系统

缓存仓库

官方仓库

生产仓库

13. 总结与最佳实践

13.1 核心要点

13.2 推荐工作流

#mermaid-svg-NOETl3zMYpoNuXQw {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-NOETl3zMYpoNuXQw .error-icon{fill:#552222;}#mermaid-svg-NOETl3zMYpoNuXQw .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-NOETl3zMYpoNuXQw .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-NOETl3zMYpoNuXQw .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-NOETl3zMYpoNuXQw .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-NOETl3zMYpoNuXQw .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-NOETl3zMYpoNuXQw .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-NOETl3zMYpoNuXQw .marker{fill:#333333;stroke:#333333;}#mermaid-svg-NOETl3zMYpoNuXQw .marker.cross{stroke:#333333;}#mermaid-svg-NOETl3zMYpoNuXQw svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-NOETl3zMYpoNuXQw .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-NOETl3zMYpoNuXQw .cluster-label text{fill:#333;}#mermaid-svg-NOETl3zMYpoNuXQw .cluster-label span{color:#333;}#mermaid-svg-NOETl3zMYpoNuXQw .label text,#mermaid-svg-NOETl3zMYpoNuXQw span{fill:#333;color:#333;}#mermaid-svg-NOETl3zMYpoNuXQw .node rect,#mermaid-svg-NOETl3zMYpoNuXQw .node circle,#mermaid-svg-NOETl3zMYpoNuXQw .node ellipse,#mermaid-svg-NOETl3zMYpoNuXQw .node polygon,#mermaid-svg-NOETl3zMYpoNuXQw .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-NOETl3zMYpoNuXQw .node .label{text-align:center;}#mermaid-svg-NOETl3zMYpoNuXQw .node.clickable{cursor:pointer;}#mermaid-svg-NOETl3zMYpoNuXQw .arrowheadPath{fill:#333333;}#mermaid-svg-NOETl3zMYpoNuXQw .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-NOETl3zMYpoNuXQw .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-NOETl3zMYpoNuXQw .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-NOETl3zMYpoNuXQw .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-NOETl3zMYpoNuXQw .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-NOETl3zMYpoNuXQw .cluster text{fill:#333;}#mermaid-svg-NOETl3zMYpoNuXQw .cluster span{color:#333;}#mermaid-svg-NOETl3zMYpoNuXQw div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-NOETl3zMYpoNuXQw :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

构建

测试

安全扫描

数字签名

推送

部署

通过掌握 docker push 的高级用法，您可以：

• 实现高效可靠的镜像分发
• 构建安全的供应链体系
• 满足企业合规要求
• 优化全球部署性能
