Docker pull 命令：镜像下载的艺术与科学

Docker pull 命令：镜像下载的艺术与科学

• • 1. 命令概述
  • 2. 命令语法
  • 3. 核心参数解析
  • 4. 镜像拉取架构
  • 5. 完整工作流程
  • 6. 实战场景示例
  • • 6.1 基础拉取操作
    • 6.2 高级拉取技巧
    • 6.3 生产环境最佳实践
  • 7. 镜像命名规范详解
  • 8. 性能优化指南
  • • 8.1 并行下载调优
    • 8.2 镜像层复用策略
  • 9. 安全注意事项
  • 10. 常见问题排查
  • • 10.1 拉取失败分析
    • 10.2 典型错误解决
  • 11. 企业级实践
  • • 11.1 私有仓库镜像同步
    • 11.2 镜像拉取策略
  • 12. 总结与最佳实践
  • • 12.1 核心要点
    • 12.2 推荐工作流

1. 命令概述

docker pull 是 Docker 生态中最基础且核心的命令，用于从镜像仓库（Registry）下载镜像到本地。理解其工作原理和高级用法对于高效管理容器镜像至关重要。

2. 命令语法

docker pull [OPTIONS] NAME[:TAG|@DIGEST]

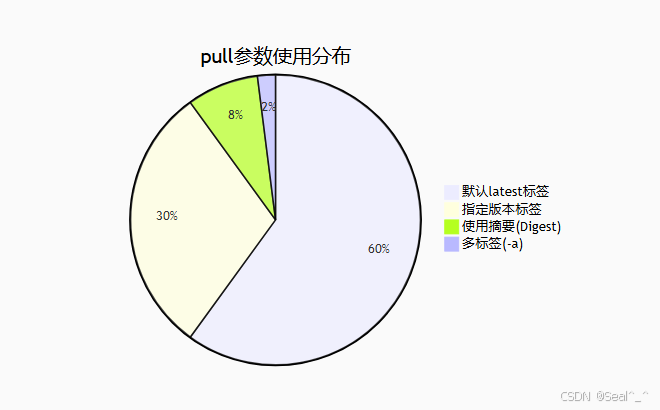

3. 核心参数解析

4. 镜像拉取架构

#mermaid-svg-rlcYjwg518snXK4T {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-rlcYjwg518snXK4T .error-icon{fill:#552222;}#mermaid-svg-rlcYjwg518snXK4T .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-rlcYjwg518snXK4T .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-rlcYjwg518snXK4T .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-rlcYjwg518snXK4T .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-rlcYjwg518snXK4T .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-rlcYjwg518snXK4T .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-rlcYjwg518snXK4T .marker{fill:#333333;stroke:#333333;}#mermaid-svg-rlcYjwg518snXK4T .marker.cross{stroke:#333333;}#mermaid-svg-rlcYjwg518snXK4T svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-rlcYjwg518snXK4T .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-rlcYjwg518snXK4T .cluster-label text{fill:#333;}#mermaid-svg-rlcYjwg518snXK4T .cluster-label span{color:#333;}#mermaid-svg-rlcYjwg518snXK4T .label text,#mermaid-svg-rlcYjwg518snXK4T span{fill:#333;color:#333;}#mermaid-svg-rlcYjwg518snXK4T .node rect,#mermaid-svg-rlcYjwg518snXK4T .node circle,#mermaid-svg-rlcYjwg518snXK4T .node ellipse,#mermaid-svg-rlcYjwg518snXK4T .node polygon,#mermaid-svg-rlcYjwg518snXK4T .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-rlcYjwg518snXK4T .node .label{text-align:center;}#mermaid-svg-rlcYjwg518snXK4T .node.clickable{cursor:pointer;}#mermaid-svg-rlcYjwg518snXK4T .arrowheadPath{fill:#333333;}#mermaid-svg-rlcYjwg518snXK4T .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-rlcYjwg518snXK4T .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-rlcYjwg518snXK4T .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-rlcYjwg518snXK4T .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-rlcYjwg518snXK4T .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-rlcYjwg518snXK4T .cluster text{fill:#333;}#mermaid-svg-rlcYjwg518snXK4T .cluster span{color:#333;}#mermaid-svg-rlcYjwg518snXK4T div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-rlcYjwg518snXK4T :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

1. 请求

2. 返回层信息

3. 分层下载

3. 分层下载

3. 分层下载

Docker客户端

镜像仓库

层1

层2

…

本地镜像

5. 完整工作流程

#mermaid-svg-ubvKSvt5grgEtVMT {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-ubvKSvt5grgEtVMT .error-icon{fill:#552222;}#mermaid-svg-ubvKSvt5grgEtVMT .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-ubvKSvt5grgEtVMT .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-ubvKSvt5grgEtVMT .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-ubvKSvt5grgEtVMT .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-ubvKSvt5grgEtVMT .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-ubvKSvt5grgEtVMT .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-ubvKSvt5grgEtVMT .marker{fill:#333333;stroke:#333333;}#mermaid-svg-ubvKSvt5grgEtVMT .marker.cross{stroke:#333333;}#mermaid-svg-ubvKSvt5grgEtVMT svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-ubvKSvt5grgEtVMT .actor{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-ubvKSvt5grgEtVMT text.actor>tspan{fill:black;stroke:none;}#mermaid-svg-ubvKSvt5grgEtVMT .actor-line{stroke:grey;}#mermaid-svg-ubvKSvt5grgEtVMT .messageLine0{stroke-width:1.5;stroke-dasharray:none;stroke:#333;}#mermaid-svg-ubvKSvt5grgEtVMT .messageLine1{stroke-width:1.5;stroke-dasharray:2,2;stroke:#333;}#mermaid-svg-ubvKSvt5grgEtVMT #arrowhead path{fill:#333;stroke:#333;}#mermaid-svg-ubvKSvt5grgEtVMT .sequenceNumber{fill:white;}#mermaid-svg-ubvKSvt5grgEtVMT #sequencenumber{fill:#333;}#mermaid-svg-ubvKSvt5grgEtVMT #crosshead path{fill:#333;stroke:#333;}#mermaid-svg-ubvKSvt5grgEtVMT .messageText{fill:#333;stroke:#333;}#mermaid-svg-ubvKSvt5grgEtVMT .labelBox{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-ubvKSvt5grgEtVMT .labelText,#mermaid-svg-ubvKSvt5grgEtVMT .labelText>tspan{fill:black;stroke:none;}#mermaid-svg-ubvKSvt5grgEtVMT .loopText,#mermaid-svg-ubvKSvt5grgEtVMT .loopText>tspan{fill:black;stroke:none;}#mermaid-svg-ubvKSvt5grgEtVMT .loopLine{stroke-width:2px;stroke-dasharray:2,2;stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);}#mermaid-svg-ubvKSvt5grgEtVMT .note{stroke:#aaaa33;fill:#fff5ad;}#mermaid-svg-ubvKSvt5grgEtVMT .noteText,#mermaid-svg-ubvKSvt5grgEtVMT .noteText>tspan{fill:black;stroke:none;}#mermaid-svg-ubvKSvt5grgEtVMT .activation0{fill:#f4f4f4;stroke:#666;}#mermaid-svg-ubvKSvt5grgEtVMT .activation1{fill:#f4f4f4;stroke:#666;}#mermaid-svg-ubvKSvt5grgEtVMT .activation2{fill:#f4f4f4;stroke:#666;}#mermaid-svg-ubvKSvt5grgEtVMT .actorPopupMenu{position:absolute;}#mermaid-svg-ubvKSvt5grgEtVMT .actorPopupMenuPanel{position:absolute;fill:#ECECFF;box-shadow:0px 8px 16px 0px rgba(0,0,0,0.2);filter:drop-shadow(3px 5px 2px rgb(0 0 0 / 0.4));}#mermaid-svg-ubvKSvt5grgEtVMT .actor-man line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-ubvKSvt5grgEtVMT .actor-man circle,#mermaid-svg-ubvKSvt5grgEtVMT line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;stroke-width:2px;}#mermaid-svg-ubvKSvt5grgEtVMT :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

User

Docker_Client

Registry

Auth_Service

docker pull nginx:1.21

获取认证令牌(如需)

返回令牌

请求manifest

返回层清单

下载层1

下载层2

loop

[并行下载]

组合镜像层

下载完成

User

Docker_Client

Registry

Auth_Service

6. 实战场景示例

6.1 基础拉取操作

# 拉取官方镜像(隐式latest标签)
docker pull nginx

# 拉取指定版本
docker pull mysql:8.0.28

# 拉取私有仓库镜像
docker pull registry.company.com/project/image:v1.2

6.2 高级拉取技巧

# 使用内容摘要确保一致性
docker pull ubuntu@sha256:9d6a8699fb5c9c39cf08a0871bd6219f0400981c774894195ad5e836caa83e1d

# 拉取所有标签(慎用)
docker pull –all-tags alpine

# 跳过企业签名验证(仅测试)
docker pull –disable-content-trust internal/legacy-app

6.3 生产环境最佳实践

#!/bin/bash
# 安全镜像拉取脚本
IMAGE="nginx"
TAG="1.21"
REGISTRY="registry.hub.docker.com"

# 1. 获取最新digest
DIGEST=$(curl -s "https://$REGISTRY/v2/library/$IMAGE/manifests/$TAG" \\
-H "Accept: application/vnd.docker.distribution.manifest.v2+json" \\
| jq -r '.config.digest')

# 2. 使用digest拉取
docker pull $IMAGE@$DIGEST

# 3. 验证签名
cosign verify $IMAGE@$DIGEST –key cosign.pub

7. 镜像命名规范详解

#mermaid-svg-FV19g8Z6O67b9gqA {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-FV19g8Z6O67b9gqA .error-icon{fill:#552222;}#mermaid-svg-FV19g8Z6O67b9gqA .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-FV19g8Z6O67b9gqA .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-FV19g8Z6O67b9gqA .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-FV19g8Z6O67b9gqA .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-FV19g8Z6O67b9gqA .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-FV19g8Z6O67b9gqA .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-FV19g8Z6O67b9gqA .marker{fill:#333333;stroke:#333333;}#mermaid-svg-FV19g8Z6O67b9gqA .marker.cross{stroke:#333333;}#mermaid-svg-FV19g8Z6O67b9gqA svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-FV19g8Z6O67b9gqA .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-FV19g8Z6O67b9gqA .cluster-label text{fill:#333;}#mermaid-svg-FV19g8Z6O67b9gqA .cluster-label span{color:#333;}#mermaid-svg-FV19g8Z6O67b9gqA .label text,#mermaid-svg-FV19g8Z6O67b9gqA span{fill:#333;color:#333;}#mermaid-svg-FV19g8Z6O67b9gqA .node rect,#mermaid-svg-FV19g8Z6O67b9gqA .node circle,#mermaid-svg-FV19g8Z6O67b9gqA .node ellipse,#mermaid-svg-FV19g8Z6O67b9gqA .node polygon,#mermaid-svg-FV19g8Z6O67b9gqA .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-FV19g8Z6O67b9gqA .node .label{text-align:center;}#mermaid-svg-FV19g8Z6O67b9gqA .node.clickable{cursor:pointer;}#mermaid-svg-FV19g8Z6O67b9gqA .arrowheadPath{fill:#333333;}#mermaid-svg-FV19g8Z6O67b9gqA .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-FV19g8Z6O67b9gqA .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-FV19g8Z6O67b9gqA .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-FV19g8Z6O67b9gqA .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-FV19g8Z6O67b9gqA .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-FV19g8Z6O67b9gqA .cluster text{fill:#333;}#mermaid-svg-FV19g8Z6O67b9gqA .cluster span{color:#333;}#mermaid-svg-FV19g8Z6O67b9gqA div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-FV19g8Z6O67b9gqA :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

完整镜像名

仓库地址

命名空间

仓库名

标签/Digest

docker.io/library/ubuntu:22.04

解析

docker.io

library

ubuntu

22.04

registry.com/project/web:v1.2

解析2

registry.com

project

web

v1.2

8. 性能优化指南

8.1 并行下载调优

# 修改daemon.json配置
{
"max-concurrent-downloads": 3,
"max-download-attempts": 5,
"download-retry-delay": "10s"
}

8.2 镜像层复用策略

#mermaid-svg-eL0IiVJD5apqy7J6 {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-eL0IiVJD5apqy7J6 .error-icon{fill:#552222;}#mermaid-svg-eL0IiVJD5apqy7J6 .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-eL0IiVJD5apqy7J6 .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-eL0IiVJD5apqy7J6 .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-eL0IiVJD5apqy7J6 .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-eL0IiVJD5apqy7J6 .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-eL0IiVJD5apqy7J6 .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-eL0IiVJD5apqy7J6 .marker{fill:#333333;stroke:#333333;}#mermaid-svg-eL0IiVJD5apqy7J6 .marker.cross{stroke:#333333;}#mermaid-svg-eL0IiVJD5apqy7J6 svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-eL0IiVJD5apqy7J6 .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-eL0IiVJD5apqy7J6 .cluster-label text{fill:#333;}#mermaid-svg-eL0IiVJD5apqy7J6 .cluster-label span{color:#333;}#mermaid-svg-eL0IiVJD5apqy7J6 .label text,#mermaid-svg-eL0IiVJD5apqy7J6 span{fill:#333;color:#333;}#mermaid-svg-eL0IiVJD5apqy7J6 .node rect,#mermaid-svg-eL0IiVJD5apqy7J6 .node circle,#mermaid-svg-eL0IiVJD5apqy7J6 .node ellipse,#mermaid-svg-eL0IiVJD5apqy7J6 .node polygon,#mermaid-svg-eL0IiVJD5apqy7J6 .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-eL0IiVJD5apqy7J6 .node .label{text-align:center;}#mermaid-svg-eL0IiVJD5apqy7J6 .node.clickable{cursor:pointer;}#mermaid-svg-eL0IiVJD5apqy7J6 .arrowheadPath{fill:#333333;}#mermaid-svg-eL0IiVJD5apqy7J6 .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-eL0IiVJD5apqy7J6 .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-eL0IiVJD5apqy7J6 .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-eL0IiVJD5apqy7J6 .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-eL0IiVJD5apqy7J6 .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-eL0IiVJD5apqy7J6 .cluster text{fill:#333;}#mermaid-svg-eL0IiVJD5apqy7J6 .cluster span{color:#333;}#mermaid-svg-eL0IiVJD5apqy7J6 div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-eL0IiVJD5apqy7J6 :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

共享层1

共享层1

独有层2

独有层3

镜像A

本地存储

镜像B

9. 安全注意事项

# 拉取后扫描示例
docker pull nginx:1.21
docker scan nginx:1.21

10. 常见问题排查

10.1 拉取失败分析

#mermaid-svg-XyeK0jeYdyR7YQbh {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-XyeK0jeYdyR7YQbh .error-icon{fill:#552222;}#mermaid-svg-XyeK0jeYdyR7YQbh .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-XyeK0jeYdyR7YQbh .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-XyeK0jeYdyR7YQbh .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-XyeK0jeYdyR7YQbh .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-XyeK0jeYdyR7YQbh .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-XyeK0jeYdyR7YQbh .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-XyeK0jeYdyR7YQbh .marker{fill:#333333;stroke:#333333;}#mermaid-svg-XyeK0jeYdyR7YQbh .marker.cross{stroke:#333333;}#mermaid-svg-XyeK0jeYdyR7YQbh svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-XyeK0jeYdyR7YQbh .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-XyeK0jeYdyR7YQbh .cluster-label text{fill:#333;}#mermaid-svg-XyeK0jeYdyR7YQbh .cluster-label span{color:#333;}#mermaid-svg-XyeK0jeYdyR7YQbh .label text,#mermaid-svg-XyeK0jeYdyR7YQbh span{fill:#333;color:#333;}#mermaid-svg-XyeK0jeYdyR7YQbh .node rect,#mermaid-svg-XyeK0jeYdyR7YQbh .node circle,#mermaid-svg-XyeK0jeYdyR7YQbh .node ellipse,#mermaid-svg-XyeK0jeYdyR7YQbh .node polygon,#mermaid-svg-XyeK0jeYdyR7YQbh .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-XyeK0jeYdyR7YQbh .node .label{text-align:center;}#mermaid-svg-XyeK0jeYdyR7YQbh .node.clickable{cursor:pointer;}#mermaid-svg-XyeK0jeYdyR7YQbh .arrowheadPath{fill:#333333;}#mermaid-svg-XyeK0jeYdyR7YQbh .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-XyeK0jeYdyR7YQbh .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-XyeK0jeYdyR7YQbh .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-XyeK0jeYdyR7YQbh .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-XyeK0jeYdyR7YQbh .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-XyeK0jeYdyR7YQbh .cluster text{fill:#333;}#mermaid-svg-XyeK0jeYdyR7YQbh .cluster span{color:#333;}#mermaid-svg-XyeK0jeYdyR7YQbh div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-XyeK0jeYdyR7YQbh :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

检查

检查

检查

拉取失败

网络连通性

认证问题

仓库存在性

registr

docker-login

curl

10.2 典型错误解决

11. 企业级实践

11.1 私有仓库镜像同步

# 从官方仓库同步到私有库
docker pull nginx:1.21
docker tag nginx:1.21 private.registry.com/library/nginx:1.21
docker push private.registry.com/library/nginx:1.21

11.2 镜像拉取策略

#mermaid-svg-6FPkUGGy4jhQQjdc {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-6FPkUGGy4jhQQjdc .error-icon{fill:#552222;}#mermaid-svg-6FPkUGGy4jhQQjdc .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-6FPkUGGy4jhQQjdc .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-6FPkUGGy4jhQQjdc .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-6FPkUGGy4jhQQjdc .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-6FPkUGGy4jhQQjdc .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-6FPkUGGy4jhQQjdc .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-6FPkUGGy4jhQQjdc .marker{fill:#333333;stroke:#333333;}#mermaid-svg-6FPkUGGy4jhQQjdc .marker.cross{stroke:#333333;}#mermaid-svg-6FPkUGGy4jhQQjdc svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-6FPkUGGy4jhQQjdc .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-6FPkUGGy4jhQQjdc .cluster-label text{fill:#333;}#mermaid-svg-6FPkUGGy4jhQQjdc .cluster-label span{color:#333;}#mermaid-svg-6FPkUGGy4jhQQjdc .label text,#mermaid-svg-6FPkUGGy4jhQQjdc span{fill:#333;color:#333;}#mermaid-svg-6FPkUGGy4jhQQjdc .node rect,#mermaid-svg-6FPkUGGy4jhQQjdc .node circle,#mermaid-svg-6FPkUGGy4jhQQjdc .node ellipse,#mermaid-svg-6FPkUGGy4jhQQjdc .node polygon,#mermaid-svg-6FPkUGGy4jhQQjdc .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-6FPkUGGy4jhQQjdc .node .label{text-align:center;}#mermaid-svg-6FPkUGGy4jhQQjdc .node.clickable{cursor:pointer;}#mermaid-svg-6FPkUGGy4jhQQjdc .arrowheadPath{fill:#333333;}#mermaid-svg-6FPkUGGy4jhQQjdc .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-6FPkUGGy4jhQQjdc .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-6FPkUGGy4jhQQjdc .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-6FPkUGGy4jhQQjdc .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-6FPkUGGy4jhQQjdc .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-6FPkUGGy4jhQQjdc .cluster text{fill:#333;}#mermaid-svg-6FPkUGGy4jhQQjdc .cluster span{color:#333;}#mermaid-svg-6FPkUGGy4jhQQjdc div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-6FPkUGGy4jhQQjdc :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

拉取策略

CI系统

Always/IfNotPresent/Never

总是拉取最新

本地不存在时拉取

仅使用本地

12. 总结与最佳实践

12.1 核心要点

12.2 推荐工作流

#mermaid-svg-RyrgB1dXVpTgi4n6 {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-RyrgB1dXVpTgi4n6 .error-icon{fill:#552222;}#mermaid-svg-RyrgB1dXVpTgi4n6 .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-RyrgB1dXVpTgi4n6 .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-RyrgB1dXVpTgi4n6 .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-RyrgB1dXVpTgi4n6 .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-RyrgB1dXVpTgi4n6 .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-RyrgB1dXVpTgi4n6 .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-RyrgB1dXVpTgi4n6 .marker{fill:#333333;stroke:#333333;}#mermaid-svg-RyrgB1dXVpTgi4n6 .marker.cross{stroke:#333333;}#mermaid-svg-RyrgB1dXVpTgi4n6 svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-RyrgB1dXVpTgi4n6 .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-RyrgB1dXVpTgi4n6 .cluster-label text{fill:#333;}#mermaid-svg-RyrgB1dXVpTgi4n6 .cluster-label span{color:#333;}#mermaid-svg-RyrgB1dXVpTgi4n6 .label text,#mermaid-svg-RyrgB1dXVpTgi4n6 span{fill:#333;color:#333;}#mermaid-svg-RyrgB1dXVpTgi4n6 .node rect,#mermaid-svg-RyrgB1dXVpTgi4n6 .node circle,#mermaid-svg-RyrgB1dXVpTgi4n6 .node ellipse,#mermaid-svg-RyrgB1dXVpTgi4n6 .node polygon,#mermaid-svg-RyrgB1dXVpTgi4n6 .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-RyrgB1dXVpTgi4n6 .node .label{text-align:center;}#mermaid-svg-RyrgB1dXVpTgi4n6 .node.clickable{cursor:pointer;}#mermaid-svg-RyrgB1dXVpTgi4n6 .arrowheadPath{fill:#333333;}#mermaid-svg-RyrgB1dXVpTgi4n6 .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-RyrgB1dXVpTgi4n6 .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-RyrgB1dXVpTgi4n6 .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-RyrgB1dXVpTgi4n6 .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-RyrgB1dXVpTgi4n6 .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-RyrgB1dXVpTgi4n6 .cluster text{fill:#333;}#mermaid-svg-RyrgB1dXVpTgi4n6 .cluster span{color:#333;}#mermaid-svg-RyrgB1dXVpTgi4n6 div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-RyrgB1dXVpTgi4n6 :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

确定需求

选择精确标签

获取digest

带校验拉取

漏洞扫描

部署使用

通过掌握 docker pull 的高级用法，您可以：

• 实现高效可靠的镜像获取
• 构建安全的容器供应链
• 优化大规模部署性能
• 满足企业合规要求
