说明

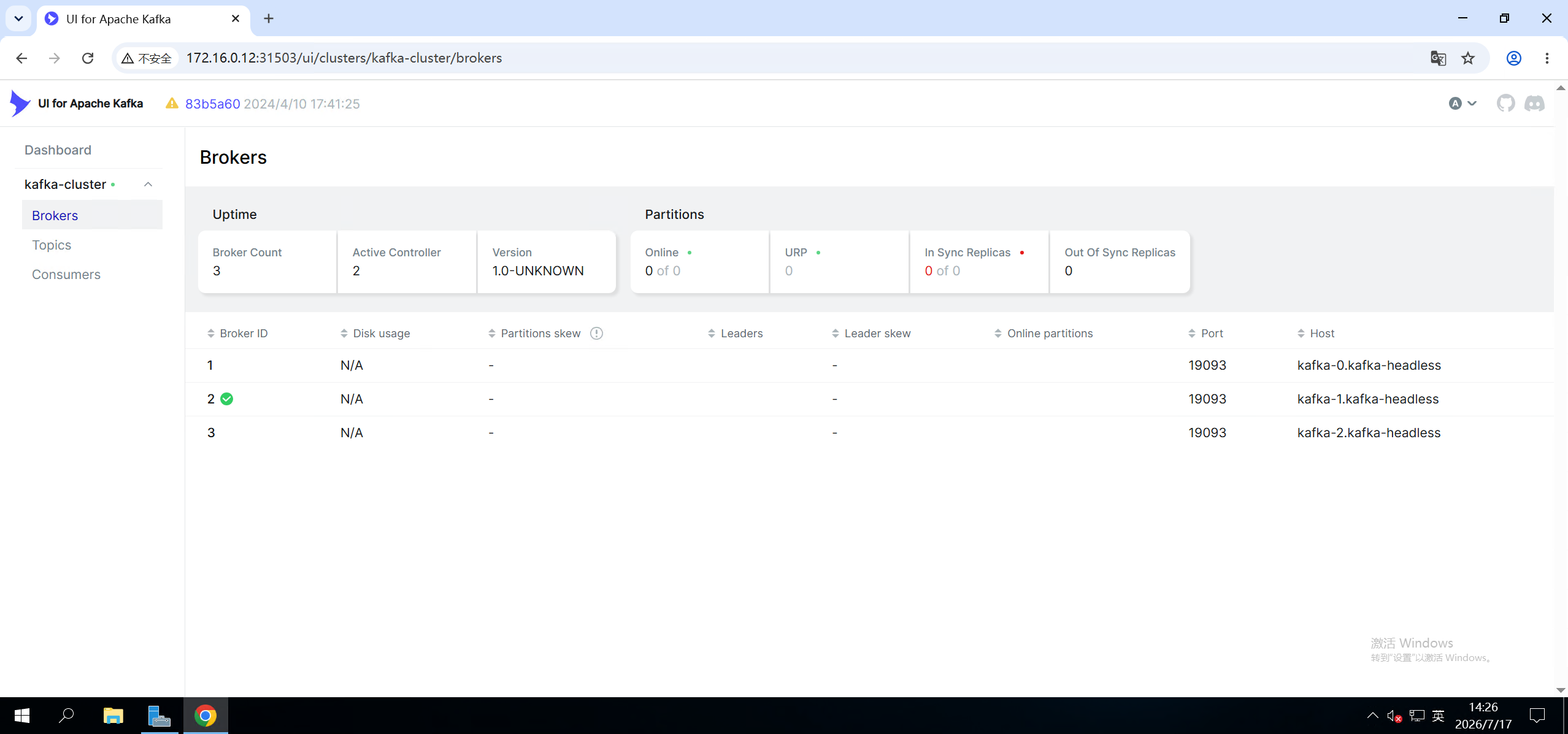

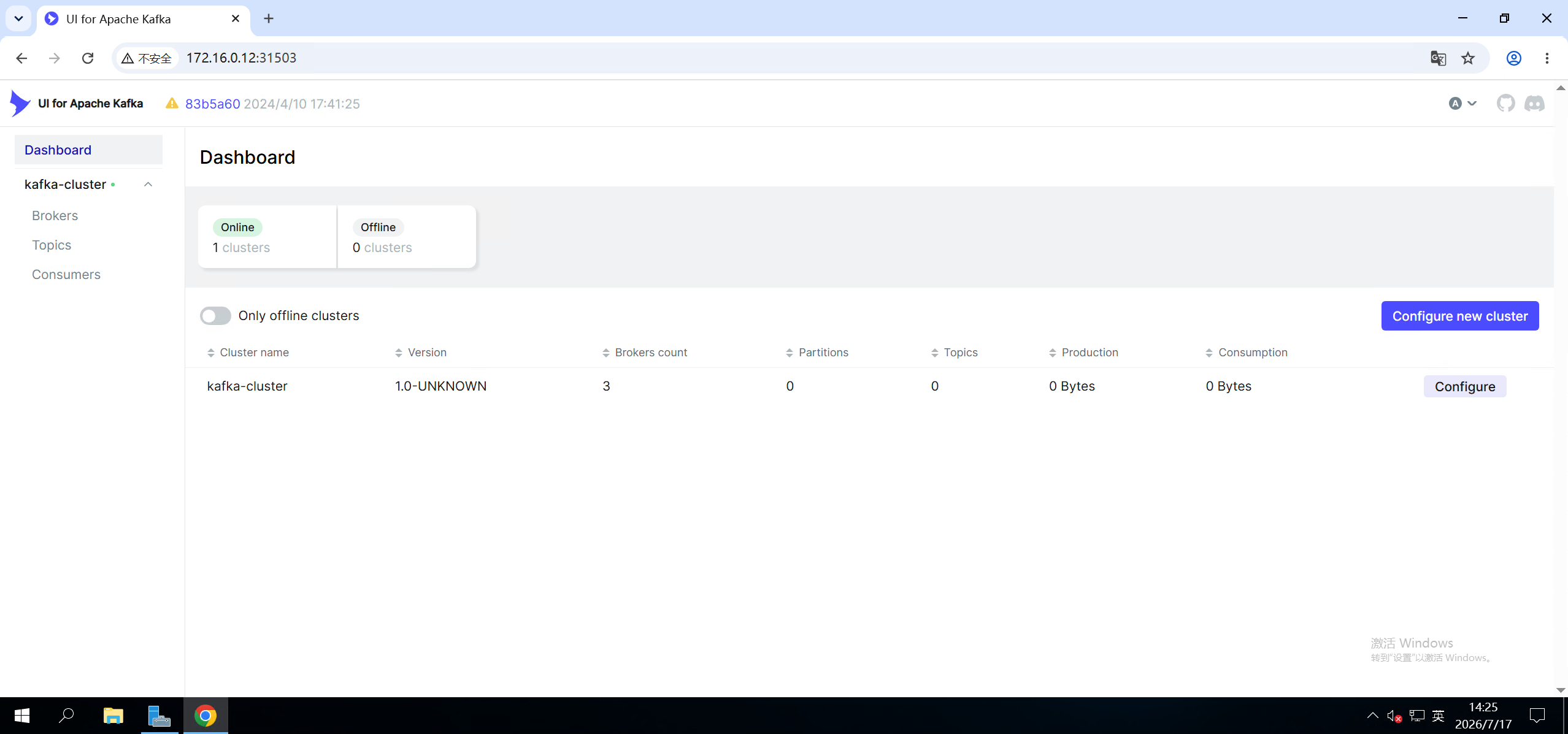

Apache kafka4.3.1 ,集群架构，3节点，combined模式，配置SSL。支持集群内外访问。支持web UI
注意：动态扩展需要operator实现。本文仅提供固定资源部署。
配置文件v6.yaml
# =============================================================================
# Kafka 4.3.1 KRaft 集群 – Kubernetes 部署文件 (SSL 版)
# 由 compose.yml (SSL 版) 转换而来 — 注意：与 k8s-kafka.yaml(由 compose-dev.yml 明文版转换) 不同
#
# 架构: 3 节点 KRaft 集群 (无 ZooKeeper)，每个节点同时担任 broker + controller
# 镜像: swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/apache/kafka:4.3.1
# 安全: 全链路 SSL (broker 间 SSL-INTERNAL + 客户端 SSL)，证书/密钥来自 Secret
#
# 设计决策 (grill-me 对齐 + 二次调整):
# 1. 产物: 新建本文件，保留 k8s-kafka.yaml (明文 dev 版) 不动
# 2. Secrets: 自包含 Secret 清单，base64 内嵌 ./secrets 下 5 个文件
# 3. 访问: 出集群访问，每 broker 一个 NodePort Service (kafka-0-ext / 1-ext / 2-ext)
# —— NodePort 不再硬编码，由 Pod 启动时经 K8s API 自动读取实际分配端口，避免环境冲突
# 外部广播地址 = status.hostIP:实际NodePort
# 4. 资源: 默认 StorageClass(占位)、PVC 20Gi、内存 4/8Gi、CPU 1/2 核、反亲和 preferred
# 5. conf: 更新 conf/server.properties 为 SSL KRaft 拓扑并挂载为配置文件
# (per-pod 动态值与 SSL 密码在容器启动时由脚本注入，避免写入 ConfigMap)
# 6. 命名空间无关: 内部 DNS 用相对域名 (kafka-headless，而非 kafka-headless.<ns>.svc.cluster.local)
# —— 可直接 kubectl apply -n <任意ns> -f 部署，切换命名空间无需改配置
#
# 部署: kubectl apply -n <namespace> -f k8s-kafka-ssl.yaml
# 验证: kubectl -n <namespace> exec -it kafka-0 — \\
# /opt/kafka/bin/kafka-metadata-quorum.sh \\
# –bootstrap-server localhost:19093 –command-config /tmp/ssl-client.conf describe –status

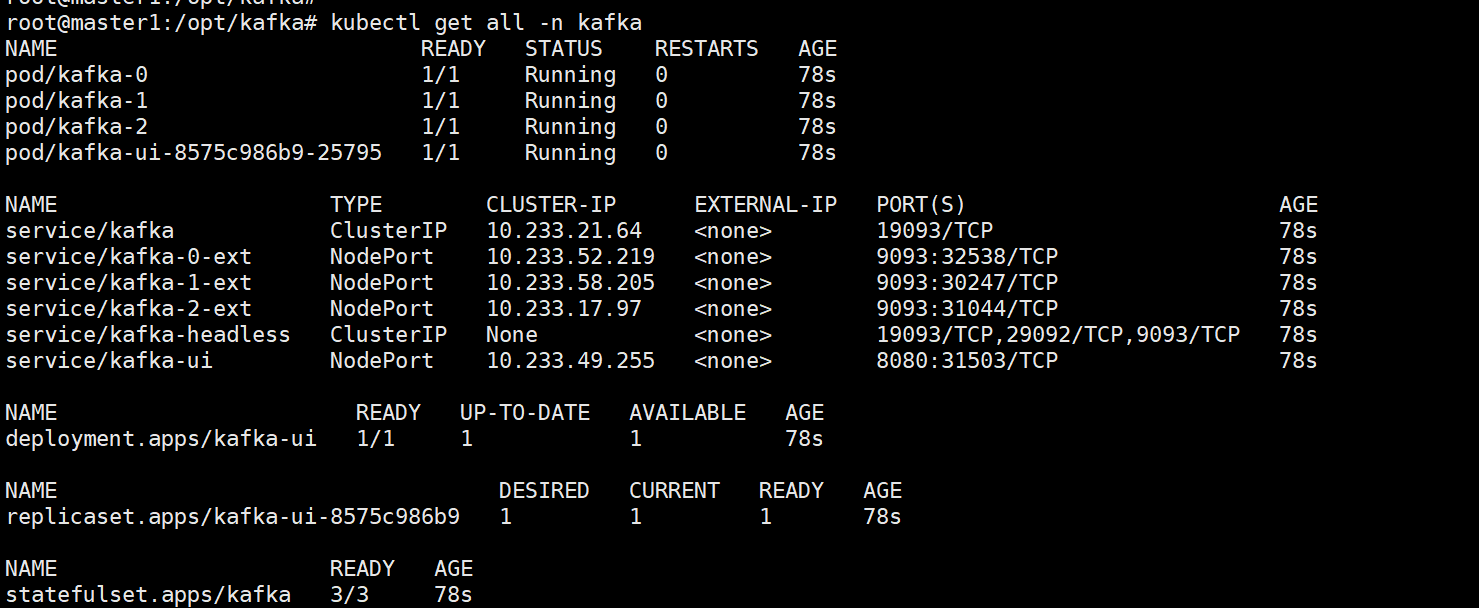

# 外部客户端连接: <任意节点IP>:<自动分配的NodePort> (SSL，端口见 kubectl -n <ns> get svc)
# =============================================================================
—
—
# ── Secret: 证书与密钥 (对应 compose.yml 中挂载的 ./secrets) ─────────────────────
# 自包含：以下 data 为 ./secrets 下 5 个文件的 base64 内容。
# 若不想把密钥提交进 yaml，可改为：
# kubectl -n kafka create secret generic kafka-secrets –from-file=./secrets
# 并删除本 Secret 段（StatefulSet 仍按同名引用）。
apiVersion: v1
kind: Secret
metadata:
name: kafka-secrets
labels:
app: kafka
type: Opaque
data:
# JKS 密钥库/信任库
kafka01.keystore.jks: MIIRGgIBAzCCEMQGCSqGSIb3DQEHAaCCELUEghCxMIIQrTCCBbQGCSqGSIb3DQEHAaCCBaUEggWhMIIFnTCCBZkGCyqGSIb3DQEMCgECoIIFQDCCBTwwZgYJKoZIhvcNAQUNMFkwOAYJKoZIhvcNAQUMMCsEFMfZQ1aapr3tVQ6fBMMkI4zO/N84AgInEAIBIDAMBggqhkiG9w0CCQUAMB0GCWCGSAFlAwQBKgQQtXZ0y0j47doINVTsx1lPfgSCBNAI/8WW/ND386CB9Lrt1aFUeog28LpSdBQuKvEgKURh3EXqUI+LfkmffA+8Oq7gsAZPVKkNgIzrM0bYEBazmZlojDro+BOJ1mpnVWOuCVubP9wISGWIMA95+7OvEnA8z1S9+0m385mKpEpkRcyWAsx0c4b84wX9adS5jtnbM9EGqKjxt8q2Tnw1ooDVSsk9rfNkDwOraasPH7qsXum/Sdy087IxoYYFHLFcNAKj6LU3pVMeuhZCCboHyC5Gkdof7SqlZG0k3Ug5M72s8SE+2Eeacchi2STuY8N3/qBc9WvbbeTqG3kIBb1YQ6QhCHrVYW4TIHkFvyxiE7URMX6KutwSNxRaCRydjeT86pzhPZ2uQYVMm8XI+nZ/xrBEZhAr4buI84BmZVhi7P7HKnYNf+Fze1/d+49/soVHbh0OEBnxMw+x4zBPveBDuhGQf4XwM98bE3nGbaOhGTtCpRnjmDhBmjVWLTIoW3XkaHZgRmXuPqF6P/fHQHHuj5A7xTkq1+hrEnVT+0BeLmXcORQ998JYxQ8NdqeNXvkdjpc8iAPbB8YySBNplGRAVzvttU3NS8onCYBX4dy6uhFxZ/7ozZ8knFPFHhCDhp6hHptmsY2X3Zo5LyIa445ckAMdKVQc5Mo4agRw3NkZ+0JfGswnn2H7JS5vxJKx66H1O3eBgaAf1oKxWApIPO0LfidsdLU6gsSzr7izlw8Xrd6rsVwWbjFdIylLEqSwAjl92HSuZXXSMbGkDTkBV045AF/mhb+ywEOr65z03i+9SomcKyKv8xsZeI8MXRsE0o1PFbDN3TDR3UXWt6FPNSXpCdE6zVSvHgUp22DZvsHdfUFEf3aJ3TJLZqlCJzsG8lpmO0h6a10/TxuW3o/EfdmJj0yl/5G7A6KB9OUqodPoWdJjTuu7OgOH2eZDsgqkwWT6/Y4jACY6FiUFWEHwOmzhW7idgOyyULKbtfteEci5DSXHVCN3sRG6bhYJgNjb+bf01GSsds1IIbPVU32Lg592hdN1zv3jQ/H3eTzmjDBU7RuNYL3LSD3b5ewS/txZazmriLRp02hjh0ixU328DkC8G+UplRW4Tk/dEKag78KnacEVNEgLakZAK7lV8cUr0kJkG0MpnjeQkfJA0LlzhmWFreZmuOG80E88gh4pdSXrthAlmNkioKs+LOSq89jhdzbqnPgtghuWpDhhLx9G09CVgriPKMnKy2CW9rzUb/0vd5qaCP154diE64hLVLQqX33lQ+jCS9YIY2DJ6Vs4RsttwMvpiLV3pfFdaenMlw6tq+JvIbfzQgoY00d4ysyMrYzSNzV6WKDsNrI9RUS3uVdNRz8Sae4L7yzSCL8Znryy25fWx+uGrDdLxFd+E+oNcKVNr6rTHnWVoGb6twh32KXjnx5Siim0C0cVD7X9uvz1d4ha0Dh3pueuHtjhJ7c7Vopw/zNT5YFXwSehB6Zv2GJyPCVsT1EMvWTZ1u9usApg8UwpWBYBydVY+f5a7X1cTydytR3uoWRdLzgwPDZtJ+Vo5Nz6ogc1FxBsoYvw8WjF1xurX4UBLM4hSX5f8+yoLqku0BBVyGLP5k9rVy5EFtZRkITlFO9AmIFy2VvV32pyOEmX9Px31yyyWgRcI+CdrV3+mlmZ1h/QqDFGMCEGCSqGSIb3DQEJFDEUHhIAbABvAGMAYQBsAGgAbwBzAHQwIQYJKoZIhvcNAQkVMRQEElRpbWUgMTY5ODU4NDY2NzMyMjCCCvEGCSqGSIb3DQEHBqCCCuIwggreAgEAMIIK1wYJKoZIhvcNAQcBMGYGCSqGSIb3DQEFDTBZMDgGCSqGSIb3DQEFDDArBBTbIFRhSeTyZMudzLOqnq/3ZABIBwICJxACASAwDAYIKoZIhvcNAgkFADAdBglghkgBZQMEASoEEPQJHiWqh+00XbgrWnQixROAggpg0AioTayXNGLkPBfGnJuGJXxjkocQOlbxNmnoAcn0qN8QaHNel6/fxdFJYZyE6KB8ATseGpGVh7AbJNAdKd0FBzfGNn6T7VEmKwONOhONn4I4ed2/HoJbOaHi/BMYHZobZt3AWynpeISyUN/oS6zj15dIgBalBwm/O6xPSkgQLYwHsdUnu2twprWRGuutCW0loOAtxpCcaypVTBvQb0pcFP74bim80LHN2Ta4cg/LZTYSK6e3mC40yS1kZdkut44d38fQ9nMQpa24T7XmqOzG0ZciNiEghW660XwGHafSgahbSsrypl+hnCbu1OSpzo9ohX+bbJprEjn6iwNar5N7HXWeR8v3gysC5Z8sjqohjG668Zz6tk7r1sIZ3of5Ogx+hnEBIazuZalPE8RDDe6FP+dzdpjHhe5mS3AvL/Tno/bGhKvl+8jkwOH95jgapPoHW0NSueuOe4l7DyLyoMaLGCY37f3MchyhzhrYaO4zBSoewzIk0B2NAsS1LhImem9WBjxWw9qcaZFed6+ubwjdEIGmplhyxsFKQOVEBgizE2vWuNl3XpOQYe59CK3DQPNT1D8IVvFgpInQpEtQoU86aFFHiBCGIUMaQUq3LAZMXRBX8VVbAX7v7kpIb8KwdbaHVDmhAHgDkQ2I+pJJrUnbhFULnaCa2s73tcSC+mrJn5UV8rHnA7TIikSJ0HYYJNBE6X/3E0xGZQ9sGqF05PDw/UxhG80V4/avu62sFOErMEHZtgR3JmBL2T46ZxLNzfSdvY5r8XYsmQlBaebN054TD4YiqtTGGVXf7oSWsUboWDA+YOkxsh2kPSCV3q/TmCingFTD9wU2oG+f4U2wtHf1/2Eet77Z3P8urhCckxKYBQl+HsuA1Oz2ErJzlHdYZWMRJRWVz68hpqQ+la/DtIpjvObmDk8Y3AroFy/h0Rh/pQTwhX8t7RGHVXC2vBG8Ii2iOVx4oopvH0yn/3TcsGc67AJb5vfdp4xYOAxKV9H6aMzN8UCG+84wZH855a1/WG1iDTpI1Dr5YjEmDK1ZBSDzppPvT5jDfCPShiFrdMQ5JQlTWAO+DqbnSoYeiKPwdI1HKhiHP+Fp24+GjYLNhRBzimrOTgz3XipTIUjL3qBhvEODXEhi9e5hSe0JeTWttvxS0Fds8xL/b0YjTgTP/LeT1Rs4U9QwhLbWgR6ndaA5nHvMGDaE/6/IaTBXaEvLGpLcDA9ZsM2ELQg5BRYP7e3tOQy9pDCl5VgUq1V5K+c6j9H8MVpsWgTSev/zw3GctMnkFYooAdG1kkCQLh9+qEld+tgUgUajS8vL+D6DbFTCimyNUz4NRkQRAacPUJ4RGvGtmEHdu/qqMavosuKotOFC3G7ELwp2RWMp7xg7J5Y/crH28Tsl8veGk5Z7s/fs2OgWlyrERpF09yIX5Kl8dboEY2iO92/aXoZsfG2uNHz+qyKtqe59OlKn8bX4YXoDAv+WjOYTYWH1qJHiLe12rehdH7Wevew+dPHiBpGn4rEaExQ5lN7e6qPbuC3iBZP6RT9Tub7SBFsTXEg9LZ6arAefRNX7jf0gY+7EmbaAEVHHU6Vrsbw75MUOeJyS6PR741o78RfTe+R9vmyzokJ4Gj5YKmzIU3KA1P6n5+cT45qJ3EXcT0mp/GFytNq3platVNOhW7eCBZzslbmXxpGv3RC6x6nS+ziAEp8th6Ub97ahf9hejsQQ4CfOTt4b8/8iwI2MA/3gPAw5Uddt9TWYyAnXTwlCWMhJc7x6uCDHFgs2iWnAzTqv1ZxTZkTpfTvtc84EtnExUvwugShW73fi2y+jr5FeE46JTVdzsxQ7ttUBGLrivs8OEyEFmx5lLFrFFEb27TdbK7Xzkg+0xgG30hZGh/u7gcFOI9MxM8+3a79TwjmL5g/5eiHsW3WhA9ruIOjojfN3hfu36LMXOxtF4OAN6pLBHA1p6qe/fdFaoxiquOKfEnQ01nMLKY8szWSLcArpCIIWZmrp5kfSiLhnhc/5/k5z9XOVEwlSqukJ066N/gziuz4SEn2SIfQluzOdYGfj4Z+xNjqztKZz5qnQkAr49yfwUm9T9pQQtRulM3eA0Ln6p96KR9C/rWD/i4cQFBkiV3xj08x2AWlnzGcOHF+sFkdEM8GCWaebHVoAb1M0jg97hpfA6YgvCZfiHksCqHjDm1RJD3SPp+lFEeEryNs2GqrMdvPIPAEOr5dZkg3c4s+kQgot4JTqHyoBl/+JUsN9GisfvPIPAG+ZFj/zhOqsGKRVqRw0Ozhw74VdXfR3e4CKojJZZpOHwEDNwXF6z40t7L+TQjUeRGF3El4/O9nu1gPeEgvuQJ4d1x7xHVnmL8WiXMtCNdewlIOXA5j9daNtnEGl7rT4HHsJav4/44nnYVBf9IXHKyw7tFcOGmYf5zeOuhzLQL0aRHbU3G34OrKzpldOHdnysWBjt8Zqut8FcXePuPHXB9lPUfZS0vWg/qIswvRsErgfpDgKu2Y0uE0mp9RLH/qOPzYuJAIHKqs1/3TDo2NWOwpQAyHbG5YerZqgoZMrX2TYcENkGOnGlqP3iFhrO6gPnXe5I5s3xtwYceTSiaO7oudqrLFqoCJjIXUwdKyZ3onBo9jK0guR8lDKPsrXT/LK7dznkL49C80ur12qNN49vBtN04cBCJ1prbf06d59AVqa6amapqH3obD+kHhiYVRoEQiGZU+vPO9hngrwHuzdhpdEx1M0/9PlzlRMSxm9KV+RcvwMT4baXpb2x47xvvC9pmDdDZMfdWsnIV8bQKW+qZ0yxT2x66A9VJhB1YqhQa4xDDXjuc8wFkBaBjix9sPwLlBoE6E/I3WsU8fH2eQ0p+3ACdepEvlSdD7zDz52aoSK9dPuKtyLfVI3YuBrmKiU0UURJWKm4dxeYK2IhcVb5r8RkiKGNMY+gwNM5xLNv1EfqMHgoSz33sbnNIjvgMAFyb9IHE0LwkOS82u4Nt6gD97oQuh3RR1ndvWqm0NGRwZ3RBbOWz1M1SDTocJ3eve5xdpto5o5gBZ9ha25WlQ5hutbYVCG2pE85tLKhUZtAMrymj3/l0FdK1R4TVakW0l9vPti3knf4uv0ZWPpO48PGjCSGi6AZByEi4t96BGoH9z7mmqiyvqmqiu4BaJB/Zl5oZM1aHv1SG7IgdTkO7H4XSO+gKXy7MGYWHYTcqtAPnGmi4fu+Yg3z5vfpbIgaI/YLdCLCOpMNoakceu7QzfwVCjvfrVwvMMTmGOs66bl8ftunTc2ofDWrEpe79h0Eym04794uq5sR91Fotu620Mfrdf9Fbo9Zee8moI6bhgGmgJtpkfYmkuQNLEPM03gI2rmmOC2naHPhcNdJmOBHQ5LPFaGPcZ6Y39A0EFCEMRc0AV+GkWMXbLCnZHNiA6kWgpynfX6fsw0j/97ZgaO+WneKrCkWRbCCpGDWoP+clhZeSnvGi5NKTD0/vNKttXiLB/v75Q8EZQH2MxncywPthcx75EBACaaP71PM6aW8qE1qyy8oqG0nPG6f60qLf7igfSUmIQ8ddmccigY6zBNMDEwDQYJYIZIAWUDBAIBBQAEII3A/4n1eIT1iNtpEnbFfx5MdA+VvSaBRu9bC56eMT8JBBR+seLHu4/4SNbPBxRZUOOHRS2VTwICJxA=
kafka.truststore.jks: MIIEYgIBAzCCBAwGCSqGSIb3DQEHAaCCA/0EggP5MIID9TCCA/EGCSqGSIb3DQEHBqCCA+IwggPeAgEAMIID1wYJKoZIhvcNAQcBMGYGCSqGSIb3DQEFDTBZMDgGCSqGSIb3DQEFDDArBBRyzo1gsKvLiEwIQEpQSWbO0ytJ1wICJxACASAwDAYIKoZIhvcNAgkFADAdBglghkgBZQMEASoEENql3ZL9+pp6gKw6i19ldMOAggNglOsXcyl32H+s1EUOJlMOTzcf8NmlWOIgyY5gKkUN+rmLVjkVlAMGoTEYmwVrvac0b3+Za1vZi/KueGHw85Qz0OAbpmBinlK8DIes1ix6eZt21BzH1v6YYhYIbSTnvaD3vSCKCXblOkkswyDuSciAprLDyf/34HzJuxTERj6p9u+fQLNHK4R3e0lVP8TVmJQny4V6PpcXQrPEEdyQNGPVAjmFfVwu4/sV3VUzYnW7OAwAWUaqjLMg+3i8pW9JfLxuWu4NfzJJp2B0lwSvZZFPo7V67lI1MEXe1/1200rU6nRQEgyyCQ/sDhzRszIkjdTNrQA7lpgRYDlQJMz6gdzV13XJZi2AA7J/A9ocTAj8+dMGzCgd9P70JRdYhrttsw8+cEh3CBVmPIrwwhX9Nj2oQXU9iKo4FZ54XUL4XK+KOmfez/IvVDGRPxJp7YE1vvGan57FEgym7ejT45RoQSg7oDCovalvoprV45OSu5nPwWllMSkAFp7RPRl9DxLR5VDaDEbSJCKrCSx9a94gL7qzAcaAL23z3iCPd6eA9cCNav0077pUo6CMojdnVq7KYnmVrvP7S6rw1bZkpthiUZynBEKOtIbSvOtPJxKYPf4m9MmrQBSx8OYVkaa5QJMV0+TH3PMTvzj38RkOnshX8aHQUHqYpSis6BIuCUFWAg14e8sqPNi9AFIUxgQ2iY6Ej7o0v3JoXbSc7xUlK3qpdS0YJkuG6RmeM6C0EBwUtP8Xa2JgBg4aPLPwRXUh1b11XxR//MtOgqckXLnpSa4gpyySmsjLLelDoAcvKcO+gP5PhUBVmhfHL3Z0ka8B8quTAb8F5SagFoHbryrJSgBhxHjxczCdRYIh5gh+oxTGgnQ/LxtYRKPSPKkPqd2TKR5lBirsdnQPHjywFRsQPxdUY8pGzJeBu4hu4i038SEW/93ggGFokj4ZvV2XTSzCDLpnVkmIACBKf58/2C9PwZTWrmhRoJoRktod2jtym6CY44aOGWxsi7NUPN7Oe/j/ZKD5u7xkS2KjQuh/aPfqX/5aGG1UB8RjQsT19jpwfYz7j1Uy0zy4+SYCcHqVsl/57UocuOSO5VE/skIvQD8AHvCQnKe1+OmjBcM9MWUyR8ZarswJwdia8e4Q89rc5Zp/yH1QxtlPME0wMTANBglghkgBZQMEAgEFAAQg1FXENyKZiGmzS06EzeV8Tbw2DzgQvmCQDoRcxi/L83kEFMpp9WPcEldNUInCkQIyYa+mfIXOAgInEA==
kafka_keystore_creds: YWJjZGVmZ2gK
kafka_ssl_key_creds: YWJjZGVmZ2gK
kafka_truststore_creds: YWJjZGVmZ2gK
—
# ── ConfigMap: server.properties 基础部分 (对应 compose.yml 共享配置) ────────────
# 不含 per-pod 动态值 (node.id / advertised.listeners / controller.quorum.voters)
# 也不含 SSL 密码 (从 Secret 在运行时注入)，避免把密钥写进 ConfigMap。
apiVersion: v1
kind: ConfigMap
metadata:
name: kafka-config
labels:
app: kafka
data:
server.properties: |
# Base Kafka KRaft configuration (shared across all 3 brokers)
# Per-pod values + SSL passwords are injected at container start by the wrapper script.
# Mirrors compose.yml (SSL-enabled KRaft, 3 nodes broker+controller).
process.roles=broker,controller
controller.listener.names=CONTROLLER
inter.broker.listener.name=SSL-INTERNAL
listener.security.protocol.map=CONTROLLER:PLAINTEXT,SSL:SSL,SSL-INTERNAL:SSL
log.dirs=/tmp/kraft-combined-logs
cluster.id=4L6g3nShT-eMCtK–X86sw
# Replication / ISR (3-node cluster, tolerate 1 failure) — matches compose.yml
offsets.topic.replication.factor=2
transaction.state.log.replication.factor=2
transaction.state.log.min.isr=2
share.coordinator.state.topic.replication.factor=2
share.coordinator.state.topic.min.isr=2
group.initial.rebalance.delay.ms=1000
# SSL (certs/keystore mounted from Secret at /etc/kafka/secrets)
ssl.client.auth=required
ssl.keystore.type=JKS
ssl.keystore.location=/etc/kafka/secrets/kafka01.keystore.jks
ssl.truststore.type=JKS
ssl.truststore.location=/etc/kafka/secrets/kafka.truststore.jks
ssl.endpoint.identification.algorithm=
—
# ── Headless Service: 稳定 DNS，用于 broker 间通信与 controller 选举 ──────────────
# 每个 pod 获得相对域名: kafka-0.kafka-headless (命名空间无关，部署到任意 ns 均可解析)
apiVersion: v1
kind: Service
metadata:
name: kafka-headless
labels:
app: kafka
spec:
clusterIP: None
publishNotReadyAddresses: true # 启动早期即可解析 DNS，便于 KRaft 选举
selector:
app: kafka
ports:
– name: ssl-internal
port: 19093
targetPort: 19093
– name: controller
port: 29092
targetPort: 29092
– name: ssl
port: 9093
targetPort: 9093
—
# ── ClusterIP Service: 集群内客户端访问 Kafka (走 SSL-INTERNAL) ──────────────────
# 客户端连接(同命名空间): kafka:19093 (跨命名空间: kafka.<ns>.svc.cluster.local:19093)
apiVersion: v1
kind: Service
metadata:
name: kafka
labels:
app: kafka
spec:
type: ClusterIP
selector:
app: kafka
ports:
– name: ssl-internal
port: 19093
targetPort: 19093
—
# ── NodePort Services: 出集群访问 (每 broker 一个) ─────────────────────
# 外部客户端连接: <任意节点IP>:<自动分配NodePort> (SSL)，端口见 kubectl get svc
# 选择器用 StatefulSet 自动写入的 pod-name 标签，将每个 NodePort 锁定到对应 broker。
# 注：NodePort 不再硬编码，Pod 启动时自动探测实际分配端口（见下方 ServiceAccount/RBAC）。
apiVersion: v1
kind: Service
metadata:
name: kafka-0-ext
labels:
app: kafka
spec:
type: NodePort
selector:
statefulset.kubernetes.io/pod-name: kafka-0
ports:
– name: ssl
port: 9093
targetPort: 9093
—
apiVersion: v1
kind: Service
metadata:
name: kafka-1-ext
labels:
app: kafka
spec:
type: NodePort
selector:
statefulset.kubernetes.io/pod-name: kafka-1
ports:
– name: ssl
port: 9093
targetPort: 9093
—
apiVersion: v1
kind: Service
metadata:
name: kafka-2-ext
labels:
app: kafka
spec:
type: NodePort
selector:
statefulset.kubernetes.io/pod-name: kafka-2
ports:
– name: ssl
port: 9093
targetPort: 9093
—
# ── PodDisruptionBudget: 自愿驱逐时至少 2 个节点存活 ─────────────────────────────
apiVersion: policy/v1
kind: PodDisruptionBudget
metadata:
name: kafka-pdb
spec:
minAvailable: 2
selector:
matchLabels:
app: kafka
—
# ── ServiceAccount + RBAC: 允许 Pod 读取 NodePort Service 的实际端口 ──────────────
apiVersion: v1
kind: ServiceAccount
metadata:
name: kafka
labels:
app: kafka
—
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
name: kafka-svc-reader
labels:
app: kafka
rules:
– apiGroups: [""]
resources: ["services"]
verbs: ["get", "list"]
—
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
name: kafka-svc-reader
labels:
app: kafka
subjects:
– kind: ServiceAccount
name: kafka
roleRef:
kind: Role
name: kafka-svc-reader
apiGroup: rbac.authorization.k8s.io
—
# ── StatefulSet: 3 节点 Kafka KRaft 集群 ───────────────────────────────────────
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: kafka
labels:
app: kafka
spec:
serviceName: kafka-headless
replicas: 3
podManagementPolicy: Parallel # 3 个 broker 同时启动，KRaft 才能凑齐多数(2/3)完成选举；OrderedReady 会因"单节点无法独自就绪"而死锁
updateStrategy:
type: RollingUpdate
selector:
matchLabels:
app: kafka
template:
metadata:
labels:
app: kafka
spec:
# fsGroup 确保挂载的 PVC 对 GID 1000 可写（Kafka 容器以 UID 1000 运行）
securityContext:
fsGroup: 1000
# 优雅终止：给 Kafka 足够时间完成数据刷盘
terminationGracePeriodSeconds: 120
# 用于 init 容器通过 K8s API 读取 NodePort Service 的实际端口
serviceAccountName: kafka
# 软反亲和(preferred): 偏好把 broker 调度到不同节点，但节点资源不足时允许同节点
affinity:
podAntiAffinity:
preferredDuringSchedulingIgnoredDuringExecution:
– weight: 100
podAffinityTerm:
labelSelector:
matchExpressions:
– key: app
operator: In
values:
– kafka
topologyKey: kubernetes.io/hostname
# 拓扑分布约束: 尽量(非强制)把 Pod 均匀分布到不同节点(maxSkew=1)，节点资源不足时允许同节点(ScheduleAnyway)
topologySpreadConstraints:
– maxSkew: 1
topologyKey: kubernetes.io/hostname
whenUnsatisfiable: ScheduleAnyway
labelSelector:
matchLabels:
app: kafka
# ── Init Container: 修复数据卷权限 ──
# 对应 compose.yml 中 init-kafka-perms 服务；并经由 K8s API 读取 kafka-N-ext 实际 nodePort 写入共享目录
initContainers:
– name: init-permissions
image: swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/library/busybox:1.38.0
securityContext:
runAsUser: 0
command:
– sh
– -c
– |
chown -R 1000:1000 /tmp/kraft-combined-logs
# 自动读取本 Pod 对应 NodePort Service 的实际端口（避免硬编码导致的环境冲突）
NAMESPACE=$(cat /var/run/secrets/kubernetes.io/serviceaccount/namespace)
TOKEN=$(tr -d '\\n' < /var/run/secrets/kubernetes.io/serviceaccount/token)
CACERT=/var/run/secrets/kubernetes.io/serviceaccount/ca.crt
SVC="kafka-${HOSTNAME##*-}-ext"
API="https://kubernetes.default.svc/api/v1/namespaces/${NAMESPACE}/services/${SVC}"
NODE_PORT=""
for i in $(seq 1 30); do
# 捕获 wget 输出与错误，便于排查（不再 2>/dev/null 吞掉错误）
RESP=$(wget -q -O – –root-certificate="$CACERT" –header="Authorization: Bearer $TOKEN" "$API" 2>/tmp/wget.err)
WERR=$(cat /tmp/wget.err 2>/dev/null)
NODE_PORT=$(printf '%s' "$RESP" | grep -o '"nodePort": *[0-9]*' | head -1 | grep -o '[0-9]*')
if [ -n "$NODE_PORT" ]; then
echo "Detected NodePort ${NODE_PORT} for ${SVC}"
break
fi
# 回退：不做证书校验(-n) 再试一次
RESP=$(wget -q -O – -n –header="Authorization: Bearer $TOKEN" "$API" 2>/tmp/wget.err)
WERR2=$(cat /tmp/wget.err 2>/dev/null)
NODE_PORT=$(printf '%s' "$RESP" | grep -o '"nodePort": *[0-9]*' | head -1 | grep -o '[0-9]*')
if [ -n "$NODE_PORT" ]; then
echo "Detected NodePort ${NODE_PORT} for ${SVC} (no-cert mode)"
break
fi
echo "attempt $i: 未获取到 nodePort。wget错误=[${WERR}] 响应片段=[$(printf '%s' "$RESP" | head -c 160)]"
sleep 2
done
if [ -z "$NODE_PORT" ]; then
echo "FAILED 获取 nodePort。诊断: CA文件存在=$(test -f "$CACERT" && echo yes || echo no) TOKEN长度=${#TOKEN} API=$API"
fi
echo "${NODE_PORT}" > /etc/kafka/dynamic/nodePort
volumeMounts:
– name: kafka-logs
mountPath: /tmp/kraft-combined-logs
– name: kafka-dynamic
mountPath: /etc/kafka/dynamic
# ── Main Container: Kafka Broker ──
containers:
– name: kafka
image: swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/apache/kafka:4.3.1
imagePullPolicy: IfNotPresent
ports:
– name: ssl-internal
containerPort: 19093
– name: controller
containerPort: 29092
– name: ssl
containerPort: 9093
# JVM 堆大小（容器内存限制 8Gi 的 50%）
env:
– name: KAFKA_HEAP_OPTS
value: "-Xms2g -Xmx2g"
# 节点 IP，用于拼出外部广播地址 (status.hostIP)
– name: NODE_IP
valueFrom:
fieldRef:
fieldPath: status.hostIP
# ── 启动脚本: 注入 per-pod 动态值 + 从 Secret 读 SSL 密码，再格式化并启动 ──
# compose.yml 中这些值是硬编码的（kafka-1→node1, kafka-2→node2, kafka-3→node3）
# K8s 中从 StatefulSet 的 pod 序号动态推导:
# kafka-0 → NODE_ID=1, kafka-1 → NODE_ID=2, kafka-2 → NODE_ID=3
command:
– /bin/bash
– -c
– |
set -euo pipefail
# 从 pod 名称提取序号 (kafka-0 -> 0)
ORDINAL="${HOSTNAME##*-}"
NODE_ID=$((ORDINAL + 1))
# 外部 NodePort：由 init 容器经 K8s API 自动探测并写入 /etc/kafka/dynamic/nodePort，
# 不再硬编码，避免与环境中已占用端口冲突。
EXTERNAL_NODE_PORT="$(cat /etc/kafka/dynamic/nodePort 2>/dev/null)"
if [ -z "${EXTERNAL_NODE_PORT}" ]; then
echo "ERROR: 未能自动获取 NodePort（init 容器未写入 /etc/kafka/dynamic/nodePort）。"
echo " 请检查 kafka-N-ext Service 是否存在、ServiceAccount/Role 的 RBAC 是否就绪、Pod 到 K8s API 的网络是否通畅。"
echo " 为避免对外广播错误端口，主动终止启动。"
exit 1
fi
# 从 Secret 挂载的密码文件读取 SSL 密码（去掉换行）
KAFKA_KEYSTORE_PASSWORD="$(tr -d '\\n' < /etc/kafka/secrets/kafka_keystore_creds)"
KAFKA_KEY_PASSWORD="$(tr -d '\\n' < /etc/kafka/secrets/kafka_ssl_key_creds)"
KAFKA_TRUSTSTORE_PASSWORD="$(tr -d '\\n' < /etc/kafka/secrets/kafka_truststore_creds)"
# 用 ConfigMap 的基础配置生成最终配置
cp /mnt/kafka-config/server.properties /tmp/server.properties
# 追加每个 Pod 唯一的动态配置 + SSL 密码
cat >> /tmp/server.properties <<EOF
node.id=${NODE_ID}
listeners=SSL-INTERNAL://:19093,CONTROLLER://:29092,SSL://:9093
advertised.listeners=SSL-INTERNAL://${HOSTNAME}.kafka-headless:19093,SSL://${NODE_IP}:${EXTERNAL_NODE_PORT}
controller.quorum.voters=1@kafka-0.kafka-headless:29092,2@kafka-1.kafka-headless:29092,3@kafka-2.kafka-headless:29092
ssl.keystore.password=${KAFKA_KEYSTORE_PASSWORD}
ssl.key.password=${KAFKA_KEY_PASSWORD}
ssl.truststore.password=${KAFKA_TRUSTSTORE_PASSWORD}
EOF
# 生成供探针使用的 SSL 客户端配置
cat > /tmp/ssl-client.conf <<EOF
security.protocol=SSL
ssl.truststore.location=/etc/kafka/secrets/kafka.truststore.jks
ssl.truststore.password=${KAFKA_TRUSTSTORE_PASSWORD}
ssl.keystore.location=/etc/kafka/secrets/kafka01.keystore.jks
ssl.keystore.password=${KAFKA_KEYSTORE_PASSWORD}
ssl.key.password=${KAFKA_KEY_PASSWORD}
ssl.endpoint.identification.algorithm=
EOF
echo "=== Kafka Broker Starting ==="
echo " POD_NAME: ${HOSTNAME}"
echo " KAFKA_NODE_ID: ${NODE_ID}"
echo " NODE_IP: ${NODE_IP}"
echo " EXTERNAL_NODE_PORT: ${EXTERNAL_NODE_PORT}"
echo " ADVERTISED: SSL-INTERNAL://${HOSTNAME}.kafka-headless:19093,SSL://${NODE_IP}:${EXTERNAL_NODE_PORT}"
echo "==============================="
# KRaft 存储目录首次启动需格式化（已格式化则跳过）
if [ ! -f /tmp/kraft-combined-logs/meta.properties ]; then
echo "Formatting storage with cluster id 4L6g3nShT-eMCtK–X86sw …"
/opt/kafka/bin/kafka-storage.sh format -t "4L6g3nShT-eMCtK–X86sw" -c /tmp/server.properties
fi
# 启动 Kafka（配置即文件，不再依赖 KAFKA_* 环境变量注入）
exec /opt/kafka/bin/kafka-server-start.sh /tmp/server.properties
resources:
requests:
cpu: 1000m
memory: 4Gi
limits:
cpu: 2000m
memory: 8Gi
# ── 存活探针: broker 不可达时重启 ──
livenessProbe:
exec:
command:
– /bin/bash
– -c
– "/opt/kafka/bin/kafka-broker-api-versions.sh –bootstrap-server localhost:19093 –command-config /tmp/ssl-client.conf || exit 1"
initialDelaySeconds: 60
periodSeconds: 60
timeoutSeconds: 5
failureThreshold: 3
# ── 就绪探针: broker 就绪后才接收流量 ──
readinessProbe:
exec:
command:
– /bin/bash
– -c
– "/opt/kafka/bin/kafka-broker-api-versions.sh –bootstrap-server localhost:19093 –command-config /tmp/ssl-client.conf || exit 1"
initialDelaySeconds: 60
periodSeconds: 10
timeoutSeconds: 5
failureThreshold: 3
volumeMounts:
– name: kafka-logs
mountPath: /tmp/kraft-combined-logs
– name: kafka-secrets
mountPath: /etc/kafka/secrets
readOnly: true
– name: kafka-config
mountPath: /mnt/kafka-config
readOnly: true
– name: kafka-dynamic
mountPath: /etc/kafka/dynamic
# ── 卷定义: Secret / ConfigMap / 动态共享目录 (修复：原清单缺失 volumes 声明) ──
volumes:
– name: kafka-secrets
secret:
secretName: kafka-secrets
– name: kafka-config
configMap:
name: kafka-config
– name: kafka-dynamic
emptyDir: {}
# ── 持久化存储: 每个 broker 独立 PVC ──
# 对应 compose.yml 中的 kafka1-logs / kafka2-logs / kafka3-logs 卷
volumeClaimTemplates:
– metadata:
name: kafka-logs
spec:
accessModes:
– ReadWriteOnce
resources:
requests:
storage: 20Gi
# storageClassName: standard # ← 取消注释并修改为你的集群 StorageClass
—
# ── Kafka UI: 可视化管理面板 (适配 k8s，连接集群内 SSL-INTERNAL 监听器) ──────────
# 注意本集群 ssl.client.auth=required，kafka-ui 必须提供客户端证书。
# 复用 kafka-secrets 中 broker 的 keystore/truststore (密码 abcdefgh)。
# 与原 compose 的差异(已修正):
# – bootstrapServers 端口 19092→19093 (19092 是 KRaft controller 端口，非客户端端口)
# – broker 名 kafka-1/2/3→kafka-0/1/2，且用 k8s 相对 DNS (kafka-N.kafka-headless)
# – 必须带 SSL truststore/keystore (集群要求客户端证书)
# 与原集群一致: 不硬编码 namespace，kubectl apply -n <ns> -f 本文件 即可。
apiVersion: apps/v1
kind: Deployment
metadata:
name: kafka-ui
labels:
app: kafka-ui
spec:
replicas: 1
selector:
matchLabels:
app: kafka-ui
template:
metadata:
labels:
app: kafka-ui
spec:
containers:
– name: kafka-ui
# 沿用本集群的 SWR 镜像仓库前缀；若镜像仓库未代理 provectuslabs，
# 可改为原镜像 provectuslabs/kafka-ui:latest
image: swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/provectuslabs/kafka-ui:v0.7.2
imagePullPolicy: IfNotPresent
ports:
– name: http
containerPort: 8080
env:
– name: KAFKA_CLUSTERS_0_NAME
value: "kafka-cluster"
# k8s 内部相对 DNS，走 SSL-INTERNAL 监听器 (19093)
– name: KAFKA_CLUSTERS_0_BOOTSTRAPSERVERS
value: "kafka-0.kafka-headless:19093,kafka-1.kafka-headless:19093,kafka-2.kafka-headless:19093"
# ── 关键修复：改用 PROPERTIES_* 透传方式 ──
# 高级 SSL 变量 (KAFKA_CLUSTERS_0_SSL_*) 在 v0.7.2 下 securityProtocol 字段无法被
# Spring 绑定，导致 UI 以 PLAINTEXT 连 SSL 端口 → SSL handshake failed → 集群离线。
# PROPERTIES_* 把原始 Kafka client 配置原样透传，key 用下划线分隔，社区广泛验证可用。
– name: KAFKA_CLUSTERS_0_PROPERTIES_SECURITY_PROTOCOL
value: "SSL"
# 集群要求客户端证书 (ssl.client.auth=required)，复用 broker 的 keystore/truststore
– name: KAFKA_CLUSTERS_0_PROPERTIES_SSL_TRUSTSTORE_LOCATION
value: "/etc/kafka/secrets/kafka.truststore.jks"
– name: KAFKA_CLUSTERS_0_PROPERTIES_SSL_TRUSTSTORE_PASSWORD
value: "abcdefgh"
– name: KAFKA_CLUSTERS_0_PROPERTIES_SSL_KEYSTORE_LOCATION
value: "/etc/kafka/secrets/kafka01.keystore.jks"
– name: KAFKA_CLUSTERS_0_PROPERTIES_SSL_KEYSTORE_PASSWORD
value: "abcdefgh"
– name: KAFKA_CLUSTERS_0_PROPERTIES_SSL_KEY_PASSWORD
value: "abcdefgh"
# 关闭主机名校验 (与 broker 端 ssl.endpoint.identification.algorithm= 一致)
– name: KAFKA_CLUSTERS_0_PROPERTIES_SSL_ENDPOINT_IDENTIFICATION_ALGORITHM
value: ""
# 明确指定 JKS 类型 (避免 JDK 默认类型变化导致 keystore/truststore 加载失败)
– name: KAFKA_CLUSTERS_0_PROPERTIES_SSL_TRUSTSTORE_TYPE
value: "JKS"
– name: KAFKA_CLUSTERS_0_PROPERTIES_SSL_KEYSTORE_TYPE
value: "JKS"
# 开启 DEBUG 日志，便于排查 SSL 握手 / 连接失败 (离线问题定位关键)
– name: LOGGING_LEVEL_COM_PROVECTUS_KAFKA_UI
value: "DEBUG"
– name: LOGGING_LEVEL_ORG_APACHE_KAFKA
value: "DEBUG"
– name: DYNAMIC_CONFIG_ENABLED
value: "true"
volumeMounts:
– name: kafka-ui-secrets
mountPath: /etc/kafka/secrets
readOnly: true
readinessProbe:
tcpSocket:
port: 8080
initialDelaySeconds: 20
periodSeconds: 10
failureThreshold: 6
livenessProbe:
tcpSocket:
port: 8080
initialDelaySeconds: 40
periodSeconds: 20
failureThreshold: 3
resources:
requests:
cpu: "250m"
memory: "512Mi"
limits:
cpu: "500m"
memory: "1Gi"
volumes:
– name: kafka-ui-secrets
secret:
secretName: kafka-secrets
—
# ── Kafka UI Service: 集群外通过 NodePort 访问 (端口由 k8s 自动分配) ─────────────
# 查看实际端口: kubectl -n <ns> get svc kafka-ui
# 如需固定端口，在 ports 下加 nodePort: 3xxxx (30000-32767 且不与已有冲突)。
apiVersion: v1
kind: Service
metadata:
name: kafka-ui
labels:
app: kafka-ui
spec:
type: NodePort
selector:
app: kafka-ui
ports:
– name: http
port: 8080
targetPort: 8080
部署
kubectl create namespace kafka
kubectl apply -f v6.yaml -n kafka
查询
kubectl get all -n kafka
访问web UI
