Android平台GB28181接入实战：基于SmartGBD实现设备注册、实时视频推送与语音广播

前言

GB/T 28181是我国公共安全行业的强制性标准，全称《公共安全视频监控联网系统信息传输、交换、控制技术要求》，当前主流版本为GB/T 28181-2016与GB/T 28181-2022。该标准规定了视频监控联网系统中SIP信令的交互流程、媒体流的传输格式，以及设备管理、云台控制、语音广播等业务功能的实现方式。

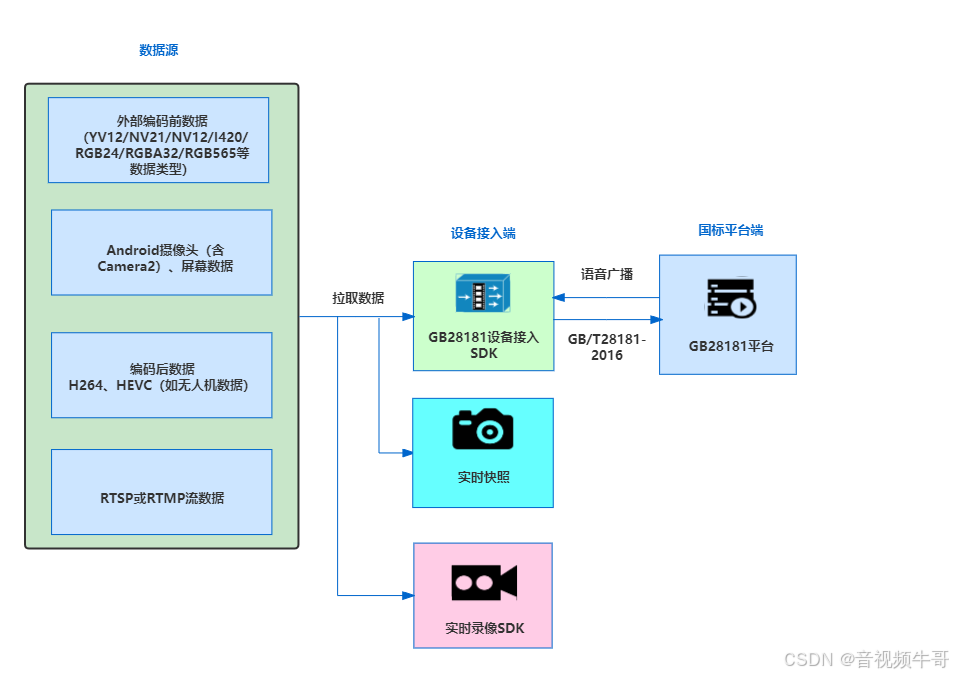

在移动安防、执法记录仪、智慧工地、车载监控等越来越多的场景下，Android设备需要作为GB28181前端设备接入平台级的监控中心（如EHome、宇视、海康ISC等）。本文将结合大牛直播SDK（SmartGBD）的Android Demo代码，系统梳理Android端GB28181接入的完整实现方案，内容涵盖：

• GB28181核心信令流程梳理
• SIP代理初始化、注册与心跳维持
• 实时视音频采集与编码
• 媒体流推送（RTP/PS封装）
• 语音广播（双向对讲）
• 云台控制指令响应
• 录像查询与回放下载
• 截图上传（快照配置）

一、GB28181协议关键流程概述

1.1 设备注册与心跳

GB28181使用SIP协议（RFC 3261）作为信令承载。前端设备（IPC/NVR/移动终端）向SIP服务器发送REGISTER请求完成注册，注册有效期（Expires）默认不低于3600秒。注册成功后，设备需定期发送MESSAGE请求维持心跳，心跳间隔通常为20~60秒，连续心跳失败次数达到阈值则认为设备离线并触发重连。

设备 —REGISTER—> SIP服务器
设备 <–401 Unauthorized— SIP服务器（含WWW-Authenticate）
设备 —REGISTER(含Authorization)—> SIP服务器
设备 <–200 OK— SIP服务器
设备 —MESSAGE(Keepalive)—> SIP服务器（每隔heartbeat_interval秒）
SIP服务器 <–200 OK— 设备

1.2 实时视频邀请流程（INVITE）

当监控平台需要查看前端设备画面时，向设备发送INVITE请求，SDP中携带目标RTP端口、SSRC及媒体格式描述。设备解析SDP并创建RTP Sender，在返回200 OK中填写本端RTP信息，平台回ACK后开始推流。

SIP服务器 —INVITE(SDP:目标IP/Port/SSRC)—> 设备
设备 <—180 Ringing— （振铃响应）
设备 <—200 OK(SDP:本端IP/Port)— 设备
SIP服务器 —ACK—> 设备
（开始RTP/PS推流）
SIP服务器 —BYE—> 设备（停止推流）

GB28181规定媒体流采用PS（Program Stream）封装，外层包裹在RTP中传输，Payload Type通常为96，编码名为"PS"，时钟频率为90000Hz。

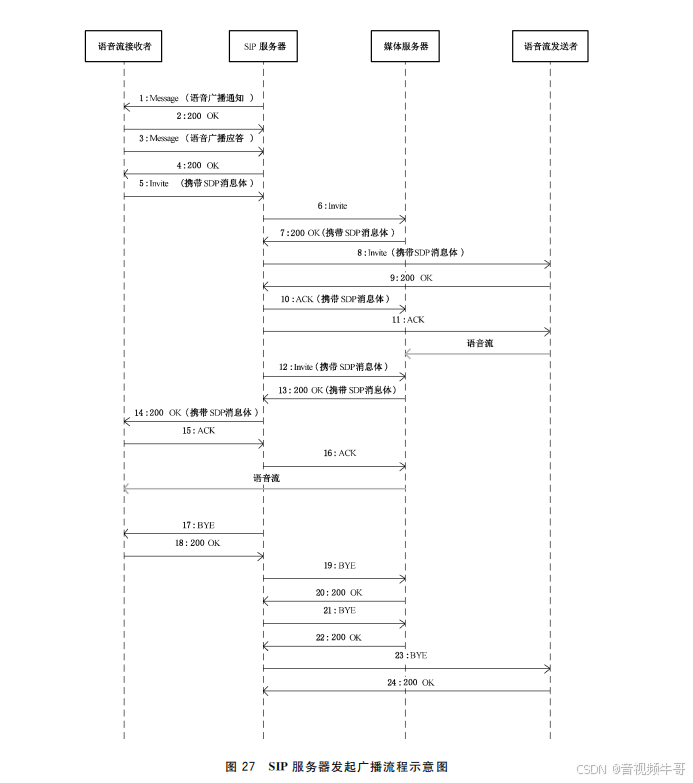

1.3 语音广播流程

平台向设备发送广播通知（MESSAGE，携带Broadcast XML），设备响应并回复确认后，平台再INVITE设备，设备创建RTP Receiver接收平台推送的音频流（PCMA/PCMU/AAC），并将接收到的音频数据通过扬声器播放或混入推流。

1.4 录像查询与回放

• 录像查询：平台通过MESSAGE发送录像查询命令（RecordInfo），设备查询本地录像文件列表后回复。
• 历史回放：平台INVITE，SDP中type字段为playback（on-demand流），设备以正常2倍速或实际速率发送历史视频数据。
• 录像下载：与回放类似，通常以4倍速或更快速率传输，SDP中type字段为download。

二、SDK初始化与权限配置

2.1 AndroidManifest权限声明

<uses-permission android:name="android.permission.CAMERA" />
<uses-permission android:name="android.permission.RECORD_AUDIO" />
<uses-permission android:name="android.permission.INTERNET" />
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
<uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />
<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
<uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
<uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />

2.2 加载Native库

static {
System.loadLibrary("SmartPublisher");
System.loadLibrary("SmartPlayer");
}

SDK采用Publisher（推流/编码）和Player（拉流/解码）两个模块，GB28181推流基于Publisher，语音广播接收基于Player。

2.3 SDK授权与RTSP服务初始化

// 如需设置授权Key, 请确保在SmartPublisherOpen之前调用
// libPublisher.SmartPublisherSetSDKClientKey("your_cid", "your_key", 0);
// lib_player_.SmartPlayerSetSDKClientKey("your_cid", "your_key", 0);

libPublisher = new SmartPublisherJniV2();
lib_player_ = new SmartPlayerJniV2();

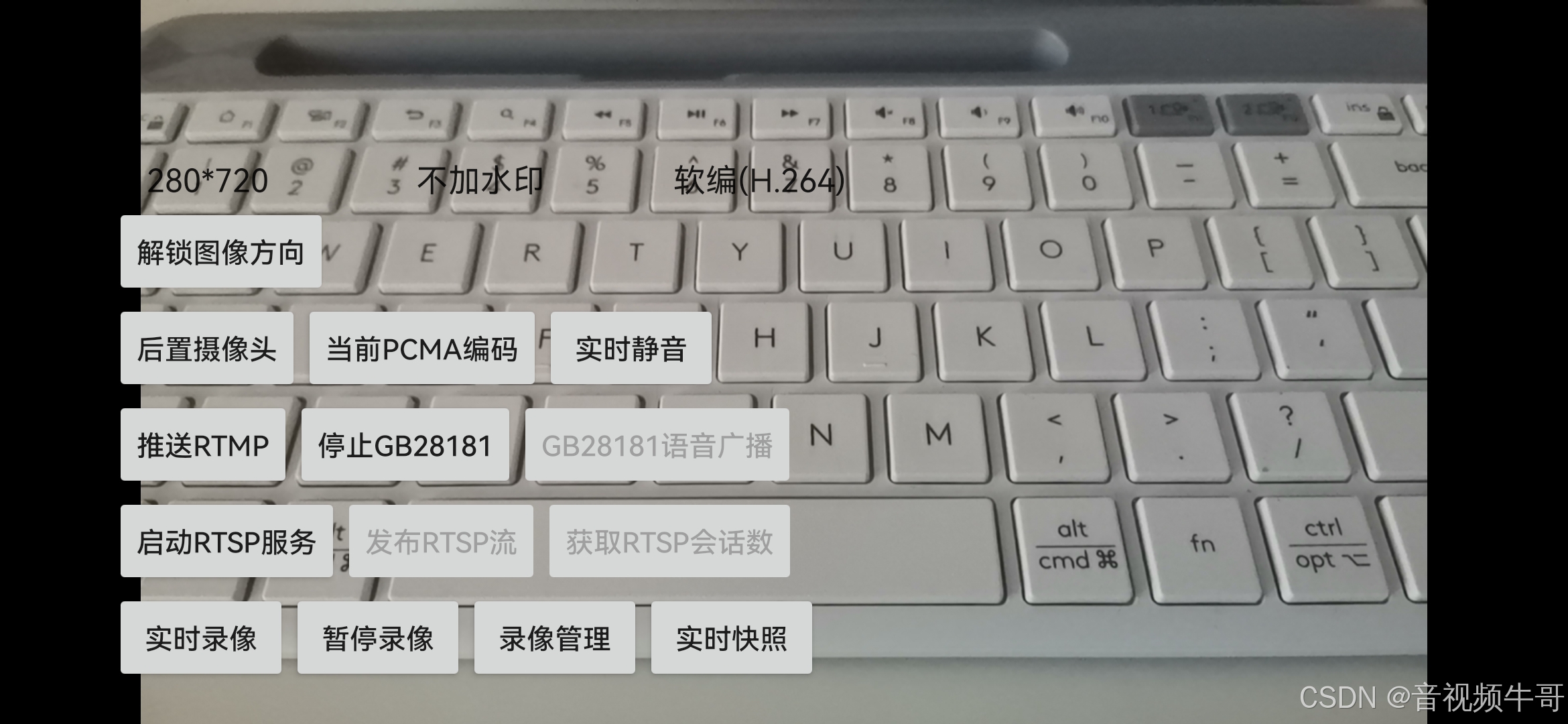

三、摄像头采集配置

3.1 Camera2Helper封装

Demo使用Camera2 API采集，通过Camera2Helper封装了开/关/切换摄像头，以及分辨率切换逻辑。

void initCamera() {
camera2Helper = new Camera2Helper.Builder()
.cameraListener(this) // 实现Camera2Listener接口
.maxPreviewSize(new Point(1920, 1080))
.minPreviewSize(new Point(1280, 720))
.specificCameraId(CAMERA_ID) // CAMERA_ID_BACK / CAMERA_ID_FRONT
.context(this)
.previewOn(textureView)
.isMirror(is_mirror)
.previewViewSize(new Point(textureView.getWidth(), textureView.getHeight()))
.screenOrientation(screen_orientation_)
.scaleToFit(Matrix.ScaleToFit.CENTER)
.build();

camera2Helper.start(video_width_, video_height_);
}

支持的分辨率档位：

3.2 图像帧投递（YUV420888）

Camera2采集的图像格式为YUV_420_888，通过PostLayerImageYUV420888ByteBuffer投递给SDK的第0层（基础视频层）：

@Override
public void onCameraImageData(Image image) {
Image.Plane[] planes = image.getPlanes();

int w = image.getWidth(), h = image.getHeight();
int y_offset = 0, u_offset = 0, v_offset = 0;

Rect crop_rect = image.getCropRect();
if (crop_rect != null && !crop_rect.isEmpty()) {
w = crop_rect.width();
h = crop_rect.height();
y_offset += crop_rect.top * planes[0].getRowStride() + crop_rect.left * planes[0].getPixelStride();
u_offset += (crop_rect.top / 2) * planes[1].getRowStride() + (crop_rect.left / 2) * planes[1].getPixelStride();
v_offset += (crop_rect.top / 2) * planes[2].getRowStride() + (crop_rect.left / 2) * planes[2].getPixelStride();
}

int rotation_degree = cameraImageRotationDegree_;
if (rotation_degree < 0) {
return; // 方向尚未确定，跳过
}

int scale_filter_mode = 3; // 高质量缩放

// 投递给stream_publisher_和snap_shot_publisher_两个实例
for (LibPublisherWrapper i : publisher_array_)
i.PostLayerImageYUV420888ByteBuffer(0, 0, 0,
planes[0].getBuffer(), y_offset, planes[0].getRowStride(),
planes[1].getBuffer(), u_offset, planes[1].getRowStride(),
planes[2].getBuffer(), v_offset, planes[2].getRowStride(),
planes[1].getPixelStride(),
w, h, 0, 0,
scale_w, scale_h, scale_filter_mode, rotation_degree);
}

重点说明：rotation_degree来源于陀螺仪方向传感器与摄像头特性的组合计算，确保无论设备横竖屏、前后摄均能输出方向正确的视频画面，这对GB28181监控场景尤为重要。

四、Publisher初始化与编码参数配置

4.1 打开Publisher实例

private void InitAndSetConfig() {
if (null == libPublisher || !stream_publisher_.empty())
return;

int audio_opt = 1; // 1: 推送编码前音频(PCM)
int video_opt = 3; // 3: 层叠加模式（Layer模式，支持水印叠加）

long handle = libPublisher.SmartPublisherOpen(context_, audio_opt, video_opt,
video_width_, video_height_);
if (0 == handle) {
Log.e(TAG, "sdk open failed!");
return;
}

int fps = 25;
int gop = fps * 3; // 3秒一个GOP

initialize_publisher(libPublisher, handle, video_width_, video_height_, fps, gop);

stream_publisher_.set(libPublisher, handle);
}

4.2 视频编码器选择

SDK支持H.264软编、H.264硬编、H.265硬编三种模式：

private boolean initialize_publisher(SmartPublisherJniV2 lib_publisher, long handle,
int width, int height, int fps, int gop) {

if (videoEncodeType == 1) {
// H.264硬编码
int kbps = LibPublisherWrapper.estimate_video_hardware_kbps(width, height, fps, true);
int isSupportH264HWEncoder = lib_publisher.SetSmartPublisherVideoHWEncoder(handle, kbps);
if (isSupportH264HWEncoder == 0) {
lib_publisher.SetNativeMediaNDK(handle, 0);
lib_publisher.SetVideoHWEncoderBitrateMode(handle, 1); // VBR模式
lib_publisher.SetVideoHWEncoderQuality(handle, 39);
lib_publisher.SetAVCHWEncoderProfile(handle, 0x08); // High Profile
lib_publisher.SetAVCHWEncoderLevel(handle, 0x1000); // Level 4.1
}
} else if (videoEncodeType == 2) {
// H.265硬编码
int kbps = LibPublisherWrapper.estimate_video_hardware_kbps(width, height, fps, false);
int isSupportHevcHWEncoder = lib_publisher.SetSmartPublisherVideoHevcHWEncoder(handle, kbps);
if (isSupportHevcHWEncoder == 0) {
lib_publisher.SetNativeMediaNDK(handle, 0);
lib_publisher.SetVideoHWEncoderBitrateMode(handle, 1);
lib_publisher.SetVideoHWEncoderQuality(handle, 39);
}
}

// 软编VBR模式（适用于软编H.264）
boolean is_sw_vbr_mode = true;
if (is_sw_vbr_mode) {
int video_quality = LibPublisherWrapper.estimate_video_software_quality(width, height, true);
int vbr_max_kbps = LibPublisherWrapper.estimate_video_vbr_max_kbps(width, height, fps);
lib_publisher.SmartPublisherSetSwVBRMode(handle, 1, video_quality, vbr_max_kbps);
}

// 音频编码类型：PCMA(3) 或 AAC(1)
if (is_pcma_) {
lib_publisher.SmartPublisherSetAudioCodecType(handle, 3); // PCMA，8kHz适合GB28181
} else {
lib_publisher.SmartPublisherSetAudioCodecType(handle, 1); // AAC
}

// 事件回调
lib_publisher.SetSmartPublisherEventCallbackV2(handle,
new EventHandlerPublisherV2().set(handler_, record_executor_));

// H.264编码Profile与速度
lib_publisher.SmartPublisherSetSWVideoEncoderProfile(handle, 3); // High Profile
lib_publisher.SmartPublisherSetSWVideoEncoderSpeed(handle, 2);
lib_publisher.SmartPublisherSetGopInterval(handle, gop);
lib_publisher.SmartPublisherSetFPS(handle, fps);

// 音频处理
lib_publisher.SmartPublisherSetNoiseSuppression(handle, 1); // 噪音抑制
lib_publisher.SmartPublisherSetAGC(handle, 0); // 关闭AGC
lib_publisher.SmartPublisherSetEchoCancellation(handle, 1, 0); // 回声消除

return true;
}

码率估算辅助方法：SDK提供了estimate_video_hardware_kbps、estimate_video_software_quality、estimate_video_vbr_max_kbps等静态方法，根据分辨率和帧率给出推荐的编码参数，便于开发者快速适配不同场景。

五、GB28181 SIP代理初始化

GB28181配置参数支持从SharedPreferences持久化存储读取，通过GB28181ConfigActivity进行可视化配置：

5.1 参数定义

private int gb28181_sip_local_port_base_ = 5060;
private String gb28181_sip_server_id_ = "34020000002000000001";
private String gb28181_sip_domain_ = "3402000000";
private String gb28181_sip_server_addr_ = "192.168.0.105";
private int gb28181_sip_server_port_ = 15060;
private String gb28181_sip_username_ = "34020000011310000039";
private String gb28181_sip_password_ = "12345678";
private String gb28181_channel_id_ = "34020000001380000001"; // 通道ID
private int gb28181_reg_expired_ = 3600;
private int gb28181_heartbeat_interval_ = 20;
private int gb28181_heartbeat_count_ = 3;
private int gb28181_sip_trans_protocol_ = 0; // 0:UDP, 1:TCP

ID编码规则说明（依据GB/T 28181附录D）：国标ID为20位数字，格式为：

• 前8位：行政区划编码（如340200表示安徽省芜湖市）
• 第9~10位：SIP接入类型（00=平台，13=摄像头，其他见标准）
• 后10位：设备序号（自行分配，保证唯一性）

5.2 加载配置

private void loadGB28181Config() {
SharedPreferences sp = getSharedPreferences("GB28181Config", MODE_PRIVATE);
gb28181_sip_local_port_base_ = sp.getInt("sip_local_port", 5060);
gb28181_sip_server_id_ = sp.getString("sip_server_id", "34020000002000000001");
gb28181_sip_domain_ = sp.getString("sip_domain", "3402000000");
gb28181_sip_server_addr_= sp.getString("sip_server_addr", "192.168.0.105");
gb28181_sip_server_port_= sp.getInt("sip_server_port", 15060);
gb28181_sip_user_agent_filed_ = sp.getString("user_agent", "");
gb28181_sip_username_ = sp.getString("username", "34020000011310000039");
gb28181_sip_password_ = sp.getString("password", "12345678");
gb28181_reg_expired_ = sp.getInt("reg_expired", 3600);
gb28181_heartbeat_interval_ = sp.getInt("heartbeat_interval", 20);
gb28181_heartbeat_count_ = sp.getInt("heartbeat_count", 3);
gb28181_sip_trans_protocol_ = sp.getInt("trans_protocol", 0);
gb28181_channel_id_ = sp.getString("device_id", "34020000001380000001");
}

5.3 SIP代理创建与启动

private boolean initGB28181Agent() {
if (gb28181_agent_ != null) return true;

getLocation(context_); // 获取GPS位置（用于MobilePosition上报）
loadGB28181Config();

String local_ip_addr = IPAddrUtils.getIpAddress(context_);
if (local_ip_addr == null || local_ip_addr.isEmpty()) {
Log.e(TAG, "initGB28181Agent local ip is empty");
return false;
}

gb28181_agent_ = GBSIPAgentFactory.getInstance().create();
if (gb28181_agent_ == null) return false;

// 注册各类事件监听器
gb28181_agent_.addListener(this); // 注册/心跳事件
gb28181_agent_.addPlayListener(this); // 实时视频INVITE事件
gb28181_agent_.addAudioBroadcastListener(this); // 语音广播事件
gb28181_agent_.addDeviceControlListener(this); // 设备控制（PTZ等）
gb28181_agent_.setDeviceConfigListener(this); // 设备配置（快照等）
gb28181_agent_.addQueryCommandListener(this); // 预置位查询
gb28181_agent_.addQueryRecordInfoListener(this);// 录像查询

// 必填配置
gb28181_agent_.setLocalAddress(local_ip_addr);
gb28181_agent_.setServerParameter(gb28181_sip_server_addr_,
gb28181_sip_server_port_, gb28181_sip_server_id_, gb28181_sip_domain_);
gb28181_agent_.setUserInfo(gb28181_sip_username_, gb28181_sip_password_);

// 可选配置
gb28181_agent_.setUserAgent(gb28181_sip_user_agent_filed_);
gb28181_agent_.setTransportProtocol(gb28181_sip_trans_protocol_ == 0 ? "UDP" : "TCP");
gb28181_agent_.config(gb28181_reg_expired_, gb28181_heartbeat_interval_, gb28181_heartbeat_count_);

// 添加设备通道（含位置信息）
com.gb.ntsignalling.Device gb_device = new com.gb.ntsignalling.Device(
gb28181_channel_id_, "安卓测试设备", Build.MANUFACTURER, Build.MODEL,
"宇宙", "火星1", "火星", true);

if (mLongitude != null && mLatitude != null) {
com.gb.ntsignalling.DevicePosition device_pos = new com.gb.ntsignalling.DevicePosition();
device_pos.setTime(mLocationTime);
device_pos.setLongitude(mLongitude);
device_pos.setLatitude(mLatitude);
gb_device.setPosition(device_pos);
gb_device.setSupportMobilePosition(true); // 支持移动位置上报
}
gb28181_agent_.addDevice(gb_device);

// 创建SIP栈
if (!gb28181_agent_.createSipStack()) {
gb28181_agent_ = null;
return false;
}

// 自动寻找可用本地端口（最多尝试5000个）
boolean is_bind_local_port_ok = false;
int try_end_port = Math.min(gb28181_sip_local_port_base_ + 5000, 65536);
for (int i = gb28181_sip_local_port_base_; i < try_end_port; ++i) {
if (gb28181_agent_.bindLocalPort(i)) {
is_bind_local_port_ok = true;
break;
}
}

if (!is_bind_local_port_ok) {
gb28181_agent_.releaseSipStack();
gb28181_agent_ = null;
return false;
}

if (!gb28181_agent_.initialize()) {
gb28181_agent_.unBindLocalPort();
gb28181_agent_.releaseSipStack();
gb28181_agent_ = null;
return false;
}

return true;
}

六、注册成功与心跳处理

6.1 注册结果回调

@Override
public void ntsRegisterOK(String dateString) {
Log.i(TAG, "ntsRegisterOK Date: " + (dateString != null ? dateString : ""));
}

@Override
public void ntsRegisterTimeout() {
Log.e(TAG, "ntsRegisterTimeout"); // 可在此触发重新注册逻辑
}

@Override
public void ntsRegisterTransportError(String errorInfo) {
Log.e(TAG, "ntsRegisterTransportError error:" + errorInfo);
}

6.2 心跳异常处理（自动重连）

GB/T 28181规定：连续心跳失败次数超过阈值时，设备应认为已与服务器断开连接，并自动尝试重新注册。Demo实现如下：

@Override
public void ntsOnHeartBeatException(int exceptionCount, String lastExceptionInfo) {
Log.e(TAG, "心跳超时, 连续失败次数:" + exceptionCount);

handler_.postDelayed(new Runnable() {
@Override
public void run() {
// 停止所有媒体流和语音广播
stopRecordDownloads(true);
stopPlaybacks(true);
stopAudioPlayer();
destoryRTPReceiver();
stopGB28181Stream();
destoryRTPSender();

if (gb28181_agent_ != null) {
gb28181_agent_.terminateAllAudioBroadcasts(true);
gb28181_agent_.terminateAllPlays(true);
gb28181_agent_.stop();

// 更新本机IP（WLAN切换后IP可能变化）
String local_ip_addr = IPAddrUtils.getIpAddress(context_);
if (local_ip_addr != null && !local_ip_addr.isEmpty()) {
gb28181_agent_.setLocalAddress(local_ip_addr);
}

// 重新初始化回放和下载监听器，然后重新start
initPlaybacks(null);
initRecordDownloads(null);
gb28181_agent_.start();
}
}
}, 0);
}

七、实时视频流推送（INVITE流程实现）

7.1 收到INVITE请求（ntsOnInvitePlay）

平台下发INVITE时，SDK会回调ntsOnInvitePlay，开发者需在此创建RTP Sender并回复200 OK：

@Override
public void ntsOnInvitePlay(String deviceId, SessionDescription session_des) {
handler_.postDelayed(new Runnable() {
@Override
public void run() {
// 振铃响应
gb28181_agent_.respondPlayInvite(180, device_id_);

// 解析SDP，找到PS视频描述
MediaSessionDescription video_des = null;
SDPRtpMapAttribute ps_rtpmap_attr = null;
Vector<MediaSessionDescription> video_des_list = session_des_.getVideoPSDescriptions();
if (video_des_list != null) {
for (MediaSessionDescription m : video_des_list) {
if (m != null && m.isValidAddressType() && m.isHasAddress()) {
video_des = m;
ps_rtpmap_attr = video_des.getPSRtpMapAttribute();
break;
}
}
}

if (null == video_des || null == ps_rtpmap_attr) {
gb28181_agent_.respondPlayInvite(488, device_id_);
return;
}

// 创建RTP Sender
long rtp_sender_handle = libPublisher.CreateRTPSender(0);
if (rtp_sender_handle == 0) {
gb28181_agent_.respondPlayInvite(488, device_id_);
return;
}

gb28181_rtp_payload_type_ = ps_rtpmap_attr.getPayloadType();
gb28181_rtp_encoding_name_ = ps_rtpmap_attr.getEncodingName();

// 配置RTP Sender参数
libPublisher.SetRTPSenderTransportProtocol(rtp_sender_handle,
video_des.isRTPOverUDP() ? 0 : 1); // UDP/TCP
libPublisher.SetRTPSenderIPAddressType(rtp_sender_handle,
video_des.isIPv4() ? 0 : 1); // IPv4/IPv6
libPublisher.SetRTPSenderLocalPort(rtp_sender_handle, 0); // 0=自动分配
libPublisher.SetRTPSenderSSRC(rtp_sender_handle, video_des.getSSRC());
libPublisher.SetRTPSenderSocketSendBuffer(rtp_sender_handle, 2 * 1024 * 1024);
libPublisher.SetRTPSenderClockRate(rtp_sender_handle,
ps_rtpmap_attr.getClockRate()); // 通常90000
libPublisher.SetRTPSenderDestination(rtp_sender_handle,
video_des.getAddress(), video_des.getPort());

if (libPublisher.InitRTPSender(rtp_sender_handle) != 0) {
gb28181_agent_.respondPlayInvite(488, device_id_);
libPublisher.DestoryRTPSender(rtp_sender_handle);
return;
}

int local_port = libPublisher.GetRTPSenderLocalPort(rtp_sender_handle);
String local_ip_addr = IPAddrUtils.getIpAddress(context_);

// 构造本端SDP
MediaSessionDescription local_video_des = new MediaSessionDescription(video_des.getType());
local_video_des.addFormat(String.valueOf(ps_rtpmap_attr.getPayloadType()));
local_video_des.addRtpMapAttribute(ps_rtpmap_attr);
local_video_des.setAddressType(video_des.getAddressType());
local_video_des.setAddress(local_ip_addr);
local_video_des.setPort(local_port);
local_video_des.setTransportProtocol(video_des.getTransportProtocol());
local_video_des.setSSRC(video_des.getSSRC());

// 回复200 OK，携带本端SDP
if (!gb28181_agent_.respondPlayInviteOK(device_id_, local_video_des)) {
libPublisher.DestoryRTPSender(rtp_sender_handle);
return;
}

gb28181_rtp_sender_handle_ = rtp_sender_handle;
}
// … set方法省略
}.set(deviceId, session_des), 0);
}

7.2 收到ACK后开始推流（ntsOnAckPlay）

@Override
public void ntsOnAckPlay(String deviceId) {
handler_.postDelayed(new Runnable() {
@Override
public void run() {
// 初始化Publisher（若尚未初始化）
InitAndSetConfig();

// 绑定RTP Sender
stream_publisher_.SetGB28181RTPSender(gb28181_rtp_sender_handle_,
gb28181_rtp_payload_type_, gb28181_rtp_encoding_name_);

// 启动GB28181媒体流
boolean start_ret = stream_publisher_.StartGB28181MediaStream();
if (!start_ret) {
stream_publisher_.try_release();
destoryRTPSender();
return;
}

// 启动音频采集
startAudioRecorder();

// 启动水印图层线程
startLayerPostThread();
}
// … set方法省略
}.set(deviceId), 0);
}

7.3 停止推流（BYE/Terminate）

@Override
public void ntsOnByePlay(String deviceId) {
handler_.postDelayed(new Runnable() {
@Override
public void run() {
stopGB28181Stream();
destoryRTPSender();
}
// …
}.set(deviceId), 0);
}

private void stopGB28181Stream() {
stream_publisher_.StopGB28181MediaStream();
stream_publisher_.try_release();
if (!stream_publisher_.is_publishing())
stopAudioRecorder();
}

private void destoryRTPSender() {
if (gb28181_rtp_sender_handle_ != 0) {
libPublisher.DestoryRTPSender(gb28181_rtp_sender_handle_);
gb28181_rtp_sender_handle_ = 0;
}
}

八、音频采集与PCM投递

8.1 启动音频录制

void startAudioRecorder() {
if (audio_recorder_ != null) return;

audio_recorder_ = new NTAudioRecordV2(this);
audio_recorder_callback_ = new NTAudioRecordV2CallbackImpl(stream_publisher_, null);
audio_recorder_.AddCallback(audio_recorder_callback_);

// PCMA使用8000Hz采样，AAC使用44100Hz
if (!audio_recorder_.Start(is_pcma_ ? 8000 : 44100, 1)) {
audio_recorder_.RemoveCallback(audio_recorder_callback_);
audio_recorder_callback_ = null;
audio_recorder_ = null;
}
}

8.2 PCM数据回调

private static class NTAudioRecordV2CallbackImpl implements NTAudioRecordV2Callback {
private WeakReference<LibPublisherWrapper> publisher_0_;
private WeakReference<LibPublisherWrapper> publisher_1_;

// …构造函数省略

@Override
public void onNTAudioRecordV2Frame(ByteBuffer data, int size, int sampleRate,
int channel, int per_channel_sample_number) {
// 投递给stream_publisher_（GB28181推流）
LibPublisherWrapper publisher_0 = get_publisher_0();
if (publisher_0 != null)
publisher_0.OnPCMData(data, size, sampleRate, channel, per_channel_sample_number);

// 可选：同时投递给第二个publisher（如录像publisher）
LibPublisherWrapper publisher_1 = get_publisher_1();
if (publisher_1 != null)
publisher_1.OnPCMData(data, size, sampleRate, channel, per_channel_sample_number);
}
}

九、语音广播（双向对讲）

GB/T 28181的语音广播流程是平台主动向设备发送广播指令，设备接受后，平台推送音频RTP流到设备，由设备播放。

9.1 收到广播通知

@Override
public void ntsOnNotifyBroadcastCommand(String fromUserName, String fromUserNameAtDomain,
String sn, String sourceID, String targetID) {
handler_.postDelayed(new Runnable() {
@Override
public void run() {
// 响应广播命令，告知平台设备已准备好
if (gb28181_agent_ != null) {
gb28181_agent_.respondBroadcastCommand(from_user_name_,
from_user_name_at_domain_, sn_, source_id_, target_id_, true);
btnGB28181AudioBroadcast.setText("收到GB28181语音广播通知");
}
}
// …
}.set(fromUserName, fromUserNameAtDomain, sn, sourceID, targetID), 0);
}

9.2 INVITE音频广播

@Override
public void ntsOnAudioBroadcast(String commandFromUserName, String commandFromUserNameAtDomain,
String sourceID, String targetID) {
handler_.postDelayed(new Runnable() {
@Override
public void run() {
stopAudioPlayer();
destoryRTPReceiver();

if (gb28181_agent_ != null) {
String local_ip_addr = IPAddrUtils.getIpAddress(context_);
boolean is_tcp = true; // 跨网段建议用TCP

// 创建RTP Receiver（用于接收平台推来的音频流）
rtp_receiver_handle_ = lib_player_.CreateRTPReceiver(0);
if (rtp_receiver_handle_ != 0) {
lib_player_.SetRTPReceiverTransportProtocol(rtp_receiver_handle_, is_tcp ? 1 : 0);
lib_player_.SetRTPReceiverIPAddressType(rtp_receiver_handle_, 0); // IPv4

if (0 == lib_player_.CreateRTPReceiverSession(rtp_receiver_handle_, 0)) {
int local_port = lib_player_.GetRTPReceiverLocalPort(rtp_receiver_handle_);

// 向平台发起音频INVITE
boolean ret = gb28181_agent_.inviteAudioBroadcast(
command_from_user_name_, command_from_user_name_at_domain_,
source_id_, target_id_, "IP4", local_ip_addr, local_port,
is_tcp ? "TCP/RTP/AVP" : "RTP/AVP");

if (ret) {
btnGB28181AudioBroadcast.setText("GB28181语音广播呼叫中");
} else {
destoryRTPReceiver();
}
}
}
}
}
// …
}.set(commandFromUserName, commandFromUserNameAtDomain, sourceID, targetID), 0);
}

9.3 处理音频广播响应并启动播放

@Override
public void ntsOnInviteAudioBroadcastResponse(String sourceID, String targetID,
int statusCode,
SessionDescription sessionDescription) {
handler_.postDelayed(new Runnable() {
@Override
public void run() {
if (gb28181_agent_ != null && 200 == status_code_
&& session_description_ != null && rtp_receiver_handle_ != 0) {
// 解析音频SDP，获取PCMA/PCMU/AAC等格式描述
MediaSessionDescription audio_des = null;
List<SDPRtpMapAttribute> audio_attrs = new LinkedList<>();
// …（解析逻辑略，参考完整源码）

if (audio_des != null && !audio_attrs.isEmpty()) {
// 设置SSRC（部分场景下SDP.SSRC与RTP.SSRC不一致时，此行可注释掉）
lib_player_.SetRTPReceiverSSRC(rtp_receiver_handle_, audio_des.getSSRC());
lib_player_.ClearRTPReceiverPayloadTypes(rtp_receiver_handle_);

for (SDPRtpMapAttribute a : audio_attrs) {
lib_player_.SetRTPReceiverPayloadType(rtp_receiver_handle_,
a.getPayloadType(), a.getEncodingName(), 2, a.getClockRate());
}

lib_player_.SetRTPReceiverRemoteAddress(rtp_receiver_handle_,
audio_des.getAddress(), audio_des.getPort());
lib_player_.InitRTPReceiver(rtp_receiver_handle_);

if (startAudioPlay()) {
gb_broadcast_source_id_ = source_id_;
gb_broadcast_target_id_ = target_id_;
btnGB28181AudioBroadcast.setText("终止GB28181语音广播");
btnGB28181AudioBroadcast.setEnabled(true);
}
}
}
}
// …
}.set(sourceID, targetID, statusCode, sessionDescription), 0);
}

9.4 音频播放器启动（含超时保护）

private boolean startAudioPlay() {
if (player_handle_ != 0) return false;

player_handle_ = lib_player_.SmartPlayerOpen(context_);
if (player_handle_ == 0) return false;

lib_player_.SetSmartPlayerEventCallbackV2(player_handle_, new EventHandlerPlayerV2());
lib_player_.SmartPlayerSetBuffer(player_handle_, 0); // 0缓冲，低延迟

// 绑定RTP Receiver
lib_player_.SmartPlayerClearRtpReceivers(player_handle_);
lib_player_.SmartPlayerAddRtpReceiver(player_handle_, rtp_receiver_handle_);

lib_player_.SmartPlayerSetSurface(player_handle_, null); // 纯音频，无视图
lib_player_.SmartPlayerSetAudioOutputType(player_handle_, 1); // AudioTrack模式
lib_player_.SmartPlayerSetMute(player_handle_, 0);
lib_player_.SmartPlayerSetAudioVolume(player_handle_, 100);

// 设置外部PCM输出，将收到的音频数据反馈给推流Publisher（用于回音消除链路）
lib_player_.SmartPlayerSetExternalAudioOutput(player_handle_,
new PlayerExternalPCMOutput(stream_publisher_));

lib_player_.SmartPlayerSetUrl(player_handle_, "rtp://ntinternal/rtpreceiver/implemention0");

if (0 != lib_player_.SmartPlayerStartPlay(player_handle_)) {
lib_player_.SmartPlayerClose(player_handle_);
player_handle_ = 0;
return false;
}

lib_player_.SmartPlayerSetAudioDataCallback(player_handle_, new PlayerAudioDataOutput());

if (0 == lib_player_.SmartPlayerStartPullStream(player_handle_)) {
// 启动超时保护定时器：60秒未收到音频数据则自动断开
last_received_audio_data_time_.set(SystemClock.elapsedRealtime());
handler_.postDelayed(new AudioPlayerPCMTimer(player_handle_),
AudioPlayerPCMTimer.INTERVAL_MS);
}

return true;
}

超时保护机制：AudioPlayerPCMTimer每10秒检查一次最后收到音频数据的时间，超过60秒无数据则自动发送BYE并释放资源，避免悬空连接占用系统资源。

十、水印图层叠加（LayerPostThread）

10.1 图层架构说明

SDK采用"层叠加模式"（video_opt=3）进行视频合成，支持多图层并行叠加：

10.2 LayerPostThread实现

public class LayerPostThread extends Thread {
private final int update_interval = 400; // 400ms更新一次
private final AtomicBoolean is_exit_ = new AtomicBoolean(false);

private final int timestamp_index_ = 1;
private final int text1_index_ = 2;
private final int text2_index_ = 3;
private final int picture_index_ = 4;
private final int rectangle_index_ = 5;

private void on_run() {
while (!is_exit()) {
// 获取当前视频尺寸
VideoSize video_size = get_video_size();
if (null == video_size) { sleep_ms(80); continue; }

int video_w = video_size.get_width();
int video_h = video_size.get_height();

// 更新各图层
on_update_layers(publisher_list, true, video_w, video_h);

// 矩形alpha渐变演示
if (is_text_ && is_picture_) {
postRGBRectangle(publisher_list, rectangle_index_, rectangle_alpha, video_w, video_h);
rectangle_alpha = (rectangle_alpha + 8) % 256;
}

sleep_ms(update_interval – (int)cost_ms);
}
}
}

10.3 文字水印渲染

文字通过Android Canvas绘制为Bitmap后，通过PostLayerBitmap接口投递：

private int post_timestamp_layer(…) {
Bitmap text_bitmap = makeTextBitmap(makeTimestampString(), getFontSize(video_w),
Color.argb(255, 0, 0, 0), // 字体颜色：黑色
true, // 开启描边
Color.argb(255, 255, 255, 255), // 描边颜色：白色
true); // 粗体

for (LibPublisherWrapper i : publisher_list)
i.PostLayerBitmap(index, left, top, text_bitmap,
0, 0, 0, 0, // clip参数
0, 0, // 不翻转
scale_w, scale_h, scale_filter_mode, 0); // 缩放

text_bitmap.recycle();
return ret;
}

10.4 图层启停控制

// 启用/停用文字水印层
layer_post_thread_.enableText(true);
// 启用/停用图片水印层
layer_post_thread_.enablePicture(true);

// 停用某个图层（不再渲染）
for (LibPublisherWrapper i : publisher_list)
i.EnableLayer(index, false);

// 彻底移除某个图层
for (LibPublisherWrapper i : publisher_list)
i.RemoveLayer(index);

十一、云台控制（PTZ）

GB/T 28181的PTZ控制通过DeviceControl消息传递，Byte6编码云台动作（上/下/左/右/变焦等）。

@Override
public void ntsOnDeviceControlPTZCmd(String deviceId, String typeValue) {
handler_.postDelayed(new Runnable() {
@Override
public void run() {
if (null == ptz_type_ || ptz_type_.trim().length() != 16) return;

ptz_type_ = ptz_type_.trim();
// Byte6（位6~7）：0=方向控制，1=变焦控制
int instruction = hexStringToInt(ptz_type_.substring(6, 8));
int combination_code2 = hexStringToInt(ptz_type_.substring(12, 14));

if ((instruction & 0xc0) == 0) {
if ((instruction & 0x20) != 0) {
// Zoom Out（缩小）
int zoom_speed = (combination_code2 >> 4) & 0xf;
Log.i(TAG, "PTZ Zoom Out, speed:" + zoom_speed);
// 此处可驱动摄像头光学变焦或切换摄像头

} else if ((instruction & 0x10) != 0) {
// Zoom In（放大）
int zoom_speed = (combination_code2 >> 4) & 0xf;
Log.i(TAG, "PTZ Zoom In, speed:" + zoom_speed);
}
// 其他方向控制（上/下/左/右）可参考GB28181标准Byte6定义
}
}
// …
}.set(deviceId, typeValue), 0);
}

十二、快照（截图上传）

12.1 快照配置响应

@Override
public void ntsOnDeviceSnapShotConfig(String from_user_name, String from_user_name_at_domain,
String sn, String device_id, SnapShotConfig config,
List<String> extra_info_list) {
handler_.postDelayed(new Runnable() {
@Override
public void run() {
if (null == snap_shot_impl_) {
snap_shot_impl_ = new SnapShotGBImpl(image_path_, context_,
handler_, libPublisher, snap_shot_publisher_);
snap_shot_impl_.start();
}

startLayerPostThread();
snap_shot_impl_.set_layer_post_thread(layer_post_thread_);

snap_shot_impl_.add_config(gb28181_agent_, from_user_name_,
from_user_name_at_domain_, sn_, device_id_,
snap_shot_config_, extra_info_list_);
}
// …
}.set(from_user_name, from_user_name_at_domain, sn, device_id, config, extra_info_list), 0);
}

12.2 手动触发截图

class ButtonCaptureImageListener implements View.OnClickListener {
public void onClick(View v) {
if (null == snap_shot_impl_) {
snap_shot_impl_ = new SnapShotGBImpl(image_path_, context_,
handler_, libPublisher, snap_shot_publisher_);
snap_shot_impl_.start();
}
startLayerPostThread();
snap_shot_impl_.set_layer_post_thread(layer_post_thread_);
snap_shot_impl_.capture();
}
}

截图支持JPEG（压缩比可控）和PNG两种格式，通过CaptureImage接口触发：

// compress_format: 0=JPEG, 1=PNG
// quality: [0,100], 仅JPEG有效
publisher.CaptureImage(0, 90, "/sdcard/snapshot_20240801.jpeg", "user_tag");

十三、录像查询与回放（历史视频）

13.1 录像查询

平台下发录像查询命令时，SDK通过ntsOnQueryRecordInfoCommand回调，Demo基于本地录像目录查询文件列表：

@Override
public void ntsOnQueryRecordInfoCommand(String fromUserName, String fromUserNameAtDomain,
String toUserName, RecordQueryInfo recordQueryInfo) {
handler_.post(new Runnable() {
@Override
public void run() {
QueryRecordInfoTask query_task = new QueryRecordInfoTask();
query_task.set(handler_, gb28181_agent_, recDir,
from_user_name_, from_user_name_at_domain_,
to_user_name_, record_query_info_);

// 提交到后台线程池异步执行，避免阻塞主线程
if (!record_executor_.submit(query_task))
Log.e(TAG, "submit QueryRecordInfoTask failed");
}
// …
}.set(fromUserName, fromUserNameAtDomain, toUserName, recordQueryInfo));
}

查询任务解析录像文件名中的时间信息（需符合特定命名规范），根据起止时间范围过滤后，通过sip_agent.respondRecordInfoQueryCommand回复查询结果。

13.2 回放流推送

历史回放与录像下载流程与实时推流类似，但SetStreamType需设置为1（on-demand流），并通过PostVideoOnDemandPacketByteBuffer和PostAudioOnDemandPacketByteBuffer按时间戳投递历史媒体包。

十四、设备生命周期管理

14.1 Activity暂停/恢复

@Override
protected void onPause() {
mOrientationDetector.disable();
if (camera2Helper != null) camera2Helper.stop();
super.onPause();
}

@Override
protected void onResume() {
super.onResume();
mOrientationDetector.enable();
if (camera2Helper != null) camera2Helper.start(video_width_, video_height_);
}

14.2 Activity销毁（完整资源释放）

@Override
protected void onDestroy() {
record_executor_.cancel_tasks();
stopRecordDownloads(true);
stopPlaybacks(true);
stopAudioPlayer();
destoryRTPReceiver();
stopAudioRecorder();

if (snap_shot_impl_ != null) {
snap_shot_impl_.stop();
snap_shot_impl_ = null;
}

snap_shot_publisher_.release();
stopPush();
stopRecorder();
stopRtspPublisher();
stopGB28181Stream();
destoryRTPSender();
stream_publisher_.release();
rtsp_server_.reset();

// UnInitRtspServer与InitRtspServer配对，只调用一次
LibPublisherWrapper.RTSPServer.deinitialize_sdk(libPublisher);
stopLayerPostThread();

if (camera2Helper != null) camera2Helper.release();

if (gb28181_agent_ != null) {
gb28181_agent_.terminateAllAudioBroadcasts(true);
gb28181_agent_.terminateAllPlays(true);
gb28181_agent_.stop();
gb28181_agent_.unInitialize();
gb28181_agent_.unBindLocalPort();
gb28181_agent_.releaseSipStack();
gb28181_agent_ = null;
}

record_executor_.shutdown(60, TimeUnit.SECONDS);
super.onDestroy();
}

关键注意事项：GB28181 SIP栈的释放顺序必须严格遵循：stop() → unInitialize() → unBindLocalPort() → releaseSipStack()，中间建议等待500ms~2000ms确保注销消息发出后再释放。

十五、LibPublisherWrapper线程安全设计

LibPublisherWrapper是对SmartPublisherJniV2的封装，核心设计亮点：

十六、常见问题与调试建议

总结

本文系统梳理了基于大牛直播SDK（SmartGBD）在Android平台实现GB28181完整接入的关键技术要点，包含从SIP信令处理、RTP媒体流推送、语音广播、云台控制到录像查询的全链路实现。代码以实际Demo为准，具有较强的工程参考价值。

主要特性总结：

• 多推流模式并存：GB28181、RTMP、RTSP、本地录像可并行工作
• 层叠加水印：支持文字/图片/矩形多图层动态叠加，不影响主推流性能
• 音视频编码灵活：软编H.264（VBR）/ 硬编H.264 / 硬编H.265按需切换
• 音频格式兼容：支持PCMA（G.711a，GB28181最常用）和AAC
• 自动重连：心跳异常、网络切换后自动重新注册
• 线程安全：Publisher封装层通过读写锁保障并发安全

📎 CSDN官方博客：音视频牛哥-CSDN博客
