Flutter for OpenHarmony 实战：打造跨平台喝水提醒应用

社区引导

欢迎加入开源鸿蒙跨平台社区：https://openharmonycrossplatform.csdn.net

作者：maaath

在移动应用开发领域，如何高效地实现跨平台能力一直是开发者关注的核心议题。Flutter 作为 Google 推出的跨平台 UI 框架，凭借其高性能和一致的 UI 渲染能力，已经在 iOS、Android 等平台取得了广泛应用。而随着 OpenHarmony 生态的蓬勃发展，Flutter for OpenHarmony 成为了连接传统移动开发与新兴国产操作系统的桥梁。本文将通过一个完整的喝水提醒应用实例，展示如何使用 Flutter 实现跨平台开发，并将其部署到鸿蒙设备上运行。

项目背景与需求分析

现代人由于工作繁忙，常常忘记及时补充水分。长期缺水可能导致注意力下降、免疫力减弱等健康问题。一个实用的喝水提醒应用应当具备以下核心功能：

本文将详细介绍如何使用 Flutter 实现这些功能，并确保代码能够在鸿蒙设备上正常运行。

项目结构设计

良好的项目结构是保证代码可维护性的基础。我们的喝水提醒应用采用分层架构：

lib/
├── main.dart # 应用入口
├── models/ # 数据模型层
│ └── water_model.dart # 喝水相关数据模型
├── providers/ # 状态管理层
│ └── water_provider.dart # 喝水数据状态管理
├── pages/ # 页面层
│ ├── home_page.dart # 首页
│ ├── stats_page.dart # 统计页面
│ └── settings_page.dart # 设置页面
├── widgets/ # 组件层
│ ├── water_progress.dart # 进度环形组件
│ └── quick_add_panel.dart # 快捷添加面板
└── utils/ # 工具层
└── notification_helper.dart # 通知工具类

这种分层结构使得各模块职责清晰，便于后续维护和功能扩展。

核心数据模型实现

首先，我们需要定义应用的数据模型。在 Flutter 中，我们可以使用简单的类来定义数据结构：

// lib/models/water_model.dart

class WaterRecord {
String date;
int totalAmount;
bool goalAchieved;
List<WaterEntry> entries;

WaterRecord({
required this.date,
this.totalAmount = 0,
this.goalAchieved = false,
List<WaterEntry>? entries,
}) : entries = entries ?? [];
}

class WaterEntry {
String id;
String time;
int amount;
String period;

WaterEntry({
required this.id,
required this.time,
required this.amount,
required this.period,
});
}

class WaterGoal {
int dailyGoal;
int cupSize;
String unit;

WaterGoal({
this.dailyGoal = 2000,
this.cupSize = 250,
this.unit = 'ml',
});
}

class WaterAchievement {
String id;
String name;
String description;
String icon;
bool isUnlocked;
String unlockCondition;
int progress;
int maxProgress;

WaterAchievement({
required this.id,
required this.name,
required this.description,
required this.icon,
this.isUnlocked = false,
required this.unlockCondition,
this.progress = 0,
required this.maxProgress,
});
}

这些模型类定义了应用的核心数据结构，包括饮水记录、饮水条目、饮水目标和成就系统。通过使用 Dart 的类封装，我们确保了数据的类型安全和封装性。

状态管理实现

Flutter 提供了多种状态管理方案，这里我们使用 Provider 模式来实现应用状态的集中管理：

// lib/providers/water_provider.dart

import 'package:flutter/foundation.dart';
import '../models/water_model.dart';

class WaterProvider extends ChangeNotifier {
List<WaterRecord> _records = [];
WaterGoal _goal = WaterGoal();
List<WaterAchievement> _achievements = [];
List<WaterEntry> _quickAddPresets = [];

List<WaterRecord> get records => _records;
WaterGoal get goal => _goal;
WaterRecord get todayRecord => _getTodayRecord();
List<WaterAchievement> get achievements => _achievements;
List<WaterEntry> get quickAddPresets => _quickAddPresets;

WaterProvider() {
_initializeData();
}

void _initializeData() {
_quickAddPresets = [
WaterEntry(id: '1', time: '', amount: 150, period: 'preset'),
WaterEntry(id: '2', time: '', amount: 250, period: 'preset'),
WaterEntry(id: '3', time: '', amount: 350, period: 'preset'),
WaterEntry(id: '4', time: '', amount: 500, period: 'preset'),
WaterEntry(id: '5', time: '', amount: 750, period: 'preset'),
WaterEntry(id: '6', time: '', amount: 1000, period: 'preset'),
];

_initMockData();
_initAchievements();
}

void _initMockData() {
final now = DateTime.now();
for (int i = 6; i >= 0; i—) {
final date = now.subtract(Duration(days: i));
final dateStr = _formatDate(date);
final randomAmount = 800 + (i * 100) + (date.day % 5) * 80;

_records.add(WaterRecord(
date: dateStr,
totalAmount: randomAmount,
goalAchieved: randomAmount >= _goal.dailyGoal,
));
}
}

void _initAchievements() {
_achievements = [
WaterAchievement(
id: 'first_drink',
name: '初次饮水',
description: '完成第一次饮水记录',
icon: '💧',
unlockCondition: '记录1次饮水',
maxProgress: 1,
),
WaterAchievement(
id: 'cup_8',
name: '八杯水达人',
description: '单日饮水达到8杯',
icon: '🥤',
unlockCondition: '单日8杯水',
maxProgress: 8,
),
WaterAchievement(
id: 'goal_7',
name: '七日王者',
description: '连续7天达成饮水目标',
icon: '👑',
unlockCondition: '连续7天达标',
maxProgress: 7,
),
];
}

WaterRecord _getTodayRecord() {
final today = _formatDate(DateTime.now());
for (final record in _records) {
if (record.date == today) {
return record;
}
}
return WaterRecord(date: today);
}

void addWaterEntry(int amount) {
final now = DateTime.now();
final timeStr = '${now.hour.toString().padLeft(2, '0')}:${now.minute.toString().padLeft(2, '0')}';

String period = 'morning';
if (now.hour >= 12 && now.hour < 18) {
period = 'afternoon';
} else if (now.hour >= 18) {
period = 'evening';
}

final entry = WaterEntry(
id: '${DateTime.now().millisecondsSinceEpoch}',
time: timeStr,
amount: amount,
period: period,
);

final today = _getTodayRecord();
today.entries.add(entry);
today.totalAmount += amount;
today.goalAchieved = today.totalAmount >= _goal.dailyGoal;

_updateAchievements();
notifyListeners();
}

void _updateAchievements() {
final today = _getTodayRecord();
final totalEntries = _records.fold<int>(
0, (sum, record) => sum + record.entries.length
);

for (final achievement in _achievements) {
switch (achievement.id) {
case 'first_drink':
achievement.progress = totalEntries > 0 ? 1 : 0;
achievement.isUnlocked = totalEntries > 0;
break;
case 'cup_8':
final cupCount = today.totalAmount ~/ _goal.cupSize;
achievement.progress = cupCount;
achievement.isUnlocked = cupCount >= 8;
break;
case 'goal_7':
final consecutiveDays = _getConsecutiveGoalDays();
achievement.progress = consecutiveDays;
achievement.isUnlocked = consecutiveDays >= 7;
break;
}
}
}

int _getConsecutiveGoalDays() {
int consecutive = 0;
for (int i = 0; i < _records.length; i++) {
if (_records[_records.length – 1 – i].goalAchieved) {
consecutive++;
} else {
break;
}
}
return consecutive;
}

String _formatDate(DateTime date) {
final month = (date.month).toString().padLeft(2, '0');
final day = (date.day).toString().padLeft(2, '0');
return '$month–$day';
}

double getProgress() {
if (_goal.dailyGoal <= 0) return 0;
return (todayRecord.totalAmount / _goal.dailyGoal).clamp(0.0, 1.0);
}
}

状态管理是 Flutter 应用的核心，它负责协调数据和 UI 之间的同步。通过使用 ChangeNotifier，我们的 WaterProvider 能够在数据变化时通知所有依赖它的组件自动重建界面。

页面实现

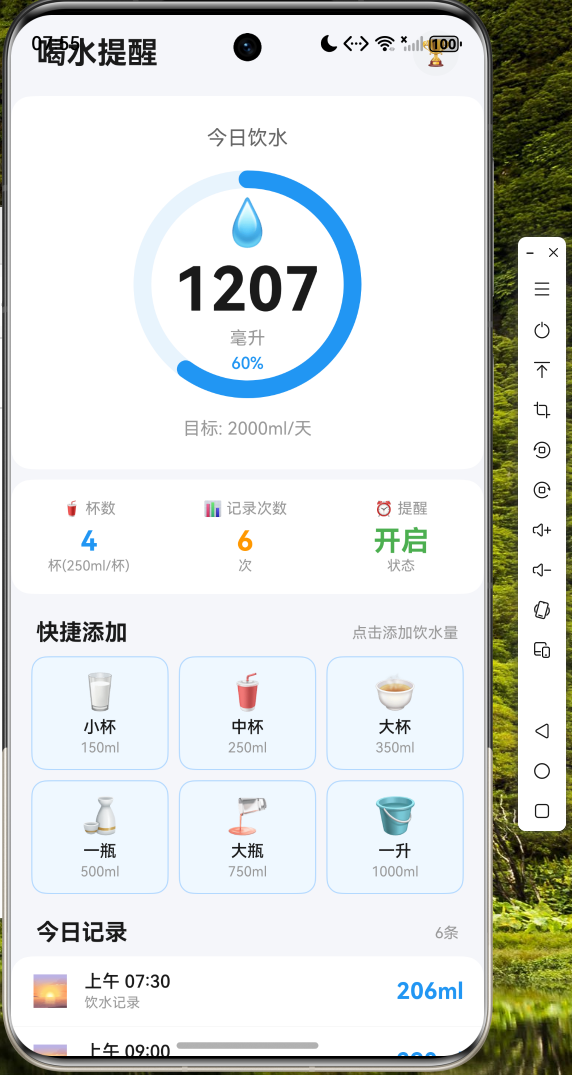

首页设计

首页是用户每日使用最频繁的界面，需要直观地展示今日饮水进度和快捷操作入口：

// lib/pages/home_page.dart

import 'package:flutter/material.dart';
import 'package:provider/provider.dart';
import '../providers/water_provider.dart';

class HomePage extends StatelessWidget {
const HomePage({super.key});

@override
Widget build(BuildContext context) {
return ChangeNotifierProvider(
create: (_) => WaterProvider(),
child: Scaffold(
backgroundColor: const Color(0xFFF5F6FA),
body: SafeArea(
child: Consumer<WaterProvider>(
builder: (context, provider, _) {
return SingleChildScrollView(
padding: const EdgeInsets.all(16),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
_buildHeader(context),
const SizedBox(height: 24),
_buildProgressCard(context, provider),
const SizedBox(height: 16),
_buildQuickAddPanel(context, provider),
const SizedBox(height: 16),
_buildTodayStats(provider),
const SizedBox(height: 16),
_buildAchievementsSection(provider),
],
),
);
},
),
),
),
);
}

Widget _buildHeader(BuildContext context) {
return Row(
mainAxisAlignment: MainAxisAlignment.spaceBetween,
children: [
Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
const Text(
'💧 喝水提醒',
style: TextStyle(
fontSize: 24,
fontWeight: FontWeight.bold,
color: Color(0xFF1A1A1A),
),
),
Text(
_getGreeting(),
style: const TextStyle(
fontSize: 14,
color: Color(0xFF999999),
),
),
],
),
Row(
children: [
IconButton(
icon: const Icon(Icons.bar_chart, color: Color(0xFF2196F3)),
onPressed: () => Navigator.pushNamed(context, '/stats'),
),
IconButton(
icon: const Icon(Icons.settings, color: Color(0xFF666666)),
onPressed: () => Navigator.pushNamed(context, '/settings'),
),
],
),
],
);
}

Widget _buildProgressCard(BuildContext context, WaterProvider provider) {
final progress = provider.getProgress();
final percentage = (progress * 100).toInt();
final today = provider.todayRecord;

return Container(
padding: const EdgeInsets.all(24),
decoration: BoxDecoration(
gradient: const LinearGradient(
colors: [Color(0xFF4CAF50), Color(0xFF2196F3)],
begin: Alignment.topLeft,
end: Alignment.bottomRight,
),
borderRadius: BorderRadius.circular(20),
boxShadow: [
BoxShadow(
color: const Color(0xFF4CAF50).withOpacity(0.3),
blurRadius: 12,
offset: const Offset(0, 6),
),
],
),
child: Row(
children: [
SizedBox(
width: 120,
height: 120,
child: Stack(
alignment: Alignment.center,
children: [
SizedBox(
width: 120,
height: 120,
child: CircularProgressIndicator(
value: progress,
strokeWidth: 10,
backgroundColor: Colors.white.withOpacity(0.3),
valueColor: const AlwaysStoppedAnimation<Color>(Colors.white),
),
),
Column(
mainAxisSize: MainAxisSize.min,
children: [
Text(
'$percentage%',
style: const TextStyle(
fontSize: 28,
fontWeight: FontWeight.bold,
color: Colors.white,
),
),
const Text(
'完成度',
style: TextStyle(
fontSize: 12,
color: Colors.white70,
),
),
],
),
],
),
),
const SizedBox(width: 24),
Expanded(
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
const Text(
'今日饮水',
style: TextStyle(
fontSize: 14,
color: Colors.white70,
),
),
const SizedBox(height: 4),
RichText(
text: TextSpan(
children: [
TextSpan(
text: '${today.totalAmount}',
style: const TextStyle(
fontSize: 32,
fontWeight: FontWeight.bold,
color: Colors.white,
),
),
TextSpan(
text: ' / ${provider.goal.dailyGoal} ml',
style: const TextStyle(
fontSize: 16,
color: Colors.white70,
),
),
],
),
),
const SizedBox(height: 8),
Text(
'已完成 ${today.entries.length} 次饮水',
style: const TextStyle(
fontSize: 12,
color: Colors.white70,
),
),
],
),
),
],
),
);
}

Widget _buildQuickAddPanel(BuildContext context, WaterProvider provider) {
final presets = [
{'label': '小杯', 'amount': 150, 'icon': '🥛'},
{'label': '中杯', 'amount': 250, 'icon': '🥤'},
{'label': '大杯', 'amount': 350, 'icon': '🍵'},
{'label': '一瓶', 'amount': 500, 'icon': '🍶'},
{'label': '大瓶', 'amount': 750, 'icon': '🫗'},
{'label': '一升', 'amount': 1000, 'icon': '🪣'},
];

return Container(
padding: const EdgeInsets.all(16),
decoration: BoxDecoration(
color: Colors.white,
borderRadius: BorderRadius.circular(16),
boxShadow: [
BoxShadow(
color: Colors.black.withOpacity(0.03),
blurRadius: 8,
offset: const Offset(0, 2),
),
],
),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
const Text(
'⚡ 快速添加',
style: TextStyle(
fontSize: 16,
fontWeight: FontWeight.w600,
color: Color(0xFF1A1A1A),
),
),
const SizedBox(height: 12),
Wrap(
spacing: 8,
runSpacing: 8,
children: presets.map((preset) {
return InkWell(
onTap: () {
provider.addWaterEntry(preset['amount'] as int);
ScaffoldMessenger.of(context).showSnackBar(
SnackBar(
content: Text('已添加 ${preset['amount']}ml'),
duration: const Duration(seconds: 1),
backgroundColor: const Color(0xFF4CAF50),
),
);
},
borderRadius: BorderRadius.circular(12),
child: Container(
padding: const EdgeInsets.symmetric(horizontal: 12, vertical: 8),
decoration: BoxDecoration(
color: const Color(0xFFF0F2F5),
borderRadius: BorderRadius.circular(12),
),
child: Row(
mainAxisSize: MainAxisSize.min,
children: [
Text(
preset['icon'] as String,
style: const TextStyle(fontSize: 16),
),
const SizedBox(width: 4),
Text(
'${preset['amount']}ml',
style: const TextStyle(
fontSize: 13,
fontWeight: FontWeight.w500,
color: Color(0xFF333333),
),
),
],
),
),
);
}).toList(),
),
],
),
);
}

Widget _buildTodayStats(WaterProvider provider) {
final today = provider.todayRecord;
final periodStats = _calculatePeriodStats(today);

return Container(
padding: const EdgeInsets.all(16),
decoration: BoxDecoration(
color: Colors.white,
borderRadius: BorderRadius.circular(16),
boxShadow: [
BoxShadow(
color: Colors.black.withOpacity(0.03),
blurRadius: 8,
offset: const Offset(0, 2),
),
],
),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
const Text(
'📊 今日时段统计',
style: TextStyle(
fontSize: 16,
fontWeight: FontWeight.w600,
color: Color(0xFF1A1A1A),
),
),
const SizedBox(height: 16),
Row(
children: periodStats.map((stat) {
return Expanded(
child: Container(
margin: const EdgeInsets.symmetric(horizontal: 4),
padding: const EdgeInsets.all(12),
decoration: BoxDecoration(
color: _getPeriodColor(stat['period'] as String).withOpacity(0.1),
borderRadius: BorderRadius.circular(12),
),
child: Column(
children: [
Icon(
_getPeriodIcon(stat['period'] as String),
color: _getPeriodColor(stat['period'] as String),
size: 24,
),
const SizedBox(height: 4),
Text(
stat['label'] as String,
style: TextStyle(
fontSize: 11,
color: _getPeriodColor(stat['period'] as String),
),
),
const SizedBox(height: 4),
Text(
'${stat['amount']}ml',
style: const TextStyle(
fontSize: 14,
fontWeight: FontWeight.bold,
color: Color(0xFF1A1A1A),
),
),
Text(
'${stat['count']}次',
style: const TextStyle(
fontSize: 11,
color: Color(0xFF999999),
),
),
],
),
),
);
}).toList(),
),
],
),
);
}

Widget _buildAchievementsSection(WaterProvider provider) {
return Container(
padding: const EdgeInsets.all(16),
decoration: BoxDecoration(
color: Colors.white,
borderRadius: BorderRadius.circular(16),
boxShadow: [
BoxShadow(
color: Colors.black.withOpacity(0.03),
blurRadius: 8,
offset: const Offset(0, 2),
),
],
),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Row(
mainAxisAlignment: MainAxisAlignment.spaceBetween,
children: [
const Text(
'🏆 喝水成就',
style: TextStyle(
fontSize: 16,
fontWeight: FontWeight.w600,
color: Color(0xFF1A1A1A),
),
),
Text(
'${provider.achievements.where((a) => a.isUnlocked).length}/${provider.achievements.length}',
style: const TextStyle(
fontSize: 12,
color: Color(0xFF999999),
),
),
],
),
const SizedBox(height: 12),
...provider.achievements.map((achievement) {
return Container(
margin: const EdgeInsets.only(bottom: 8),
padding: const EdgeInsets.all(12),
decoration: BoxDecoration(
color: achievement.isUnlocked
? const Color(0xFFFFF8E1)
: const Color(0xFFF5F5F5),
borderRadius: BorderRadius.circular(12),
),
child: Row(
children: [
Text(
achievement.icon,
style: TextStyle(
fontSize: 24,
color: achievement.isUnlocked ? null : Colors.grey,
),
),
const SizedBox(width: 12),
Expanded(
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Text(
achievement.name,
style: TextStyle(
fontSize: 14,
fontWeight: FontWeight.w500,
color: achievement.isUnlocked
? const Color(0xFF1A1A1A)
: const Color(0xFF999999),
),
),
const SizedBox(height: 2),
Text(
achievement.description,
style: TextStyle(
fontSize: 11,
color: achievement.isUnlocked
? const Color(0xFF666666)
: const Color(0xFFBBBBBB),
),
),
],
),
),
if (achievement.isUnlocked)
const Icon(
Icons.check_circle,
color: Color(0xFF4CAF50),
size: 20,
)
else
Text(
'${achievement.progress}/${achievement.maxProgress}',
style: const TextStyle(
fontSize: 12,
color: Color(0xFF999999),
),
),
],
),
);
}),
],
),
);
}

List<Map<String, dynamic>> _calculatePeriodStats(WaterRecord today) {
int morning = 0, morningCount = 0;
int afternoon = 0, afternoonCount = 0;
int evening = 0, eveningCount = 0;

for (final entry in today.entries) {
switch (entry.period) {
case 'morning':
morning += entry.amount;
morningCount++;
break;
case 'afternoon':
afternoon += entry.amount;
afternoonCount++;
break;
case 'evening':
evening += entry.amount;
eveningCount++;
break;
}
}

return [
{'period': 'morning', 'label': '上午', 'amount': morning, 'count': morningCount},
{'period': 'afternoon', 'label': '下午', 'amount': afternoon, 'count': afternoonCount},
{'period': 'evening', 'label': '晚上', 'amount': evening, 'count': eveningCount},
];
}

Color _getPeriodColor(String period) {
switch (period) {
case 'morning':
return const Color(0xFFFF9800);
case 'afternoon':
return const Color(0xFF2196F3);
case 'evening':
return const Color(0xFF9C27B0);
default:
return Colors.grey;
}
}

IconData _getPeriodIcon(String period) {
switch (period) {
case 'morning':
return Icons.wb_sunny;
case 'afternoon':
return Icons.wb_cloudy;
case 'evening':
return Icons.nights_stay;
default:
return Icons.water_drop;
}
}

String _getGreeting() {
final hour = DateTime.now().hour;
if (hour < 6) {
return '夜深了，记得喝水哦~';
} else if (hour < 9) {
return '早上好，开始新的一天~';
} else if (hour < 12) {
return '上午好，及时补水精神好~';
} else if (hour < 14) {
return '中午好，午餐后别忘喝水~';
} else if (hour < 18) {
return '下午好，保持水分摄入~';
} else if (hour < 22) {
return '晚上好，睡前记得喝水~';
} else {
return '夜深了，注意休息~';
}
}
}

首页设计充分考虑了用户体验，通过环形进度条直观展示今日饮水进度，快捷添加面板让用户能够一键记录饮水量，而成就系统则通过游戏化的方式激励用户养成良好的饮水习惯。

统计页面实现

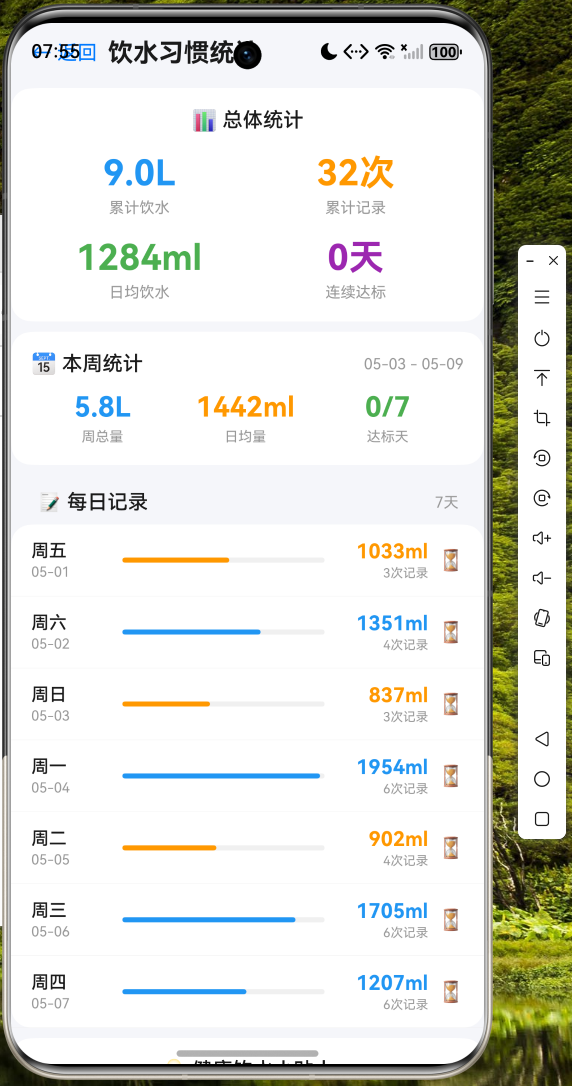

统计页面以图表形式展示用户的饮水习惯，帮助用户更好地了解自己的饮水模式：

// lib/pages/stats_page.dart

import 'package:flutter/material.dart';
import 'package:provider/provider.dart';
import '../providers/water_provider.dart';

class StatsPage extends StatelessWidget {
const StatsPage({super.key});

@override
Widget build(BuildContext context) {
return ChangeNotifierProvider(
create: (_) => WaterProvider(),
child: Scaffold(
backgroundColor: const Color(0xFFF5F6FA),
appBar: AppBar(
backgroundColor: Colors.white,
elevation: 0,
leading: IconButton(
icon: const Icon(Icons.arrow_back, color: Color(0xFF1A1A1A)),
onPressed: () => Navigator.pop(context),
),
title: const Text(
'饮水统计',
style: TextStyle(
color: Color(0xFF1A1A1A),
fontWeight: FontWeight.bold,
),
),
),
body: Consumer<WaterProvider>(
builder: (context, provider, _) {
return SingleChildScrollView(
padding: const EdgeInsets.all(16),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
_buildWeeklyChart(provider),
const SizedBox(height: 16),
_buildWeeklySummary(provider),
const SizedBox(height: 16),
_buildHistoryList(provider),
],
),
);
},
),
),
);
}

Widget _buildWeeklyChart(WaterProvider provider) {
final records = provider.records;
final maxAmount = records.fold<int>(
0, (max, record) => record.totalAmount > max ? record.totalAmount : max
);

return Container(
padding: const EdgeInsets.all(16),
decoration: BoxDecoration(
color: Colors.white,
borderRadius: BorderRadius.circular(16),
boxShadow: [
BoxShadow(
color: Colors.black.withOpacity(0.03),
blurRadius: 8,
offset: const Offset(0, 2),
),
],
),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
const Text(
'📈 近7天饮水趋势',
style: TextStyle(
fontSize: 16,
fontWeight: FontWeight.w600,
color: Color(0xFF1A1A1A),
),
),
const SizedBox(height: 24),
SizedBox(
height: 180,
child: Row(
mainAxisAlignment: MainAxisAlignment.spaceAround,
crossAxisAlignment: CrossAxisAlignment.end,
children: records.map((record) {
final height = maxAmount > 0
? (record.totalAmount / maxAmount * 140).clamp(20.0, 140.0)
: 20.0;
final isToday = record.date == _getTodayDateStr();

return Column(
mainAxisAlignment: MainAxisAlignment.end,
children: [
Text(
'${record.totalAmount}',
style: TextStyle(
fontSize: 10,
color: isToday ? const Color(0xFF4CAF50) : const Color(0xFF999999),
),
),
const SizedBox(height: 4),
AnimatedContainer(
duration: const Duration(milliseconds: 300),
width: 32,
height: height,
decoration: BoxDecoration(
gradient: LinearGradient(
colors: isToday
? [const Color(0xFF4CAF50), const Color(0xFF8BC34A)]
: [const Color(0xFF2196F3), const Color(0xFF64B5F6)],
begin: Alignment.bottomCenter,
end: Alignment.topCenter,
),
borderRadius: BorderRadius.circular(8),
),
),
const SizedBox(height: 8),
Text(
record.date.split('-').last,
style: TextStyle(
fontSize: 11,
color: isToday ? const Color(0xFF4CAF50) : const Color(0xFF666666),
fontWeight: isToday ? FontWeight.bold : FontWeight.normal,
),
),
],
);
}).toList(),
),
),
],
),
);
}

Widget _buildWeeklySummary(WaterProvider provider) {
final records = provider.records;
final totalAmount = records.fold<int>(0, (sum, r) => sum + r.totalAmount);
final avgAmount = records.isNotEmpty ? totalAmount ~/ records.length : 0;
final goalDays = records.where((r) => r.goalAchieved).length;
final goalRate = records.isNotEmpty ? (goalDays / records.length * 100).toInt() : 0;

return Container(
padding: const EdgeInsets.all(16),
decoration: BoxDecoration(
color: Colors.white,
borderRadius: BorderRadius.circular(16),
boxShadow: [
BoxShadow(
color: Colors.black.withOpacity(0.03),
blurRadius: 8,
offset: const Offset(0, 2),
),
],
),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
const Text(
'📋 周统计摘要',
style: TextStyle(
fontSize: 16,
fontWeight: FontWeight.w600,
color: Color(0xFF1A1A1A),
),
),
const SizedBox(height: 16),
Row(
children: [
_buildSummaryItem('总饮水量', '${totalAmount}ml', const Color(0xFF2196F3)),
_buildSummaryItem('日均饮水量', '${avgAmount}ml', const Color(0xFF4CAF50)),
_buildSummaryItem('达标天数', '$goalDays/${records.length}天', const Color(0xFFFF9800)),
_buildSummaryItem('达标率', '$goalRate%', const Color(0xFF9C27B0)),
],
),
],
),
);
}

Widget _buildSummaryItem(String label, String value, Color color) {
return Expanded(
child: Column(
children: [
Text(
value,
style: TextStyle(
fontSize: 16,
fontWeight: FontWeight.bold,
color: color,
),
),
const SizedBox(height: 4),
Text(
label,
style: const TextStyle(
fontSize: 11,
color: Color(0xFF999999),
),
textAlign: TextAlign.center,
),
],
),
);
}

Widget _buildHistoryList(WaterProvider provider) {
return Container(
padding: const EdgeInsets.all(16),
decoration: BoxDecoration(
color: Colors.white,
borderRadius: BorderRadius.circular(16),
boxShadow: [
BoxShadow(
color: Colors.black.withOpacity(0.03),
blurRadius: 8,
offset: const Offset(0, 2),
),
],
),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
const Text(
'📜 饮水记录',
style: TextStyle(
fontSize: 16,
fontWeight: FontWeight.w600,
color: Color(0xFF1A1A1A),
),
),
const SizedBox(height: 12),
...provider.records.reversed.map((record) {
final isToday = record.date == _getTodayDateStr();
return Container(
margin: const EdgeInsets.only(bottom: 8),
padding: const EdgeInsets.all(12),
decoration: BoxDecoration(
color: isToday ? const Color(0xFFF0FFF0) : const Color(0xFFF8F8F8),
borderRadius: BorderRadius.circular(12),
border: isToday ? Border.all(color: const Color(0xFF4CAF50), width: 1) : null,
),
child: Row(
children: [
Container(
width: 40,
height: 40,
decoration: BoxDecoration(
color: isToday ? const Color(0xFF4CAF50) : const Color(0xFF2196F3),
borderRadius: BorderRadius.circular(10),
),
child: Center(
child: Text(
record.date.split('-').last,
style: const TextStyle(
color: Colors.white,
fontWeight: FontWeight.bold,
fontSize: 12,
),
),
),
),
const SizedBox(width: 12),
Expanded(
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Text(
'${record.totalAmount}ml',
style: const TextStyle(
fontSize: 15,
fontWeight: FontWeight.w600,
color: Color(0xFF1A1A1A),
),
),
Text(
'${record.entries.length}次饮水',
style: const TextStyle(
fontSize: 12,
color: Color(0xFF999999),
),
),
],
),
),
if (record.goalAchieved)
Container(
padding: const EdgeInsets.symmetric(horizontal: 8, vertical: 4),
decoration: BoxDecoration(
color: const Color(0xFF4CAF50),
borderRadius: BorderRadius.circular(12),
),
child: const Text(
'✓ 已达标',
style: TextStyle(
fontSize: 11,
color: Colors.white,
fontWeight: FontWeight.w500,
),
),
),
],
),
);
}),
],
),
);
}

String _getTodayDateStr() {
final now = DateTime.now();
return '${now.month.toString().padLeft(2, '0')}-${now.day.toString().padLeft(2, '0')}';
}
}

设置页面实现

设置页面允许用户自定义饮水目标和其他偏好设置：

// lib/pages/settings_page.dart

import 'package:flutter/material.dart';
import 'package:provider/provider.dart';
import '../providers/water_provider.dart';

class SettingsPage extends StatefulWidget {
const SettingsPage({super.key});

@override
State<SettingsPage> createState() => _SettingsPageState();
}

class _SettingsPageState extends State<SettingsPage> {
double _dailyGoal = 2000;
double _cupSize = 250;
bool _notificationsEnabled = true;
int _reminderInterval = 90;

@override
Widget build(BuildContext context) {
return ChangeNotifierProvider(
create: (_) => WaterProvider(),
child: Scaffold(
backgroundColor: const Color(0xFFF5F6FA),
appBar: AppBar(
backgroundColor: Colors.white,
elevation: 0,
leading: IconButton(
icon: const Icon(Icons.arrow_back, color: Color(0xFF1A1A1A)),
onPressed: () => Navigator.pop(context),
),
title: const Text(
'设置',
style: TextStyle(
color: Color(0xFF1A1A1A),
fontWeight: FontWeight.bold,
),
),
),
body: SingleChildScrollView(
padding: const EdgeInsets.all(16),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
_buildGoalSettings(),
const SizedBox(height: 16),
_buildReminderSettings(),
const SizedBox(height: 16),
_buildAboutSection(),
],
),
),
),
);
}

Widget _buildGoalSettings() {
return Container(
padding: const EdgeInsets.all(16),
decoration: BoxDecoration(
color: Colors.white,
borderRadius: BorderRadius.circular(16),
boxShadow: [
BoxShadow(
color: Colors.black.withOpacity(0.03),
blurRadius: 8,
offset: const Offset(0, 2),
),
],
),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
const Text(
'🎯 饮水目标',
style: TextStyle(
fontSize: 16,
fontWeight: FontWeight.w600,
color: Color(0xFF1A1A1A),
),
),
const SizedBox(height: 20),
_buildSettingItem(
'每日目标',
'${_dailyGoal.toInt()}ml',
Icons.flag,
const Color(0xFF4CAF50),
),
Slider(
value: _dailyGoal,
min: 1000,
max: 4000,
divisions: 30,
activeColor: const Color(0xFF4CAF50),
onChanged: (value) {
setState(() => _dailyGoal = value);
},
),
Row(
mainAxisAlignment: MainAxisAlignment.spaceBetween,
children: const [
Text('1000ml', style: TextStyle(fontSize: 11, color: Color(0xFF999999))),
Text('4000ml', style: TextStyle(fontSize: 11, color: Color(0xFF999999))),
],
),
const SizedBox(height: 16),
_buildSettingItem(
'杯容量',
'${_cupSize.toInt()}ml',
Icons.local_cafe,
const Color(0xFF2196F3),
),
Slider(
value: _cupSize,
min: 100,
max: 500,
divisions: 8,
activeColor: const Color(0xFF2196F3),
onChanged: (value) {
setState(() => _cupSize = value);
},
),
Row(
mainAxisAlignment: MainAxisAlignment.spaceBetween,
children: const [
Text('100ml', style: TextStyle(fontSize: 11, color: Color(0xFF999999))),
Text('500ml', style: TextStyle(fontSize: 11, color: Color(0xFF999999))),
],
),
],
),
);
}

Widget _buildReminderSettings() {
return Container(
padding: const EdgeInsets.all(16),
decoration: BoxDecoration(
color: Colors.white,
borderRadius: BorderRadius.circular(16),
boxShadow: [
BoxShadow(
color: Colors.black.withOpacity(0.03),
blurRadius: 8,
offset: const Offset(0, 2),
),
],
),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Row(
mainAxisAlignment: MainAxisAlignment.spaceBetween,
children: [
const Text(
'🔔 提醒设置',
style: TextStyle(
fontSize: 16,
fontWeight: FontWeight.w600,
color: Color(0xFF1A1A1A),
),
),
Switch(
value: _notificationsEnabled,
activeColor: const Color(0xFF4CAF50),
onChanged: (value) {
setState(() => _notificationsEnabled = value);
},
),
],
),
if (_notificationsEnabled) ...[
const SizedBox(height: 16),
_buildSettingItem(
'提醒间隔',
'每${_reminderInterval}分钟',
Icons.timer,
const Color(0xFFFF9800),
),
Slider(
value: _reminderInterval.toDouble(),
min: 30,
max: 240,
divisions: 14,
activeColor: const Color(0xFFFF9800),
onChanged: (value) {
setState(() => _reminderInterval = value.toInt());
},
),
Row(
mainAxisAlignment: MainAxisAlignment.spaceBetween,
children: const [
Text('30分钟', style: TextStyle(fontSize: 11, color: Color(0xFF999999))),
Text('4小时', style: TextStyle(fontSize: 11, color: Color(0xFF999999))),
],
),
],
],
),
);
}

Widget _buildAboutSection() {
return Container(
padding: const EdgeInsets.all(16),
decoration: BoxDecoration(
color: Colors.white,
borderRadius: BorderRadius.circular(16),
boxShadow: [
BoxShadow(
color: Colors.black.withOpacity(0.03),
blurRadius: 8,
offset: const Offset(0, 2),
),
],
),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
const Text(
'ℹ️ 关于',
style: TextStyle(
fontSize: 16,
fontWeight: FontWeight.w600,
color: Color(0xFF1A1A1A),
),
),
const SizedBox(height: 16),
_buildInfoRow('应用版本', '1.0.0'),
_buildInfoRow('开发者', 'maaath'),
_buildInfoRow('开源协议', 'MIT License'),
const SizedBox(height: 16),
const Text(
'喝水提醒应用 – 使用 Flutter for OpenHarmony 构建',
style: TextStyle(
fontSize: 12,
color: Color(0xFF999999),
),
),
],
),
);
}

Widget _buildSettingItem(String title, String value, IconData icon, Color color) {
return Padding(
padding: const EdgeInsets.only(bottom: 8),
child: Row(
children: [
Container(
width: 32,
height: 32,
decoration: BoxDecoration(
color: color.withOpacity(0.1),
borderRadius: BorderRadius.circular(8),
),
child: Icon(icon, color: color, size: 18),
),
const SizedBox(width: 12),
Text(
title,
style: const TextStyle(
fontSize: 14,
color: Color(0xFF333333),
),
),
const Spacer(),
Text(
value,
style: TextStyle(
fontSize: 14,
fontWeight: FontWeight.w600,
color: color,
),
),
],
),
);
}

Widget _buildInfoRow(String label, String value) {
return Padding(
padding: const EdgeInsets.only(bottom: 8),
child: Row(
mainAxisAlignment: MainAxisAlignment.spaceBetween,
children: [
Text(
label,
style: const TextStyle(
fontSize: 14,
color: Color(0xFF666666),
),
),
Text(
value,
style: const TextStyle(
fontSize: 14,
color: Color(0xFF1A1A1A),
),
),
],
),
);
}
}

应用入口文件

最后，我们需要创建应用的主入口文件，配置路由和整体布局：

// lib/main.dart

import 'package:flutter/material.dart';
import 'package:provider/provider.dart';
import 'pages/home_page.dart';
import 'pages/stats_page.dart';
import 'pages/settings_page.dart';

void main() {
runApp(const WaterReminderApp());
}

class WaterReminderApp extends StatelessWidget {
const WaterReminderApp({super.key});

@override
Widget build(BuildContext context) {
return MaterialApp(
title: '喝水提醒',
debugShowCheckedModeBanner: false,
theme: ThemeData(
primarySwatch: Colors.blue,
useMaterial3: true,
fontFamily: 'System',
),
home: const HomePage(),
routes: {
'/stats': (context) => const StatsPage(),
'/settings': (context) => const SettingsPage(),
},
);
}
}

鸿蒙设备运行验证

完成代码编写后，我们需要将应用部署到鸿蒙设备上进行验证。Flutter for OpenHarmony 提供了与标准 Flutter 开发高度一致的开发体验，开发者只需执行以下命令即可完成应用构建和部署：

# 构建调试版本
flutter build hap –debug

# 构建发布版本
flutter build hap –release

应用成功运行后，用户可以看到以下主要界面：

主界面 – 展示今日饮水进度、快捷添加面板、时段统计和成就系统：

应用顶部显示问候语和功能入口，中间是醒目的环形进度条直观展示饮水完成度，快捷添加面板提供了一键记录饮水的便捷方式，底部则展示了时段统计和成就解锁情况。

统计页面 – 展示近7天饮水趋势图和周统计摘要：

通过柱状图形式展示每日饮水量对比，配合达标天数统计帮助用户了解自己的饮水习惯。

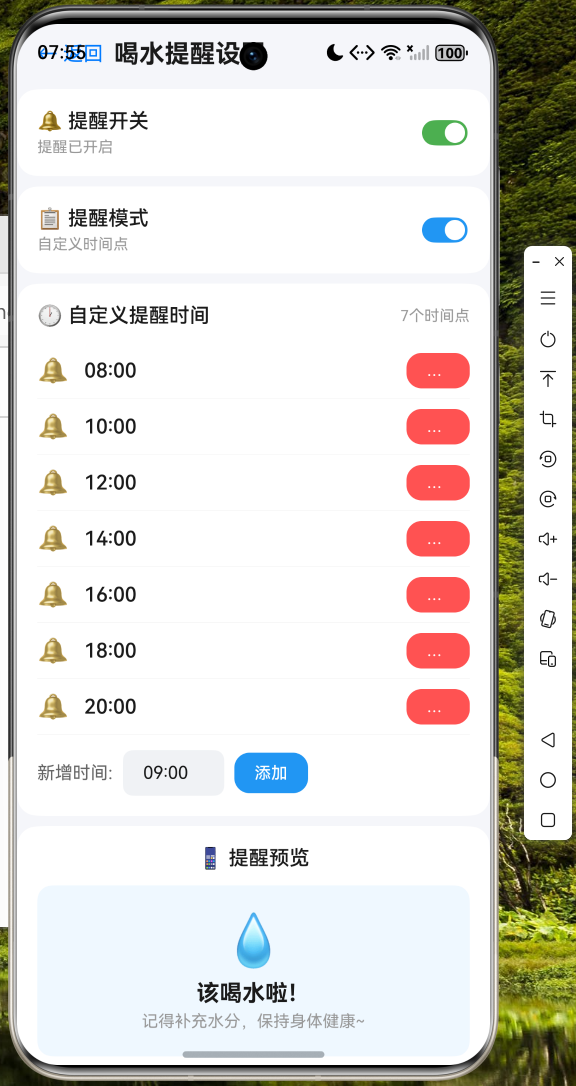

设置页面 – 自定义每日目标和提醒设置：

滑动条式的设置交互提供了良好的用户体验，支持自定义每日饮水目标和提醒间隔。

跨平台开发经验总结

通过这个喝水提醒应用的开发实践，我总结了以下几点 Flutter 跨平台开发的关键经验：

状态管理策略：对于中小型应用，Provider 模式已经足够满足需求。它简单易用，与 Flutter 框架深度集成，无需引入额外的第三方依赖。

UI 组件复用：Flutter 的组件化设计使得代码复用变得非常自然。我们可以将常用的 UI 模式封装为独立组件，如进度环形图、统计卡片等，在不同页面中复用。

平台差异处理：虽然 Flutter 提供了统一的 API，但在实际开发中仍需注意平台差异。例如通知功能，在不同平台上的实现方式可能有所不同，建议使用条件导入来处理平台特定的代码。

性能优化要点：合理使用 const 构造函数可以减少不必要的重建，使用 RepaintBoundary 隔离频繁变化的区域，以及避免在 build 方法中执行耗时操作。

代码托管

本项目的完整代码已托管至 AtomGit 平台，欢迎开发者交流学习：

仓库地址：https://atomgit.com/maaath/water-reminder-app

结语

本文通过一个完整的喝水提醒应用实例，展示了 Flutter for OpenHarmony 跨平台开发的完整流程。从需求分析、架构设计，到代码实现、鸿蒙设备运行验证，我们可以看到 Flutter 框架在跨平台开发中的强大能力。

随着 OpenHarmony 生态的持续发展，Flutter for OpenHarmony 将成为越来越多开发者选择跨平台方案时的首选。它不仅保留了 Flutter 原有的开发效率优势，还能够充分利用 OpenHarmony 的系统能力，为用户带来原生的使用体验。

希望本文能够为正在进行或计划开展 Flutter for OpenHarmony 开发的开发者提供一些参考和启发。如果您有任何问题或建议，欢迎在社区中交流讨论。
