第 51 章：AI、AppFunctions 与计算机控制

Android 已经从一个仅能运行应用的平台，演进为能够理解应用行为的平台。一系列端侧智能服务将用户意图与应用行为关联起来：AppFunctions 框架允许助手通过强类型 RPC 契约调用应用的任意功能；计算机控制（Computer Control）为 AI 代理提供虚拟显示器，可在其上完成点击、滑动、截图操作；OnDeviceIntelligence 在隔离沙箱中运行大机器学习模型 —— 大语言模型以及其他生成式或大规模推理负载；NNAPI 向所有原生工作负载暴露硬件加速器。结合 AppSearch、内容捕获（Content Capture）、AdServices 以及联邦学习，这些子系统共同构成了 Android 的 AI 神经体系。

本章逐层梳理完整调用链路：从公开 SDK 类，经由 AIDL 接口、system_server 服务实现，一直到另一端沙箱进程或 HAL 进程。每一条代码路径均对应当前 AOSP 源码树中的真实源文件。

51.1 AOSP AI 全景概览

在深入任一框架细节之前，先整体浏览 AOSP 全部 AI/ML 相关组件。下图列出主要子系统、跨进程边界以及组件之间的数据流。

Mainline 模块 HAL / 驱动进程 隔离 / 沙箱进程 目标应用进程 system_server 应用进程 Binder IPC bindService Binder IPC 隔离 bind 调用 Binder IPC Binder IPC Binder IPC Binder IPC Binder IPC

第三方 / 系统应用 AppFunctionManager OnDeviceIntelligenceManager NNAPI C API ComputerControlExtensions AppSearchManager TextClassifierManager ContentCaptureManager AppPredictionManager TopicsManager

AppFunctionManagerServiceImpl OnDeviceIntelligenceManagerService VirtualDeviceManager ComputerControlSession Service ContentCaptureManagerService TextClassificationManagerService AppPredictionManagerService

AppFunctionService OnDeviceSandboxedInferenceService IsolatedTrainingService NNAPI HAL (IDevice) GPU / DSP / NPU

AppSearch 模块 NeuralNetworks 模块 OnDevicePersonalization 模块 AdServices 模块

51.1.1 AOSP 智能子系统分类表

51.1.2 跨子系统通用设计思路

所有 AI 子系统都复用若干架构设计范式：

进程隔离 智能服务运行在隔离或沙箱进程。OnDeviceSandboxedInferenceService设置android:isolatedProcess=\”true\”。IsolatedTrainingService在独立进程加载 TFLite。即使 ComputerControlSession 也基于与主显示器隔离的虚拟显示器工作。

优先使用强类型契约，而非无约束 Bundle AppFunctions 使用 AppSearch 提供的GenericDocument作为参数序列化格式。ODI 使用PersistableBundle承载特性与请求元数据。二者均鼓励 SDK 层封装强类型包装类。

AppSearch 作为通用元数据存储 AppFunction 元数据、应用预测数据、内容捕获智能数据，全部汇聚到 AppSearch 完成索引与检索。

权限管控 + 白名单机制 AppFunctions 执行受EXECUTE_APP_FUNCTIONS（或EXECUTE_APP_FUNCTIONS_SYSTEM）权限约束，同时配合平台AllowlistManager维护签名代理白名单。Computer Control 需要ACCESS_COMPUTER_CONTROL权限。ODI 需要USE_ON_DEVICE_INTELLIGENCE。AdServices 需要ACCESS_ADSERVICES_TOPICS。

支持取消信号传递 几乎全部异步 API 都会跨 Binder 传递ICancellationSignal，调用方可终止长时间推理或函数执行。

51.2 AppFunctions 框架

AppFunctions 框架在 Android 16 以 Beta 特性面世，Android 17 正式广泛可用。它提供一套标准化机制，让 AI 助手（代理）可以发现并调用任意目标应用暴露的功能。例如助手收到指令 “把 XYZ 保存到我的笔记”，框架会将请求路由至对应的AppFunctionService实现，助手无需在编译期依赖笔记应用。

Android 17 对该框架做了大幅增强，不再局限于最初仅通过 Manifest 静态声明的模式。本章后续会详细介绍以下核心新增能力：

Android 17 源码目录概览：

frameworks/base/core/java/android/app/appfunctions/
AppFunctionManager.java — 客户端系统服务入口
AppFunctionService.java — 静态目标应用抽象基类
AppFunction.java — 运行时函数回调接口
RegisterAppFunctionRequest.java — 运行时注册请求Parcelable
ExecuteAppFunctionRequest.java — 执行请求Parcelable
ExecuteAppFunctionResponse.java — 执行响应Parcelable
AppFunctionException.java — 分层异常错误体系
AppFunctionMetadata.java — 静态+运行时函数元数据
AppFunctionName.java — (包名,标识符)函数唯一标识
AppFunctionState.java — 运行时启用/可见状态
AppFunctionActivityId.java — Activity作用域函数键值
AppFunctionSearchSpec.java — 检索查询条件
AppFunctionObserver.java — 变更观测回调
AppFunctionAccessServiceInterface.java — 访问校验本地服务
IAppFunctionManager.aidl — system_server AIDL接口
IAppFunctionService.aidl — 静态目标应用AIDL（oneway）
IAppFunctionExecutor.aidl — 动态注册执行器AIDL
IExecuteAppFunctionCallback.aidl — 异步结果回调AIDL
ICancellationCallback.aidl — 取消信号传输AIDL
…
frameworks/base/services/appfunctions/
java/com/android/server/appfunctions/
AppFunctionManagerService.java — SystemService封装
AppFunctionManagerServiceImpl.java — IAppFunctionManager.Stub实现
RemoteServiceCallerImpl.java — Service绑定逻辑
CallerValidatorImpl.java — 权限+白名单校验

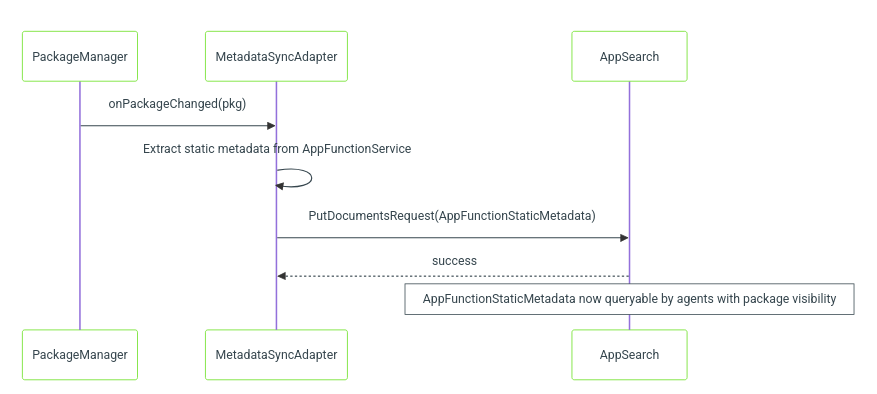

MetadataSyncAdapter.java — AppSearch元数据同步
AppFunctionsLoggerWrapper.java — statsd埋点日志
allowlist/SystemAppFunctionAllowlistReader.java — AllowlistManager白名单读取
dynamic/MultiUserDynamicAppFunctionRegistry.java — 运行时注册管理
reader/AppFunctionMetadataReader.java — 静态/动态元数据读取
observer/AppFunctionMetadataObserver.java — AppSearch变更观测器
…
frameworks/base/services/permission/java/com/android/server/permission/access/appfunction/
AppFunctionAccessService.kt — 持久化(代理,目标)访问状态

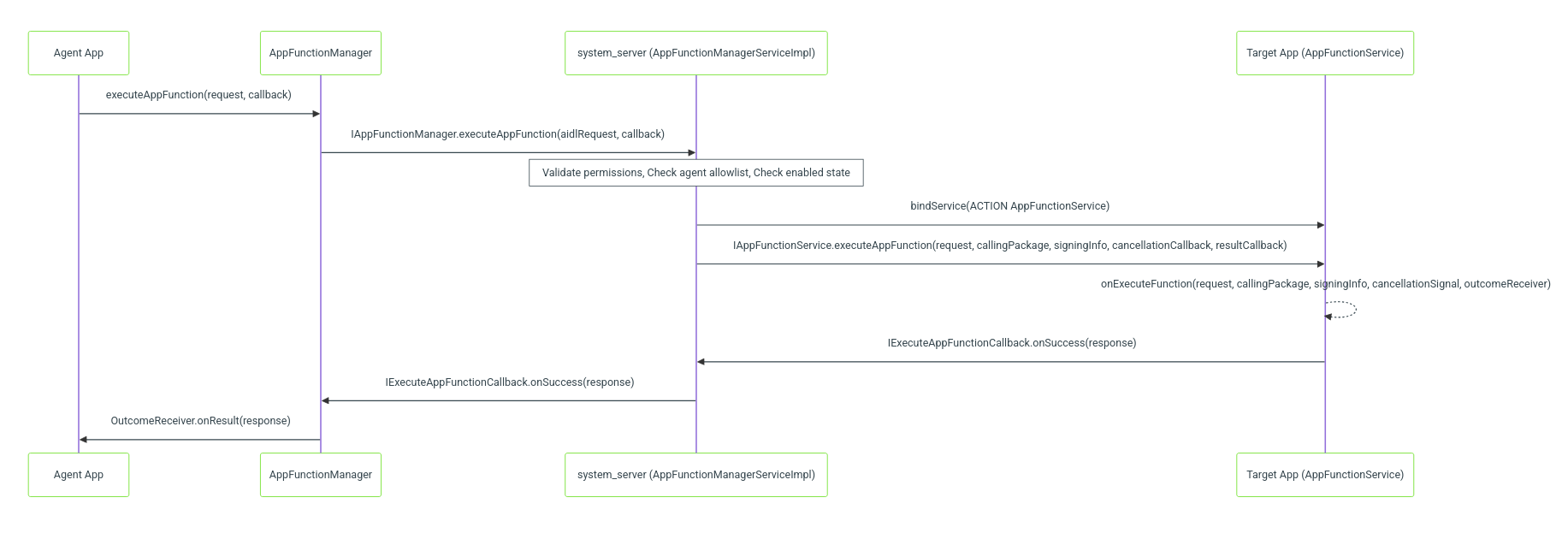

51.2.1 架构概览

51.2.2 客户端：AppFunctionManager

AppFunctionManager以系统服务注册，服务名称Context.APP_FUNCTION_SERVICE。

@FlaggedApi(FLAG_ENABLE_APP_FUNCTION_MANAGER)
@SystemService(Context.APP_FUNCTION_SERVICE)
public final class AppFunctionManager {

核心 API 为executeAppFunction()，接收四个入参。Android17 要求调用方具备两项执行权限之一；应用调用自身暴露的函数无需权限。

@FlaggedApi(FLAG_ENABLE_APP_FUNCTION_PERMISSION_V2)
@RequiresPermission(
anyOf = {
Manifest.permission.EXECUTE_APP_FUNCTIONS,
Manifest.permission.EXECUTE_APP_FUNCTIONS_SYSTEM
},
conditional = true)
@UserHandleAware
public void executeAppFunction(
@NonNull ExecuteAppFunctionRequest request,
@NonNull @CallbackExecutor Executor executor,
@NonNull CancellationSignal cancellationSignal,
@NonNull OutcomeReceiver<ExecuteAppFunctionResponse, AppFunctionException> callback) {

内部实现会将上层请求封装为ExecuteAppFunctionAidlRequest，补充调用者身份、时间戳信息。

ExecuteAppFunctionAidlRequest aidlRequest =
new ExecuteAppFunctionAidlRequest(
request,
mContext.getUser(),
mContext.getPackageName(),
/* requestTime= */ SystemClock.elapsedRealtime(),
/* requestWallTime= */ System.currentTimeMillis());

Binder 调用返回ICancellationSignal传输对象，绑定至客户端CancellationSignal，实现跨进程取消。

ICancellationSignal cancellationTransport =
mService.executeAppFunction(
aidlRequest,
new IExecuteAppFunctionCallback.Stub() {
@Override
public void onSuccess(ExecuteAppFunctionResponse result) {
executor.execute(() -> callback.onResult(result));
}
@Override
public void onError(AppFunctionException exception) {
executor.execute(() -> callback.onError(exception));
}
});
if (cancellationTransport != null) {
cancellationSignal.setRemote(cancellationTransport);
}

51.2.3 启用状态管理

每个 AppFunction 具备三态生命周期：

应用通过setAppFunctionEnabled()控制自身函数状态。

@UserHandleAware
public void setAppFunctionEnabled(
@NonNull String functionIdentifier,
@EnabledState int newEnabledState,
@NonNull Executor executor,
@NonNull OutcomeReceiver<Void, Exception> callback) {

启用状态以AppFunctionRuntimeMetadata文档持久化在 AppSearch，与描述函数 Schema 的AppFunctionStaticMetadata相互独立。

setAppFunctionEnabled()仅对静态AppFunctionService对应的函数生效。通过registerAppFunction注册的运行时函数，生命周期与注册会话绑定，启用状态由registerAppFunction/AppFunctionRegistration.unregister控制；对动态函数调用本方法会抛出IllegalArgumentException。

Android17 完整对外暴露运行时状态，不仅仅是启用位。AppFunctionState Parcelable 包含AppFunctionName、启用标记、可见性；可通过AppFunctionManager.getAppFunctionStates(…)批量读取。

51.2.4 访问控制模型

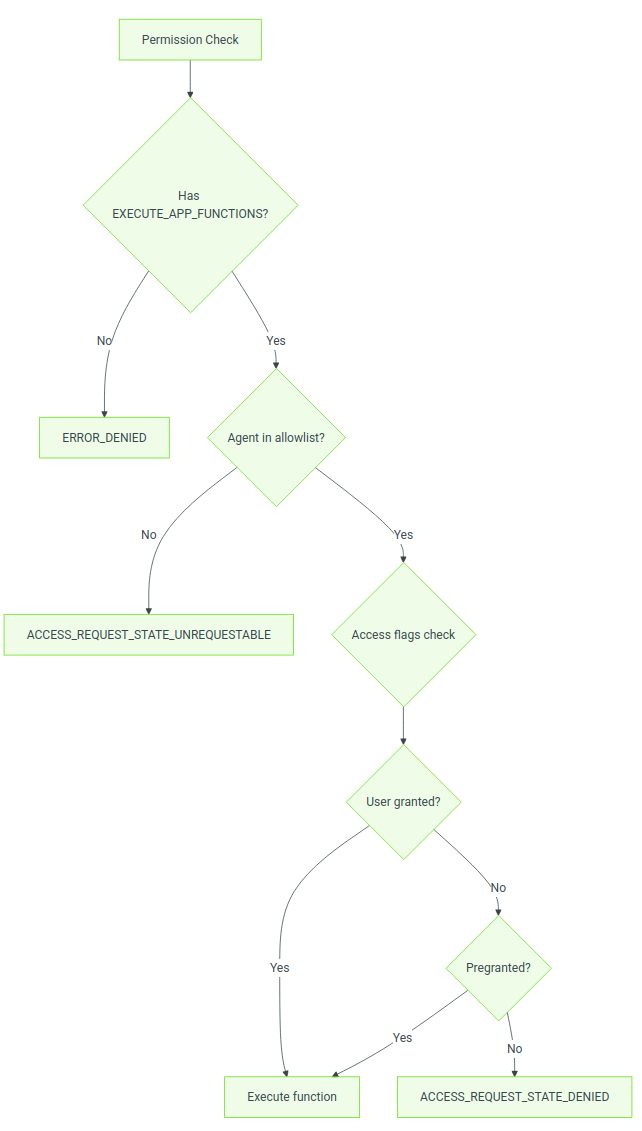

AppFunctions 访问模型分为三层校验：

访问标志位是以（代理，目标应用）为单位存储的位掩码，常量定义在AppFunctionManager。

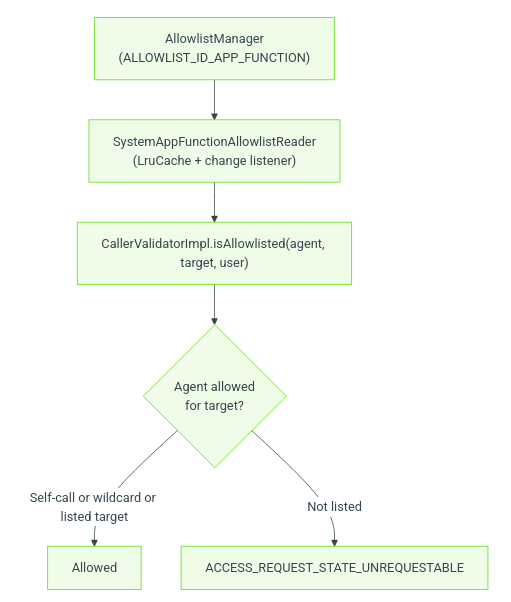

Android17 代理白名单不再使用 DeviceConfig 字符串，改为平台AllowlistManager。它以SignedPackage（包名 + 证书摘要）为 Key，记录该代理允许访问的目标包集合，支持通配符代表全部目标包。AppFunctions 服务通过SystemAppFunctionAllowlistReader读取，内部使用 LruCache 按代理缓存结果。

public class SystemAppFunctionAllowlistReader implements AppFunctionAllowlistReader {
private final LruCache<SignedPackage, ArraySet<String>> mCache;
private final AllowlistManager mAllowlistManager;

@Override
public CompletableFuture<Boolean> isAllowlisted(
String agentPackage, String targetPackageName, int userId) { … }
}

CallerValidatorImpl执行前同时校验运行时权限与白名单。持有EXECUTE_APP_FUNCTIONS_SYSTEM的特权系统代理会跳过白名单；仅持有EXECUTE_APP_FUNCTIONS的代理必须出现在目标应用对应的白名单内。

51.2.5 AIDL 接口定义

框架定义两组 AIDL 接口：一组面向客户端，一组面向目标应用。

IAppFunctionManager（客户端 → system_server） Android17 接口大幅扩充，增加发现、观测、运行时注册、访问管理相关接口。

interface IAppFunctionManager {
ICancellationSignal executeAppFunction(
in ExecuteAppFunctionAidlRequest request,
in IExecuteAppFunctionCallback callback);

// 发现与观测
void observeAppFunctions(
in AppFunctionAidlSearchSpec aidlSearchSpec,
in IObserveAppFunctionChangesCallback callback);
void unregisterAppFunctionObserver(
in String callingPackage, in UserHandle userHandle,
in IObserveAppFunctionChangesCallback callback);
void getAppFunctionStates(
in List<AppFunctionName> appFunctionNames,
in String callingPackageName, int targetUserId,
in IGetAppFunctionStatesCallback callback);
void getAppFunctionActivityStates(
in List<AppFunctionActivityId> activityIds,
in String callingPackageName, int targetUserId,
in IGetAppFunctionActivityStatesCallback callback);

// 启用状态生命周期
void isAppFunctionEnabled(
in String callingPackage, in String targetPackage,
in String functionIdentifier, in UserHandle userHandle,
in IIsAppFunctionEnabledCallback callback);
void setAppFunctionEnabled(
in String callingPackage, in String functionIdentifier,
in UserHandle userHandle, int enabledState,
in ISetAppFunctionEnabledCallback callback);

// 运行时动态注册
void registerAppFunctions(in String packageName, in List<String> functionIds,
in IAppFunctionExecutor executor, in IBinder activityToken);
void unregisterAppFunctions(in String packageName, in List<String> functionIds,
in IAppFunctionExecutor executor);

// 访问管理
int getAccessRequestState(in String agentPackageName, int agentUserId,
in String targetPackageName, int targetUserId);
int getAccessFlags(in String agentPackageName, int agentUserId,
in String targetPackageName, int targetUserId);
boolean updateAccessFlags(in String agentPackageName, int agentUserId,
in String targetPackageName, int targetUserId, int flagMask, int flags);
void revokeSelfAccess(in String targetPackageName);
List<String> getValidAgents(int userId);
List<String> getValidTargets(int targetUserId);
Intent createRequestAccessIntent(in String targetPackageName);
void addOnAccessChangedListener(IOnAppFunctionAccessChangeListener listener, int userId);
void removeOnAccessChangedListener(IOnAppFunctionAccessChangeListener listener, int userId);
}

注意区分查询回调IIsAppFunctionEnabledCallback和修改回调ISetAppFunctionEnabledCallback。运行时注册传递IAppFunctionExecutor，由系统直接调用，不再绑定独立组件。

IAppFunctionService（system_server → 目标应用，oneway）

oneway interface IAppFunctionService {
void executeAppFunction(
in ExecuteAppFunctionRequest request,
in String callingPackage,
in android.content.pm.SigningInfo callingPackageSigningInfo,
in ICancellationCallback cancellationCallback,
in IExecuteAppFunctionCallback callback);
}

oneway修饰至关重要：system_server 不会阻塞等待目标应用执行完成，结果全部经由IExecuteAppFunctionCallback回调返回。

51.2.6 目标端：AppFunctionService

目标应用继承AppFunctionService，实现唯一抽象方法：

@MainThread
public abstract void onExecuteFunction(
@NonNull ExecuteAppFunctionRequest request,
@NonNull String callingPackage,
@NonNull SigningInfo callingPackageSigningInfo,
@NonNull CancellationSignal cancellationSignal,
@NonNull OutcomeReceiver<ExecuteAppFunctionResponse, AppFunctionException> callback);

服务内部做调用者校验：仅拥有BIND_APP_FUNCTION_SERVICE权限的 system_server 可以调用。

if (context.checkCallingPermission(BIND_APP_FUNCTION_SERVICE)
== PERMISSION_DENIED) {
throw new SecurityException(\”Can only be called by the system server.\”);
}

Manifest 声明示例，必须指定绑定权限：

<service android:name=\”.YourService\”
android:permission=\”android.permission.BIND_APP_FUNCTION_SERVICE\”>
<intent-filter>
<action android:name=\”android.app.appfunctions.AppFunctionService\” />
</intent-filter>
</service>

51.2.7 请求与响应序列化格式

ExecuteAppFunctionRequest与ExecuteAppFunctionResponse均使用 AppSearch 的GenericDocument作为参数载体。该设计使函数参数可以用 Schema 描述，而 AppSearch 原生支持索引与查询该 Schema。

请求结构体：

public final class ExecuteAppFunctionRequest implements Parcelable {
@NonNull private final String mTargetPackageName;
@NonNull private final String mFunctionIdentifier;
@NonNull private final Bundle mExtras;
@NonNull private final GenericDocumentWrapper mParameters;
@Nullable private final AppInteractionAttribution mAttribution;

响应结构体：

public final class ExecuteAppFunctionResponse implements Parcelable {
public static final String PROPERTY_RETURN_VALUE = \”androidAppfunctionsReturnValue\”;
@NonNull private final GenericDocumentWrapper mResultDocumentWrapper;
@NonNull private final Bundle mExtras;
@NonNull private final List<AppFunctionUriGrant> mUriGrants;

返回值存放在结果GenericDocument的PROPERTY_RETURN_VALUE键。Jetpack AppFunction SDK 提供强类型封装，负责打包、解析该文档。

51.2.8 归因与交互日志

每一次执行可以携带AppInteractionAttribution，描述触发本次调用的交互来源。Android17 将该类型从 appfunctions 包提升至android.app包，供整个应用交互 API 复用，开关标记为FLAG_ENABLE_APP_INTERACTION_API。

public static final int INTERACTION_TYPE_OTHER = 0; // 需要自定义字符串
public static final int INTERACTION_TYPE_USER_QUERY = 1;
public static final int INTERACTION_TYPE_USER_SCHEDULED = 2;

归因包含交互类型、可选自定义类型字符串（类型为INTERACTION_TYPE_OTHER时使用）、可选交互 Uri，指向原始上下文。隐私 UI 依靠该信息向用户解释函数执行缘由。

Android17 不会持久化每次调用的历史数据库，而是把每一次执行写入平台 metrics 流水线 statsd。system_server 中的AppFunctionsLoggerWrapper运行在共享后台执行器，为每一次成功或失败输出结构化事件，归一化处理归因常量并标记函数类型。

static final int FUNCTION_TYPE_UNSPECIFIED = 0;
static final int FUNCTION_TYPE_STATIC = 1; // AppFunctionService实现
static final int FUNCTION_TYPE_DYNAMIC_GLOBAL = 2; // registerAppFunction（Service/全局）
static final int FUNCTION_TYPE_DYNAMIC_ACTIVITY = 3;// registerAppFunction（Activity作用域）

void logAppFunctionSuccess(
ExecuteAppFunctionAidlRequest request,
ExecuteAppFunctionResponse response,
int callingUid,
long executionStartTimeMillis,
@AppFunctionMetadata.AppFunctionType int appFunctionType) { … }

日志事件记录调用 UID、目标包、请求中提取的交互类型、函数类型（静态 / 动态、全局 / Activity 域）、响应码，以及绑定服务完成之后统计的执行耗时。

51.2.9 错误处理

AppFunctionException定义了分类错误码体系：

// 请求类错误 1000‑1999
public static final int ERROR_DENIED = 1000;
public static final int ERROR_INVALID_ARGUMENT = 1001;
public static final int ERROR_DISABLED = 1002;
public static final int ERROR_FUNCTION_NOT_FOUND = 1003;

// 系统类错误 2000‑2999
public static final int ERROR_SYSTEM_ERROR = 2000;
public static final int ERROR_CANCELLED = 2001;
public static final int ERROR_ENTERPRISE_POLICY_DISALLOWED = 2002;

// 应用类错误 3000‑3999
public static final int ERROR_APP_UNKNOWN_ERROR = 3000;

getErrorCategory()将错误码区间映射为错误分类：

public int getErrorCategory() {
if (mErrorCode >= 1000 && mErrorCode < 2000) return ERROR_CATEGORY_REQUEST_ERROR;
if (mErrorCode >= 2000 && mErrorCode < 3000) return ERROR_CATEGORY_SYSTEM;
if (mErrorCode >= 3000 && mErrorCode < 4000) return ERROR_CATEGORY_APP;
return ERROR_CATEGORY_UNKNOWN;
}

51.2.10 System Server 实现

薄的SystemService：AppFunctionManagerService.java，负责发布 Binder 服务到Context.APP_FUNCTION_SERVICE，转发用户生命周期。业务逻辑主体在AppFunctionManagerServiceImpl，继承IAppFunctionManager.Stub，协调各个协作类。

public class AppFunctionManagerServiceImpl extends IAppFunctionManager.Stub {
private final RemoteServiceCaller<IAppFunctionService> mRemoteServiceCaller;
private final CallerValidator mCallerValidator;
private final AppFunctionsLoggerWrapper mLoggerWrapper;
private final IUriGrantsManager mUriGrantsManager;
private final UriGrantsManagerInternal mUriGrantsManagerInternal;
private final MultiUserDynamicAppFunctionRegistry mDynamicAppFunctionRegistry;
private final AppFunctionMetadataReader mAppFunctionMetadataReader;
private final AppFunctionMetadataObserver mAppFunctionMetadataObserver;
private final VisibilityHelper mVisibilityHelper;
private final ActivityTaskManagerInternal mActivityTaskManagerInternal;
// 访问校验委托给权限子系统
private final AppFunctionAccessServiceInterface mAppFunctionAccessService;
…

关键支撑类说明：

51.2.11 通过 AppSearch 实现函数发现

应用安装、更新或设备开机时，MetadataSyncAdapter从目标应用AppFunctionService提取函数元数据，作为AppFunctionStaticMetadata文档索引存入 AppSearch。代理应用通过查询 AppSearch 完成函数发现。

51.2.12 SafeOneTimeExecuteAppFunctionCallback

关键防御封装，保证回调有且仅有一次被交付。

public class SafeOneTimeExecuteAppFunctionCallback {
private final AtomicBoolean mOnResultCalled = new AtomicBoolean(false);
@NonNull private final IExecuteAppFunctionCallback mCallback;
@Nullable private final CompletionCallback mCompletionCallback;
@Nullable private final BeforeCompletionCallback mBeforeCompletionCallback;
private final AtomicLong mExecutionStartTimeAfterBindMillis = new AtomicLong();

public void onResult(@NonNull ExecuteAppFunctionResponse result) {
if (!mOnResultCalled.compareAndSet(false, true)) {
Log.w(TAG, \”Ignore subsequent calls to onResult/onError()\”);
return;
}
try {
if (mBeforeCompletionCallback != null) {
mBeforeCompletionCallback.beforeOnSuccess(result);
}
mCallback.onSuccess(result);
if (mCompletionCallback != null) {
mCompletionCallback.finalizeOnSuccess(
result, mExecutionStartTimeAfterBindMillis.get());
}
} catch (RemoteException ex) {
Log.w(TAG, \”Failed to invoke the callback\”, ex);
}
}

public void onError(@NonNull AppFunctionException error) {
if (!mOnResultCalled.compareAndSet(false, true)) {
Log.w(TAG, \”Ignore subsequent calls to onResult/onError()\”);
return;
}
try {
mCallback.onError(error);
if (mCompletionCallback != null) {
mCompletionCallback.finalizeOnError(
error, mExecutionStartTimeAfterBindMillis.get());
}
} catch (RemoteException ex) {
Log.w(TAG, \”Failed to invoke the callback\”, ex);
}
}

该设计模式必要性：

public interface CompletionCallback {
void finalizeOnSuccess(
ExecuteAppFunctionResponse result, long executionStartTimeMillis);
void finalizeOnError(
AppFunctionException error, long executionStartTimeMillis);
}

public interface BeforeCompletionCallback {
void beforeOnSuccess(ExecuteAppFunctionResponse result);
}

51.2.13 executeAppFunction 实现深度解析

system_server 的executeAppFunction是整个框架最核心路径，逐行解析从 AIDL 入口到绑定目标服务的完整链路。

步骤 1：入口与初始校验

@Override
public ICancellationSignal executeAppFunction(
@NonNull ExecuteAppFunctionAidlRequest requestInternal,
@NonNull IExecuteAppFunctionCallback executeAppFunctionCallback) {

int callingUid = Binder.getCallingUid();
int callingPid = Binder.getCallingPid();

final SafeOneTimeExecuteAppFunctionCallback safeExecuteAppFunctionCallback =
initializeSafeExecuteAppFunctionCallback(
requestInternal, executeAppFunctionCallback, callingUid);

String validatedCallingPackage;
try {
validatedCallingPackage =
mCallerValidator.validateCallingPackage(requestInternal.getCallingPackage());
mCallerValidator.verifyTargetUserHandle(
requestInternal.getUserHandle(), validatedCallingPackage);
} catch (SecurityException exception) {
safeExecuteAppFunctionCallback.onError(
new AppFunctionException(
AppFunctionException.ERROR_DENIED, exception.getMessage()));
return null;
}

SafeOneTimeExecuteAppFunctionCallback包装，保证无论目标应用多次应答还是崩溃，只返回一次成功 / 错误。

步骤 2：线程池异步执行，不阻塞 Binder 线程

ICancellationSignal localCancelTransport = CancellationSignal.createTransport();

THREAD_POOL_EXECUTOR.execute(
() -> {
try {
executeAppFunctionInternal(
requestInternal,
callingUid, callingPid,
localCancelTransport,
safeExecuteAppFunctionCallback,
executeAppFunctionCallback.asBinder());
} catch (Exception e) {
safeExecuteAppFunctionCallback.onError(
mapExceptionToExecuteAppFunctionResponse(e));
}
});
return localCancelTransport;
}

任务提交至THREAD_POOL_EXECUTOR，避免占用 Binder 线程池。

步骤 3：权限与状态基础校验（工作线程）

@WorkerThread
private void executeAppFunctionInternal(…) {
// 企业策略校验
if (!mCallerValidator.verifyEnterprisePolicyIsAllowed(callingUser, targetUser)) {
safeExecuteAppFunctionCallback.onError(
new AppFunctionException(
AppFunctionException.ERROR_ENTERPRISE_POLICY_DISALLOWED, …));
return;
}

// 目标包名校验非空
if (TextUtils.isEmpty(targetPackageName)) {
safeExecuteAppFunctionCallback.onError(
new AppFunctionException(
AppFunctionException.ERROR_INVALID_ARGUMENT, …));
return;
}

步骤 4：链式 Future 完成权限校验 + AppSearch 读取启用状态 实现使用AndroidFuture.thenCompose()做非阻塞权限校验，紧接着查询 AppSearch 获取函数启用状态。

mCallerValidator
.verifyCallerCanExecuteAppFunction(
callingUid, callingPid, targetUser,
requestInternal.getCallingPackage(),
targetPackageName,
requestInternal.getClientRequest().getFunctionIdentifier())
.thenCompose(canExecuteResult -> {
if (canExecuteResult == CAN_EXECUTE_APP_FUNCTIONS_DENIED) {
return AndroidFuture.failedFuture(
new SecurityException(\”Caller does not have permission\”));
}
return isAppFunctionEnabled(
functionIdentifier, targetPackageName,
getAppSearchManagerAsUser(userHandle), THREAD_POOL_EXECUTOR)
.thenApply(isEnabled -> {
if (!isEnabled) {
throw new DisabledAppFunctionException(\”Disabled\”);
}
return canExecuteResult;
});
})

步骤 5：服务解析与绑定

.thenAccept(canExecuteResult -> {
int bindFlags = Context.BIND_AUTO_CREATE;
if (canExecuteResult
== CAN_EXECUTE_APP_FUNCTIONS_ALLOWED_HAS_PERMISSION) {
bindFlags |= Context.BIND_FOREGROUND_SERVICE;
}
Intent serviceIntent =
mInternalServiceHelper.resolveAppFunctionService(
targetPackageName, targetUser);
// 授予隐式可见性，允许目标看到调用方
mPackageManagerInternal.grantImplicitAccess(
grantRecipientUserId, serviceIntent,
grantRecipientAppId, callingUid, /* direct= */ true);
bindAppFunctionServiceUnchecked(
requestInternal, serviceIntent, targetUser,
localCancelTransport, safeExecuteAppFunctionCallback,
bindFlags, callerBinder, callingUid);
})

关键点：调用方具备EXECUTE_APP_FUNCTIONS权限时，使用BIND_FOREGROUND_SERVICE提升目标服务进程优先级。自调用（同一包名）不会获得该优先级提升。

51.2.14 RemoteServiceCaller 模式

RemoteServiceCallerImpl实现一次性 Service 绑定模式：

public class RemoteServiceCallerImpl<T> implements RemoteServiceCaller<T> {
public boolean runServiceCall(
Intent intent, int bindFlags, UserHandle userHandle,
long cancellationTimeoutMillis, CancellationSignal cancellationSignal,
RunServiceCallCallback<T> callback, IBinder callerBinder) {

OneOffServiceConnection serviceConnection =
new OneOffServiceConnection(intent, bindFlags, userHandle,
cancellationTimeoutMillis, cancellationSignal,
callback, callerBinder);
return serviceConnection.bindAndRun();
}

OneOffServiceConnection是自定义ServiceConnection，行为：

private class OneOffServiceConnection
implements ServiceConnection, ServiceUsageCompleteListener {

public boolean bindAndRun() {
boolean bindServiceResult =
mContext.bindServiceAsUser(mIntent, this, mFlags, mUserHandle);

if (bindServiceResult) {
mCancellationSignal.setOnCancelListener(() -> {
mCallback.onCancelled();
mHandler.postDelayed(mCancellationTimeoutRunnable,
mCancellationTimeoutMillis);
});
mDirectServiceVulture = () -> {
Slog.w(TAG, \”Caller process onDeath signal received\”);
mCancellationSignal.cancel();
};
mCallerBinder.linkToDeath(mDirectServiceVulture, 0);
}
return bindServiceResult;
}

该模式保证资源一定被清理，无论调用方崩溃、目标应用崩溃或者用户主动取消。

51.2.15 多用户支持

实现完整支持多用户。每个用户拥有：

• 独立 AppSearch 数据库，保存静态函数元数据
• 独立PackageMonitor监听包变更
• MultiUserDynamicAppFunctionRegistry中独立分片保存运行时注册项
• 权限子系统持久化独立的（代理，目标）访问状态与标志位

public void onUserUnlocked(TargetUser user) {
if (enableDynamicAppFunctions()) {
mAppFunctionMetadataObserver.registerAppSearchObserverForUser(user);
} else {
registerAppSearchObserver(user);
}
trySyncRuntimeMetadata(user.getUserHandle(), …);
PackageMonitor pkgMonitorForUser =
AppFunctionPackageMonitor.registerPackageMonitorForUser(
mContext, user, mAppFunctionMetadataObserver);
mPackageMonitors.append(user.getUserIdentifier(), pkgMonitorForUser);
mDynamicAppFunctionRegistry.onUserUnlocked(user, …);
}

public void onUserStopping(@NonNull TargetUser user) {
if (enableDynamicAppFunctions()) {
mAppFunctionMetadataObserver.unregisterAppSearchObserverForUser(user);
} else {
MetadataSyncPerUser.removeUserSyncAdapter(user.getUserHandle());
}
mPackageMonitors.get(user.getUserIdentifier()).unregister();
mPackageMonitors.delete(user.getUserIdentifier());
}

public void onUserStopped(@NonNull TargetUser user) {
mDynamicAppFunctionRegistry.onUserStopped(user);
}

动态函数标记开启时，每个用户的 AppSearch 观察者由AppFunctionMetadataObserver持有，变更事件同时分发给内部元数据缓存以及客户端observeAppFunctions回调。运行时注册表以 userId 为 key；当用户停止，该用户下全部注册项被销毁。

51.2.16 代理白名单架构

Android17 代理白名单不再是 DeviceConfig 与 Settings.Secure 字符串拼接，改用平台AllowlistManager，白名单 ID 为ALLOWLIST_ID_APP_FUNCTION。输入签名代理包，返回该代理可访问的目标包集合。AppFunctions 服务通过SystemAppFunctionAllowlistReader消费该能力。

读取器将代理最新签名证书哈希封装为SignedPackage，向AllowlistManager查询合法目标包；查询结果放入 LruCache 缓存，相同代理重复执行可省去一次 IPC。

@Override
public CompletableFuture<Boolean> isAllowlisted(
String agentPackageName, String targetPackageName, int userId) {
if (agentPackageName.equals(targetPackageName)) {
return AndroidFuture.completedFuture(true); // 自身函数永远允许
}
SignedPackage agentSignedPackage =
new SignedPackage(agentPackageName, /* certificate digest */ …);
maybeStartAllowlistListener();
return getValidTargetPackages(agentSignedPackage)
.thenApply(allowlistTargets ->
allowlistTargets.contains(WILDCARD_PACKAGE_NAME)
|| allowlistTargets.contains(targetPackageName));
}

三条关键行为：

51.2.17 AppFunction 响应中的 URI 授权

当目标应用在响应中返回 content URI，框架可以为调用代理授予临时 URI 权限。

private final IUriGrantsManager mUriGrantsManager;
private final UriGrantsManagerInternal mUriGrantsManagerInternal;
private final IBinder mPermissionOwner;

// 构造函数中初始化
mPermissionOwner = mUriGrantsManagerInternal.newUriPermissionOwner(\”appfunctions\”);

响应中的AppFunctionUriGrant指明需要向代理授予哪些 URI。授权经由mUriGrantsManager.grantUriPermissionFromOwner完成，绑定到 AppFunctions 专属 permission owner。权限有效期直到 owner 释放或者设备重启。

51.2.18 Shell 命令支持

服务实现onShellCommand()，用于开发者调试。

@Override
public void onShellCommand(
FileDescriptor in, FileDescriptor out, FileDescriptor err,
@NonNull String[] args, ShellCallback callback,
@NonNull ResultReceiver resultReceiver) {
new AppFunctionManagerServiceShellCommand(mContext, this)
.exec(this, in, out, err, args, callback, resultReceiver);
}

adb 命令：adb shell cmd app_function

51.2.19 服务启动与生命周期

本框架属于SystemService。AppFunctionManagerService.onStart()，当AppFunctionManagerConfiguration.isSupported(context)为 true 时，把 Binder 服务发布到Context.APP_FUNCTION_SERVICE；开启 App Interaction API 标记时，额外发布本地服务AppInteractionService。

@Override
public void onStart() {
if (AppFunctionManagerConfiguration.isSupported(getContext())) {
publishBinderService(Context.APP_FUNCTION_SERVICE, mServiceImpl);
}
if (Flags.enableAppInteractionApi()) {
publishLocalService(AppInte
