使用pandapower计算ieee33模型潮流计算并给出ui界面展示

本文介绍了一个基于Python的IEEE33节点潮流计算系统，使用pandapower进行电力网络分析，并结合Tkinter开发图形用户界面。系统主要功能包括：加载IEEE33标准测试模型、执行潮流计算、显示网络拓扑结构、查看计算结果表格和电压分布曲线。程序采用模块化设计，包含网络信息展示、拓扑可视化、结果表格和电压曲线四个主要功能模块。拓扑图采用圆形布局，通过颜色和线宽直观反映线路负载率和节点电压状态，同时提供详细的统计信息和图例说明。电压曲线功能可自动识别异常电压节点并标注数值。该系统为配电网分析提供了直观的可视化工具，便于工程师快速评估网络运行状态。

import pandapower as pp
import pandapower.networks as pn
import pandapower.plotting as pplot
import tkinter as tk
from tkinter import ttk, messagebox
import matplotlib.pyplot as plt
from matplotlib.backends.backend_tkagg import FigureCanvasTkAgg
import pandas as pd
import numpy as np
from font_config import setup_chinese_font

setup_chinese_font()

class IEEE33PowerFlowApp:
def __init__(self, root):
self.root = root
self.root.title("IEEE33节点潮流计算系统")
self.root.geometry("1400×900")

self.net = None
self.setup_ui()

def setup_ui(self):
main_frame = ttk.Frame(self.root, padding="10")
main_frame.grid(row=0, column=0, sticky=(tk.W, tk.E, tk.N, tk.S))

self.root.columnconfigure(0, weight=1)
self.root.rowconfigure(0, weight=1)
main_frame.columnconfigure(1, weight=1)
main_frame.rowconfigure(1, weight=1)

control_frame = ttk.LabelFrame(main_frame, text="控制面板", padding="10")
control_frame.grid(row=0, column=0, columnspan=2, sticky=(tk.W, tk.E), pady=5)

ttk.Button(control_frame, text="加载IEEE33模型", command=self.load_ieee33).pack(side=tk.LEFT, padx=5)
ttk.Button(control_frame, text="执行潮流计算", command=self.run_powerflow).pack(side=tk.LEFT, padx=5)
ttk.Button(control_frame, text="显示网络拓扑", command=self.show_topology).pack(side=tk.LEFT, padx=5)
ttk.Button(control_frame, text="显示结果表格", command=self.show_results_table).pack(side=tk.LEFT, padx=5)
ttk.Button(control_frame, text="显示电压曲线", command=self.show_voltage_curve).pack(side=tk.LEFT, padx=5)

notebook = ttk.Notebook(main_frame)
notebook.grid(row=1, column=0, columnspan=2, sticky=(tk.W, tk.E, tk.N, tk.S), pady=5)

self.info_frame = ttk.Frame(notebook)
notebook.add(self.info_frame, text="网络信息")

self.topology_frame = ttk.Frame(notebook)
notebook.add(self.topology_frame, text="网络拓扑")

self.results_frame = ttk.Frame(notebook)
notebook.add(self.results_frame, text="计算结果")

self.voltage_frame = ttk.Frame(notebook)
notebook.add(self.voltage_frame, text="电压曲线")

self.setup_info_tab()
self.setup_topology_tab()
self.setup_results_tab()
self.setup_voltage_tab()

def setup_info_tab(self):
info_text = tk.Text(self.info_frame, wrap=tk.WORD, width=80, height=30)
scrollbar = ttk.Scrollbar(self.info_frame, orient=tk.VERTICAL, command=info_text.yview)
info_text.configure(yscrollcommand=scrollbar.set)

info_text.pack(side=tk.LEFT, fill=tk.BOTH, expand=True)
scrollbar.pack(side=tk.RIGHT, fill=tk.Y)

self.info_text = info_text

def setup_topology_tab(self):
self.topology_fig = plt.Figure(figsize=(12, 8))
self.topology_canvas = FigureCanvasTkAgg(self.topology_fig, master=self.topology_frame)
self.topology_canvas.get_tk_widget().pack(fill=tk.BOTH, expand=True)

def setup_results_tab(self):
results_notebook = ttk.Notebook(self.results_frame)
results_notebook.pack(fill=tk.BOTH, expand=True)

self.bus_frame = ttk.Frame(results_notebook)
results_notebook.add(self.bus_frame, text="节点数据")

self.line_frame = ttk.Frame(results_notebook)
results_notebook.add(self.line_frame, text="线路数据")

self.load_frame = ttk.Frame(results_notebook)
results_notebook.add(self.load_frame, text="负荷数据")

def setup_voltage_tab(self):
self.voltage_fig = plt.Figure(figsize=(10, 6))
self.voltage_canvas = FigureCanvasTkAgg(self.voltage_fig, master=self.voltage_frame)
self.voltage_canvas.get_tk_widget().pack(fill=tk.BOTH, expand=True)

def load_ieee33(self):
try:
self.net = pn.case33bw()
self.display_network_info()
messagebox.showinfo("成功", "IEEE33模型加载成功！")
except Exception as e:
messagebox.showerror("错误", f"加载模型失败: {str(e)}")

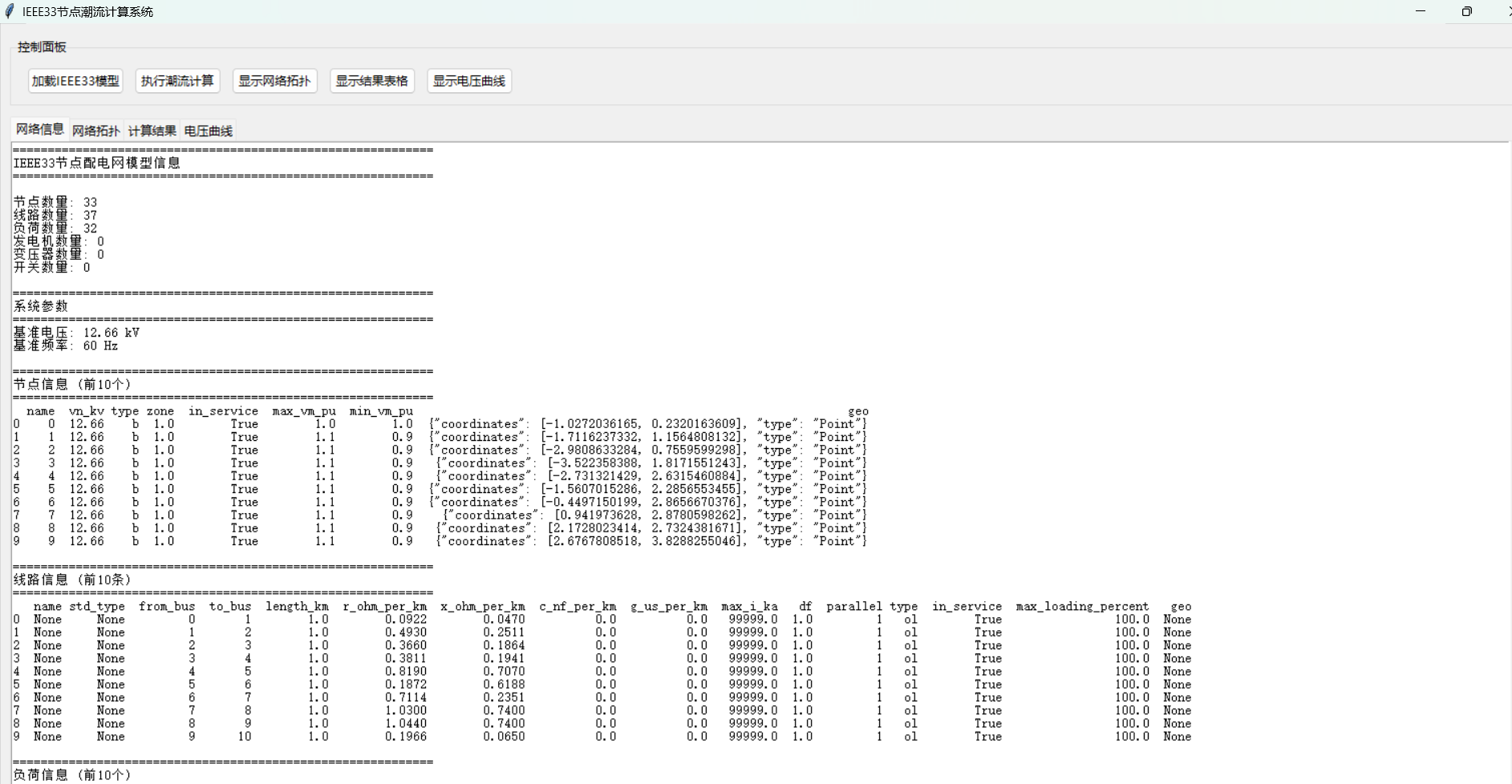

def display_network_info(self):
if self.net is None:
self.info_text.delete(1.0, tk.END)
self.info_text.insert(tk.END, "尚未加载IEEE33模型，请先加载模型。")
return

info = []
info.append("=" * 60)
info.append("IEEE33节点配电网模型信息")
info.append("=" * 60)
info.append(f"\\n节点数量: {len(self.net.bus)}")
info.append(f"线路数量: {len(self.net.line)}")
info.append(f"负荷数量: {len(self.net.load)}")
info.append(f"发电机数量: {len(self.net.gen)}")
info.append(f"变压器数量: {len(self.net.trafo)}")
info.append(f"开关数量: {len(self.net.switch)}")

info.append("\\n" + "=" * 60)
info.append("系统参数")
info.append("=" * 60)
info.append(f"基准电压: {self.net.bus.vn_kv.iloc[0]} kV")
info.append(f"基准频率: {self.net.f_hz} Hz")

info.append("\\n" + "=" * 60)
info.append("节点信息 (前10个)")
info.append("=" * 60)
info.append(self.net.bus.head(10).to_string())

info.append("\\n" + "=" * 60)
info.append("线路信息 (前10条)")
info.append("=" * 60)
info.append(self.net.line.head(10).to_string())

info.append("\\n" + "=" * 60)
info.append("负荷信息 (前10个)")
info.append("=" * 60)
info.append(self.net.load.head(10).to_string())

self.info_text.delete(1.0, tk.END)
self.info_text.insert(tk.END, "\\n".join(info))

def run_powerflow(self):
if self.net is None:
messagebox.showerror("错误", "请先加载IEEE33模型！")
return

try:
pp.runpp(self.net)
self.display_results()
# 自动更新拓扑图显示潮流结果
self.show_topology_with_results()
messagebox.showinfo("成功", "潮流计算完成！")
except Exception as e:
messagebox.showerror("错误", f"潮流计算失败: {str(e)}")

def display_results(self):
if self.net is None:
return

bus_results = self.net.bus.copy()
bus_results['电压幅值(p.u.)'] = self.net.res_bus.vm_pu
bus_results['电压相角(°)'] = self.net.res_bus.va_degree
bus_results['有功功率(kW)'] = self.net.res_bus.p_mw * 1000
bus_results['无功功率(kvar)'] = self.net.res_bus.q_mvar * 1000

line_results = self.net.line.copy()
line_results['有功功率始端(kW)'] = self.net.res_line.p_from_mw * 1000
line_results['无功功率始端(kvar)'] = self.net.res_line.q_from_mvar * 1000
line_results['有功功率末端(kW)'] = self.net.res_line.p_to_mw * 1000
line_results['无功功率末端(kvar)'] = self.net.res_line.q_to_mvar * 1000
line_results['电流(A)'] = self.net.res_line.i_from_ka * 1000
line_results['线路损耗(kW)'] = self.net.res_line.pl_mw * 1000

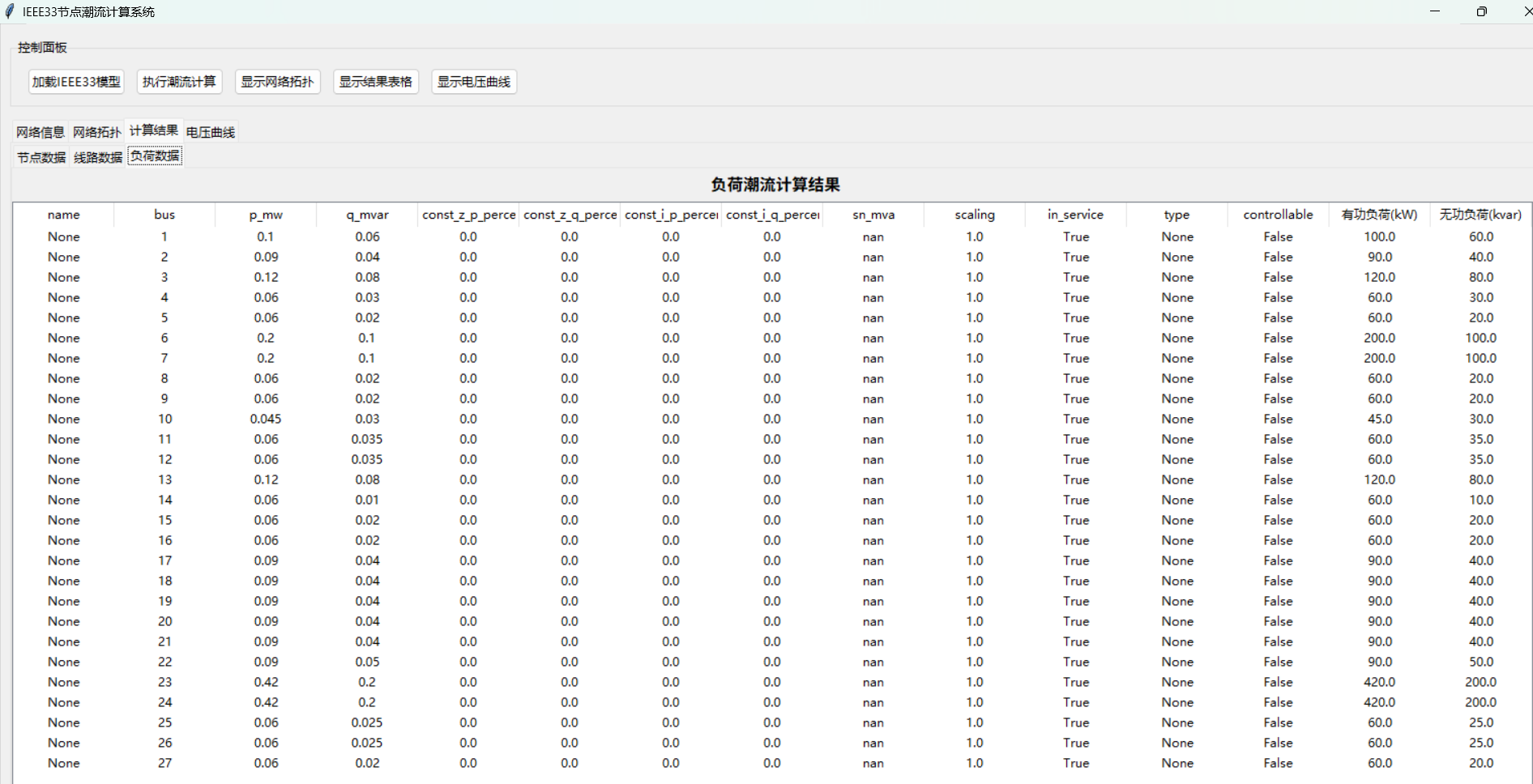

load_results = self.net.load.copy()
load_results['有功负荷(kW)'] = self.net.res_load.p_mw * 1000
load_results['无功负荷(kvar)'] = self.net.res_load.q_mvar * 1000

self.display_dataframe(self.bus_frame, bus_results, "节点潮流计算结果")
self.display_dataframe(self.line_frame, line_results, "线路潮流计算结果")
self.display_dataframe(self.load_frame, load_results, "负荷潮流计算结果")

def display_dataframe(self, parent, df, title):
for widget in parent.winfo_children():
widget.destroy()

frame = ttk.Frame(parent)
frame.pack(fill=tk.BOTH, expand=True)

ttk.Label(frame, text=title, font=('Arial', 12, 'bold')).pack(pady=5)

# 创建Treeview和滚动条
tree_frame = ttk.Frame(frame)
tree_frame.pack(fill=tk.BOTH, expand=True)

tree = ttk.Treeview(tree_frame)
tree.pack(side=tk.LEFT, fill=tk.BOTH, expand=True)

scrollbar = ttk.Scrollbar(tree_frame, orient=tk.VERTICAL, command=tree.yview)
scrollbar.pack(side=tk.RIGHT, fill=tk.Y)
tree.configure(yscrollcommand=scrollbar.set)

# 水平滚动条
h_scrollbar = ttk.Scrollbar(frame, orient=tk.HORIZONTAL, command=tree.xview)
h_scrollbar.pack(side=tk.BOTTOM, fill=tk.X)
tree.configure(xscrollcommand=h_scrollbar.set)

tree["columns"] = list(df.columns)
tree["show"] = "headings"

for col in df.columns:
tree.heading(col, text=col)
tree.column(col, width=100, anchor=tk.CENTER)

for idx, row in df.iterrows():
tree.insert("", tk.END, values=list(row))

def show_topology(self):
if self.net is None:
messagebox.showerror("错误", "请先加载IEEE33模型！")
return
self.show_topology_with_results()

def show_topology_with_results(self):
"""显示带有潮流结果的网络拓扑图"""
self.topology_fig.clear()

# 创建两个子图：拓扑图和图例
gs = self.topology_fig.add_gridspec(1, 2, width_ratios=[4, 1])
ax = self.topology_fig.add_subplot(gs[0])
legend_ax = self.topology_fig.add_subplot(gs[1])
legend_ax.axis('off')

try:
# 获取节点位置（使用圆形布局）
n_buses = len(self.net.bus)
theta = np.linspace(0, 2*np.pi, n_buses, endpoint=False)
radius = 5
bus_positions = {}

# 创建节点坐标（圆形布局）
for i in range(n_buses):
x = radius * np.cos(theta[i])
y = radius * np.sin(theta[i])
bus_positions[i] = (x, y)

# 绘制线路
for idx, line in self.net.line.iterrows():
from_bus = line['from_bus']
to_bus = line['to_bus']

if from_bus in bus_positions and to_bus in bus_positions:
x_coords = [bus_positions[from_bus][0], bus_positions[to_bus][0]]
y_coords = [bus_positions[from_bus][1], bus_positions[to_bus][1]]

# 根据线路负载率设置颜色
if hasattr(self.net, 'res_line') and idx in self.net.res_line.index:
loading = abs(self.net.res_line.loc[idx, 'i_from_ka'] * 1000 / 400) # 假设额定电流400A
if loading < 0.5:
color = 'green'
elif loading < 0.8:
color = 'orange'
else:
color = 'red'
line_width = 1 + loading
else:
color = 'blue'
line_width = 1

ax.plot(x_coords, y_coords, color=color, linewidth=line_width,
alpha=0.7, zorder=1)

# 绘制节点
for bus_id, pos in bus_positions.items():
# 根据电压幅值设置节点颜色
if hasattr(self.net, 'res_bus') and bus_id in self.net.res_bus.index:
v_pu = self.net.res_bus.loc[bus_id, 'vm_pu']
if v_pu < 0.95:
color = 'red'
size = 80
elif v_pu > 1.05:
color = 'orange'
size = 80
else:
color = 'green'
size = 60
else:
color = 'blue'
size = 50

scatter = ax.scatter(pos[0], pos[1], c=color, s=size,
zorder=2, edgecolors='black', linewidth=1)

# 添加节点编号标签
ax.annotate(str(bus_id), (pos[0], pos[1]),
xytext=(5, 5), textcoords='offset points',
fontsize=8, bbox=dict(boxstyle='round,pad=0.2',
facecolor='white', alpha=0.7))

# 设置标题和标签
ax.set_title("IEEE33节点配电网潮流分布图", fontsize=14, fontweight='bold', pad=20)
ax.set_xlabel('X 坐标', fontsize=10)
ax.set_ylabel('Y 坐标', fontsize=10)
ax.grid(True, alpha=0.3)
ax.set_aspect('equal')

# 绘制图例
legend_elements = []
if hasattr(self.net, 'res_bus'):
legend_elements.extend([
plt.Line2D([0], [0], marker='o', color='w', markerfacecolor='green',
markersize=10, label='电压正常 (0.95-1.05 p.u.)'),
plt.Line2D([0], [0], marker='o', color='w', markerfacecolor='orange',
markersize=10, label='电压偏高 (>1.05 p.u.)'),
plt.Line2D([0], [0], marker='o', color='w', markerfacecolor='red',
markersize=10, label='电压偏低 (<0.95 p.u.)'),
])

if hasattr(self.net, 'res_line'):
legend_elements.extend([
plt.Line2D([0], [0], color='green', linewidth=2, label='线路轻载 (<50%)'),
plt.Line2D([0], [0], color='orange', linewidth=2, label='线路中载 (50%-80%)'),
plt.Line2D([0], [0], color='red', linewidth=2, label='线路重载 (>80%)'),
])

legend_ax.legend(handles=legend_elements, loc='center',
fontsize=9, frameon=True)

# 添加网络统计信息
if hasattr(self.net, 'res_bus'):
v_min = self.net.res_bus.vm_pu.min()
v_max = self.net.res_bus.vm_pu.max()
v_mean = self.net.res_bus.vm_pu.mean()

info_text = f"网络统计信息:\\n\\n"
info_text += f"最低电压: {v_min:.3f} p.u.\\n"
info_text += f"最高电压: {v_max:.3f} p.u.\\n"
info_text += f"平均电压: {v_mean:.3f} p.u.\\n"

if hasattr(self.net, 'res_line'):
total_loss = self.net.res_line.pl_mw.sum() * 1000
info_text += f"总网损: {total_loss:.2f} kW\\n"

# 统计各电压等级节点数量
n_low = sum(self.net.res_bus.vm_pu < 0.95)
n_normal = sum((self.net.res_bus.vm_pu >= 0.95) & (self.net.res_bus.vm_pu <= 1.05))
n_high = sum(self.net.res_bus.vm_pu > 1.05)

info_text += f"\\n电压质量统计:\\n"
info_text += f"正常节点: {n_normal}\\n"
info_text += f"偏低节点: {n_low}\\n"
info_text += f"偏高节点: {n_high}\\n"

ax.text(0.02, 0.98, info_text, transform=ax.transAxes,
fontsize=9, verticalalignment='top',
bbox=dict(boxstyle='round', facecolor='wheat', alpha=0.8))

except Exception as e:
error_msg = f"拓扑图生成失败\\n错误信息: {str(e)}"
ax.text(0.5, 0.5, error_msg, ha='center', va='center',
fontsize=12, color='red')
ax.set_title("IEEE33节点配电网拓扑图", fontsize=14, fontweight='bold')
print(f"拓扑图绘制错误: {str(e)}")

self.topology_fig.tight_layout()
self.topology_canvas.draw()

def show_results_table(self):
if self.net is None:
messagebox.showerror("错误", "请先加载IEEE33模型！")
return
self.display_results()

def show_voltage_curve(self):
if self.net is None:
messagebox.showerror("错误", "请先加载IEEE33模型！")
return

self.voltage_fig.clear()
ax = self.voltage_fig.add_subplot(111)

bus_voltages = self.net.res_bus.vm_pu.values
bus_indices = range(len(bus_voltages))

# 绘制电压曲线
line = ax.plot(bus_indices, bus_voltages, 'b-o', linewidth=2,
markersize=6, label='电压幅值', zorder=2)

# 添加参考线
ax.axhline(y=1.0, color='r', linestyle='–', linewidth=1,
label='额定电压', alpha=0.7)
ax.axhline(y=0.95, color='orange', linestyle='–', linewidth=1,
label='下限(0.95 p.u.)', alpha=0.7)
ax.axhline(y=1.05, color='orange', linestyle='–', linewidth=1,
label='上限(1.05 p.u.)', alpha=0.7)

# 填充电压正常区域
ax.fill_between(bus_indices, 0.95, 1.05, alpha=0.2, color='green',
label='正常范围')

# 标注异常电压节点
for i, v in enumerate(bus_voltages):
if v < 0.95 or v > 1.05:
ax.plot(i, v, 'ro', markersize=8, zorder=3)
ax.annotate(f'{v:.3f}', (i, v), textcoords="offset points",
xytext=(0, 10), ha='center', fontsize=8,
bbox=dict(boxstyle='round,pad=0.2',
facecolor='yellow', alpha=0.7))

ax.set_xlabel('节点编号', fontsize=12)
ax.set_ylabel('电压幅值 (p.u.)', fontsize=12)
ax.set_title('IEEE33节点电压分布曲线', fontsize=14, fontweight='bold')
ax.grid(True, alpha=0.3)
ax.legend(fontsize=9, loc='best')
ax.set_ylim([0.9, 1.1])
ax.set_xlim([-0.5, len(bus_indices)-0.5])

# 设置x轴刻度
ax.set_xticks(np.arange(0, len(bus_indices), 2))

# 添加统计信息
v_min = np.min(bus_voltages)
v_min_node = np.argmin(bus_voltages)
v_max = np.max(bus_voltages)
v_max_node = np.argmax(bus_voltages)

info_text = f"最低电压: {v_min:.3f} p.u. (节点 {v_min_node})\\n"
info_text += f"最高电压: {v_max:.3f} p.u. (节点 {v_max_node})"

ax.text(0.02, 0.02, info_text, transform=ax.transAxes,
fontsize=9, verticalalignment='bottom',
bbox=dict(boxstyle='round', facecolor='wheat', alpha=0.8))

self.voltage_fig.tight_layout()
self.voltage_canvas.draw()

def main():
root = tk.Tk()
app = IEEE33PowerFlowApp(root)
root.mainloop()

if __name__ == "__main__":
main()
