一、🍀前言
本文详细介绍如何基于threejs在三维场景中使用EffectComposer后期处理组合器（采用RenderPass、ShaderPass、UnrealBloomPass渲染通道），打造夜间驾车炫酷效果，亲测可用。希望能帮助到您。一起学习，加油！加油！
1.1 ☘️THREE.EffectComposer 后期处理
THREE.EffectComposer 用于在three.js中实现后期处理效果。该类管理了产生最终视觉效果的后期处理过程链。 后期处理过程根据它们添加/插入的顺序来执行，最后一个过程会被自动渲染到屏幕上。
1.1.1 ☘️代码示例
import { EffectComposer } from 'three/examples/jsm/postprocessing/EffectComposer.js';
import { RenderPass } from 'three/examples/jsm/postprocessing/RenderPass.js';
// 初始化 composer
const composer = new EffectComposer(renderer);
// 创建 RenderPass 并添加到 composer
const renderPass = new RenderPass(scene, camera);
composer.addPass(renderPass);
// 添加其他后期处理通道（如模糊）
// composer.addPass(blurPass);
// 在动画循环中渲染
function animate() {
composer.render();
requestAnimationFrame(animate);
}
1.1.2 ☘️构造函数
EffectComposer( renderer : WebGLRenderer, renderTarget : WebGLRenderTarget ) renderer – 用于渲染场景的渲染器。 renderTarget – （可选）一个预先配置的渲染目标，内部由 EffectComposer 使用。
1.1.3 ☘️属性
.passes : Array 一个用于表示后期处理过程链（包含顺序）的数组。
渲染通道：
BloomPass 该通道会使得明亮区域参入较暗的区域。模拟相机照到过多亮光的情形
DotScreenPass 将一层黑点贴到代表原始图片的屏幕上
FilmPass 通过扫描线和失真模拟电视屏幕
MaskPass 在当前图片上贴一层掩膜，后续通道只会影响被贴的区域
RenderPass 该通道在指定的场景和相机的基础上渲染出一个新的场景
SavePass 执行该通道时，它会将当前渲染步骤的结果复制一份，方便后面使用。这个通道实际应用中作用不大；
ShaderPass 使用该通道你可以传入一个自定义的着色器，用来生成高级的、自定义的后期处理通道
TexturePass 该通道可以将效果组合器的当前状态保存为一个纹理，然后可以在其他EffectCoposer对象中将该纹理作为输入参数
.readBuffer : WebGLRenderTarget 内部读缓冲区的引用。过程一般从该缓冲区读取先前的渲染结果。
.renderer : WebGLRenderer 内部渲染器的引用。
.renderToScreen : Boolean 最终过程是否被渲染到屏幕（默认帧缓冲区）。
.writeBuffer : WebGLRenderTarget 内部写缓冲区的引用。过程常将它们的渲染结果写入该缓冲区。
1.1.4 ☘️方法
.addPass ( pass : Pass ) : undefined pass – 将被添加到过程链的过程
将传入的过程添加到过程链。
.dispose () : undefined 释放此实例分配的 GPU 相关资源。每当您的应用程序不再使用此实例时调用此方法。
.insertPass ( pass : Pass, index : Integer ) : undefined pass – 将被插入到过程链的过程。
index – 定义过程链中过程应插入的位置。
将传入的过程插入到过程链中所给定的索引处。
.isLastEnabledPass ( passIndex : Integer ) : Boolean passIndex – 被用于检查的过程
如果给定索引的过程在过程链中是最后一个启用的过程，则返回true。 由EffectComposer所使用，来决定哪一个过程应当被渲染到屏幕上。
.removePass ( pass : Pass ) : undefined pass – 要从传递链中删除的传递。
从传递链中删除给定的传递。
.render ( deltaTime : Float ) : undefined deltaTime – 增量时间值。
执行所有启用的后期处理过程，来产生最终的帧，
.reset ( renderTarget : WebGLRenderTarget ) : undefined renderTarget – （可选）一个预先配置的渲染目标，内部由 EffectComposer 使用。
重置所有EffectComposer的内部状态。
.setPixelRatio ( pixelRatio : Float ) : undefined pixelRatio – 设备像素比
设置设备的像素比。该值通常被用于HiDPI设备，以阻止模糊的输出。 因此，该方法语义类似于WebGLRenderer.setPixelRatio()。
.setSize ( width : Integer, height : Integer ) : undefined width – EffectComposer的宽度。 height – EffectComposer的高度。
考虑设备像素比，重新设置内部渲染缓冲和过程的大小为(width, height)。 因此，该方法语义类似于WebGLRenderer.setSize()。
.swapBuffers () : undefined 交换内部的读/写缓冲。
1.2 ☘️THREE.RenderPass
THREE.RenderPass用于将场景渲染到中间缓冲区，为后续的后期处理效果（如模糊、色调调整等）提供基础。
1.2.1 ☘️构造函数
RenderPass(scene, camera, overrideMaterial, clearColor, clearAlpha)
- scene THREE.Scene 要渲染的 Three.js 场景对象。
- camera THREE.Camera 场景对应的相机（如 PerspectiveCamera）。
- overrideMaterial THREE.Material (可选) 覆盖场景中所有物体的材质（默认 null）。
- clearColor THREE.Color (可选) 渲染前清除画布的颜色（默认不主动清除）。
- clearAlpha number (可选) 清除画布的透明度（默认 0）。
1.2.2 ☘️属性
.enabled：boolean 是否启用此通道（默认 true）。设为 false 可跳过渲染。
.clear：boolean 渲染前是否清除画布（默认 true）。若需叠加多个 RenderPass，可设为 false。
.needsSwap：boolean 是否需要在渲染后交换缓冲区（通常保持默认 false）。
1.2.3 ☘️方法
.setSize(width, height) 调整通道的渲染尺寸（通常由 EffectComposer 自动调用）。 width: 画布宽度（像素）。 height: 画布高度（像素）。
1.3 ☘️THREE.UnrealBloomPass
UnrealBloomPass 是 Three.js 中实现高质量泛光效果的后期处理通道，通过模拟类似 Unreal Engine 的泛光效果，为场景中的明亮区域添加柔和的光晕，提升视觉表现力。
1.3.1 ☘️构造函数
new UnrealBloomPass(resolution, strength, radius, threshold)
- resolution (Vector2): 泛光效果应用的场景分辨率，需与画布尺寸一致。 示例：new THREE.Vector2(window.innerWidth, window.innerHeight)
- strength (Number): 泛光强度，默认值 1.0。值越大，光晕越明显。
- radius (Number): 模糊半径，默认值 0.4。值越大，光晕扩散范围越广。
- threshold (Number): 泛光阈值，默认值 0.85。仅对亮度高于此值的区域生效。
1.3.2 ☘️方法
- renderToScreen: 是否直接渲染到屏幕，默认为 false（需通过 EffectComposer 管理）。
- clearColor: 设置背景清除颜色，默认为透明。
1.4 ☘️THREE.ShaderPass
THREE.ShaderPass是 Three.js 后期处理模块的核心组件之一，允许开发者通过自定义着色器（Shader）实现任意特效，为后期处理链提供高度灵活性。
1.4.1 ☘️构造函数
ShaderPass(shader, textureID)
- shader Object 包含着色器代码和 uniforms 的配置对象。
- textureID string (可选) 输入纹理的 uniform 名称（默认 tDiffuse）。
1.4.2 ☘️属性
.enabled：boolean 是否启用此通道（默认 true）。设为 false 可临时禁用效果。
.uniforms：object 着色器 uniforms 的引用，支持动态修改参数：
shaderPass.uniforms.uStrength.value = 0.8; // 修改自定义参数
.renderToScreen：boolean 是否直接渲染到屏幕（默认 false）。若为最后通道，需设为 true。
1.4.3 ☘️方法
.setSize(width, height) 调整通道的渲染尺寸（通常由 EffectComposer 自动调用）。 width: 画布宽度（像素）。 height: 画布高度（像素）。
二、🍀使用EffectComposer后期处理组合器（采用RenderPass、ShaderPass、UnrealBloomPass渲染通道），打造夜间驾车炫酷效果
1. ☘️实现思路

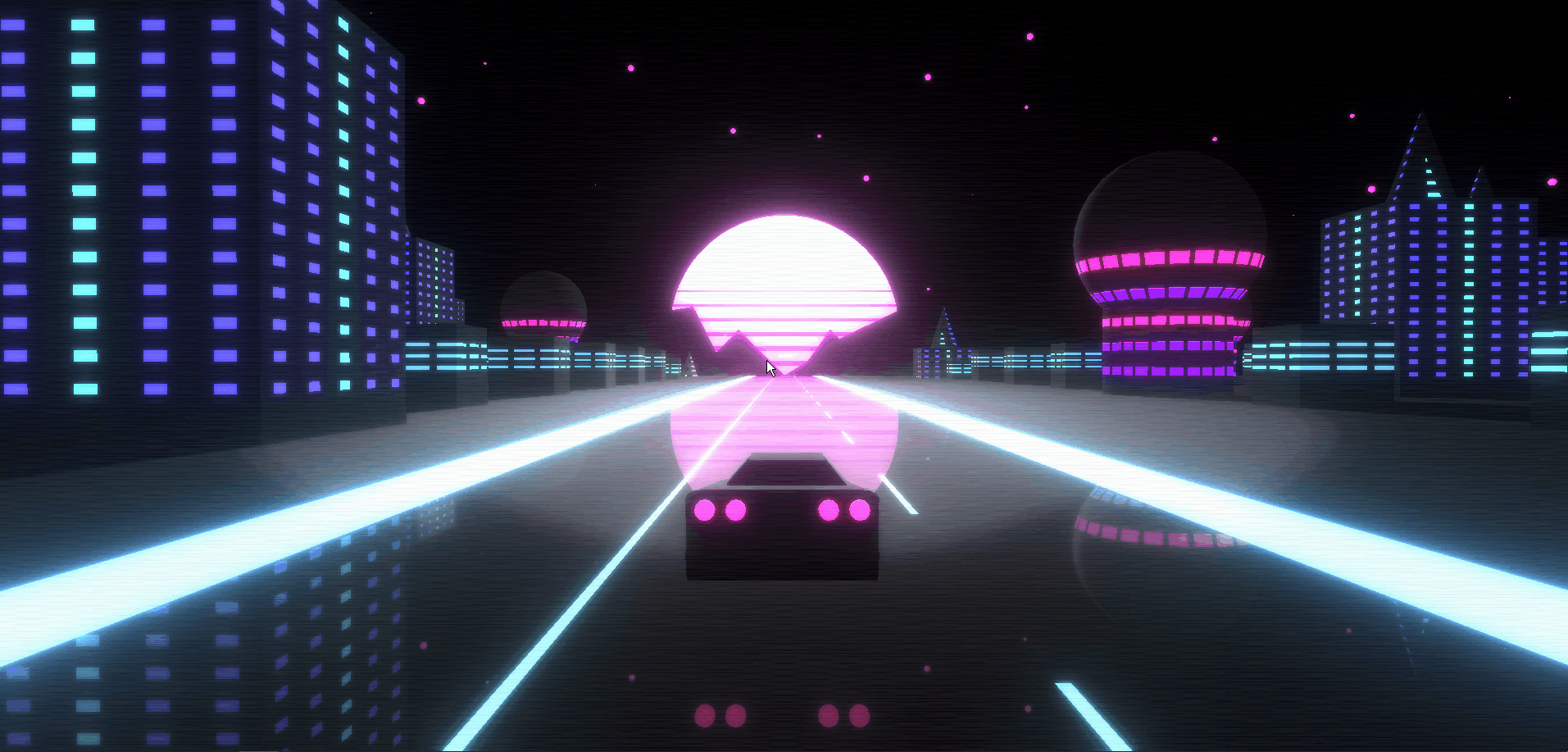

本例子使用EffectComposer后期处理组合器（采用RenderPass、ShaderPass、UnrealBloomPass渲染通道），打造夜间驾车炫酷效果。具体代码参考下面代码样例。
2. ☘️代码样例
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>夜间驾车</title>
<script src='https://unpkg.com/three@0.146.0/build/three.min.js'></script>
<script src='https://unpkg.com/three@0.146.0/examples/js/postprocessing/EffectComposer.js'></script>
<script src='https://unpkg.com/three@0.146.0/examples/js/postprocessing/ShaderPass.js'></script>
<script src='https://unpkg.com/three@0.146.0/examples/js/shaders/CopyShader.js'></script>
<script src='https://unpkg.com/three@0.146.0/examples/js/postprocessing/RenderPass.js'></script>
<script src='https://unpkg.com/three@0.146.0/examples/js/shaders/LuminosityHighPassShader.js'></script>
<script src='https://unpkg.com/three@0.146.0/examples/js/postprocessing/UnrealBloomPass.js'></script>
<script src='https://unpkg.com/three@0.146.0/examples/js/objects/Reflector.js'></script>
</head>
<style>
* {
margin: 0;
padding: 0;
box-sizing: border-box;
}
body {
overflow: hidden;
background: #000000;
}
.full-screen-3d-example {
opacity: 0;
transition: opacity 1s ease-out;
}
.full-screen-3d-example.-loaded {
opacity: 1;
}
</style>
<body>
<div id='root' class='full-screen-3d-example'></div>
</body>
<script type="module">
const { THREE } = window;
// https://stackoverflow.com/questions/11381673/detecting-a-mobile-browser
function isMobile() {
let check = false;
// eslint-disable-next-line
(function(a){if(/(android|bb\\d+|meego).+mobile|avantgo|bada\\/|blackberry|blazer|compal|elaine|fennec|hiptop|iemobile|ip(hone|od)|iris|kindle|lge |maemo|midp|mmp|mobile.+firefox|netfront|opera m(ob|in)i|palm( os)?|phone|p(ixi|re)\\/|plucker|pocket|psp|series(4|6)0|symbian|treo|up\\.(browser|link)|vodafone|wap|windows ce|xda|xiino/i.test(a)||/1207|6310|6590|3gso|4thp|50[1-6]i|770s|802s|a wa|abac|ac(er|oo|s\\-)|ai(ko|rn)|al(av|ca|co)|amoi|an(ex|ny|yw)|aptu|ar(ch|go)|as(te|us)|attw|au(di|\\-m|r |s )|avan|be(ck|ll|nq)|bi(lb|rd)|bl(ac|az)|br(e|v)w|bumb|bw\\-(n|u)|c55\\/|capi|ccwa|cdm\\-|cell|chtm|cldc|cmd\\-|co(mp|nd)|craw|da(it|ll|ng)|dbte|dc\\-s|devi|dica|dmob|do(c|p)o|ds(12|\\-d)|el(49|ai)|em(l2|ul)|er(ic|k0)|esl8|ez([4-7]0|os|wa|ze)|fetc|fly(\\-|_)|g1 u|g560|gene|gf\\-5|g\\-mo|go(\\.w|od)|gr(ad|un)|haie|hcit|hd\\-(m|p|t)|hei\\-|hi(pt|ta)|hp( i|ip)|hs\\-c|ht(c(\\-| |_|a|g|p|s|t)|tp)|hu(aw|tc)|i\\-(20|go|ma)|i230|iac( |\\-|\\/)|ibro|idea|ig01|ikom|im1k|inno|ipaq|iris|ja(t|v)a|jbro|jemu|jigs|kddi|keji|kgt( |\\/)|klon|kpt |kwc\\-|kyo(c|k)|le(no|xi)|lg( g|\\/(k|l|u)|50|54|\\-[a-w])|libw|lynx|m1\\-w|m3ga|m50\\/|ma(te|ui|xo)|mc(01|21|ca)|m\\-cr|me(rc|ri)|mi(o8|oa|ts)|mmef|mo(01|02|bi|de|do|t(\\-| |o|v)|zz)|mt(50|p1|v )|mwbp|mywa|n10[0-2]|n20[2-3]|n30(0|2)|n50(0|2|5)|n7(0(0|1)|10)|ne((c|m)\\-|on|tf|wf|wg|wt)|nok(6|i)|nzph|o2im|op(ti|wv)|oran|owg1|p800|pan(a|d|t)|pdxg|pg(13|\\-([1-8]|c))|phil|pire|pl(ay|uc)|pn\\-2|po(ck|rt|se)|prox|psio|pt\\-g|qa\\-a|qc(07|12|21|32|60|\\-[2-7]|i\\-)|qtek|r380|r600|raks|rim9|ro(ve|zo)|s55\\/|sa(ge|ma|mm|ms|ny|va)|sc(01|h\\-|oo|p\\-)|sdk\\/|se(c(\\-|0|1)|47|mc|nd|ri)|sgh\\-|shar|sie(\\-|m)|sk\\-0|sl(45|id)|sm(al|ar|b3|it|t5)|so(ft|ny)|sp(01|h\\-|v\\-|v )|sy(01|mb)|t2(18|50)|t6(00|10|18)|ta(gt|lk)|tcl\\-|tdg\\-|tel(i|m)|tim\\-|t\\-mo|to(pl|sh)|ts(70|m\\-|m3|m5)|tx\\-9|up(\\.b|g1|si)|utst|v400|v750|veri|vi(rg|te)|vk(40|5[0-3]|\\-v)|vm40|voda|vulc|vx(52|53|60|61|70|80|81|83|85|98)|w3c(\\-| )|webc|whit|wi(g |nc|nw)|wmlb|wonu|x700|yas\\-|your|zeto|zte\\-/i.test(a.substr(0,4))) check = true;})(navigator.userAgent||navigator.vendor||window.opera);
return check;
}
const IS_MOBILE_DEVICE = isMobile();
const FLAGS = Object.freeze({
ENABLE_SHADOWS: !IS_MOBILE_DEVICE,
ENABLE_BLOOM: !IS_MOBILE_DEVICE,
ENABLE_NOISE: !IS_MOBILE_DEVICE,
});
// https://coolors.co/palette/f72585-b5179e-7209b7-560bad-480ca8-3a0ca3-3f37c9-4361ee-4895ef-4cc9f0
const COLOR_PALETTE = Object.freeze({
black: 0x010101,
white: 0xEEEEEE,
color1: 0xF72585,
color2: 0xB5179E,
color3: 0x7209B7,
color4: 0x560BAD,
color5: 0x480CA8,
color6: 0x3A0CA3,
color7: 0x3F37C9,
color8: 0x4361EE,
color9: 0x4895EF,
color10: 0x4CC9F0,
});
const COLOR_PALETTE_GLSL = Object.freeze({
black: 'vec4(0.04, 0.04, 0.04, 1.0)',
white: 'vec4(0.933, 0.933, 0.933, 1.0)',
color1: 'vec4(0.969, 0.145, 0.522, 1.0)',
color2: 'vec4(0.71, 0.09, 0.62, 1.0)',
color3: 'vec4(0.447, 0.035, 0.718, 1.0)',
color4: 'vec4(0.337, 0.043, 0.678, 1.0)',
color5: 'vec4(0.282, 0.047, 0.659, 1.0)',
color6: 'vec4(0.227, 0.047, 0.639, 1.0)',
color7: 'vec4(0.247, 0.216, 0.788, 1.0)',
color8: 'vec4(0.263, 0.38, 0.933, 1.0)',
color9: 'vec4(0.282, 0.584, 0.937, 1.0)',
color10: 'vec4(0.298, 0.788, 0.941, 1.0)',
});
class DefaultMaterial extends THREE.MeshStandardMaterial {
constructor() {
super({
color: COLOR_PALETTE.white,
});
}
}
class CarMaterial extends THREE.MeshStandardMaterial {
constructor() {
super({
color: COLOR_PALETTE.black,
});
}
}
class LightMaterial extends THREE.MeshStandardMaterial {
constructor() {
super({
color: COLOR_PALETTE.color1,
});
}
}
class WheelMaterial extends THREE.MeshStandardMaterial {
constructor() {
super({
color: COLOR_PALETTE.black,
});
}
}
class MountainMaterial extends THREE.MeshBasicMaterial {
constructor() {
super({
color: COLOR_PALETTE.black,
});
}
}
class CustomMaterial extends THREE.MeshStandardMaterial {
onBeforeCompile(shader) {
// eslint-disable-next-line no-param-reassign
shader.uniforms.uTime = { value: 0.0 };
// eslint-disable-next-line no-param-reassign
shader.vertexShader = shader.vertexShader.replace(
'#include <uv_pars_vertex>',
`varying vec2 vUv;
uniform float uTime;`,
);
// eslint-disable-next-line no-param-reassign
shader.vertexShader = shader.vertexShader.replace(
'#include <uv_vertex>',
'vUv = uv;',
);
// eslint-disable-next-line no-param-reassign
shader.fragmentShader = shader.fragmentShader.replace(
'varying vec3 vViewPosition;',
`varying vec3 vViewPosition;
varying vec2 vUv;
uniform float uTime;`,
);
this.userData.shader = shader;
}
}
class CustomTransparentMaterial extends CustomMaterial {
constructor() {
super({
transparent: true,
});
}
}
class RoadMaterial extends CustomTransparentMaterial {
onBeforeCompile(shader) {
super.onBeforeCompile(shader);
// eslint-disable-next-line no-param-reassign
shader.fragmentShader = shader.fragmentShader.replace(
// eslint-disable-next-line sonarjs/no-duplicate-string
'#include <map_fragment>',
`
diffuseColor = ${COLOR_PALETTE_GLSL.black};
float width = 0.06;
bool isInCenter = abs(0.5 – vUv.x) < (0.01 + width / 2.0);
bool isInRoad = abs(0.5 – vUv.x) < (width / 2.0);
if (isInCenter) {
diffuseColor = ${COLOR_PALETTE_GLSL.color9};
}
if (isInRoad) {
diffuseColor = ${COLOR_PALETTE_GLSL.black};
diffuseColor.a = 0.8;
bool isInLine = (abs(0.5 – vUv.x + width / 6.0) < 0.0003);
bool isInDashedLine = (abs(0.5 – vUv.x – width / 6.0) < 0.0003)
&& (sin(100.0 * vUv.y – 10.0 * uTime) > 0.3);
if (isInLine || isInDashedLine) {
diffuseColor = ${COLOR_PALETTE_GLSL.color10};
}
}
`,
);
this.userData.shader = shader;
}
}
class SunMaterial extends CustomTransparentMaterial {
onBeforeCompile(shader) {
super.onBeforeCompile(shader);
// eslint-disable-next-line no-param-reassign
shader.fragmentShader = shader.fragmentShader.replace(
'#include <map_fragment>',
`
diffuseColor = vec4(0.0);
bool isInSun = distance(vUv.xy, vec2(0.5, 0.5)) < 0.5;
if (isInSun) {
diffuseColor = ${COLOR_PALETTE_GLSL.color1};
float delta = 0.2 * (1.0 – vUv.y);
diffuseColor += vec4(delta, delta, 0.0, 0.0);
bool isInLine = sin(100.0 * vUv.y) * vUv.y > 0.3;
if (isInLine) {
diffuseColor = ${COLOR_PALETTE_GLSL.color3};
}
}
`,
);
this.userData.shader = shader;
}
}
class BuildingMaterialA extends CustomMaterial {
onBeforeCompile(shader) {
super.onBeforeCompile(shader);
// eslint-disable-next-line no-param-reassign
shader.fragmentShader = shader.fragmentShader.replace(
'#include <map_fragment>',
`
diffuseColor = ${COLOR_PALETTE_GLSL.black};
bool isInWindow = vUv.y > 0.09
&& (sin(31.415 * (vUv.x – 0.05)) > 0.5)
&& (sin(100.0 * vUv.y) > 0.5);
if (isInWindow) {
diffuseColor = ${COLOR_PALETTE_GLSL.color7};
if (vUv.x > 0.4 && vUv.x < 0.6) {
diffuseColor = ${COLOR_PALETTE_GLSL.color10};
}
}
`,
);
this.userData.shader = shader;
}
}
class BuildingMaterialB extends CustomMaterial {
onBeforeCompile(shader) {
super.onBeforeCompile(shader);
// eslint-disable-next-line no-param-reassign
shader.fragmentShader = shader.fragmentShader.replace(
'#include <map_fragment>',
`
diffuseColor = ${COLOR_PALETTE_GLSL.black};
bool isInWindow = vUv.y > 0.1
&& vUv.y < 0.5
&& (sin(50.0 * 3.1415 * (vUv.x – 0.05)) > -0.8)
&& (sin(50.0 * vUv.y) > 0.5);
if (isInWindow) {
diffuseColor = ${COLOR_PALETTE_GLSL.color1};
if (vUv.y < 0.3) {
diffuseColor = ${COLOR_PALETTE_GLSL.color4};
}
}
`,
);
this.userData.shader = shader;
}
}
class BuildingMaterialC extends CustomMaterial {
onBeforeCompile(shader) {
super.onBeforeCompile(shader);
// eslint-disable-next-line no-param-reassign
shader.fragmentShader = shader.fragmentShader.replace(
'#include <map_fragment>',
`
diffuseColor = ${COLOR_PALETTE_GLSL.black};
bool isInWindow = vUv.y > 0.5
&& vUv.y < 0.8
&& (sin(5.0 * 3.1415 * (vUv.x – 0.05)) > -0.8)
&& (sin(50.0 * vUv.y) > 0.5);
if (isInWindow) {
diffuseColor = ${COLOR_PALETTE_GLSL.color9};
}
`,
);
this.userData.shader = shader;
}
}
class BuildingMaterialD extends CustomMaterial {
onBeforeCompile(shader) {
super.onBeforeCompile(shader);
// eslint-disable-next-line no-param-reassign
shader.fragmentShader = shader.fragmentShader.replace(
'#include <map_fragment>',
`
diffuseColor = ${COLOR_PALETTE_GLSL.black};
bool isInWindow = vUv.y > 0.1
&& (sin(50.0 * vUv.y) > -0.8);
if (isInWindow) {
diffuseColor = ${COLOR_PALETTE_GLSL.color5};
}
`,
);
this.userData.shader = shader;
}
}
class MaterialsLibrary {
static default = new DefaultMaterial();
static road = new RoadMaterial();
static sun = new SunMaterial();
static mountain = new MountainMaterial();
static car = new CarMaterial();
static wheel = new WheelMaterial();
static light = new LightMaterial();
static buildingA = new BuildingMaterialA();
static buildingB = new BuildingMaterialB();
static buildingC = new BuildingMaterialC();
static buildingD = new BuildingMaterialD();
}
class Road extends THREE.Group {
constructor() {
super();
const geometry = new THREE.PlaneGeometry();
const material = MaterialsLibrary.road;
const road = new THREE.Mesh(geometry, material);
road.scale.set(200, 200, 1);
road.rotation.set(–Math.PI / 2, 0, 0);
if (FLAGS.ENABLE_SHADOWS) {
road.receiveShadow = true;
}
this.add(road);
const reflector = new THREE.Reflector(
new THREE.PlaneGeometry(10, 10),
{
color: new THREE.Color(0x7f7f7f),
textureWidth: window.innerWidth * window.devicePixelRatio,
textureHeight: window.innerHeight * window.devicePixelRatio,
},
);
reflector.position.set(0, –0.1, 0);
reflector.scale.set(200, 200, 1);
reflector.rotation.set(–Math.PI / 2, 0, 0);
this.add(reflector);
}
}
class Sun extends THREE.Group {
constructor() {
super();
const geometry = new THREE.PlaneGeometry();
const material = MaterialsLibrary.sun;
const sun = new THREE.Mesh(geometry, material);
sun.scale.set(50, 50, 1);
this.add(sun);
}
}
class Mountain extends THREE.Group {
constructor() {
super();
const material = MaterialsLibrary.mountain;
const shape = new THREE.Shape();
shape.moveTo(0, 0);
shape.lineTo(100, 0);
shape.lineTo(100, 50);
shape.lineTo(50, 10);
shape.lineTo(20, 15);
shape.lineTo(15, 5);
shape.lineTo(10, 10);
shape.lineTo(0, 0);
shape.lineTo(–5, 3);
shape.lineTo(–10, 10);
shape.lineTo(–12, 8);
shape.lineTo(–100, 50);
shape.lineTo(–100, 0);
shape.lineTo(0, 0);
const geometry = new THREE.ExtrudeGeometry(shape);
const mountain = new THREE.Mesh(geometry, material);
this.add(mountain);
}
}
class Car extends THREE.Group {
constructor() {
super();
{
const material = MaterialsLibrary.car;
const shape = new THREE.Shape();
shape.moveTo(0, 0);
shape.lineTo(4, 0);
shape.lineTo(3.8, 0.3);
shape.lineTo(–0.1, 0.7);
shape.lineTo(0, 0);
const geometry = new THREE.ExtrudeGeometry(shape, {
depth: 1.5,
bevelThickness: 0.2,
});
const body = new THREE.Mesh(geometry, material);
body.position.set(0, 0.3, 0);
this.add(body);
}
{
const material = MaterialsLibrary.car;
const geometry = new THREE.CylinderGeometry(0.6, 1.2, 0.5, 4);
const roof = new THREE.Mesh(geometry, material);
roof.position.set(1.5, 1, 0.8);
roof.rotation.set(0, Math.PI / 4, 0);
this.add(roof);
}
{
const material = MaterialsLibrary.light;
const geometry = new THREE.CylinderGeometry(0.1, 0.1, 0.1, 12);
const light1 = new THREE.Mesh(geometry, material);
light1.position.set(–0.2, 0.9, 0);
light1.rotation.set(0, 0, Math.PI / 2);
this.add(light1);
const light2 = new THREE.Mesh(geometry, material);
light2.position.set(–0.2, 0.9, 0.3);
light2.rotation.set(0, 0, Math.PI / 2);
this.add(light2);
const light3 = new THREE.Mesh(geometry, material);
light3.position.set(–0.2, 0.9, 1.2);
light3.rotation.set(0, 0, Math.PI / 2);
this.add(light3);
const light4 = new THREE.Mesh(geometry, material);
light4.position.set(–0.2, 0.9, 1.5);
light4.rotation.set(0, 0, Math.PI / 2);
this.add(light4);
}
{
const material = MaterialsLibrary.wheel;
const geometry = new THREE.CylinderGeometry(1, 1, 1, 12);
const wheel1 = new THREE.Mesh(geometry, material);
wheel1.scale.set(0.33, 2, 0.33);
wheel1.position.set(3, 0.33, 0.75);
wheel1.rotation.set(Math.PI / 2, 0, 0);
this.add(wheel1);
const wheel2 = new THREE.Mesh(geometry, material);
wheel2.scale.set(0.33, 2, 0.33);
wheel2.position.set(0.7, 0.33, 0.75);
wheel2.rotation.set(Math.PI / 2, 0, 0);
this.add(wheel2);
}
}
}
class BuildingA extends THREE.Group {
constructor() {
super();
const material = MaterialsLibrary.buildingA;
const geometry = new THREE.BoxGeometry();
const building = new THREE.Mesh(geometry, material);
building.scale.set(10, 15, 10);
building.position.set(0, –3, 0);
if (FLAGS.ENABLE_SHADOWS) {
building.castShadow = true;
}
this.add(building);
const roofGeometry = new THREE.ConeGeometry(5, 15, 7);
const roof = new THREE.Mesh(roofGeometry, material);
roof.position.set(0, 5, 0);
this.add(roof);
}
}
class BuildingB extends THREE.Group {
constructor() {
super();
const material = MaterialsLibrary.buildingB;
const geometry = new THREE.CylinderGeometry();
const building = new THREE.Mesh(geometry, material);
building.scale.set(5, 15, 5);
building.position.set(0, –3, 0);
if (FLAGS.ENABLE_SHADOWS) {
building.castShadow = true;
}
this.add(building);
const roofGeometry = new THREE.SphereGeometry(7);
const roof = new THREE.Mesh(roofGeometry, material);
roof.position.set(0, 2, 0);
roof.rotation.set(0, 0.3, 0);
this.add(roof);
}
}
class BuildingC extends THREE.Group {
constructor() {
super();
const material = MaterialsLibrary.buildingC;
const geometry = new THREE.BoxGeometry();
const building = new THREE.Mesh(geometry, material);
building.scale.set(5, 5, 5);
building.position.set(0, –8, 0);
if (FLAGS.ENABLE_SHADOWS) {
building.castShadow = true;
}
this.add(building);
}
}
class BuildingD extends THREE.Group {
constructor() {
super();
const material = MaterialsLibrary.buildingD;
const geometry = new THREE.ConeGeometry(1, 1, 3);
const building = new THREE.Mesh(geometry, material);
building.scale.set(5, 20, 5);
building.rotation.set(0, 1, 0);
if (FLAGS.ENABLE_SHADOWS) {
building.castShadow = true;
}
this.add(building);
}
}
class City extends THREE.Group {
static #getRandomBuilding() {
const choice = Math.random();
if (choice < 0.2) {
return new BuildingA();
}
if (choice < 0.3) {
return new BuildingB();
}
if (choice < 0.9) {
return new BuildingC();
}
return new BuildingD();
}
constructor() {
super();
for (let z = 0; z < 200; z += 20) {
for (let x = 70; x >= 10; x -= 20) {
this.#initBuilding(x, z);
}
for (let x = 120; x <= 180; x += 20) {
this.#initBuilding(x, z);
}
}
}
#initBuilding(x, z) {
const building = City.#getRandomBuilding();
building.position.set(x, 20 / 2, z);
this.add(building);
}
update() {
this.children.forEach((building) => {
const { x, z } = building.position;
let newZ = z – 0.5;
if (newZ < 0) {
newZ = 200;
}
const y = newZ <= 150 ? 10 : (10 + 20 * ((150 – newZ) / 50));
building.position.set(x, y, newZ);
});
}
}
class Stars extends THREE.Group {
constructor() {
super();
const geometry = new THREE.SphereGeometry();
const material = MaterialsLibrary.light;
for (let x = –300; x < 300; x += 30) {
for (let y = 0; y < 300; y += 30) {
const star = new THREE.Mesh(geometry, material);
const dx = 25 * Math.random();
const dy = 25 * Math.random();
const s = Math.random();
star.scale.set(s, s, s);
star.position.set(x + dx, y + dy, 0);
this.add(star);
}
}
}
}
class ObjectsLibrary {
static road = new Road();
static sun = new Sun();
static mountain = new Mountain();
static car = new Car();
static city = new City();
static stars = new Stars();
}
class SandboxWorld extends THREE.Group {
#savedObjects;
constructor() {
super();
this.#initObjects();
this.#initLights();
}
#initObjects() {
const { road, car, sun, city, mountain, stars } = ObjectsLibrary;
road.position.set(0, 0, 100);
sun.position.set(0, 10, 200);
sun.rotation.set(–Math.PI, 0, 0);
city.position.set(–100, 0, 0);
mountain.position.set(0, 0, 200);
car.position.set(0.7, 0, 10);
car.rotation.set(0, –Math.PI / 2, 0);
stars.position.set(0, 0, 250);
this.add(road);
this.add(sun);
this.add(car);
this.add(city);
this.add(mountain);
this.add(stars);
this.#savedObjects = { car, city };
}
#initLights() {
const ambient = new THREE.AmbientLight({
color: COLOR_PALETTE.color3,
intensity: 0.1,
});
this.add(ambient);
const point = new THREE.PointLight({
color: COLOR_PALETTE.color1,
intensity: 5,
decay: 0.5,
distance: 300,
});
point.position.set(0, 30, 180);
if (FLAGS.ENABLE_SHADOWS) {
point.castShadow = true;
}
this.add(point);
}
update() {
const t = performance.now() / 1000;
this.#savedObjects.car.position.set(0.7 + 0.2 * Math.sin(t), 0, 10);
this.#savedObjects.city.update();
}
}
class FullScreen3DExample {
static CSS_ROOT = 'full-screen-3d-example';
static CSS_ROOT_LOADED_VARIANT = '-loaded';
#root;
#frameRequestId;
#scene;
#world;
#camera;
#cameraData;
#renderer;
#composer;
constructor(root) {
this.#root = root;
this.#root.classList.add(FullScreen3DExample.CSS_ROOT);
this.#initScene();
this.#initObjects();
this.#initCamera();
this.#initRenderer();
this.#initComposer();
this.#initEventListeners();
this.#onWindowResize();
this.#root.classList.add(FullScreen3DExample.CSS_ROOT_LOADED_VARIANT);
this.#render();
}
#initScene() {
this.#scene = new THREE.Scene();
}
#initObjects() {
this.#world = new SandboxWorld();
this.#scene.add(this.#world);
}
#initCamera() {
const fov = 45;
const aspect = window.innerWidth / window.innerHeight;
const near = 1;
const far = 1000;
this.#camera = new THREE.PerspectiveCamera(fov, aspect, near, far);
this.#camera.position.set(0, 2, 1);
this.#camera.lookAt(0, 0, 200);
this.#camera.updateProjectionMatrix();
this.#cameraData = {
positionX: 0,
positionY: 2,
};
}
#initRenderer() {
const clearColor = COLOR_PALETTE.black;
const clearColorAlpha = 1;
this.#renderer = new THREE.WebGLRenderer({
alpha: true,
logarithmicDepthBuffer: true,
});
this.#renderer.setClearColor(clearColor, clearColorAlpha);
this.#renderer.setPixelRatio(window.devicePixelRatio);
if (FLAGS.ENABLE_SHADOWS) {
this.#renderer.shadowMap.enabled = true;
this.#renderer.shadowMap.type = THREE.PCFSoftShadowMap;
}
this.#root.appendChild(this.#renderer.domElement);
}
#initComposer() {
const width = window.innerWidth;
const height = window.innerHeight;
this.#composer = new THREE.EffectComposer(this.#renderer);
this.#composer.setSize(width, height);
this.#initRenderPass();
if (FLAGS.ENABLE_BLOOM) {
this.#initBloomPass();
}
if (FLAGS.ENABLE_NOISE) {
this.#initShaderPass();
}
}
#initRenderPass() {
const renderPass = new THREE.RenderPass(this.#scene, this.#camera);
this.#composer.addPass(renderPass);
}
#initBloomPass() {
const width = window.innerWidth;
const height = window.innerHeight;
const resolution = new THREE.Vector2(width, height);
const strength = 0.8;
const radius = 0.5;
const threshold = 0.1;
const bloomPass = new THREE.UnrealBloomPass(
resolution,
strength,
radius,
threshold,
);
this.#composer.addPass(bloomPass);
}
#initShaderPass() {
const pass = new THREE.ShaderPass({
uniforms: {
tDiffuse: {
type: 't',
value: null,
},
uTime: {
value: 1,
},
},
vertexShader: `
varying vec2 vUv;
void main() {
vUv = uv;
gl_Position = projectionMatrix * modelViewMatrix * vec4(position, 1.0);
}`,
fragmentShader: `
uniform float uTime;
uniform sampler2D tDiffuse;
varying vec2 vUv;
float rand(vec2 seed);
float noise(vec2 position);
void main() {
vec4 color = texture2D(tDiffuse, vUv);
float d = 0.05 * noise(50.0 * (100.0 * uTime + vec2(vUv.x, 20.0 * vUv.y)));
color = vec4(color.r – d, color.g – d, color.b – d, 1.0);
gl_FragColor = color;
}
float rand(vec2 seed) {
return fract(sin(dot(seed, vec2(12.9898,78.233))) * 43758.5453123);
}
float noise(vec2 position) {
vec2 blockPosition = floor(position);
float topLeftValue = rand(blockPosition);
float topRightValue = rand(blockPosition + vec2(1.0, 0.0));
float bottomLeftValue = rand(blockPosition + vec2(0.0, 1.0));
float bottomRightValue = rand(blockPosition + vec2(1.0, 1.0));
vec2 computedValue = smoothstep(0.0, 1.0, fract(position));
return mix(topLeftValue, topRightValue, computedValue.x)
+ (bottomLeftValue – topLeftValue) * computedValue.y * (1.0 – computedValue.x)
+ (bottomRightValue – topRightValue) * computedValue.x * computedValue.y;
}
`,
});
pass.renderToScreen = true;
this.#composer.addPass(pass);
}
#initEventListeners() {
window.addEventListener('resize', this.#onWindowResize.bind(this));
document.addEventListener('mousemove', this.#onMouseMove.bind(this));
}
#onWindowResize() {
const width = window.innerWidth;
const height = window.innerHeight;
this.#camera.aspect = width / height;
this.#camera.updateProjectionMatrix();
this.#renderer.setSize(width, height);
this.#composer.setSize(width, height);
}
#onMouseMove(e) {
this.#cameraData.positionX = (5 * ((window.innerWidth / 2) – e.clientX))
/ window.innerWidth;
this.#cameraData.positionY = 2 + (0.5 * ((window.innerHeight / 2) – e.clientY))
/ window.innerHeight;
}
#updateEverything() {
const t = performance.now() / 1000;
this.#world.update();
this.#scene.traverse((child) => {
if (child.isMesh) {
const { shader } = child.material.userData;
if (shader) {
shader.uniforms.uTime.value = t;
}
}
});
this.#composer.passes.forEach((pass) => {
if (pass instanceof THREE.ShaderPass) {
// eslint-disable-next-line no-param-reassign
pass.uniforms.uTime.value = (t) % 10;
}
});
{
const x = this.#cameraData.positionX
+ 0.3 * (Math.sin(0.1 * t) + Math.sin(0.05 * t));
const y = this.#cameraData.positionY
+ 0.3 * Math.cos(0.3 * t);
this.#camera.position.set(x, y, 1);
this.#camera.updateProjectionMatrix();
}
}
#render() {
this.#updateEverything();
this.#composer.render(this.#scene, this.#camera);
}
start() {
this.#render();
this.#frameRequestId = requestAnimationFrame(this.start.bind(this));
}
stop() {
cancelAnimationFrame(this.#frameRequestId);
}
}
function main() {
const root = document.getElementById('root');
const example = new FullScreen3DExample(root);
example.start();
}
document.addEventListener('DOMContentLoaded', main);
</script>
</html>
效果如下
参考：源码
