20260310让瑞芯微原厂RK3576的Android14刷入乐晓电子的K7开发板时禁止休眠+锁屏

Y:\\orig_RK3576+Android14\\device\\rockchip\\rk3576\\overlay\\frameworks\\base\\packages\\SettingsProvider\\res\\values\\defaults.xml
Y:\\orig_RK3576+Android14\\device\\rockchip\\rk3576\\rk3576_u\\rk3576_u.mk
Y:\\orig_RK3576+Android14\\frameworks\\base\\packages\\SettingsProvider\\res\\values\\defaults.xml

20260310让瑞芯微原厂RK3576的Android14刷入乐晓电子的K7开发板时禁止休眠+锁屏

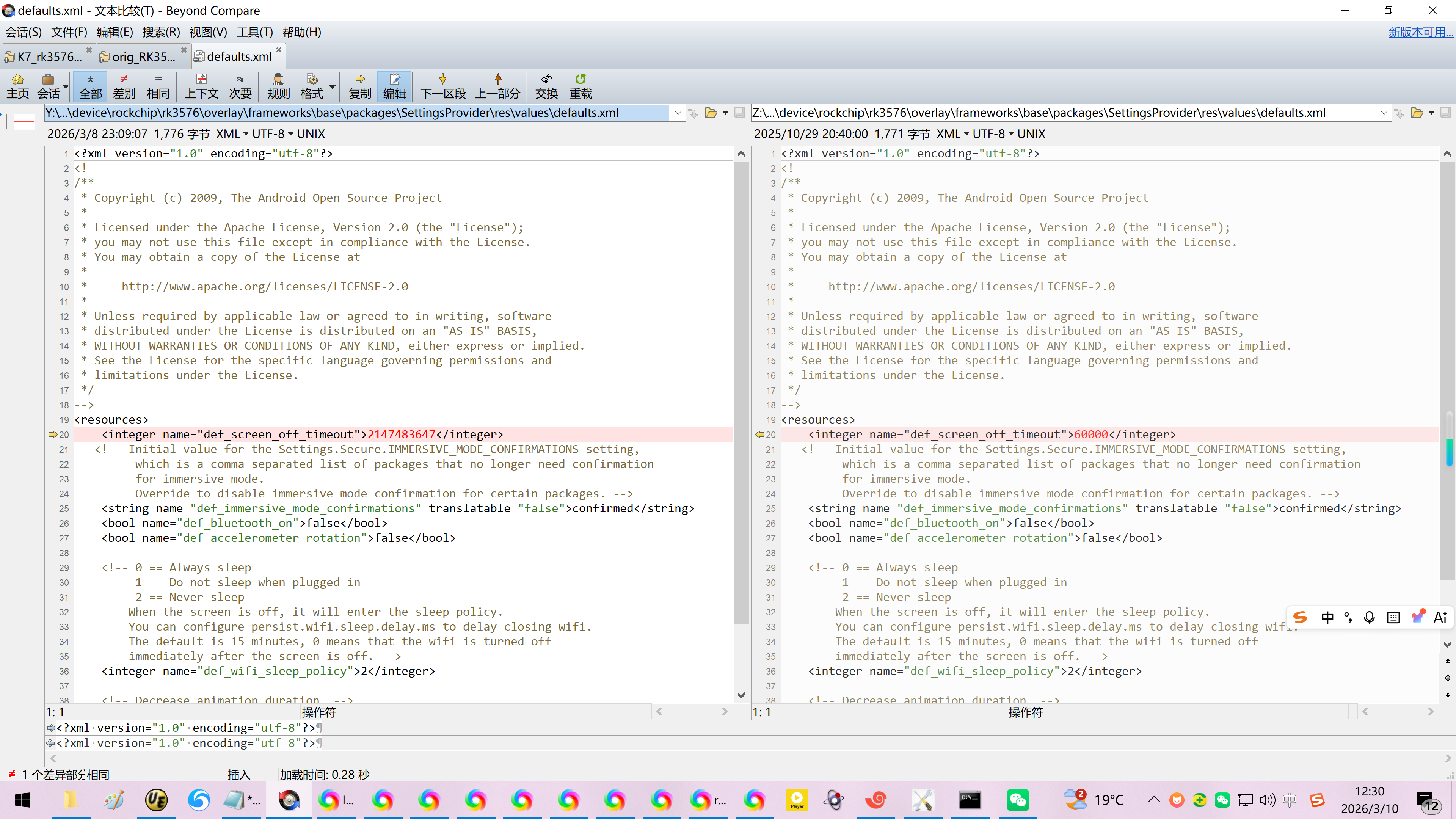

1、【这个优先级比较高，貌似这里会覆盖defaults.xml中的属性值！】
【必须修改，不然开机60s就会深度休眠了！】
Y:\\orig_RK3576+Android14\\device\\rockchip\\rk3576\\overlay\\frameworks\\base\\packages\\SettingsProvider\\res\\values\\defaults.xml

Y:\\orig_RK3576+Android14\\frameworks\\base\\packages\\SettingsProvider\\res\\values\\defaults.xml

<?xml version="1.0" encoding="utf-8"?>
<!–
/**
 * Copyright (c) 2009, The Android Open Source Project
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *     http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
–>
<resources>
    <integer name="def_screen_off_timeout">60000</integer>
   <!– Initial value for the Settings.Secure.IMMERSIVE_MODE_CONFIRMATIONS setting,
         which is a comma separated list of packages that no longer need confirmation
         for immersive mode.
         Override to disable immersive mode confirmation for certain packages. –>
    <string name="def_immersive_mode_confirmations" translatable="false">confirmed</string>
    <bool name="def_bluetooth_on">false</bool>
    <bool name="def_accelerometer_rotation">false</bool>

    <!– 0 == Always sleep
     1 == Do not sleep when plugged in
     2 == Never sleep
    When the screen is off, it will enter the sleep policy.
    You can configure persist.wifi.sleep.delay.ms to delay closing wifi.
    The default is 15 minutes, 0 means that the wifi is turned off
    immediately after the screen is off. –>
    <integer name="def_wifi_sleep_policy">2</integer>

    <!– Decrease animation duration. –>
    <fraction name="def_window_animation_scale">50%</fraction>
    <fraction name="def_window_transition_scale">50%</fraction>
</resources>

修改为：

<?xml version="1.0" encoding="utf-8"?>
<!–
/**
 * Copyright (c) 2009, The Android Open Source Project
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *     http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
–>
<resources>
    <integer name="def_screen_off_timeout">2147483647</integer>
   <!– Initial value for the Settings.Secure.IMMERSIVE_MODE_CONFIRMATIONS setting,
         which is a comma separated list of packages that no longer need confirmation
         for immersive mode.
         Override to disable immersive mode confirmation for certain packages. –>
    <string name="def_immersive_mode_confirmations" translatable="false">confirmed</string>
    <bool name="def_bluetooth_on">false</bool>
    <bool name="def_accelerometer_rotation">false</bool>

    <!– 0 == Always sleep
     1 == Do not sleep when plugged in
     2 == Never sleep
    When the screen is off, it will enter the sleep policy.
    You can configure persist.wifi.sleep.delay.ms to delay closing wifi.
    The default is 15 minutes, 0 means that the wifi is turned off
    immediately after the screen is off. –>
    <integer name="def_wifi_sleep_policy">2</integer>

    <!– Decrease animation duration. –>
    <fraction name="def_window_animation_scale">50%</fraction>
    <fraction name="def_window_transition_scale">50%</fraction>
</resources>

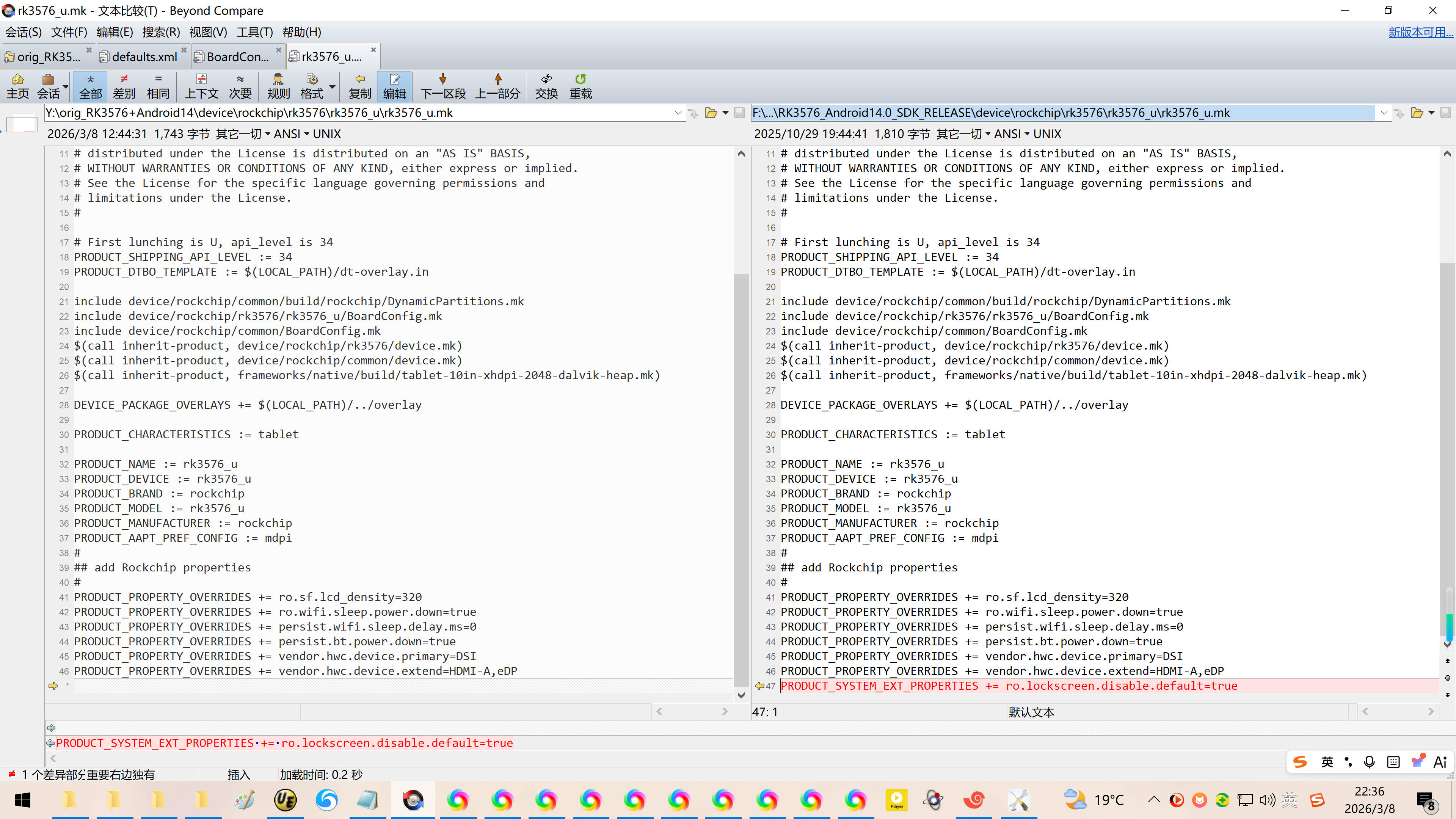

2、看名字这里配置：禁止锁屏
Y:\\orig_RK3576+Android14\\device\\rockchip\\rk3576\\rk3576_u\\rk3576_u.mk

#
# Copyright 2023 The Android Open-Source Project
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#      http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#

# First lunching is U, api_level is 34
PRODUCT_SHIPPING_API_LEVEL := 34
PRODUCT_DTBO_TEMPLATE := $(LOCAL_PATH)/dt-overlay.in

include device/rockchip/common/build/rockchip/DynamicPartitions.mk
include device/rockchip/rk3576/rk3576_u/BoardConfig.mk
include device/rockchip/common/BoardConfig.mk
$(call inherit-product, device/rockchip/rk3576/device.mk)
$(call inherit-product, device/rockchip/common/device.mk)
$(call inherit-product, frameworks/native/build/tablet-10in-xhdpi-2048-dalvik-heap.mk)

DEVICE_PACKAGE_OVERLAYS += $(LOCAL_PATH)/../overlay

PRODUCT_CHARACTERISTICS := tablet

PRODUCT_NAME := rk3576_u
PRODUCT_DEVICE := rk3576_u
PRODUCT_BRAND := rockchip
PRODUCT_MODEL := rk3576_u
PRODUCT_MANUFACTURER := rockchip
PRODUCT_AAPT_PREF_CONFIG := mdpi
#
## add Rockchip properties
#
PRODUCT_PROPERTY_OVERRIDES += ro.sf.lcd_density=320
PRODUCT_PROPERTY_OVERRIDES += ro.wifi.sleep.power.down=true
PRODUCT_PROPERTY_OVERRIDES += persist.wifi.sleep.delay.ms=0
PRODUCT_PROPERTY_OVERRIDES += persist.bt.power.down=true
PRODUCT_PROPERTY_OVERRIDES += vendor.hwc.device.primary=DSI
PRODUCT_PROPERTY_OVERRIDES += vendor.hwc.device.extend=HDMI-A,eDP
PRODUCT_SYSTEM_EXT_PROPERTIES += ro.lockscreen.disable.default=true

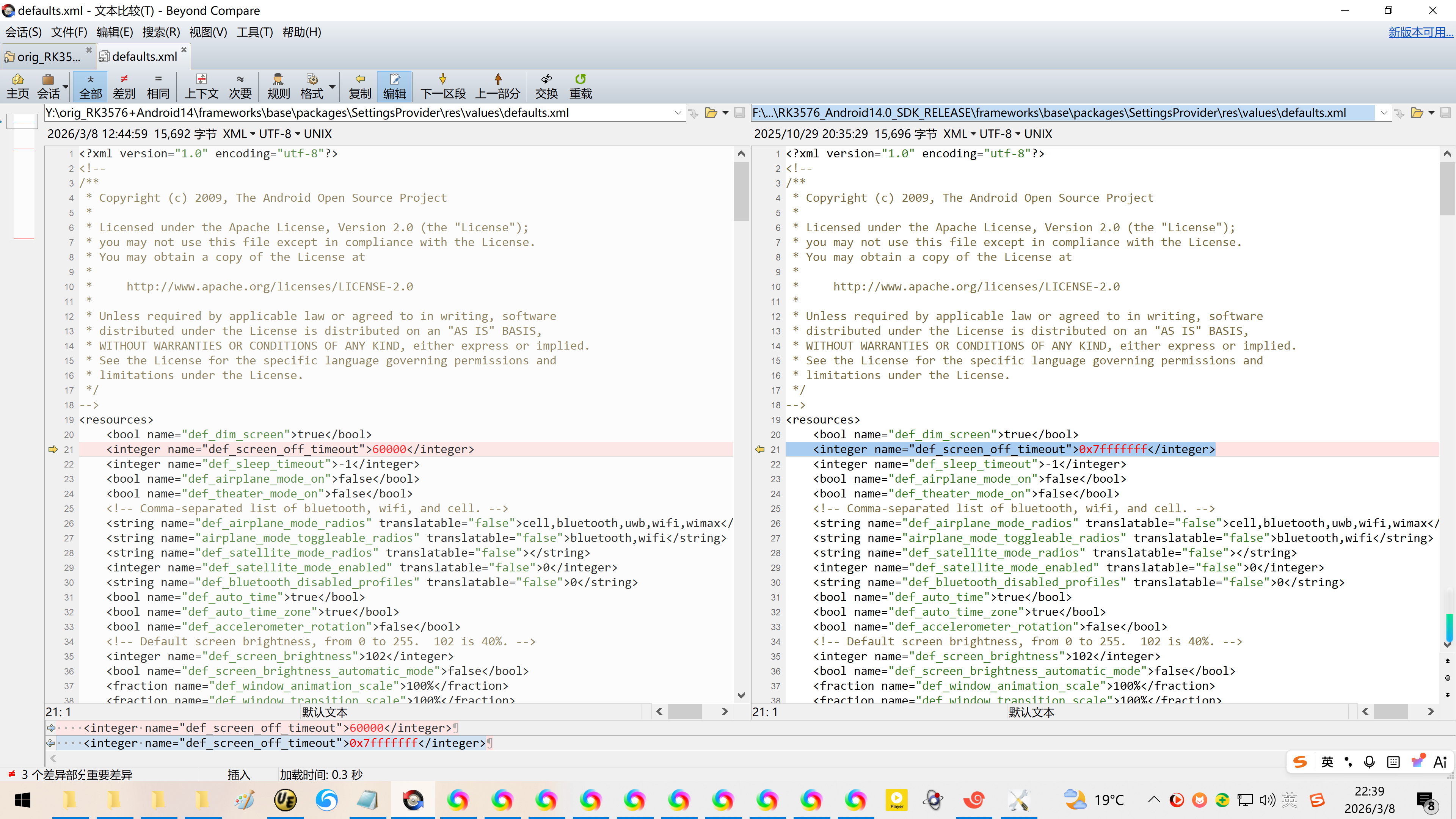

3、一般情况下，实在这里配置：禁止锁屏+永不休眠。
实测，发现defaults.xml的休眠时间会被覆盖掉！

Y:\\orig_RK3576+Android14\\frameworks\\base\\packages\\SettingsProvider\\res\\values\\defaults.xml
Y:\\orig_RK3576+Android14\\device\\rockchip\\rk3576\\overlay\\frameworks\\base\\packages\\SettingsProvider\\res\\values\\defaults.xml

    <integer name="def_screen_off_timeout">60000</integer>
修改为：
    <integer name="def_screen_off_timeout">0x7fffffff</integer>

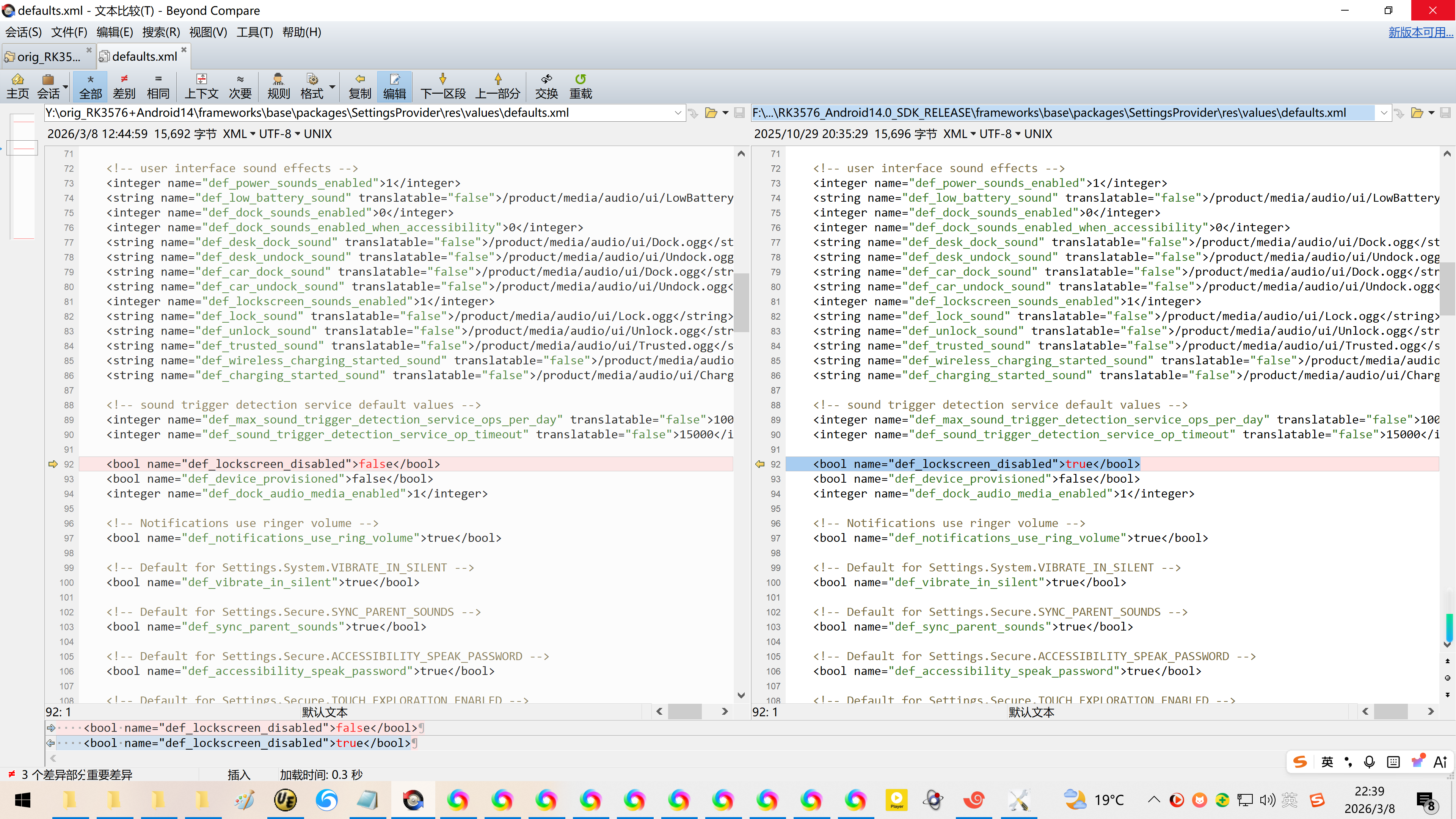

    <bool name="def_lockscreen_disabled">false</bool>
    <bool name="def_device_provisioned">false</bool>
    <integer name="def_dock_audio_media_enabled">1</integer>
修改为：
    <bool name="def_lockscreen_disabled">true</bool>
    <bool name="def_device_provisioned">false</bool>
    <integer name="def_dock_audio_media_enabled">1</integer>

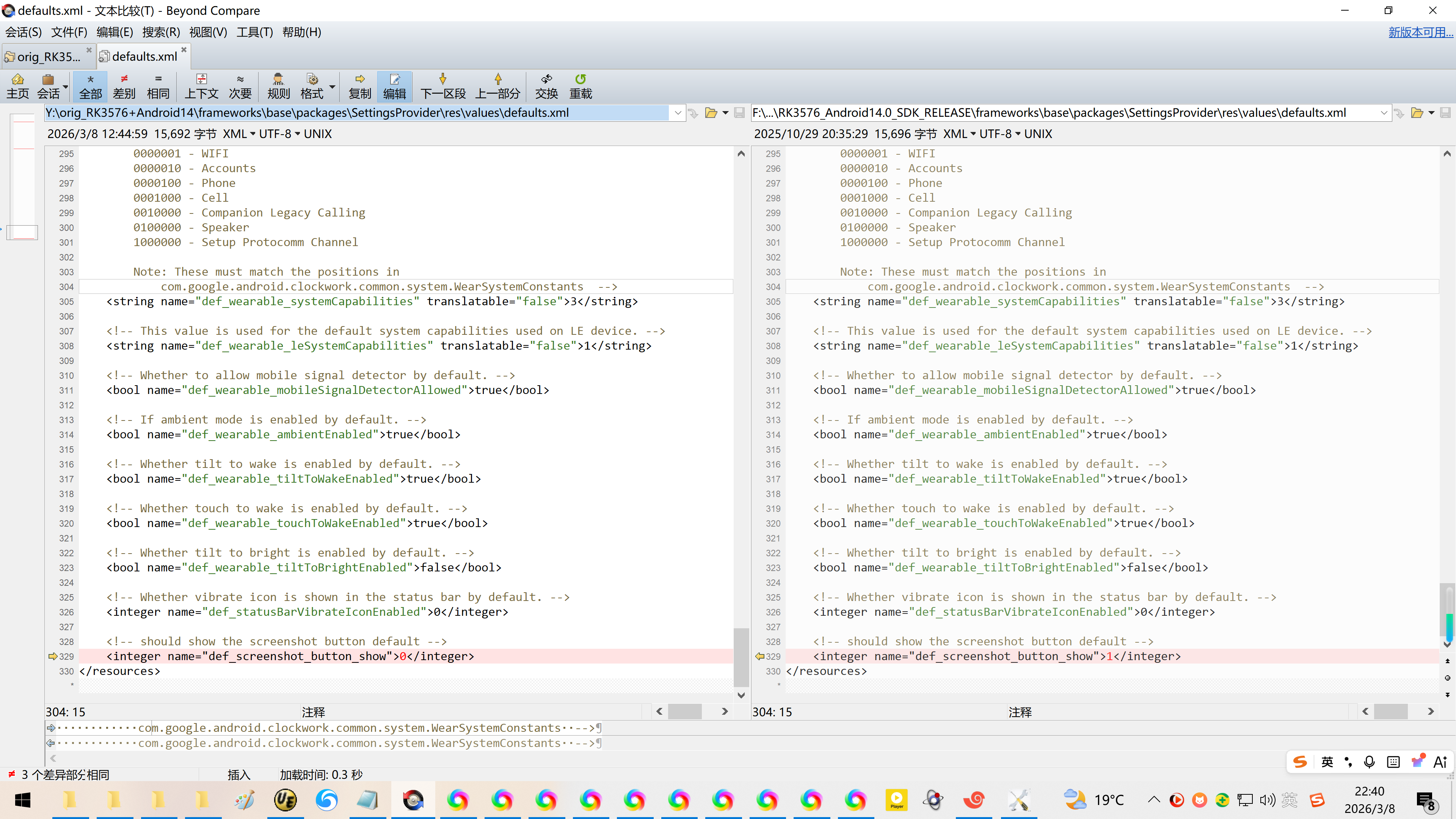

    <!– should show the screenshot button default –>
    <integer name="def_screenshot_button_show">0</integer>
</resources>
修改为：

    <!– should show the screenshot button default –>
    <integer name="def_screenshot_button_show">1</integer>
</resources>

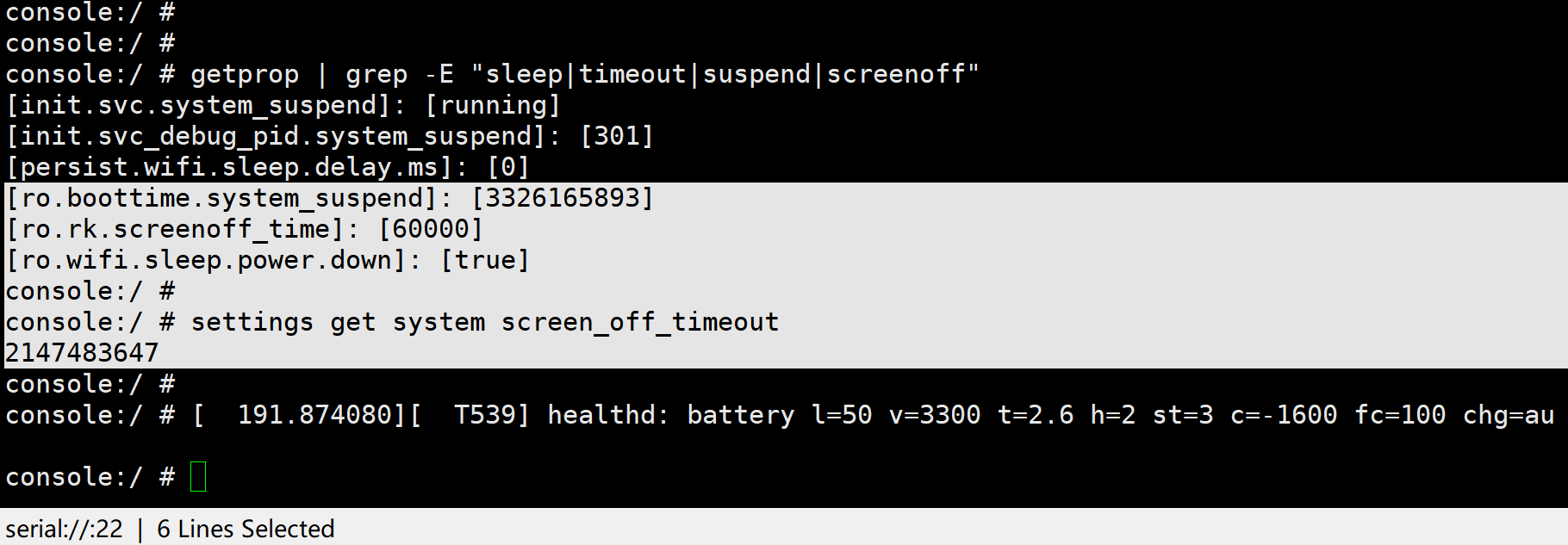

4、刷机之后确认休眠时间：
console:/ #
console:/ # getprop | grep -E "sleep|timeout|suspend|screenoff"
[init.svc.system_suspend]: [running]
[init.svc_debug_pid.system_suspend]: [301]
[persist.wifi.sleep.delay.ms]: [0]
[ro.boottime.system_suspend]: [3326165893]
[ro.rk.screenoff_time]: [60000]
[ro.wifi.sleep.power.down]: [true]
console:/ #
console:/ # settings get system screen_off_timeout
2147483647
console:/ #
