【Prometheus监控Nginx/Mysql/Redis/Docker/Rabbitmq】

提示：本文原创作品，良心制作，干货为主，简洁清晰，一看就会

文章目录

• 前言
• 一、环境介绍
• 二、运行Nginx/Mysql/Redis/Docker/Rabbitmq服务
• 三、安装各类exporter
• 四、exporter地址
• 五、修改prometheus配置
• 六、添加触发器
• 七、Grafana导入dashboard监控模版

前言

在当下运维工作中，服务器与各类中间件运行状态把控尤为重要。传统人工巡检效率低、无法及时发现故障，难以满足业务稳定运行需求。本文基于Prometheus监控体系，结合对应Exporter组件，实战讲解Nginx、MySQL、Redis、Docker、RabbitMQ主流服务监控部署流程，搭配可视化面板实现数据实时采集、指标查看与异常预警，助力运维人员快速掌握服务状态，高效排查问题，保障业务平稳运行

一、环境介绍

关于监控端的服务我已经安装好了，prometheus有两种安装方式：二进制安装和docker安装，本次实验使用的容器安装的，后续被监控端我也统一使用容器部署，大家可以自行选择 关于监控端的服务如何安装，这里不在赘述，有不懂的同学可以查看此篇文章 Prometheus二进制安装：https://blog.csdn.net/m0_63756214/article/details/161196428?spm=1001.2014.3001.5501 Prometheus容器安装：https://blog.csdn.net/m0_63756214/article/details/161225636?spm=1001.2014.3001.5501

被监控端的docker和docker-compose的安装可以参考此篇文章的2.1和2.2小节 https://blog.csdn.net/m0_63756214/article/details/161240598?spm=1001.2014.3001.5501

二、运行Nginx/Mysql/Redis/Docker/Rabbitmq服务

要监控Nginx/Mysql/Redis/Docker/Rabbitmq等服务，首先是被监控端有这些服务，我们才能去监控数据 为了方便教学，我这里会用容器运行Nginx/Mysql/Redis/Docker/Rabbitmq服务

## 1. 创建各容器的映射目录
root@ubuntu:~# mkdir -p /data/redis/data /data/nginx/{conf.d,html,log} /data/rabbitmq/{data,log} /data/mysql/{conf,data}
root@ubuntu:~# ls /data/
mysql nginx rabbitmq redis

## 2. stub_status是nginx给prometheus暴露监控数据的 “数据接口”，没有它，nginx_exporter 就拿不到任何监控指标
## 所以nginx需要开启stub_status，我们需要把子配置文件挂载到容器中
root@ubuntu:~# vim /data/nginx/conf.d/server.conf
server {
listen 80;
server_name localhost;

location / {
root /usr/share/nginx/html;
index index.html index.htm;
}

location /stub_status {
stub_status on;
access_log off;
#allow nginx_export的ip;
allow 0.0.0.0/0;
deny all;
}

error_page 500 502 503 504 /50x.html;
location = /50x.html {
root /usr/share/nginx/html;
}
}

## 运行Nginx/Mysql/Redis/Docker/Rabbitmq容器
root@ubuntu:~# cd /data/
root@ubuntu:/data# vim docker-compose.yaml
version: '3.8'

services:
# 运行redis容器
redis:
image: redis:6.2.7
container_name: redis
command: redis–server ––requirepass 'Qing@123456' ––maxmemory 512mb ––appendonly yes
restart: always
volumes:
– /data/redis/data:/data
ports:
– "6379:6379"
healthcheck:
test: ["CMD", "redis-cli", "–raw", "incr", "ping"]
interval: 10s
timeout: 3s
retries: 3

# 运行nginx容器
nginx:
image: nginx:1.25
container_name: nginx
restart: always
volumes:
– /data/nginx/conf.d:/etc/nginx/conf.d
– /data/nginx/html:/usr/share/nginx/html
– /data/nginx/log:/var/log/nginx
ports:
– "80:80"
healthcheck:
test: ["CMD", "curl", "-f", "http://localhost/"]
interval: 10s
timeout: 3s
retries: 3

# 运行rabbitmq容器,适用于3.8版本以上
rabbitmq:
image: rabbitmq:3.13–management
container_name: rabbitmq
restart: always
volumes:
– /data/rabbitmq/data:/var/lib/rabbitmq
– /data/rabbitmq/log:/var/log/rabbitmq
ports:
– "5672:5672"
– "15672:15672" # RabbitMQ 管理界面 HTTP 端口
– "15692:15692" # Prometheus 指标暴露端口（官方插件专用），后续不用安装exporter
# 容器启动命令，启动管理插件和prometheus插件，然后启动服务
command: sh –c "rabbitmq–plugins enable rabbitmq_management rabbitmq_prometheus && rabbitmq–server"
healthcheck:
test: ["CMD", "rabbitmq-diagnostics", "ping"]
interval: 10s
timeout: 5s
retries: 3

# 运行mysql容器
db:
image: mysql:8.0
restart: always
container_name: mysql
environment:
TZ: Asia/Shanghai
LANG: en_US.UTF–8
MYSQL_ROOT_PASSWORD: Qing@123456
command:
––default–authentication–plugin=mysql_native_password
––character–set–server=utf8mb4
––collation–server=utf8mb4_general_ci
––lower_case_table_names=1
––performance_schema=1
––sql–mode=""
––skip–log–bin
volumes:
– /data/mysql/conf:/etc/mysql/conf.d
– /data/mysql/data:/var/lib/mysql
ports:
– "3306:3306"
healthcheck:
test: ["CMD", "mysqladmin", "ping", "-h", "localhost", "-pQing@123456"]
interval: 10s
timeout: 3s
retries: 5
root@ubuntu:/data# docker-compose up -d

## 因为stub_status是nginx内置的状态数据输出功能，而这个功能必须通过–with-http_stub_status_module模块编译才能开启
## 没有这个模块，nginx根本无法输出任何状态信息，监控就完全失效
## 这个模块默认都是存在的，以防万一我们可以检查一下
root@ubuntu:/data# docker exec -it nginx /bin/bash
root@d74099a7799c:/# nginx -V 2>&1 | grep -o with-http_stub_status_module
with–http_stub_status_module
root@d74099a7799c:/# exit
exit
root@ubuntu:/data# curl 192.168.13.142/stub_status
Active connections: 1
server accepts handled requests
557 557 557
Reading: 0 Writing: 1 Waiting: 0

三、安装各类exporter

在上面我们运行了各类服务的容器 针对mysql容器，我们需要进入mysql创建一个用户，这个 用户是用来监控 MySQL 的，它只需要看状态、看指标；不需要删库、不需要改表、不需要权限 这里不建议用root用户，root用户权限过高不安全

root@ubuntu:/data# docker exec -it mysql /bin/bash
bash–5.1# mysql -uroot -p'Qing@123456'

Type 'help;' or '\\h' for help. Type '\\c' to clear the current input statement.

mysql> create user 'exporter'@'%' identified by 'Qing@123456';

mysql> grant process,replication client,select on *.* to 'exporter'@'%';

mysql> exit
Bye
bash–5.1# exit
exit
root@ubuntu:/data#

下面我们需要在被监控端安装上各类服务的exporter（rabbitmq特殊，rabbitmq 3.8版本以上可以直接安装prometheus插件，无需安装对应的exporter就可以采集到监控数据）

exporter把各类软件原生状态数据，转成 Prometheus 能识别的标准监控指标，对外暴露 /metrics 接口供抓取 无 Exporter → Prometheus 抓不到任何业务组件监控数据

root@ubuntu:/data# mkdir prometheus
root@ubuntu:/data# cd prometheus/
root@ubuntu:/data/prometheus# vim docker-compose.yaml
version: '3.8'

services:
# nginx 监控指标导出器
nginx_exporter:
image: nginx/nginx–prometheus–exporter
container_name: nginx_exporter
# 指定要监控的nginx状态地址
command:
– '-nginx.scrape-uri=http://192.168.13.142/stub_status'
restart: always
ports:
– "9113:9113"

# redis 监控指标导出器
redis_exporter:
image: oliver006/redis_exporter
container_name: redis_exporter
restart: always
# redis exporter支持环境变量传密码,所以可以直接写到yaml文件中
environment:
– REDIS_ADDR=192.168.13.142:6379
– REDIS_PASSWORD=Qing@123456
ports:
– "9121:9121"

# mysql 监控指标导出器
mysqld-exporter:
image: prom/mysqld–exporter
container_name: mysqld–exporter
restart: always
# 开启需要的mysql监控指标+指定配置文件
command:
– '–collect.info_schema.processlist'
– '–collect.info_schema.innodb_metrics'
– '–collect.info_schema.tablestats'
– '–collect.info_schema.tables'
– '–collect.info_schema.userstats'
– '–collect.engine_innodb_status'
– '–config.my-cnf=/my.cnf'
# 主机中的my.cnf文件里面是mysql的地址账号密码，MySQL exporter不推荐环境变量传密码，所以只能写到文件中
volumes:
– ./my.cnf:/my.cnf
ports:
– "9104:9104"

# docker 容器状态监控
cadvisor:
image: google/cadvisor:latest
container_name: cadvisor
restart: always
# 挂载系统目录，让cadvisor采集docker系统状态
volumes:
– /:/rootfs:ro
– /var/run:/var/run:ro
– /sys:/sys:ro
– /var/lib/docker:/var/lib/docker:ro
ports:
– "8080:8080"

# 由于我们没有在刚才的docker-compose.yaml中设置mysql的地址账号密码
# mysqld_exporter 目前不知道 mysql的地址账号密码，所以需要在同目录下创建my.cnf
root@ubuntu:/data/prometheus# vim my.cnf
[client]
host=192.168.13.142
user=exporter
password=Qing@123456
port=3306
root@ubuntu:/data/prometheus#
root@ubuntu:/data/prometheus# docker-compose up -d

四、exporter地址

安装好exporter后会暴露一个http://ip:端口/metrics的HTTP服务 大家可以在浏览器上访问，每个网页都对应着不同exporter的监控样本数据

五、修改prometheus配置

接下来我们需要在监控端修改prometheus.yml去拉取exporter的监控样本数据

root@prometheus:~# vim /opt/prometheus/prometheus/prometheus.yml
# 在scrape_configs块下新增了一些job
scrape_configs:
– job_name: 'prometheus'
# 覆盖全局默认值，每15秒从该作业中刮取一次目标
scrape_interval: 15s
static_configs:
– targets: ['localhost:9090']
– job_name: 'alertmanager'
scrape_interval: 15s
static_configs:
– targets: ['alertmanager:9093']
– job_name: 'cadvisor'
scrape_interval: 15s
static_configs:
– targets: ['cadvisor:8080']
labels:
instance: Prometheus服务器
# 新增，prometheus拉取被监控端docker的监控数据
– targets: ['192.168.13.142:8080']
labels:
instance: Linux服务器

– job_name: 'node-exporter'
scrape_interval: 15s
static_configs:
– targets: ['node_exporter:9100']
labels:
instance: Prometheus服务器
– targets: ['192.168.13.142:9100']
labels:
instance: Linux服务器
# 新增，prometheus拉取被监控端nginx-exporter的监控数据
– job_name: 'nginx-exporter'
scrape_interval: 15s
static_configs:
– targets: ['192.168.13.142:9113']
labels:
instance: Linux服务器
# 新增，prometheus拉取被监控端redis-exporter的监控数据
– job_name: 'redis-exporter'
scrape_interval: 15s
static_configs:
– targets: ['192.168.13.142:9121']
labels:
instance: Linux服务器
# 新增，prometheus拉取被监控端mysql-exporter的监控数据
– job_name: 'mysql-exporter'
scrape_interval: 15s
static_configs:
– targets: ['192.168.13.142:9104']
labels:
instance: Linux服务器
# 新增，prometheus拉取被监控端rabbitmq的监控数据
– job_name: 'rabbitmq-exporter'
scrape_interval: 15s
static_configs:
– targets: ['192.168.13.142:15692']
labels:
instance: Linux服务器

## 热加载prometheus配置
root@prometheus:~# curl -X POST http://localhost:9090/-/reload

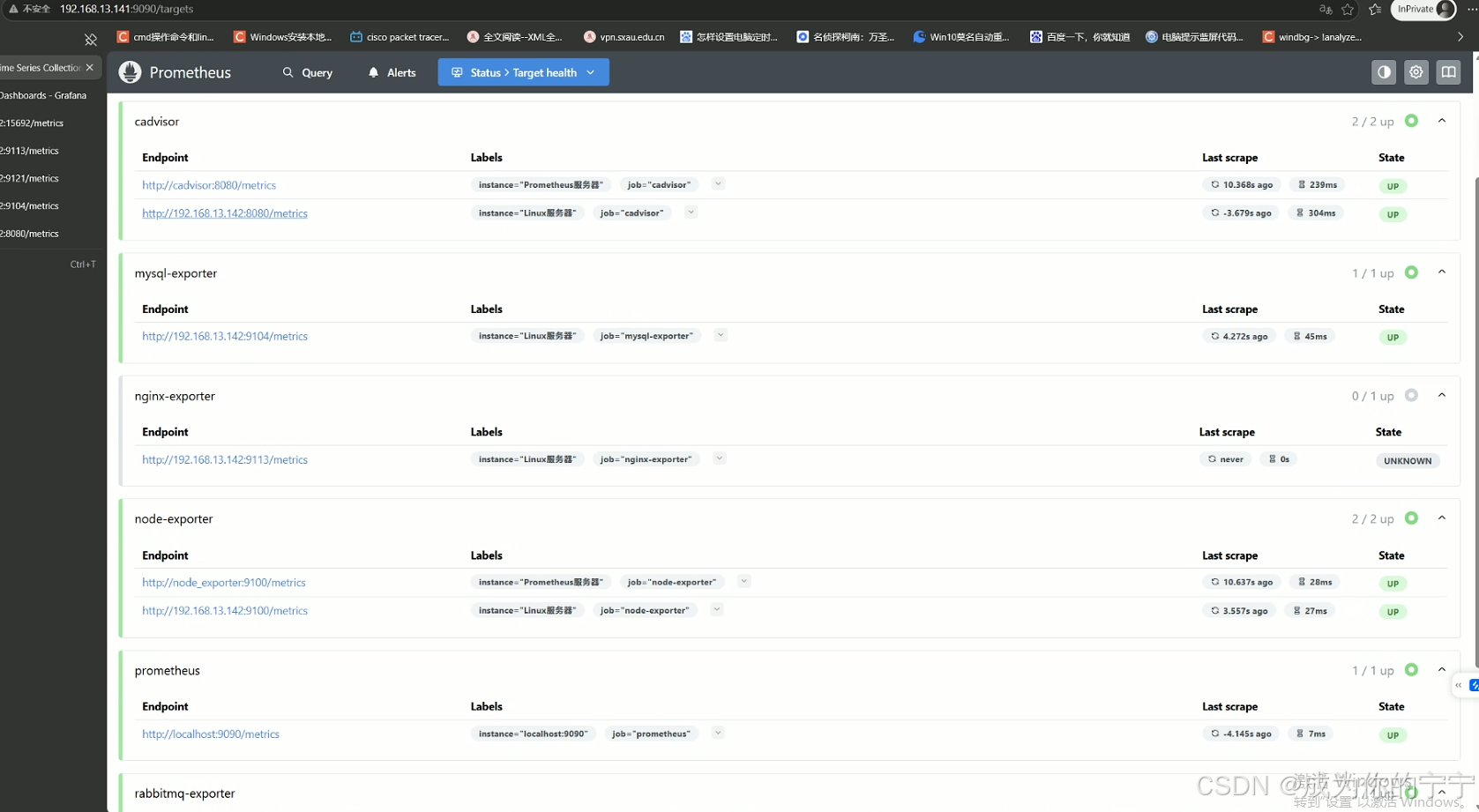

浏览器访问监控端 ip:9090prometheus的页面，可以看到exporter的状态都正常

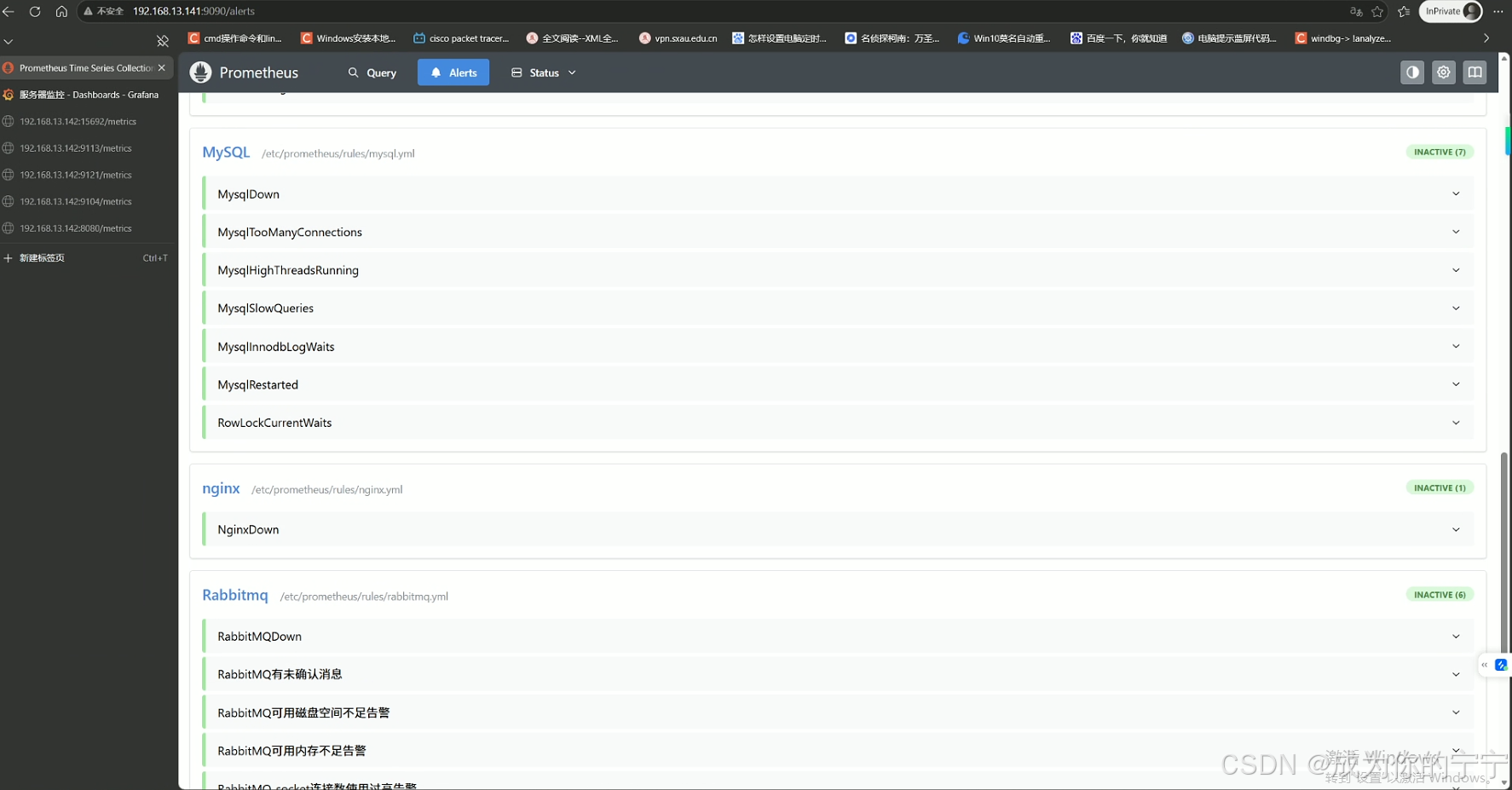

六、添加触发器

我这里只是提供一些触发器的参考，大家可以根据自己实际的版本进行调整，或者去网上搜，会有更全面的版本

root@prometheus:~# cat /opt/prometheus/prometheus/prometheus.yml
# 报警(触发器)配置
rule_files:
– "alert.yml"
– "rules/*.yml"
root@prometheus:~# mkdir /opt/prometheus/prometheus/rules
root@prometheus:~# cd /opt/prometheus/prometheus/rules

root@prometheus:/opt/prometheus/prometheus/rules# vim nginx.yml
groups:
– name: nginx
rules:
# Nginx 下线告警（exporter 无法连接 Nginx）
– alert: NginxDown
expr: nginx_up == 0
for: 30s
labels:
severity: critical
annotations:
summary: "nginx异常,实例:{{ $labels.instance }}"
description: "{{ $labels.job }} nginx已关闭"

root@prometheus:/opt/prometheus/prometheus/rules# vim redis.yml
groups:
– name: redis
rules:
– alert: RedisDown
expr: redis_up == 0
for: 0m
labels:
severity: critical
annotations:
summary: 'Redis Down,实例:{{ $labels.instance }}'
description: "Redis实例 is down"
– alert: RedisMissingBackup
expr: time() – redis_rdb_last_save_timestamp_seconds > 60 * 60 * 24
for: 0m
labels:
severity: critical
annotations:
summary: "Redis备份丢失,实例:{{ $labels.instance }}"
description: "Redis 24小时未备份"

– alert: RedisOutOfConfiguredMaxmemory
expr: redis_memory_used_bytes / redis_memory_max_bytes * 100 > 90
for: 2m
labels:
severity: warning
annotations:
summary: "Redis超出配置的最大内存,实例:{{ $labels.instance }}"
description: "Redis内存使用超过配置最大内存的90%"
– alert: RedisTooManyConnections
expr: redis_connected_clients > 100
for: 2m
labels:
severity: warning
annotations:
summary: "Redis连接数过多,实例:{{ $labels.instance }}"
description: "Redis当前连接数为： {{ $value }}"
– alert: RedisNotEnoughConnections
expr: redis_connected_clients < 1
for: 2m
labels:
severity: warning
annotations:
summary: "Redis没有足够的连接,实例:{{ $labels.instance }}"
description: "Redis当前连接数为： {{ $value }}"
– alert: RedisRejectedConnections
expr: increase(redis_rejected_connections_total[1m]) > 0
for: 0m
labels:
severity: critical
annotations:
summary: "Redis有拒绝连接,实例:{{ $labels.instance }}"
description: "与Redis 的某些连接被拒绝{{ $value }}"

root@prometheus:/opt/prometheus/prometheus/rules# vim mysql.yml
groups:
– name: MySQL
rules:
– alert: MysqlDown
expr: mysql_up == 0
for: 30s
labels:
severity: critical
annotations:
summary: "MySQL Down,实例:{{ $labels.instance }}"
description: "MySQL_exporter连不上MySQL了，当前状态为：{{ $value }}"
– alert: MysqlTooManyConnections
expr: max_over_time(mysql_global_status_threads_connected[1m]) / mysql_global_variables_max_connections * 100 > 80
for: 2m
labels:
severity: warning
annotations:
summary: "Mysql连接数过多告警,实例:{{ $labels.instance }}"
description: "MySQL连接数>80%,当前值：{{ $value }}"
– alert: MysqlHighThreadsRunning
expr: max_over_time(mysql_global_status_threads_running[1m]) > 20
for: 2m
labels:
severity: warning
annotations:
summary: "Mysql运行的线程过多,实例:{{ $labels.instance }}"
description: "Mysql运行的线程 > 20，当前运行的线程：{{ $value }}"
– alert: MysqlSlowQueries
expr: increase(mysql_global_status_slow_queries[2m]) > 0
for: 2m
labels:
severity: warning
annotations:
summary: "Mysql慢日志告警,实例:{{ $labels.instance }}"
description: "MySQL在过去2分钟有新的{{ $value }}条慢查询"
#MySQL innodb 日志写入停滞
– alert: MysqlInnodbLogWaits
expr: rate(mysql_global_status_innodb_log_waits[15m]) > 10
for: 0m
labels:
severity: warning
annotations:
summary: "MySQL innodb日志等待,实例:{{ $labels.instance }}"
description: "MySQL innodb日志写入停滞，当前值： {{ $value }}"
– alert: MysqlRestarted
expr: mysql_global_status_uptime < 60
for: 0m
labels:
severity: info
annotations:
summary: "MySQL 重启,实例:{{ $labels.instance }}"
description: "不到一分钟前，MySQL重启过"

– alert: RowLockCurrentWaits
expr: mysql_global_status_innodb_row_lock_current_waits > 0
for: 1m
labels:
severity: info
annotations:
summary: "MySQL有锁等待,实例:{{ $labels.instance }}"
description: "当前有{{ $value }}个锁等待"

root@prometheus:/opt/prometheus/prometheus/rules# vim rabbitmq.yml
groups:
– name: Rabbitmq
rules:
– alert: RabbitMQDown
expr: rabbitmq_up != 1
labels:
severity: High
annotations:
summary: "Rabbitmq Down,实例:{{ $labels.instance }}"
description: "Rabbitmq_exporter连不上RabbitMQ! ! !"
– alert: RabbitMQ有未确认消息
expr: rabbitmq_queue_messages_unacknowledged_global > 0
for: 1m
labels:
severity: critical
annotations:
summary: "RabbitMQ有未确认消息,实例:{{ $labels.instance }}"
description: 'RabbitMQ未确认消息>0,当前值为：{{ $value }}'
– alert: RabbitMQ可用磁盘空间不足告警
expr: rabbitmq_node_disk_free_alarm != 0
#expr: rabbitmq_node_disk_free_limit / rabbitmq_node_disk_free *100 > 90
for: 0m
labels:
severity: critical
annotations:
summary: "RabbitMQ可用磁盘空间不足,实例:{{ $labels.instance }}"
description: "RabbitMQ可用磁盘空间不足，请检查"
– alert: RabbitMQ可用内存不足告警
expr: rabbitmq_node_mem_alarm != 0
#expr: rabbitmq_node_mem_used / rabbitmq_node_mem_limit * 100 > 90
for: 0m
labels:
severity: critical
annotations:
summary: "RabbitMQ可用内存不足,实例:{{ $labels.instance }}"
description: "RabbitMQ可用内存不足，请检查"
– alert: RabbitMQ_socket连接数使用过高告警
expr: rabbitmq_sockets_used / rabbitmq_sockets_available * 100 > 60
for: 0m
labels:
severity: critical
annotations:
summary: "RabbitMQ_socket连接数使用过高,实例:{{ $labels.instance }}"
description: 'RabbitMQ_sockets使用>60%,当前值为：{{ $value }}'
– alert: RabbitMQ文件描述符使用过高告警
expr: rabbitmq_fd_used / rabbitmq_fd_available * 100 > 60
for: 0m
labels:
severity: critical
annotations:
summary: "RabbitMQ文件描述符使用过高,实例:{{ $labels.instance }}"
description: 'RabbitMQ文件描述符使用>60%,当前值为：{{ $value }}'

root@prometheus:/opt/prometheus/prometheus/rules# vim docker.yml
groups:
– name: DockerContainers
rules:
– alert: ContainerKilled
expr: time() – container_last_seen > 60
for: 0m
labels:
severity: warning
annotations:
isummary: "Docker容器被杀死 容器:{{ $labels.instance }}"
description: "{{ $value }}个容器消失了"
# This rule can be very noisy in dynamic infra with legitimate container start/stop/deployment.
– alert: ContainerAbsent
expr: absent(container_last_seen)
for: 5m
labels:
severity: warning
annotations:
summary: "无容器 容器: {{ $labels.instance }}"
description: "5分钟检查容器不存在，值为：{{ $value }}"
– alert: ContainerCpuUsage
expr: (sum(rate(container_cpu_usage_seconds_total{name!=""}[3m])) BY (instance, name) * 100) > 300
for: 2m
labels:
severity: warning
annotations:
summary: "容器cpu使用率告警 容器: {{ $labels.instance }}"
description: "容器cpu使用率超过300%，当前值为：{{ $value }}"
– alert: ContainerMemoryUsage
expr: (sum(container_memory_working_set_bytes{name!=""}) BY (instance, name) / sum(container_spec_memory_limit_bytes > 0) BY (instance, name) * 100) > 80
for: 2m
labels:
severity: warning
annotations:
summary: "容器内存使用率告警 容器: {{ $labels.instance }}"
description: "容器内存使用率超过80%，当前值为：{{ $value }}"
– alert: ContainerVolumeIoUsage
expr: (sum(container_fs_io_current{name!=""}) BY (instance, name) * 100) > 80
for: 2m
labels:
severity: warning
annotations:
summary: "容器存储io使用率告警 容器: {{ $labels.instance }}"
description: "容器存储io使用率超过 80%，当前值为：{{ $value }}"
– alert: ContainerHighThrottleRate
expr: rate(container_cpu_cfs_throttled_seconds_total[3m]) > 1
for: 2m
labels:
severity: warning
annotations:
summary: "容器限制告警 容器:{{ $labels.instance }}"
description: "容器被限制，当前值为：{{ $value }}"

## 热加载prometheus
root@prometheus:~# curl -X POST http://localhost:9090/-/reload

浏览器访问监控端 ip:9090prometheus的页面，可以看到alerts报警增加了很多

七、Grafana导入dashboard监控模版

现在prometheus已经拉取了被监控端的数据，现在需要在grafana上导入各exporter的创建dashboard模版 Grafana dashboard官网：https://grafana.com/grafana/dashboards/ 下面以nginx_exporter为例，其他的配置一样

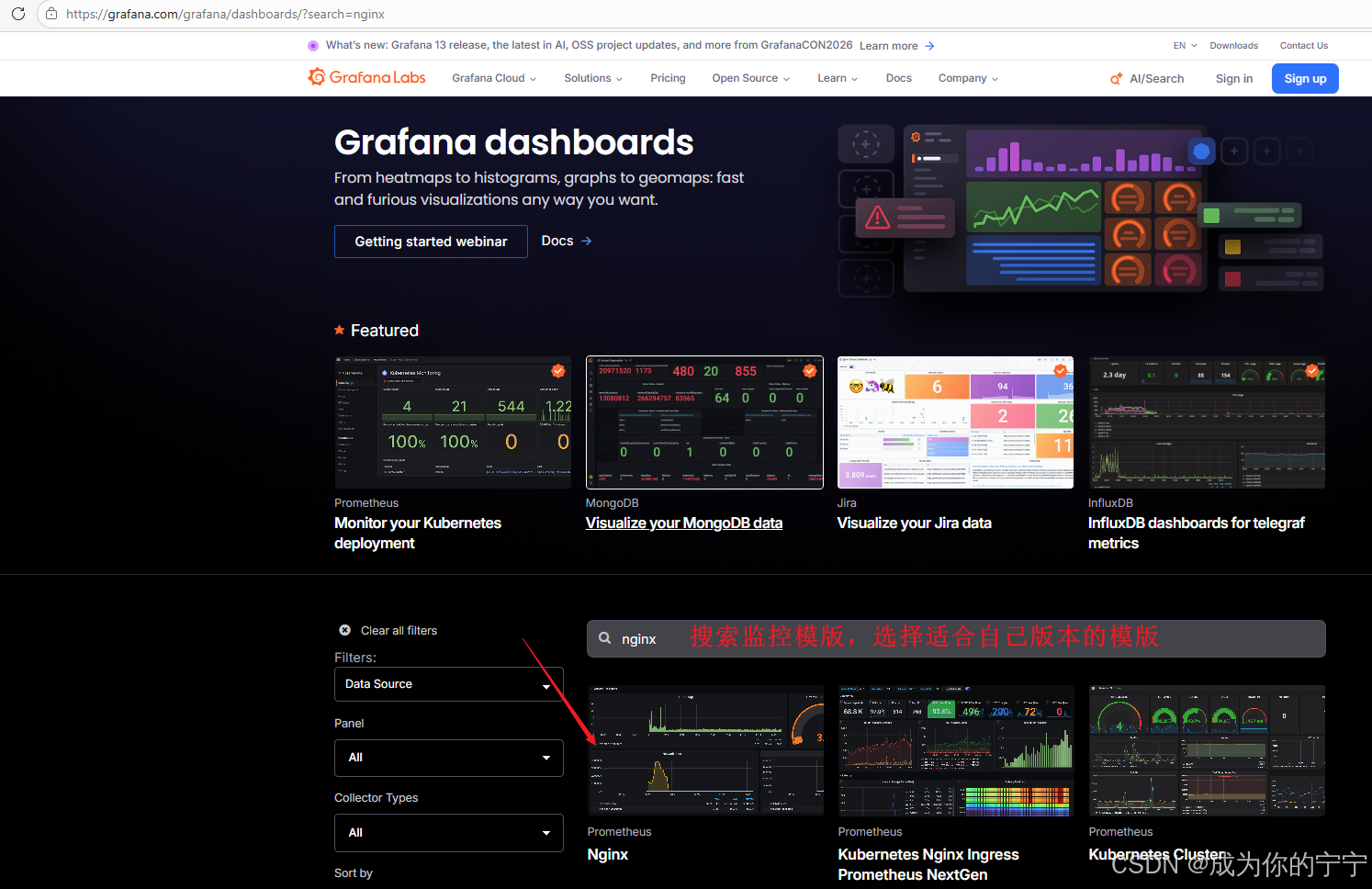

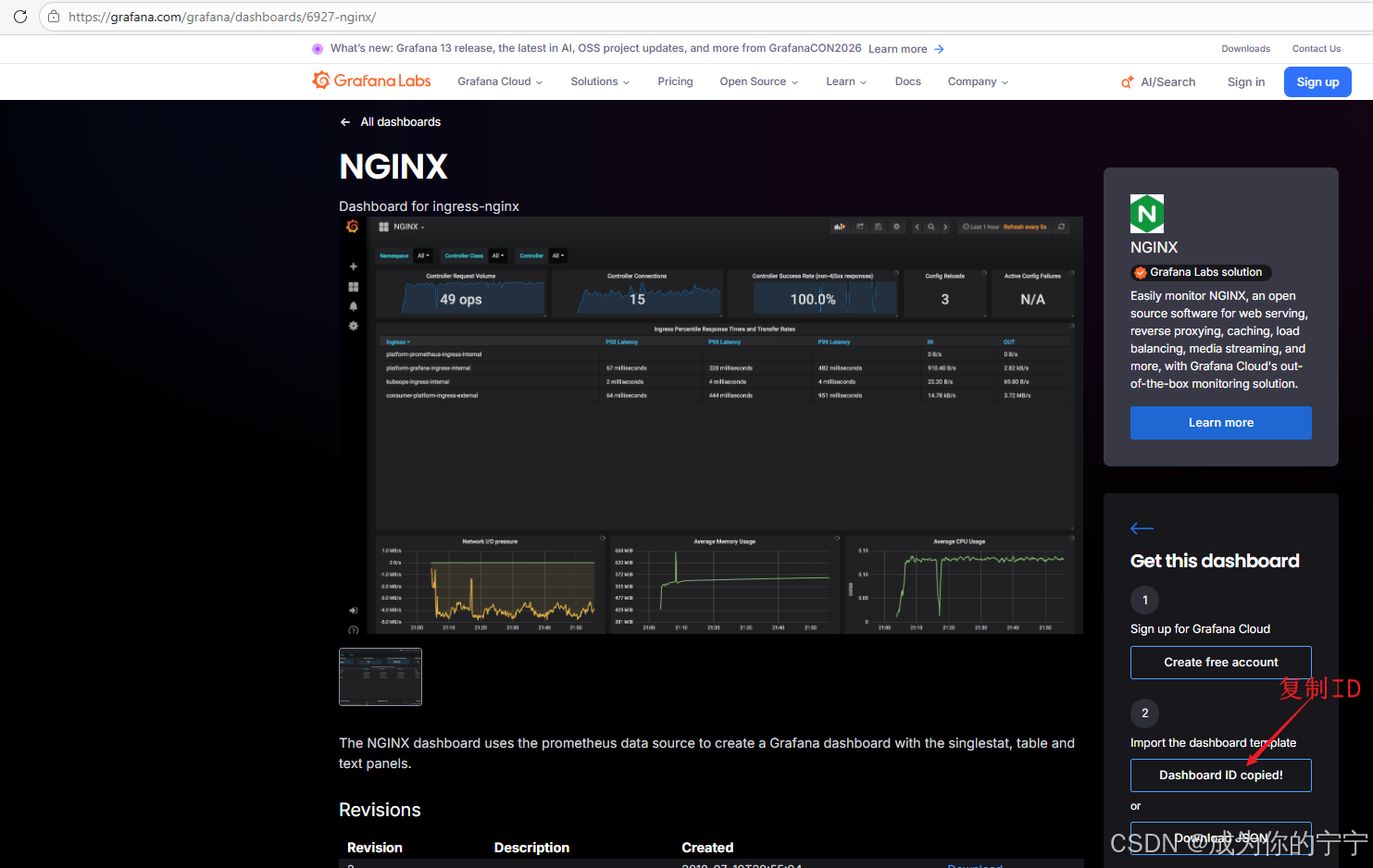

首先访问grafana官网，找到适合的dashboard

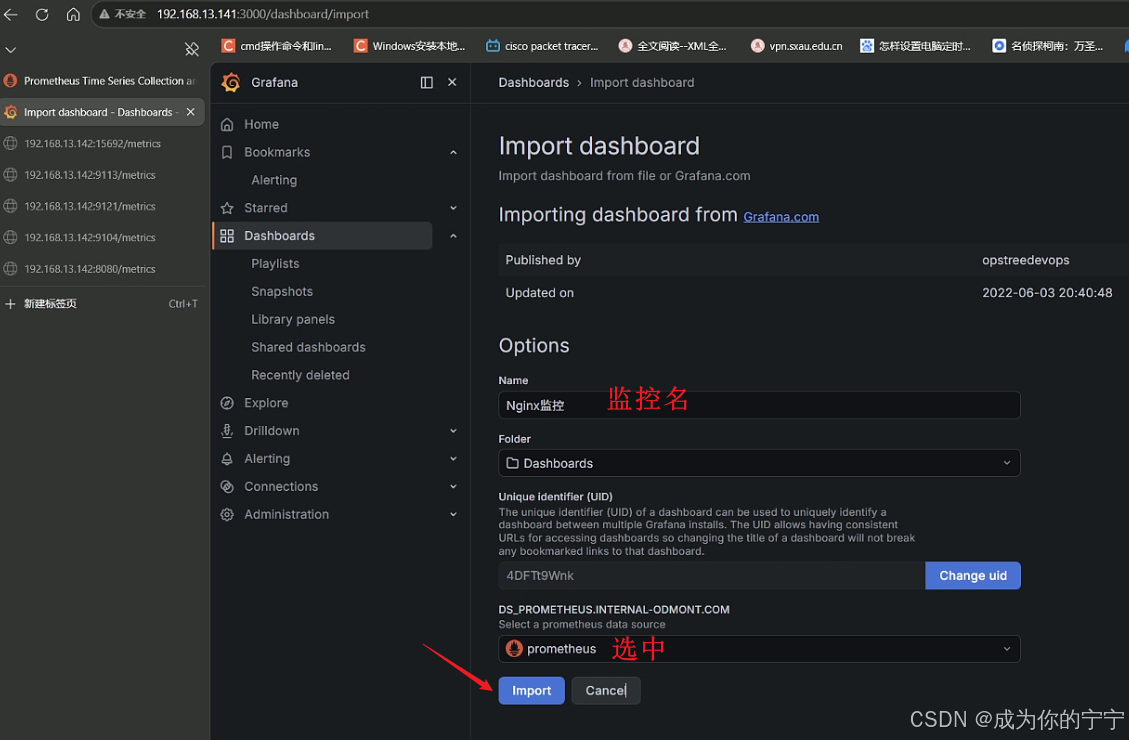

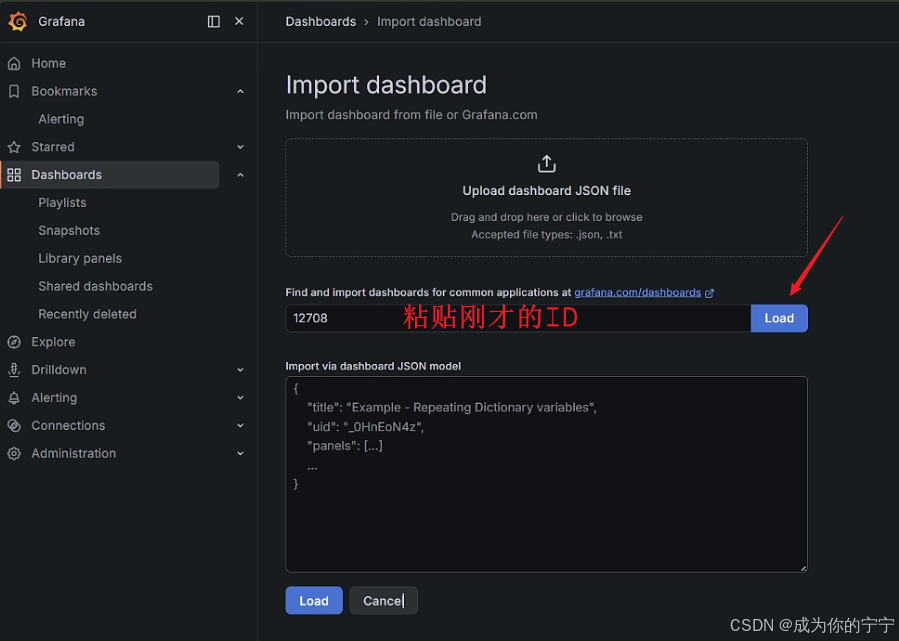

然后回到自己搭建的grafana界面，导入dashboard的ID

图形展示

下面我挑选了一些服务常用模版，大家也可以自己去grafana官自行挑选

Nginx dashboard：https://grafana.com/grafana/dashboards/12708-nginx/ ID：12780

Redis dashboard：https://grafana.com/grafana/dashboards/22493-redis-overview/ ID：22493

Mysql dashboard：https://grafana.com/grafana/dashboards/14031-mysql-dashboard/ ID：14031

Rabbitmq dashboard：https://grafana.com/grafana/dashboards/10991-rabbitmq-overview/ ID：10991

Docker dashboard：https://grafana.com/grafana/dashboards/19908-docker-container-monitoring-with-prometheus-and-cadvisor/ ID：19908

至此，Prometheus监控Nginx、MySQL、Redis、Docker、RabbitMQ整套服务部署完毕

后续监控其他服务均可沿用统一流程： 1，被监控主机部署对应业务服务 2，部署该服务专属Exporter采集指标 3，监控端修改prometheus.yml添加抓取任务 4，按需编写告警规则配置告警 5，最后在Grafana导入对应监控面板，即可可视化展示数据

注： 文中若有疏漏，欢迎大家指正赐教。 本文为100%原创，转载请务必标注原创作者，尊重劳动成果。 求赞、求关注、求评论！你的支持是我更新的最大动力，评论区等你～
