Docker Volume 命令：容器数据持久化完全指南

Docker Volume 命令：容器数据持久化完全指南

• • 一、Docker 数据卷概述
  • • 1.1 数据卷架构
    • 1.2 数据卷类型对比
  • 二、核心命令详解
  • • 2.1 卷列表查看（docker volume ls）
    • 2.2 卷创建（docker volume create）
    • 2.3 卷详情查看（docker volume inspect）
  • 三、数据卷生命周期管理
  • • 3.1 卷删除（docker volume rm/prune）
    • 3.2 批量清理策略
  • 四、高级数据管理
  • • 4.1 卷数据备份与恢复
    • 4.2 多容器数据共享
  • 五、实战应用场景
  • • 5.1 数据库持久化
    • 5.2 CI/CD 数据缓存
  • 六、常见问题解决方案
  • • 6.1 卷空间不足
    • 6.2 权限问题处理
  • 七、最佳实践指南
  • • 7.1 生产环境检查清单
    • 7.2 开发环境优化建议
  • 八、总结与延伸

一、Docker 数据卷概述

Docker 数据卷(Volume)是容器数据持久化的核心机制，它独立于容器的生命周期，为容器提供高效、可靠的数据存储解决方案。

1.1 数据卷架构

#mermaid-svg-O9tqRWBu2s0cBD4O {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-O9tqRWBu2s0cBD4O .error-icon{fill:#552222;}#mermaid-svg-O9tqRWBu2s0cBD4O .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-O9tqRWBu2s0cBD4O .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-O9tqRWBu2s0cBD4O .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-O9tqRWBu2s0cBD4O .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-O9tqRWBu2s0cBD4O .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-O9tqRWBu2s0cBD4O .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-O9tqRWBu2s0cBD4O .marker{fill:#333333;stroke:#333333;}#mermaid-svg-O9tqRWBu2s0cBD4O .marker.cross{stroke:#333333;}#mermaid-svg-O9tqRWBu2s0cBD4O svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-O9tqRWBu2s0cBD4O .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-O9tqRWBu2s0cBD4O .cluster-label text{fill:#333;}#mermaid-svg-O9tqRWBu2s0cBD4O .cluster-label span{color:#333;}#mermaid-svg-O9tqRWBu2s0cBD4O .label text,#mermaid-svg-O9tqRWBu2s0cBD4O span{fill:#333;color:#333;}#mermaid-svg-O9tqRWBu2s0cBD4O .node rect,#mermaid-svg-O9tqRWBu2s0cBD4O .node circle,#mermaid-svg-O9tqRWBu2s0cBD4O .node ellipse,#mermaid-svg-O9tqRWBu2s0cBD4O .node polygon,#mermaid-svg-O9tqRWBu2s0cBD4O .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-O9tqRWBu2s0cBD4O .node .label{text-align:center;}#mermaid-svg-O9tqRWBu2s0cBD4O .node.clickable{cursor:pointer;}#mermaid-svg-O9tqRWBu2s0cBD4O .arrowheadPath{fill:#333333;}#mermaid-svg-O9tqRWBu2s0cBD4O .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-O9tqRWBu2s0cBD4O .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-O9tqRWBu2s0cBD4O .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-O9tqRWBu2s0cBD4O .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-O9tqRWBu2s0cBD4O .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-O9tqRWBu2s0cBD4O .cluster text{fill:#333;}#mermaid-svg-O9tqRWBu2s0cBD4O .cluster span{color:#333;}#mermaid-svg-O9tqRWBu2s0cBD4O div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-O9tqRWBu2s0cBD4O :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}容器数据卷存储驱动本地存储网络存储云存储var/lib/docker/volumesNFS/iSCSIAWS EBS/Google Persistent Disk

1.2 数据卷类型对比

二、核心命令详解

2.1 卷列表查看（docker volume ls）

命令格式：

docker volume ls [OPTIONS]

过滤输出示例：

docker volume ls –filter "label=project=myapp"

输出字段说明图：

#mermaid-svg-BdhULIE6CdOf3lwm {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-BdhULIE6CdOf3lwm .error-icon{fill:#552222;}#mermaid-svg-BdhULIE6CdOf3lwm .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-BdhULIE6CdOf3lwm .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-BdhULIE6CdOf3lwm .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-BdhULIE6CdOf3lwm .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-BdhULIE6CdOf3lwm .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-BdhULIE6CdOf3lwm .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-BdhULIE6CdOf3lwm .marker{fill:#333333;stroke:#333333;}#mermaid-svg-BdhULIE6CdOf3lwm .marker.cross{stroke:#333333;}#mermaid-svg-BdhULIE6CdOf3lwm svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-BdhULIE6CdOf3lwm g.classGroup text{fill:#9370DB;fill:#131300;stroke:none;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:10px;}#mermaid-svg-BdhULIE6CdOf3lwm g.classGroup text .title{font-weight:bolder;}#mermaid-svg-BdhULIE6CdOf3lwm .nodeLabel,#mermaid-svg-BdhULIE6CdOf3lwm .edgeLabel{color:#131300;}#mermaid-svg-BdhULIE6CdOf3lwm .edgeLabel .label rect{fill:#ECECFF;}#mermaid-svg-BdhULIE6CdOf3lwm .label text{fill:#131300;}#mermaid-svg-BdhULIE6CdOf3lwm .edgeLabel .label span{background:#ECECFF;}#mermaid-svg-BdhULIE6CdOf3lwm .classTitle{font-weight:bolder;}#mermaid-svg-BdhULIE6CdOf3lwm .node rect,#mermaid-svg-BdhULIE6CdOf3lwm .node circle,#mermaid-svg-BdhULIE6CdOf3lwm .node ellipse,#mermaid-svg-BdhULIE6CdOf3lwm .node polygon,#mermaid-svg-BdhULIE6CdOf3lwm .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-BdhULIE6CdOf3lwm .divider{stroke:#9370DB;stroke:1;}#mermaid-svg-BdhULIE6CdOf3lwm g.clickable{cursor:pointer;}#mermaid-svg-BdhULIE6CdOf3lwm g.classGroup rect{fill:#ECECFF;stroke:#9370DB;}#mermaid-svg-BdhULIE6CdOf3lwm g.classGroup line{stroke:#9370DB;stroke-width:1;}#mermaid-svg-BdhULIE6CdOf3lwm .classLabel .box{stroke:none;stroke-width:0;fill:#ECECFF;opacity:0.5;}#mermaid-svg-BdhULIE6CdOf3lwm .classLabel .label{fill:#9370DB;font-size:10px;}#mermaid-svg-BdhULIE6CdOf3lwm .relation{stroke:#333333;stroke-width:1;fill:none;}#mermaid-svg-BdhULIE6CdOf3lwm .dashed-line{stroke-dasharray:3;}#mermaid-svg-BdhULIE6CdOf3lwm #compositionStart,#mermaid-svg-BdhULIE6CdOf3lwm .composition{fill:#333333!important;stroke:#333333!important;stroke-width:1;}#mermaid-svg-BdhULIE6CdOf3lwm #compositionEnd,#mermaid-svg-BdhULIE6CdOf3lwm .composition{fill:#333333!important;stroke:#333333!important;stroke-width:1;}#mermaid-svg-BdhULIE6CdOf3lwm #dependencyStart,#mermaid-svg-BdhULIE6CdOf3lwm .dependency{fill:#333333!important;stroke:#333333!important;stroke-width:1;}#mermaid-svg-BdhULIE6CdOf3lwm #dependencyStart,#mermaid-svg-BdhULIE6CdOf3lwm .dependency{fill:#333333!important;stroke:#333333!important;stroke-width:1;}#mermaid-svg-BdhULIE6CdOf3lwm #extensionStart,#mermaid-svg-BdhULIE6CdOf3lwm .extension{fill:#333333!important;stroke:#333333!important;stroke-width:1;}#mermaid-svg-BdhULIE6CdOf3lwm #extensionEnd,#mermaid-svg-BdhULIE6CdOf3lwm .extension{fill:#333333!important;stroke:#333333!important;stroke-width:1;}#mermaid-svg-BdhULIE6CdOf3lwm #aggregationStart,#mermaid-svg-BdhULIE6CdOf3lwm .aggregation{fill:#ECECFF!important;stroke:#333333!important;stroke-width:1;}#mermaid-svg-BdhULIE6CdOf3lwm #aggregationEnd,#mermaid-svg-BdhULIE6CdOf3lwm .aggregation{fill:#ECECFF!important;stroke:#333333!important;stroke-width:1;}#mermaid-svg-BdhULIE6CdOf3lwm .edgeTerminals{font-size:11px;}#mermaid-svg-BdhULIE6CdOf3lwm :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}VolumeInfo+Driver: string+VolumeName: string+Labels: map[string]string+MountCount: int

2.2 卷创建（docker volume create）

高级创建示例：

docker volume create \\
–driver local \\
–label env=production \\
–opt type=nfs \\
–opt device=:/nfs/share \\
–opt o=addr=192.168.1.100 \\
app_data

存储驱动选择图：

#mermaid-svg-q76ASTemBYFRutk6 {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-q76ASTemBYFRutk6 .error-icon{fill:#552222;}#mermaid-svg-q76ASTemBYFRutk6 .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-q76ASTemBYFRutk6 .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-q76ASTemBYFRutk6 .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-q76ASTemBYFRutk6 .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-q76ASTemBYFRutk6 .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-q76ASTemBYFRutk6 .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-q76ASTemBYFRutk6 .marker{fill:#333333;stroke:#333333;}#mermaid-svg-q76ASTemBYFRutk6 .marker.cross{stroke:#333333;}#mermaid-svg-q76ASTemBYFRutk6 svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-q76ASTemBYFRutk6 .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-q76ASTemBYFRutk6 .cluster-label text{fill:#333;}#mermaid-svg-q76ASTemBYFRutk6 .cluster-label span{color:#333;}#mermaid-svg-q76ASTemBYFRutk6 .label text,#mermaid-svg-q76ASTemBYFRutk6 span{fill:#333;color:#333;}#mermaid-svg-q76ASTemBYFRutk6 .node rect,#mermaid-svg-q76ASTemBYFRutk6 .node circle,#mermaid-svg-q76ASTemBYFRutk6 .node ellipse,#mermaid-svg-q76ASTemBYFRutk6 .node polygon,#mermaid-svg-q76ASTemBYFRutk6 .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-q76ASTemBYFRutk6 .node .label{text-align:center;}#mermaid-svg-q76ASTemBYFRutk6 .node.clickable{cursor:pointer;}#mermaid-svg-q76ASTemBYFRutk6 .arrowheadPath{fill:#333333;}#mermaid-svg-q76ASTemBYFRutk6 .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-q76ASTemBYFRutk6 .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-q76ASTemBYFRutk6 .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-q76ASTemBYFRutk6 .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-q76ASTemBYFRutk6 .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-q76ASTemBYFRutk6 .cluster text{fill:#333;}#mermaid-svg-q76ASTemBYFRutk6 .cluster span{color:#333;}#mermaid-svg-q76ASTemBYFRutk6 div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-q76ASTemBYFRutk6 :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}VolumeLocalNFSAWS EBSAzure File Storage默认推荐共享存储

2.3 卷详情查看（docker volume inspect）

格式化输出示例：

docker volume inspect –format '{{.Mountpoint}}' my_volume

关键信息解析：

{
"Mountpoint": "/var/lib/docker/volumes/my_volume/_data",
"Status": {
"Size": "2.1GB",
"Usage": "1.3GB"
}
}

三、数据卷生命周期管理

3.1 卷删除（docker volume rm/prune）

安全删除流程：

#mermaid-svg-tJJKL0x55m6AqdVk {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-tJJKL0x55m6AqdVk .error-icon{fill:#552222;}#mermaid-svg-tJJKL0x55m6AqdVk .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-tJJKL0x55m6AqdVk .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-tJJKL0x55m6AqdVk .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-tJJKL0x55m6AqdVk .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-tJJKL0x55m6AqdVk .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-tJJKL0x55m6AqdVk .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-tJJKL0x55m6AqdVk .marker{fill:#333333;stroke:#333333;}#mermaid-svg-tJJKL0x55m6AqdVk .marker.cross{stroke:#333333;}#mermaid-svg-tJJKL0x55m6AqdVk svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-tJJKL0x55m6AqdVk .actor{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-tJJKL0x55m6AqdVk text.actor>tspan{fill:black;stroke:none;}#mermaid-svg-tJJKL0x55m6AqdVk .actor-line{stroke:grey;}#mermaid-svg-tJJKL0x55m6AqdVk .messageLine0{stroke-width:1.5;stroke-dasharray:none;stroke:#333;}#mermaid-svg-tJJKL0x55m6AqdVk .messageLine1{stroke-width:1.5;stroke-dasharray:2,2;stroke:#333;}#mermaid-svg-tJJKL0x55m6AqdVk #arrowhead path{fill:#333;stroke:#333;}#mermaid-svg-tJJKL0x55m6AqdVk .sequenceNumber{fill:white;}#mermaid-svg-tJJKL0x55m6AqdVk #sequencenumber{fill:#333;}#mermaid-svg-tJJKL0x55m6AqdVk #crosshead path{fill:#333;stroke:#333;}#mermaid-svg-tJJKL0x55m6AqdVk .messageText{fill:#333;stroke:#333;}#mermaid-svg-tJJKL0x55m6AqdVk .labelBox{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-tJJKL0x55m6AqdVk .labelText,#mermaid-svg-tJJKL0x55m6AqdVk .labelText>tspan{fill:black;stroke:none;}#mermaid-svg-tJJKL0x55m6AqdVk .loopText,#mermaid-svg-tJJKL0x55m6AqdVk .loopText>tspan{fill:black;stroke:none;}#mermaid-svg-tJJKL0x55m6AqdVk .loopLine{stroke-width:2px;stroke-dasharray:2,2;stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);}#mermaid-svg-tJJKL0x55m6AqdVk .note{stroke:#aaaa33;fill:#fff5ad;}#mermaid-svg-tJJKL0x55m6AqdVk .noteText,#mermaid-svg-tJJKL0x55m6AqdVk .noteText>tspan{fill:black;stroke:none;}#mermaid-svg-tJJKL0x55m6AqdVk .activation0{fill:#f4f4f4;stroke:#666;}#mermaid-svg-tJJKL0x55m6AqdVk .activation1{fill:#f4f4f4;stroke:#666;}#mermaid-svg-tJJKL0x55m6AqdVk .activation2{fill:#f4f4f4;stroke:#666;}#mermaid-svg-tJJKL0x55m6AqdVk .actorPopupMenu{position:absolute;}#mermaid-svg-tJJKL0x55m6AqdVk .actorPopupMenuPanel{position:absolute;fill:#ECECFF;box-shadow:0px 8px 16px 0px rgba(0,0,0,0.2);filter:drop-shadow(3px 5px 2px rgb(0 0 0 / 0.4));}#mermaid-svg-tJJKL0x55m6AqdVk .actor-man line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-tJJKL0x55m6AqdVk .actor-man circle,#mermaid-svg-tJJKL0x55m6AqdVk line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;stroke-width:2px;}#mermaid-svg-tJJKL0x55m6AqdVk :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}UserDockerStoragevolume rm my_volume检查使用状态错误提示删除数据确认删除操作成功alt[正在使用][未使用]UserDockerStorage

3.2 批量清理策略

# 删除未被任何容器引用的卷
docker volume prune –filter "until=24h" –force

清理策略对比表：

四、高级数据管理

4.1 卷数据备份与恢复

备份流程：

docker run –rm \\
-v my_volume:/source \\
-v /backup:/backup \\
alpine tar czf /backup/my_volume_$(date +%Y%m%d).tar.gz -C /source .

恢复流程：

docker run –rm \\
-v my_new_volume:/target \\
-v /backup:/backup \\
alpine tar xzf /backup/backup.tar.gz -C /target

数据流转图：

#mermaid-svg-I8GZ3XKsShJGOL6g {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-I8GZ3XKsShJGOL6g .error-icon{fill:#552222;}#mermaid-svg-I8GZ3XKsShJGOL6g .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-I8GZ3XKsShJGOL6g .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-I8GZ3XKsShJGOL6g .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-I8GZ3XKsShJGOL6g .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-I8GZ3XKsShJGOL6g .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-I8GZ3XKsShJGOL6g .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-I8GZ3XKsShJGOL6g .marker{fill:#333333;stroke:#333333;}#mermaid-svg-I8GZ3XKsShJGOL6g .marker.cross{stroke:#333333;}#mermaid-svg-I8GZ3XKsShJGOL6g svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-I8GZ3XKsShJGOL6g .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-I8GZ3XKsShJGOL6g .cluster-label text{fill:#333;}#mermaid-svg-I8GZ3XKsShJGOL6g .cluster-label span{color:#333;}#mermaid-svg-I8GZ3XKsShJGOL6g .label text,#mermaid-svg-I8GZ3XKsShJGOL6g span{fill:#333;color:#333;}#mermaid-svg-I8GZ3XKsShJGOL6g .node rect,#mermaid-svg-I8GZ3XKsShJGOL6g .node circle,#mermaid-svg-I8GZ3XKsShJGOL6g .node ellipse,#mermaid-svg-I8GZ3XKsShJGOL6g .node polygon,#mermaid-svg-I8GZ3XKsShJGOL6g .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-I8GZ3XKsShJGOL6g .node .label{text-align:center;}#mermaid-svg-I8GZ3XKsShJGOL6g .node.clickable{cursor:pointer;}#mermaid-svg-I8GZ3XKsShJGOL6g .arrowheadPath{fill:#333333;}#mermaid-svg-I8GZ3XKsShJGOL6g .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-I8GZ3XKsShJGOL6g .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-I8GZ3XKsShJGOL6g .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-I8GZ3XKsShJGOL6g .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-I8GZ3XKsShJGOL6g .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-I8GZ3XKsShJGOL6g .cluster text{fill:#333;}#mermaid-svg-I8GZ3XKsShJGOL6g .cluster span{color:#333;}#mermaid-svg-I8GZ3XKsShJGOL6g div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-I8GZ3XKsShJGOL6g :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}生产卷备份tar存储服务器新环境卷

4.2 多容器数据共享

# 创建共享卷
docker volume create shared_data

# 多个容器挂载
docker run -v shared_data:/app/data app1
docker run -v shared_data:/app/data app2

并发访问控制：

#mermaid-svg-T5URG1ZoBlCygfYL {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-T5URG1ZoBlCygfYL .error-icon{fill:#552222;}#mermaid-svg-T5URG1ZoBlCygfYL .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-T5URG1ZoBlCygfYL .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-T5URG1ZoBlCygfYL .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-T5URG1ZoBlCygfYL .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-T5URG1ZoBlCygfYL .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-T5URG1ZoBlCygfYL .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-T5URG1ZoBlCygfYL .marker{fill:#333333;stroke:#333333;}#mermaid-svg-T5URG1ZoBlCygfYL .marker.cross{stroke:#333333;}#mermaid-svg-T5URG1ZoBlCygfYL svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-T5URG1ZoBlCygfYL .actor{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-T5URG1ZoBlCygfYL text.actor>tspan{fill:black;stroke:none;}#mermaid-svg-T5URG1ZoBlCygfYL .actor-line{stroke:grey;}#mermaid-svg-T5URG1ZoBlCygfYL .messageLine0{stroke-width:1.5;stroke-dasharray:none;stroke:#333;}#mermaid-svg-T5URG1ZoBlCygfYL .messageLine1{stroke-width:1.5;stroke-dasharray:2,2;stroke:#333;}#mermaid-svg-T5URG1ZoBlCygfYL #arrowhead path{fill:#333;stroke:#333;}#mermaid-svg-T5URG1ZoBlCygfYL .sequenceNumber{fill:white;}#mermaid-svg-T5URG1ZoBlCygfYL #sequencenumber{fill:#333;}#mermaid-svg-T5URG1ZoBlCygfYL #crosshead path{fill:#333;stroke:#333;}#mermaid-svg-T5URG1ZoBlCygfYL .messageText{fill:#333;stroke:#333;}#mermaid-svg-T5URG1ZoBlCygfYL .labelBox{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-T5URG1ZoBlCygfYL .labelText,#mermaid-svg-T5URG1ZoBlCygfYL .labelText>tspan{fill:black;stroke:none;}#mermaid-svg-T5URG1ZoBlCygfYL .loopText,#mermaid-svg-T5URG1ZoBlCygfYL .loopText>tspan{fill:black;stroke:none;}#mermaid-svg-T5URG1ZoBlCygfYL .loopLine{stroke-width:2px;stroke-dasharray:2,2;stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);}#mermaid-svg-T5URG1ZoBlCygfYL .note{stroke:#aaaa33;fill:#fff5ad;}#mermaid-svg-T5URG1ZoBlCygfYL .noteText,#mermaid-svg-T5URG1ZoBlCygfYL .noteText>tspan{fill:black;stroke:none;}#mermaid-svg-T5URG1ZoBlCygfYL .activation0{fill:#f4f4f4;stroke:#666;}#mermaid-svg-T5URG1ZoBlCygfYL .activation1{fill:#f4f4f4;stroke:#666;}#mermaid-svg-T5URG1ZoBlCygfYL .activation2{fill:#f4f4f4;stroke:#666;}#mermaid-svg-T5URG1ZoBlCygfYL .actorPopupMenu{position:absolute;}#mermaid-svg-T5URG1ZoBlCygfYL .actorPopupMenuPanel{position:absolute;fill:#ECECFF;box-shadow:0px 8px 16px 0px rgba(0,0,0,0.2);filter:drop-shadow(3px 5px 2px rgb(0 0 0 / 0.4));}#mermaid-svg-T5URG1ZoBlCygfYL .actor-man line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-T5URG1ZoBlCygfYL .actor-man circle,#mermaid-svg-T5URG1ZoBlCygfYL line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;stroke-width:2px;}#mermaid-svg-T5URG1ZoBlCygfYL :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}App1VolumeApp2写入数据通知变更读取新数据App1VolumeApp2

五、实战应用场景

5.1 数据库持久化

# 创建专用卷
docker volume create db_data

# 运行MySQL
docker run -d \\
-v db_data:/var/lib/mysql \\
-e MYSQL_ROOT_PASSWORD=secret \\
mysql:8.0

数据持久化图：

#mermaid-svg-MT0SEpt0dmYx73yP {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-MT0SEpt0dmYx73yP .error-icon{fill:#552222;}#mermaid-svg-MT0SEpt0dmYx73yP .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-MT0SEpt0dmYx73yP .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-MT0SEpt0dmYx73yP .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-MT0SEpt0dmYx73yP .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-MT0SEpt0dmYx73yP .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-MT0SEpt0dmYx73yP .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-MT0SEpt0dmYx73yP .marker{fill:#333333;stroke:#333333;}#mermaid-svg-MT0SEpt0dmYx73yP .marker.cross{stroke:#333333;}#mermaid-svg-MT0SEpt0dmYx73yP svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-MT0SEpt0dmYx73yP .mermaid-main-font{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-family:var(–mermaid-font-family);}#mermaid-svg-MT0SEpt0dmYx73yP .exclude-range{fill:#eeeeee;}#mermaid-svg-MT0SEpt0dmYx73yP .section{stroke:none;opacity:0.2;}#mermaid-svg-MT0SEpt0dmYx73yP .section0{fill:rgba(102, 102, 255, 0.49);}#mermaid-svg-MT0SEpt0dmYx73yP .section2{fill:#fff400;}#mermaid-svg-MT0SEpt0dmYx73yP .section1,#mermaid-svg-MT0SEpt0dmYx73yP .section3{fill:white;opacity:0.2;}#mermaid-svg-MT0SEpt0dmYx73yP .sectionTitle0{fill:#333;}#mermaid-svg-MT0SEpt0dmYx73yP .sectionTitle1{fill:#333;}#mermaid-svg-MT0SEpt0dmYx73yP .sectionTitle2{fill:#333;}#mermaid-svg-MT0SEpt0dmYx73yP .sectionTitle3{fill:#333;}#mermaid-svg-MT0SEpt0dmYx73yP .sectionTitle{text-anchor:start;font-family:\’trebuchet ms\’,verdana,arial,sans-serif;font-family:var(–mermaid-font-family);}#mermaid-svg-MT0SEpt0dmYx73yP .grid .tick{stroke:lightgrey;opacity:0.8;shape-rendering:crispEdges;}#mermaid-svg-MT0SEpt0dmYx73yP .grid .tick text{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;fill:#333;}#mermaid-svg-MT0SEpt0dmYx73yP .grid path{stroke-width:0;}#mermaid-svg-MT0SEpt0dmYx73yP .today{fill:none;stroke:red;stroke-width:2px;}#mermaid-svg-MT0SEpt0dmYx73yP .task{stroke-width:2;}#mermaid-svg-MT0SEpt0dmYx73yP .taskText{text-anchor:middle;font-family:\’trebuchet ms\’,verdana,arial,sans-serif;font-family:var(–mermaid-font-family);}#mermaid-svg-MT0SEpt0dmYx73yP .taskTextOutsideRight{fill:black;text-anchor:start;font-family:\’trebuchet ms\’,verdana,arial,sans-serif;font-family:var(–mermaid-font-family);}#mermaid-svg-MT0SEpt0dmYx73yP .taskTextOutsideLeft{fill:black;text-anchor:end;}#mermaid-svg-MT0SEpt0dmYx73yP .task.clickable{cursor:pointer;}#mermaid-svg-MT0SEpt0dmYx73yP .taskText.clickable{cursor:pointer;fill:#003163!important;font-weight:bold;}#mermaid-svg-MT0SEpt0dmYx73yP .taskTextOutsideLeft.clickable{cursor:pointer;fill:#003163!important;font-weight:bold;}#mermaid-svg-MT0SEpt0dmYx73yP .taskTextOutsideRight.clickable{cursor:pointer;fill:#003163!important;font-weight:bold;}#mermaid-svg-MT0SEpt0dmYx73yP .taskText0,#mermaid-svg-MT0SEpt0dmYx73yP .taskText1,#mermaid-svg-MT0SEpt0dmYx73yP .taskText2,#mermaid-svg-MT0SEpt0dmYx73yP .taskText3{fill:white;}#mermaid-svg-MT0SEpt0dmYx73yP .task0,#mermaid-svg-MT0SEpt0dmYx73yP .task1,#mermaid-svg-MT0SEpt0dmYx73yP .task2,#mermaid-svg-MT0SEpt0dmYx73yP .task3{fill:#8a90dd;stroke:#534fbc;}#mermaid-svg-MT0SEpt0dmYx73yP .taskTextOutside0,#mermaid-svg-MT0SEpt0dmYx73yP .taskTextOutside2{fill:black;}#mermaid-svg-MT0SEpt0dmYx73yP .taskTextOutside1,#mermaid-svg-MT0SEpt0dmYx73yP .taskTextOutside3{fill:black;}#mermaid-svg-MT0SEpt0dmYx73yP .active0,#mermaid-svg-MT0SEpt0dmYx73yP .active1,#mermaid-svg-MT0SEpt0dmYx73yP .active2,#mermaid-svg-MT0SEpt0dmYx73yP .active3{fill:#bfc7ff;stroke:#534fbc;}#mermaid-svg-MT0SEpt0dmYx73yP .activeText0,#mermaid-svg-MT0SEpt0dmYx73yP .activeText1,#mermaid-svg-MT0SEpt0dmYx73yP .activeText2,#mermaid-svg-MT0SEpt0dmYx73yP .activeText3{fill:black!important;}#mermaid-svg-MT0SEpt0dmYx73yP .done0,#mermaid-svg-MT0SEpt0dmYx73yP .done1,#mermaid-svg-MT0SEpt0dmYx73yP .done2,#mermaid-svg-MT0SEpt0dmYx73yP .done3{stroke:grey;fill:lightgrey;stroke-width:2;}#mermaid-svg-MT0SEpt0dmYx73yP .doneText0,#mermaid-svg-MT0SEpt0dmYx73yP .doneText1,#mermaid-svg-MT0SEpt0dmYx73yP .doneText2,#mermaid-svg-MT0SEpt0dmYx73yP .doneText3{fill:black!important;}#mermaid-svg-MT0SEpt0dmYx73yP .crit0,#mermaid-svg-MT0SEpt0dmYx73yP .crit1,#mermaid-svg-MT0SEpt0dmYx73yP .crit2,#mermaid-svg-MT0SEpt0dmYx73yP .crit3{stroke:#ff8888;fill:red;stroke-width:2;}#mermaid-svg-MT0SEpt0dmYx73yP .activeCrit0,#mermaid-svg-MT0SEpt0dmYx73yP .activeCrit1,#mermaid-svg-MT0SEpt0dmYx73yP .activeCrit2,#mermaid-svg-MT0SEpt0dmYx73yP .activeCrit3{stroke:#ff8888;fill:#bfc7ff;stroke-width:2;}#mermaid-svg-MT0SEpt0dmYx73yP .doneCrit0,#mermaid-svg-MT0SEpt0dmYx73yP .doneCrit1,#mermaid-svg-MT0SEpt0dmYx73yP .doneCrit2,#mermaid-svg-MT0SEpt0dmYx73yP .doneCrit3{stroke:#ff8888;fill:lightgrey;stroke-width:2;cursor:pointer;shape-rendering:crispEdges;}#mermaid-svg-MT0SEpt0dmYx73yP .milestone{transform:rotate(45deg) scale(0.8,0.8);}#mermaid-svg-MT0SEpt0dmYx73yP .milestoneText{font-style:italic;}#mermaid-svg-MT0SEpt0dmYx73yP .doneCritText0,#mermaid-svg-MT0SEpt0dmYx73yP .doneCritText1,#mermaid-svg-MT0SEpt0dmYx73yP .doneCritText2,#mermaid-svg-MT0SEpt0dmYx73yP .doneCritText3{fill:black!important;}#mermaid-svg-MT0SEpt0dmYx73yP .activeCritText0,#mermaid-svg-MT0SEpt0dmYx73yP .activeCritText1,#mermaid-svg-MT0SEpt0dmYx73yP .activeCritText2,#mermaid-svg-MT0SEpt0dmYx73yP .activeCritText3{fill:black!important;}#mermaid-svg-MT0SEpt0dmYx73yP .titleText{text-anchor:middle;font-size:18px;fill:#333;font-family:\’trebuchet ms\’,verdana,arial,sans-serif;font-family:var(–mermaid-font-family);}#mermaid-svg-MT0SEpt0dmYx73yP :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}2023-08-012023-08-032023-08-052023-08-072023-08-092023-08-112023-08-132023-08-152023-08-172023-08-192023-08-212023-08-232023-08-252023-08-272023-08-292023-08-312023-09-01运行 持续存在 删除 容器数据卷数据库生命周期

5.2 CI/CD 数据缓存

# 创建缓存卷
docker volume create node_modules

# 构建阶段
docker run -v node_modules:/app/node_modules npm install

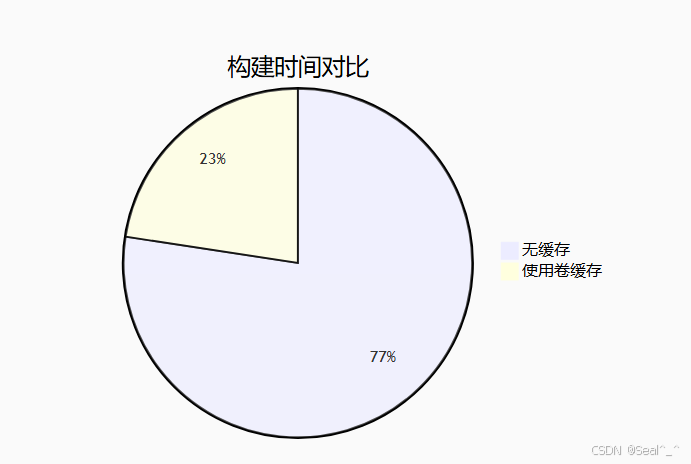

构建优化效果：

六、常见问题解决方案

6.1 卷空间不足

诊断命令：

docker system df -v

扩容流程图：

#mermaid-svg-sDe36Dlo5wxfwlui {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-sDe36Dlo5wxfwlui .error-icon{fill:#552222;}#mermaid-svg-sDe36Dlo5wxfwlui .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-sDe36Dlo5wxfwlui .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-sDe36Dlo5wxfwlui .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-sDe36Dlo5wxfwlui .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-sDe36Dlo5wxfwlui .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-sDe36Dlo5wxfwlui .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-sDe36Dlo5wxfwlui .marker{fill:#333333;stroke:#333333;}#mermaid-svg-sDe36Dlo5wxfwlui .marker.cross{stroke:#333333;}#mermaid-svg-sDe36Dlo5wxfwlui svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-sDe36Dlo5wxfwlui .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-sDe36Dlo5wxfwlui .cluster-label text{fill:#333;}#mermaid-svg-sDe36Dlo5wxfwlui .cluster-label span{color:#333;}#mermaid-svg-sDe36Dlo5wxfwlui .label text,#mermaid-svg-sDe36Dlo5wxfwlui span{fill:#333;color:#333;}#mermaid-svg-sDe36Dlo5wxfwlui .node rect,#mermaid-svg-sDe36Dlo5wxfwlui .node circle,#mermaid-svg-sDe36Dlo5wxfwlui .node ellipse,#mermaid-svg-sDe36Dlo5wxfwlui .node polygon,#mermaid-svg-sDe36Dlo5wxfwlui .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-sDe36Dlo5wxfwlui .node .label{text-align:center;}#mermaid-svg-sDe36Dlo5wxfwlui .node.clickable{cursor:pointer;}#mermaid-svg-sDe36Dlo5wxfwlui .arrowheadPath{fill:#333333;}#mermaid-svg-sDe36Dlo5wxfwlui .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-sDe36Dlo5wxfwlui .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-sDe36Dlo5wxfwlui .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-sDe36Dlo5wxfwlui .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-sDe36Dlo5wxfwlui .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-sDe36Dlo5wxfwlui .cluster text{fill:#333;}#mermaid-svg-sDe36Dlo5wxfwlui .cluster span{color:#333;}#mermaid-svg-sDe36Dlo5wxfwlui div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-sDe36Dlo5wxfwlui :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}是否空间不足分析使用情况是否可清理?删除无用卷扩展存储迁移数据

6.2 权限问题处理

解决方案：

docker run -v my_volume:/data \\
–user 1000:1000 \\
alpine touch /data/test

权限关系图：

#mermaid-svg-WdxvL7HrdELEmvxH {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-WdxvL7HrdELEmvxH .error-icon{fill:#552222;}#mermaid-svg-WdxvL7HrdELEmvxH .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-WdxvL7HrdELEmvxH .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-WdxvL7HrdELEmvxH .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-WdxvL7HrdELEmvxH .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-WdxvL7HrdELEmvxH .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-WdxvL7HrdELEmvxH .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-WdxvL7HrdELEmvxH .marker{fill:#333333;stroke:#333333;}#mermaid-svg-WdxvL7HrdELEmvxH .marker.cross{stroke:#333333;}#mermaid-svg-WdxvL7HrdELEmvxH svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-WdxvL7HrdELEmvxH .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-WdxvL7HrdELEmvxH .cluster-label text{fill:#333;}#mermaid-svg-WdxvL7HrdELEmvxH .cluster-label span{color:#333;}#mermaid-svg-WdxvL7HrdELEmvxH .label text,#mermaid-svg-WdxvL7HrdELEmvxH span{fill:#333;color:#333;}#mermaid-svg-WdxvL7HrdELEmvxH .node rect,#mermaid-svg-WdxvL7HrdELEmvxH .node circle,#mermaid-svg-WdxvL7HrdELEmvxH .node ellipse,#mermaid-svg-WdxvL7HrdELEmvxH .node polygon,#mermaid-svg-WdxvL7HrdELEmvxH .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-WdxvL7HrdELEmvxH .node .label{text-align:center;}#mermaid-svg-WdxvL7HrdELEmvxH .node.clickable{cursor:pointer;}#mermaid-svg-WdxvL7HrdELEmvxH .arrowheadPath{fill:#333333;}#mermaid-svg-WdxvL7HrdELEmvxH .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-WdxvL7HrdELEmvxH .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-WdxvL7HrdELEmvxH .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-WdxvL7HrdELEmvxH .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-WdxvL7HrdELEmvxH .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-WdxvL7HrdELEmvxH .cluster text{fill:#333;}#mermaid-svg-WdxvL7HrdELEmvxH .cluster span{color:#333;}#mermaid-svg-WdxvL7HrdELEmvxH div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-WdxvL7HrdELEmvxH :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}主机用户容器用户卷文件UID/GID映射

七、最佳实践指南

7.1 生产环境检查清单

7.2 开发环境优化建议

• 使用绑定挂载实现代码热更新：docker run -v $(pwd):/app app
• 配置合理的卷清理策略：docker system prune –volumes –filter "until=168h"

八、总结与延伸

Docker 数据卷系统提供了强大的数据管理能力，主要优势包括：

进阶方向：

• 实现分布式存储集成
• 开发自定义卷插件
• 构建数据迁移流水线
• 集成监控告警系统

通过掌握这些数据管理技巧，可以构建从开发到生产的可靠数据存储架构，确保容器化应用的数据安全性和可用性。
